Acura RSX Honda Integra. Manual - part 329

＊０１

０２

Ｓ６Ｍ６Ａ００Ｆ００００００４７０３１ＦＥＡＴ１０

−

Special Tools Required

K20A2 engine model:

7,160

7,850 kPa (73

80 kgf/cm , 1,040

1,140 psi)

K20Z1 engine model:

7,360

8,040 kPa (75

82 kgf/cm , 1,070

1,170 psi)

K20A3 engine model:

6,570

7,260 kPa (67

74 kgf/cm , 950

1,050 psi)

17-9

Pump Pressure Test with T/N 07406-0010001

07406-0010001

07ZAK-S7CA200

07ZAK-S7CA100

6 x 1.0 mm
11 N·m
(1.1 kgf·m,
8.0 lbf·ft)

07VAK-P8A011A

• P/S joint adapter (pump) 07VAK-P8A011A
• P/S joint adapter plate (pump) 07ZAK-S7CA100
• P/S joint adapter (hose) 07ZAK-S7CA200
• P/S pressure gauge 07406-0010001

Check the fluid pressure as follows to determine
whether the trouble is in the pump or gearbox.

1. Check the power steering fluid level (see page

17-12).

2. Disconnect the pump outlet hose (A) from the

pump outlet with care so as not to spill the power
steering fluid on the frame and other parts. Install
the P/S joint adapter (pump) on the pump outlet (B).

3. Connect the P/S joint adapter (hose) to the P/S

pressure gauge, then connect the pump outlet hose
(A) to the P/S joint adapter (hose).

4. Install the P/S pressure gauge to the P/S joint

adapter (pump).

5. Fully open the shut-off valve (A).

6. Fully open the pressure control valve (B).

7. Start the engine and let it idle.

8. Turn the steering wheel from lock-to-lock several

times to warm the fluid to operating temperature at
158 °F (70 °C).

9. Measure steady-state fluid pressure while the

engine is idling. If the pump is in good condition,
the pressure should be no more than 1,470 kPa
(15 kgf/cm , 213 psi). If the pressure is too high,
check for:

• Clogged or deformed feed or return line between

the pump and gearbox.

• Clogged valve body unit.

10. Raise the engine speed to 3,000 rpm, and measure

the fluid pressure. If the pump is in good condition,
the pressure should be at least 1,470 kPa
(15 kgf/cm , 213 psi). If the pressure is too high,
repair or replace the pump.

11. Lower the engine speed and let it idle. Close the

shut-off valve, then close the pressure control valve
gradually until the pressure gauge needle is stable.
Read the pressure.

Do not keep the shut-off valve closed more
than 5 seconds or the pump could be
damaged by overheating.

12. Immediately open the shut off valve fully. If the

pump is in good condition, the gauge should read
at least this specification:

A low reading means pump output is too low for
full assist. Repair or replace the pump (see page
17-14).

05/06/27 18:14:21 61S6M040_170_0010

＊０２

０４

Ｓ６Ｍ６Ａ００Ｆ００００００４７０３１ＦＥＡＴ２０

−

Special Tools Required

K20A2 engine model:

7,160

7,850 kPa (73

80 kgf/cm , 1,040

1,130 psi)

K20Z1 engine model:

7,360

8,040 kPa (75

82 kgf/cm , 1,070

1,170 psi)

K20A3 engine model:

6,570

7,260 kPa (67

74 kgf/cm , 960

1,060 psi)

17-10

Power Steering

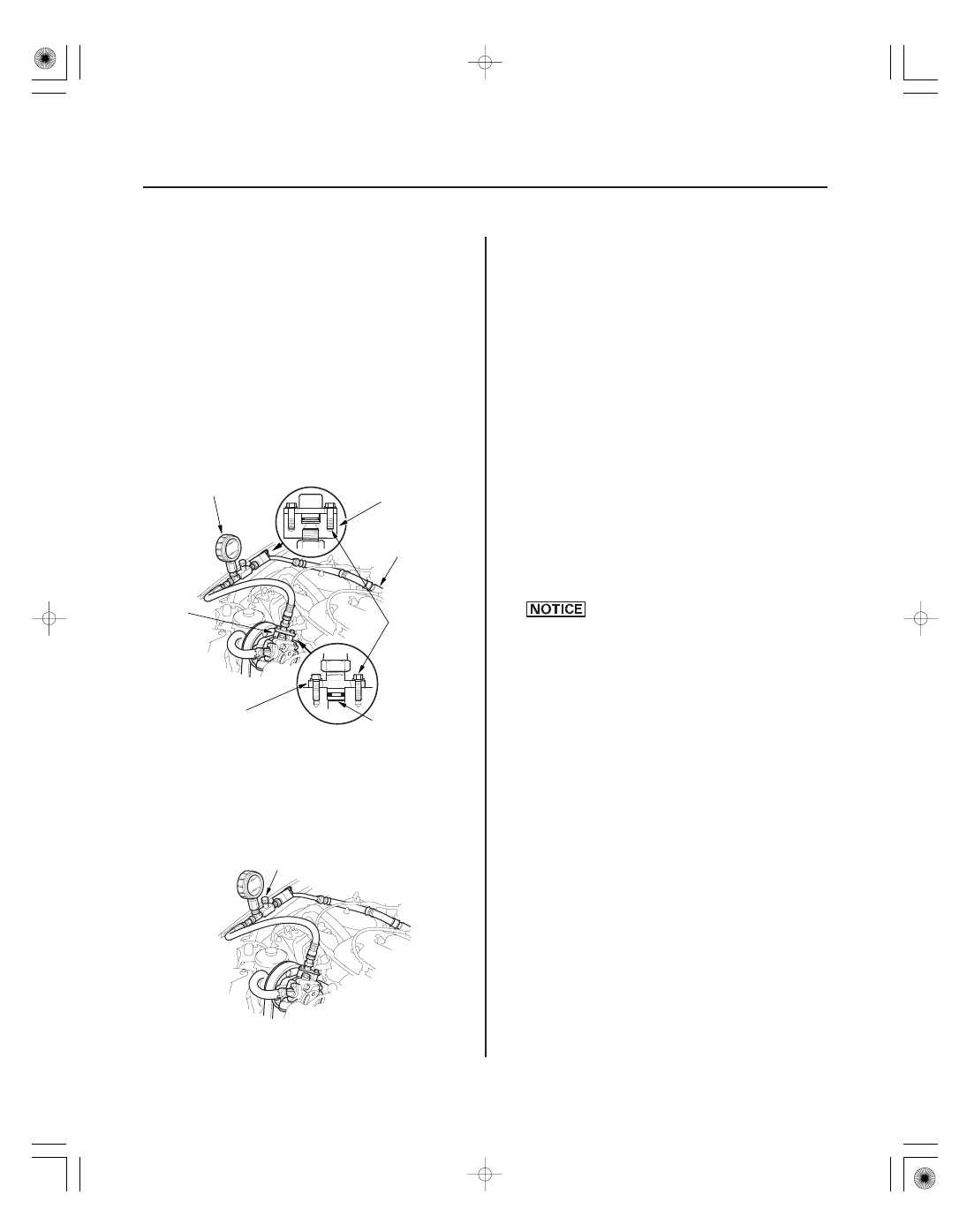

Pump Pressure Test with T/N 07406-001000A

07406-001000A

07ZAK-S7CA200

07ZAK-S7CA100

6 x 1.0 mm
11 N·m
(1.1 kgf·m,
8.0 lbf·ft)

07VAK-P8A011A

• P/S joint adapter (pump) 07VAK-P8A011A
• P/S joint adapter plate (pump) 07ZAK-S7CA100
• P/S joint adapter (hose) 07ZAK-S7CA200
• P/S pressure gauge 07406-001000A

Check the fluid pressure as follows to determine
whether the trouble is in the pump or gearbox.

1. Check the power steering fluid level (see page

17-12).

2. Disconnect the pump outlet hose (A) from the

pump outlet with care so as not to spill the power
steering fluid on the frame and other parts. Install
the P/S joint adapter (pump) on the pump outlet (B).

3. Connect the P/S joint adapter (hose) to the P/S

pressure gauge, then connect the pump outlet hose
(A) to the P/S joint adapter (hose).

4. Install the P/S pressure gauge to the P/S joint

adapter (pump).

5. Open the shut off valve (A) fully.

6. Start the engine and let it idle.

7. Turn the steering wheel from lock-to-lock several

times to warm the fluid to operating temperature at
158 °F (70 °C).

8. Measure steady-state fluid pressure while the

engine is idling. If the pump is in good condition,
the pressure should be no more than 1,470 kPa
(15 kgf/cm , 213 psi). If the pressure is too high,
check for:

• Clogged or deformed feed or return line between

the pump and gearbox.

• Clogged valve body unit.

9. Raise the engine speed to 3,000 rpm, and measure

the fluid pressure. If the pump is in good condition,
the pressure should be at least 1,470 kPa
(15 kgf/cm , 213 psi). If the pressure is too high,
repair or replace the pump.

10. Lower the engine speed and let it idle. Close the

shut off valve gradually. Read the pressure.

Do not keep the shut off valve closed more
than 5 seconds or the pump could be
damaged by overheating.

11. Immediately open the shut off valve fully. If the

pump is in good condition, the gauge should read
at least this specification:

A low reading means pump output is too low for
full assist. Repair or replace the pump (see page
17-14).

05/06/27 18:14:22 61S6M040_170_0011

０１

Ｓ６Ｍ６Ａ００Ｆ０００００００００００ＭＡＡＴ２０

17-11

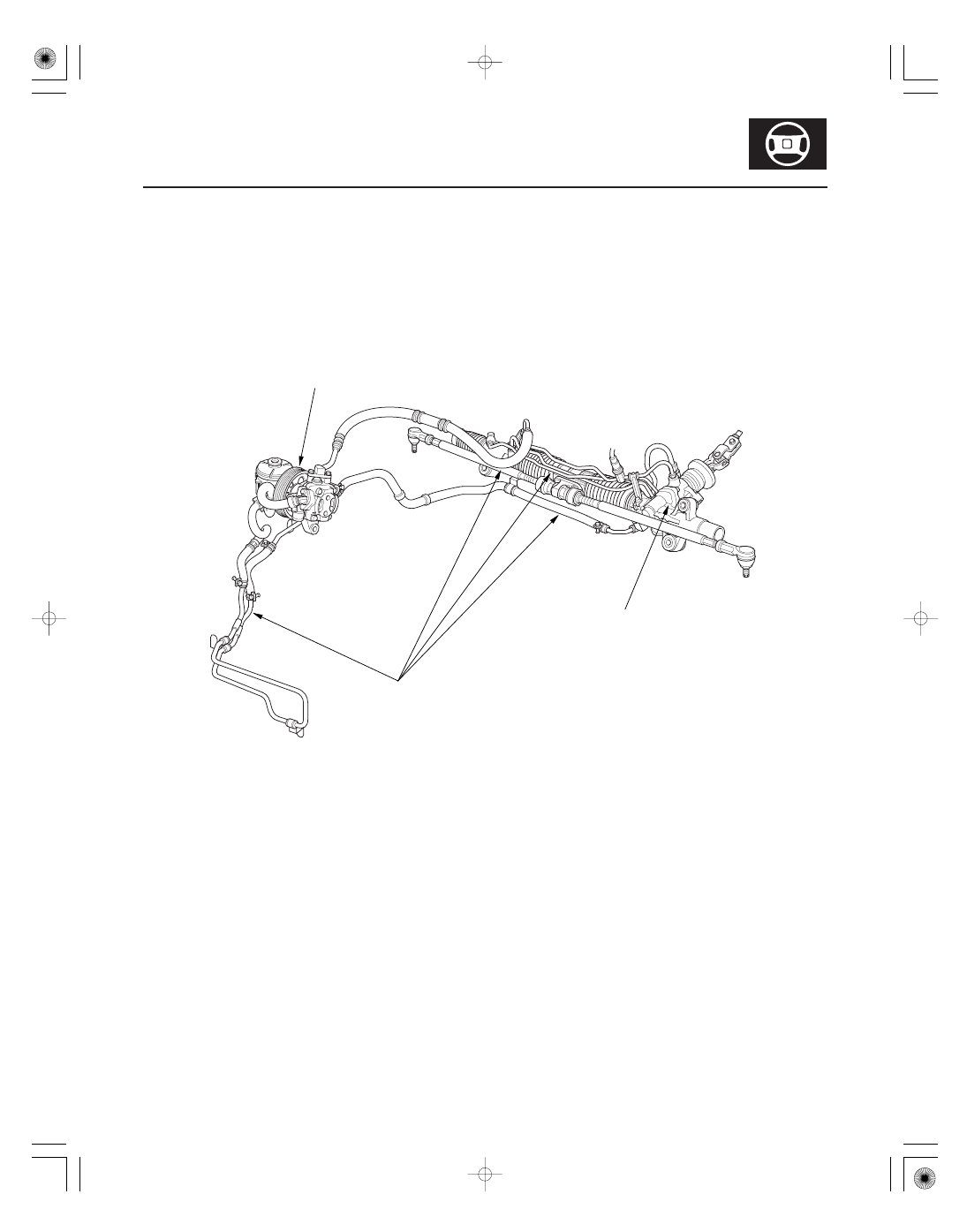

Fluid Leakage Inspection

HOSES and LINES

GEARBOX and VALVE BODY UNIT

PUMP ASSEMBLY

Inspect hoses for damage, leaks, interference, and twisting.
Inspect fluid lines for damage, rusting, and leakage.
Check for leaks at the hoses, line joints, and connections.

Check for leaks at the mating surface
and flare nut connections.

Check for leaks at the pump
seal and inlet and outlet fittings.

05/06/27 18:14:22 61S6M040_170_0012

０１

０２

Ｓ６Ｍ６Ａ００Ｆ００００００４７００１ＫＢＡＴ００

System capacity:

K20A3 engine model:

M/T model: 0.7 L (0.74 US. qt) at disassembly
A/T model: 0.8 L (0.85 US. qt) at disassembly

K20A2 engine model:

0.7 L (0.74 US. qt) at disassembly

K20Z1 engine model:

0.8 L (0.85 US. qt) at disassembly

Reservoir capacity:

0.2 L (0.21 US. qt)

17-12

Power Steering

Fluid Replacement

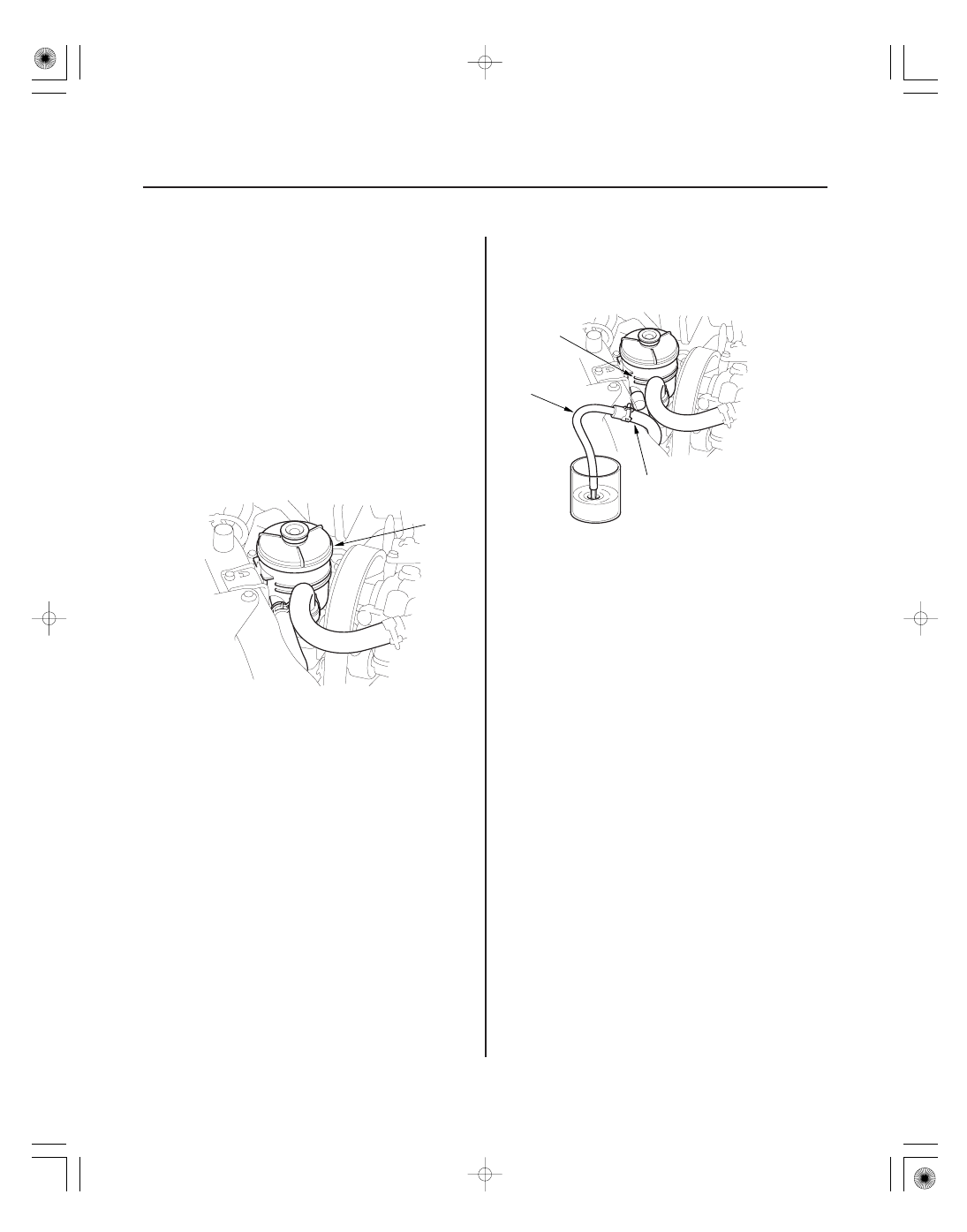

Check the reservoir (A) at regular intervals, and add the
recommended fluid as necessary. Always use ACURA
Power Steering Fluid. Using any other type of power
steering fluid or automatic transmission fluid can cause
increased wear and poor steering in cold weather.

1. Raise the reservoir, then disconnect the return hose

(A) to drain the reservoir. Take care not to spill the
fluid on the body and parts. Wipe off any spilled
fluid at once.

2. Connect a hose (B) of suitable diameter to the

disconnected return hose, and put the hose end in a
suitable container.

3. Start the engine, let it run at idle, and turn the

steering wheel from lock-to-lock several times.
When fluid stops running out of the hose, shut off
the engine. Discard the fluid.

4. Reinstall the return hose on the reservoir.

5. Fill the reservoir to the upper level line (C).

6. Start the engine and run it at fast idle, then turn the

steering from lock-to-lock several times to bleed air
from the system.

7. Recheck the fluid level and add more fluid if

necessary. Do not fill the reservoir beyond the
upper level line.

8. If the fluid is contaminated, dark, or discolored,

repeat this procedure as necessary.

05/06/27 18:14:22 61S6M040_170_0013
