16. Install the new set ring (A) on the left driveshaft (B).

17. Install the right and left driveshaft (see page 16-17).

While installing the left driveshaft in the differential,
be sure not to allow dust or other foreign particles
to enter the transmission.

NOTE:

• Clean the areas where the left driveshaft contacts

the transmission (differential) with solvent or
carburetor cleaner, and dry with compressed air.

• Turn the right and left steering knuckle fully

outward, and slide the left driveshaft into the
differential until you feel its set ring engages the
side gear. Slide the right driveshaft over the
intermediate shaft splines until you feel the
driveshaft engages the intermediate shaft set
ring.

18. Support the front subframe with the special tool

and a jack, and lift it up to body.

19. Loosely install four new front subframe mounting

bolts.

20. Align the reference marks (A) with the center of the

front subframe mounting bolt heads (B), then
tighten the bolts to the specified torque.

(cont’d)

Replace.

05/06/27 17:57:49 61S6M040_140_0286

１１

０５

１３

14-286

Automatic Transmission

Transmission Installation (cont’d)

10 x 1.25 mm
59 N·m (6.0 kgf·m, 43 lbf·ft)

A
12 x 1.25 mm
64 N·m (6.5 kgf·m, 47 lbf·ft)

6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

21. Install the rear mount bracket bolts.

22. Install a new front mount bolt (A) and nut (B),

connect the ATF cooler hose (C) to the ATF cooler
pipe.

23. Remove the jack from the transmission.

24. Attach the shift cable end (A) to the control lever (B),

then insert the control pin (C) into the control lever
hole through the shift cable end, and secure the
control pin with the spring clip (D). Do not bend the
shift cable excessively.

25. Install the shift cable cover (E), then secure the shift

cable holder (F) to the shift cable cover with the
bolts.

NOTE: To prevent damage to the shift cable end at
the control lever joint, be sure to secure the shift
cable holder to the shift cable cover after installing
the shift cable cover to the torque converter
housing.

Replace.

05/06/27 17:57:50 61S6M040_140_0287

１４

０６

１６

14-287

A
6 x 1.0 mm
12 N·m (1.2 kgf·m,
8.7 lbf·ft)

6 x 1.0 mm
12 N·m (1.2 kgf·m,
8.7 lbf·ft)

8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

10 x 1.25 mm
33 N·m (3.4 kgf·m,
25 lbf·ft)

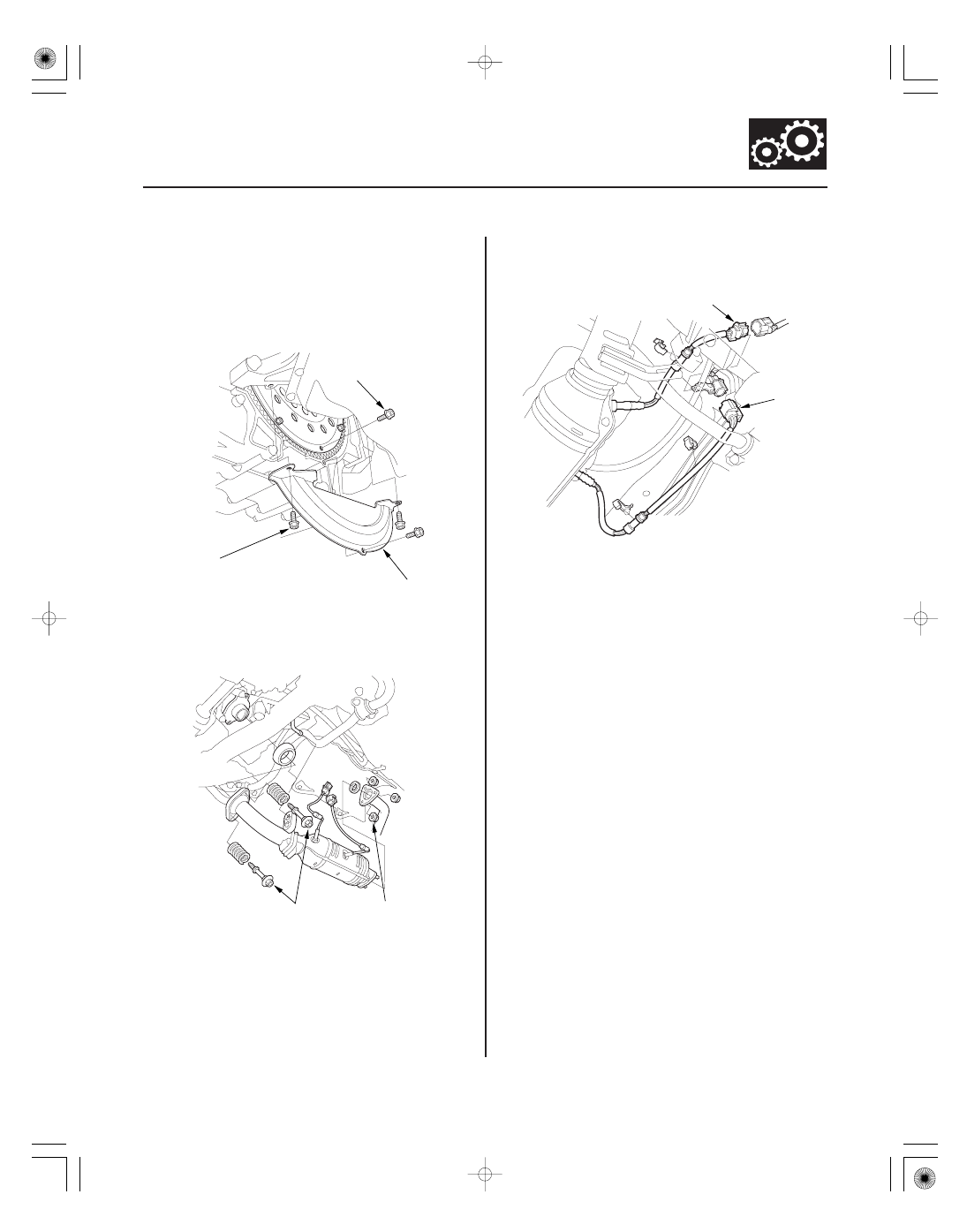

26. Attach the torque converter to the drive plate with

eight bolts (A). Rotate the crankshaft pulley as
necessary to tighten the bolts to 1/2 of the specified
torque, then to the final torque, in a crisscross
pattern. After tightening the last bolt, check that the
crankshaft rotates without stuck.

27. Install the torque converter cover (B).

28. Install the three way catalytic converter (TWC)

assembly with the new gaskets.

29. Connect the A/F sensor connector (A) and

secondary HO2S connector (B), and clamp the
harnesses.

30. Connect the ball joints to the lower arms, and

install the castle nuts and spring clips (see page
18-19).

31. Connect the ball joints to the lower arms, and

install the nuts. Insert a 5 mm Allen wrench (H) in
the top of the ball joint pins, and tighten the nuts
(see page 18-18).

(cont’d)

Replace.

05/06/27 17:57:50 61S6M040_140_0288

０４

０９

０５

０６

14-288

Automatic Transmission

Transmission Installation (cont’d)

EQS00BRSX0

A
6 x 1.0 mm
12 N·m (1.2 kgf·m,
8.7 lbf·ft)

B
8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

D
6 x 1.0 mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)

C
8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

32. Remove the engine support hanger.

33. Remove the special tool from the engine cylinder

head.

34. Install the brake booster and evaporative emission

(EVAP) line bracket mounting bolts (A) and air
cleaner housing bracket mounting bolt (B).

35. Tighten air cleaner housing bracket mounting bolt

(C), and install the water pipe mounting bolt (D).

36. Install the engine harness cover.

37. Connect the ATF cooler hoses (A) to the ATF cooler

lines (B) (see page 14-293).

38. Connect the shift solenoid harness connector (A),

A/T clutch pressure control solenoid valve B
connector, and solenoid valve C connector. Install
the harness clamps (D) on the clamp brackets. (E).

05/06/27 17:57:51 61S6M040_140_0289
