Acura RSX Honda Integra. Manual - part 269

０１

Ｓ６Ｍ６ＡＰＰＫ７７１０００９０８４７ＦＡＡＴ００

−

DTC P0847:

2005-2006 Models

YES

14-201

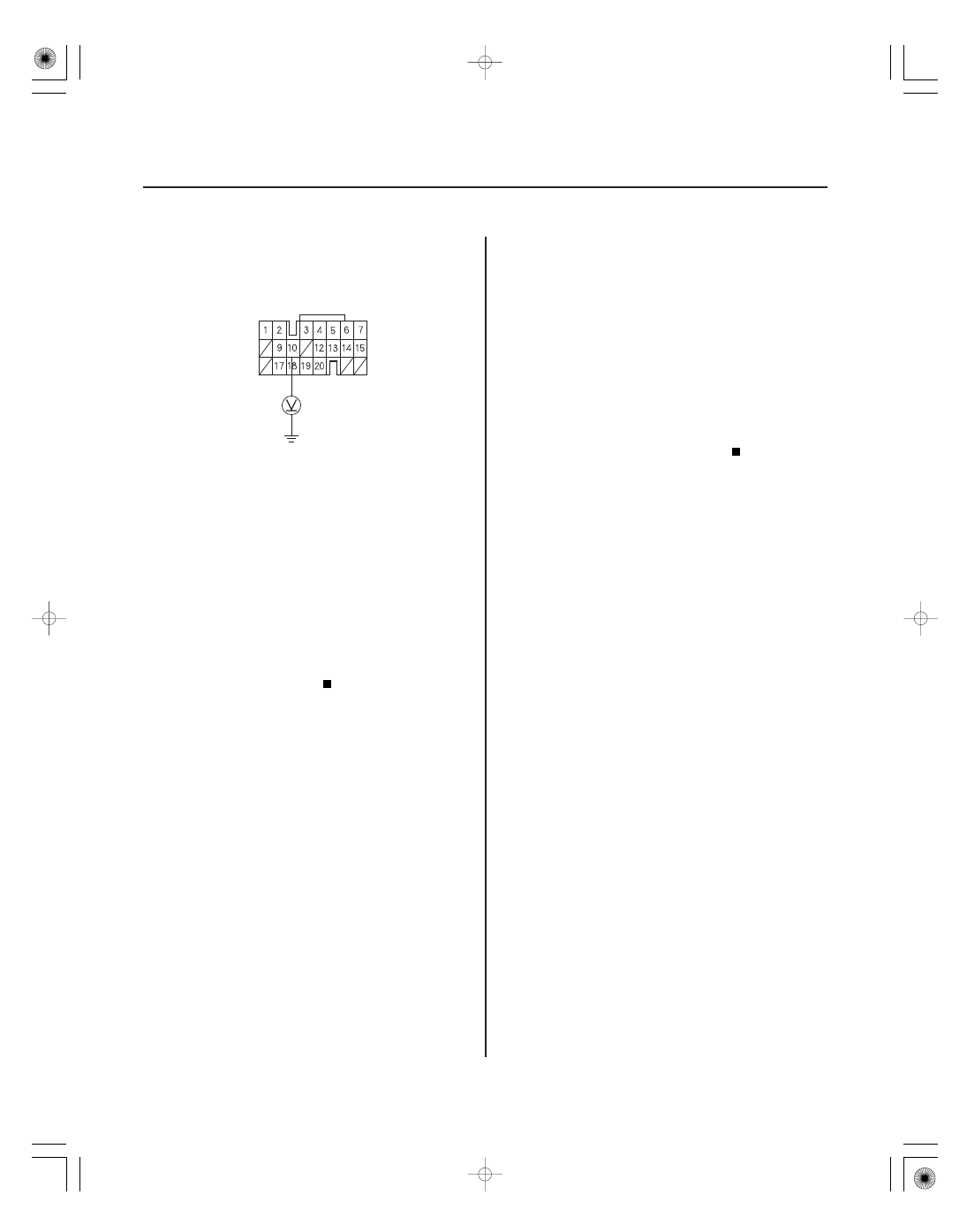

PCM CONNECTOR C (22P)

OP3SW (BLU/WHT)

Short in 3rd Clutch Transmission

Fluid Pressure Switch Circuit, or 3rd Clutch
Transmission Fluid Pressure Switch Stuck
ON

NOTE:

• Record all freeze data and review General

Troubleshooting Information (see page 14-8) before
you troubleshoot.

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Clear the DTC with the HDS.

2. Check the 3rd PRES SWITCH signal with the HDS in

the A/T data list when not in 3rd gear.

Go to step 5.

Go to step 3.

3. Start the engine, and warm it up to normal

operating temperature (the radiator fan comes on).
Drive the vehicle in 3rd gear in the M position for
more than 5 seconds, then upshift to 4th gear, and
drive in 4th gear for more than 5 seconds. Slow
down to a stop.

4. Monitor the OBD status for P0847 in the DTCs/

Freeze Data in A/T Mode Menu for a pass/fail.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check the BLU/WHT wire for an intermittent
short to ground between the 3rd clutch
transmission fluid pressure switch and PCM. If the
tester indicates NOT COMPLETED, return to step 3
and recheck.

5. Turn the ignition switch OFF.

6. Disconnect the 3rd clutch transmission fluid

pressure switch connector.

7. Turn the ignition switch ON (II).

8. Check the 3rd PRES SWITCH signal with the HDS in

the A/T data list.

Replace the 3rd clutch transmission fluid

pressure switch (see page 14-267), then go to step
13.

Go to step 9.

9. Turn the ignition switch OFF.

10. Jump the SCS line with the HDS.

11. Disconnect PCM connector C (22P).

12. Check for continuity between PCM connector

terminal C10 and body ground.

Repair short to ground in the wire between

PCM connector terminal C10 and the 3rd clutch
transmission fluid pressure switch, go to step 13.

Update the PCM if it does not have the latest

software, or substitute a known-good PCM
(see page 14-11), then recheck. If the symptom/
indication goes away with a known-good PCM,
replace the original PCM.

(cont’d)

Wire side of female terminals

Is the 3r d PRES SW IT CH ON?

Does the r esult indicate a f ailed?

Is the 3r d PRES SW IT CH OF F ?

Is ther e continuity?

05/06/27 17:52:13 61S6M040_140_0202

−

YES

14-202

Automatic Transmission

DTC Troubleshooting (cont’d)

13. Clear the DTC with the HDS.

14. Start the engine, and warm it up to normal

15. Monitor the OBD status for P0847 in the DTCs/

Freeze Data in A/T Mode Menu for a pass/fail.

Troubleshooting is completed.

Return to step 1 and recheck.

Does the r esult indicate a passed?

05/06/27 17:52:13 61S6M040_140_0203

０１

Ｓ６Ｍ６ＡＰＰＫ７７１０００９０８４８ＦＡＡＴ００

−

DTC P0848:

2005-2006 Models

YES

14-203

3RD CLUTCH TRANSMISSION
FLUID PRESSURE SWITCH CONNECTOR

OP3SW (BLU/WHT)

Open in 3rd Clutch Transmission

Fluid Pressure Switch Circuit, or 3rd Clutch
Transmission Fluid Pressure Switch Stuck
OFF

NOTE:

• Record all freeze data and review General

Troubleshooting Information (see page 14-8) before
you troubleshoot.

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Clear the DTC with the HDS.

2. Start the engine, and warm it up to normal

operating temperature (the radiator fan comes on).
Drive the vehicle in the 3rd gear in the M position,
and verify that the SHIFT MAP NUMBER indicates
3rd with the HDS in the A/T data list.

3. Check the 3rd PRES SWITCH signal with the HDS in

the A/T data list.

Go to step 4.

Go to step 6.

4. Drive the vehicle in 3rd gear in the M position for

more than 5 seconds, then upshift to 4th gear, and
drive in 4th gear for more than 5 seconds. Slow
down to a stop.

5. Monitor the OBD status for P0848 in the DTCs/

Freeze Data in A/T Mode Menu for a pass/fail.

Go to step 6.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the 3rd clutch transmission fluid pressure switch
and PCM. If the tester indicates NOT COMPLETED,
return to step 4 and recheck.

6. Turn the ignition switch OFF.

7. Disconnect the 3rd clutch transmission fluid

pressure switch connector.

8. Turn the ignition switch ON (II).

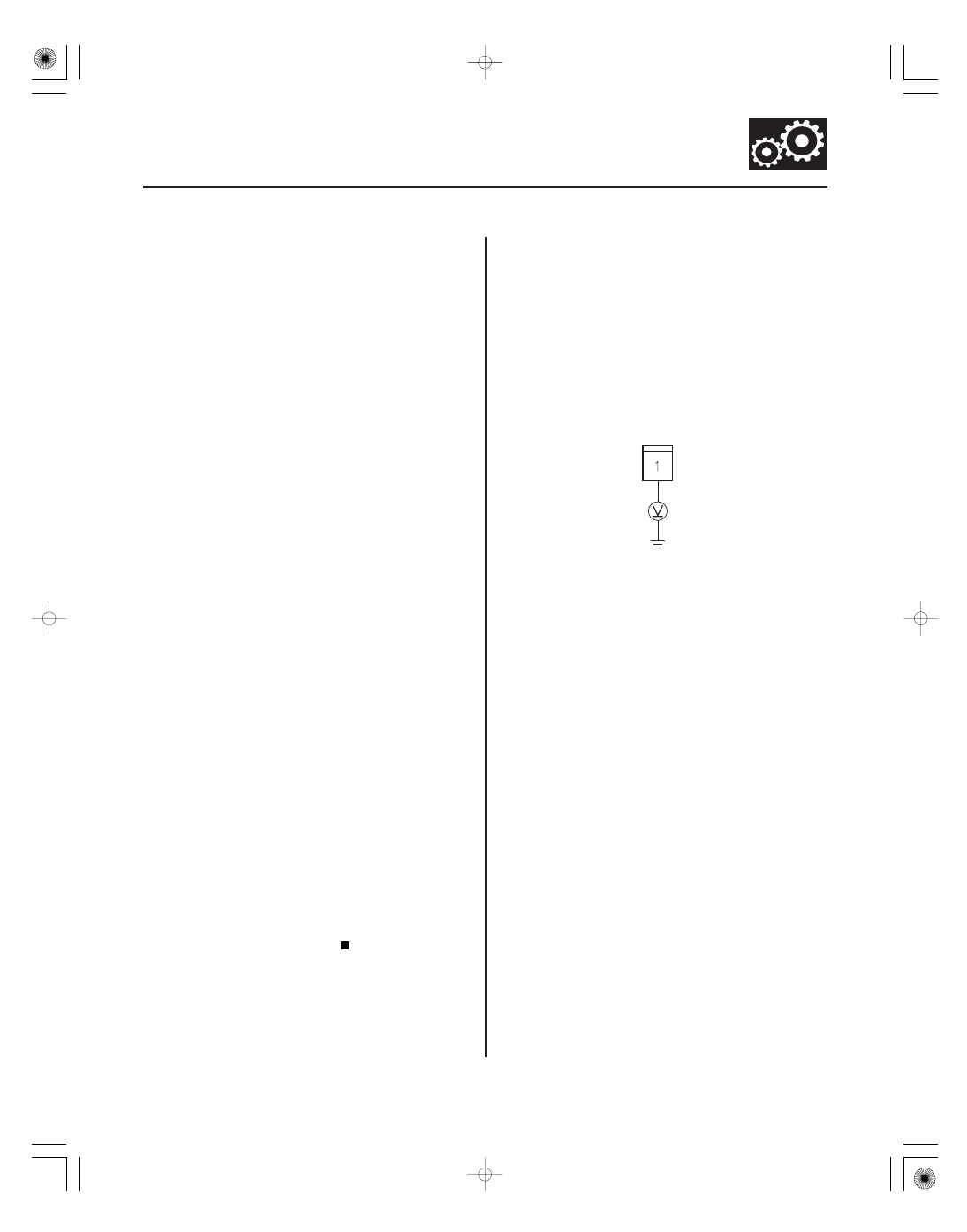

9. Measure the voltage between the 3rd clutch

transmission fluid pressure switch connector
terminal and body ground.

Replace the 3rd clutch transmission fluid

pressure switch (see page 14-267), then go to step
11.

Go to step 10.

(cont’d)

Wire side of female terminals

Is the 3r d PRES SW IT CH ON?

Does the r esult indicate a f ailed?

Is ther e about 5 V ?

05/06/27 17:52:13 61S6M040_140_0204

０２

−

YES

14-204

Automatic Transmission

DTC Troubleshooting (cont’d)

PCM CONNECTOR C (22P)

OP3SW (BLU/WHT)

10. Measure the voltage between PCM connector

terminal C10 and body ground.

Repair open in the wire between PCM

connector terminal C10 and the 3rd clutch
transmission fluid pressure switch, then go to step
11.

Check for loose or poor connections at PCM

connector terminal C10. If the connection is OK,
update the PCM if it does not have the latest
software, or substitute a known-good PCM
(see page 14-11), then recheck. If the symptom/
indication goes away with a known-good PCM,
replace the original PCM.

11. Clear the DTC with the HDS.

12. Start the engine, and warm it up to normal

13. Monitor the OBD status for P0848 in the DTCs/

Freeze Data in A/T Mode Menu for a pass/fail.

Troubleshooting is completed.

Return to step 1 and recheck.

Wire side of female terminals

Is ther e about 5 V ?

Does the r esult indicate a passed?

05/06/27 17:52:13 61S6M040_140_0205
