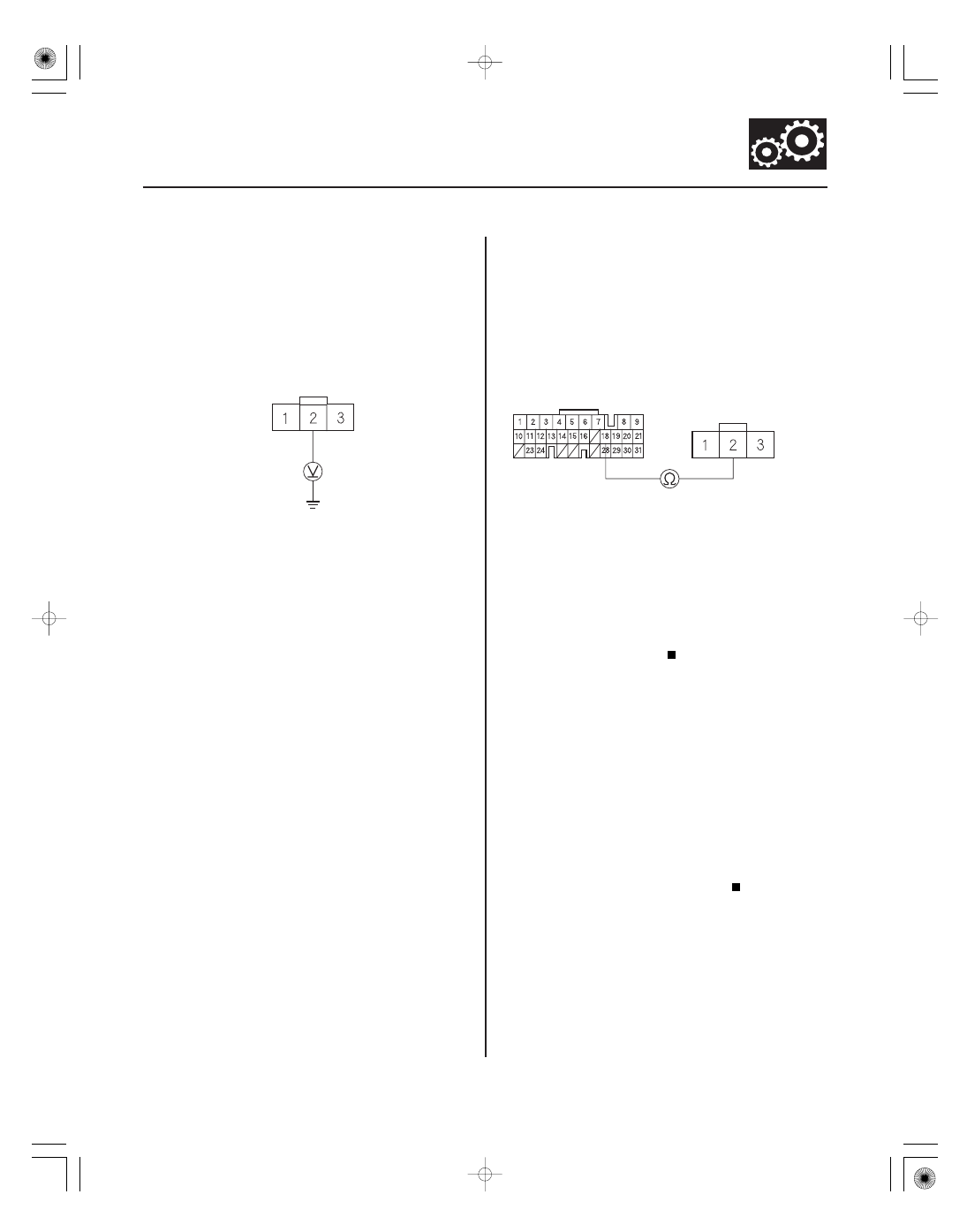

02 03 − − − − − − YES NO YES NO YES NO 14-173 OUTPUT SHAFT (COUNTERSHAFT) NC (BLU) OUTPUT SHAFT NC (BLU) PCM CONNECTOR A (31P) NC (BLU) 12. Connect PCM connector A (31P). 13. Turn the ignition switch ON (II). 14. Measure the voltage between output shaft (countershaft) speed sensor connector terminal Replace the output shaft (countershaft) speed sensor (see page 14-266), then go to step 18. Go to step 15. 15. Turn the ignition switch OFF. 16. Disconnect PCM connector A (31P). 17. Check for continuity between PCM connector terminal A18 and output shaft (countershaft) speed Update the PCM if it does not have the latest software, or substitute a known-good PCM Repair open in the wire between PCM connector terminal A18 and the output shaft 18. Clear the DTC with the HDS. 19. Test-drive the vehicle for several minutes in the D position through all five gears. 20. Monitor the OBD status for P0723 in the DTCs/ Freeze Data in A/T Mode Menu for a pass/fail. Troubleshooting is completed. Return to step 1 and recheck. Wire side of female terminals Wire side of female terminals Is ther e about 5 V ? Is ther e continuity? Does the r esult indicate a passed? 05/06/27 17:51:26 61S6M040_140_0174 |
