DTC P0661:

YES

11-386

Intake Air System

DTC Troubleshooting (cont’d)

SG1
(GRN/WHT)

VCC1
(YEL/RED)

IMT (IMRC) VALVE POSITION
SENSOR 3P CONNECTOR

SG1

IMTVPS
(IMRCVPS)

IMT (IMRC) VALVE POSITION
SENSOR 3P CONNECTOR

IMTVPS
(IMRCVPS)

VCC1

IMT (IMRC) VALVE POSITION
SENSOR 3P CONNECTOR

IMT (IMRC) Valve Position Sensor

Circuit Low Voltage
(2005-2006 models)

1. Reset the ECM/PCM (see page 11-4).

2. Turn the ignition switch ON (II).

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the IMT (IMRC) valve position sensor and the ECM/
PCM.

3. Turn the ignition switch OFF.

4. Disconnect the IMT (IMRC) valve position sensor 3P

connector.

5. Turn the ignition switch ON (II).

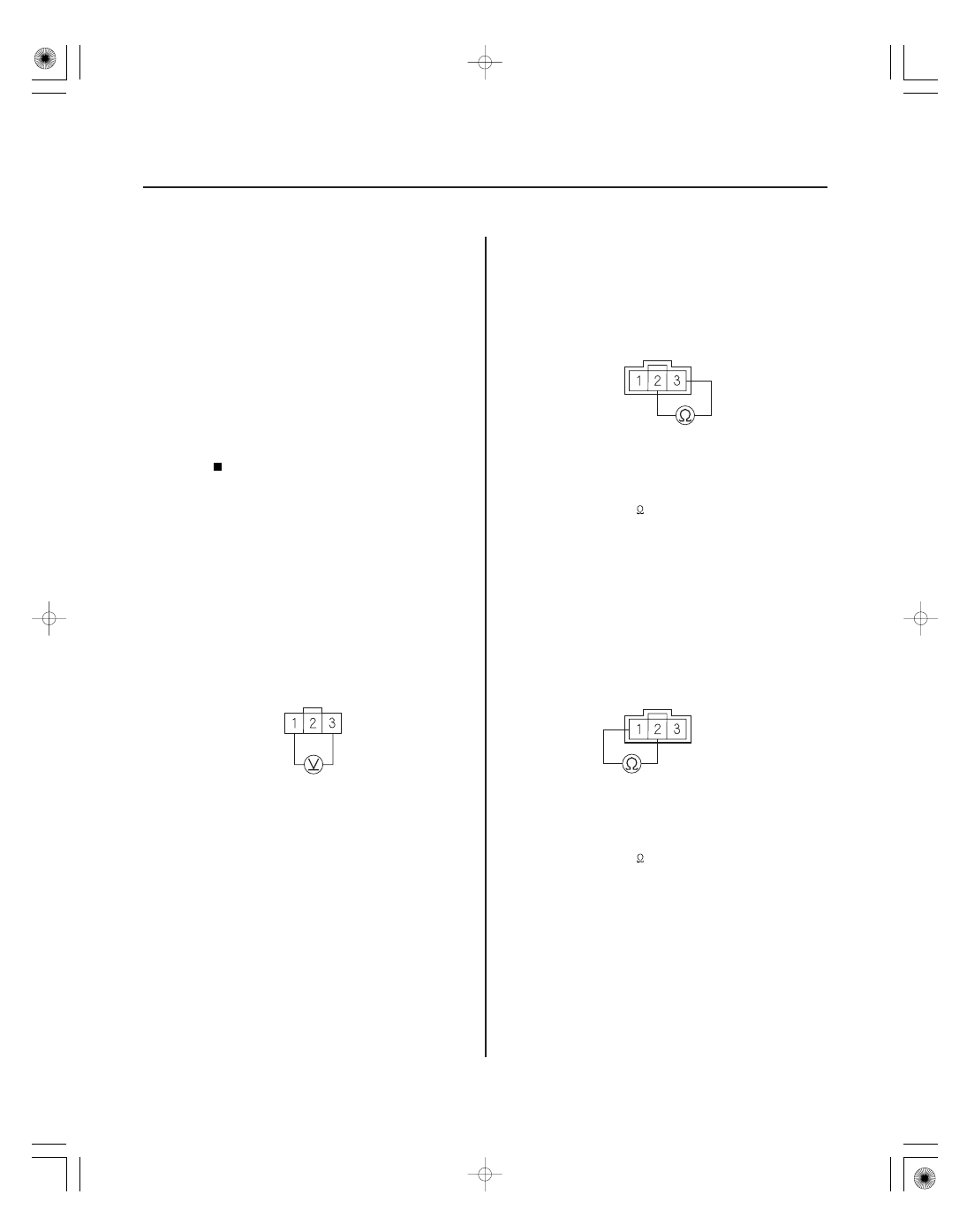

6. Measure voltage between IMT (IMRC) valve

position sensor 3P connector terminals No. 1 and
No. 3.

Go to step 7.

Go to step 15.

7. Turn the ignition switch OFF.

8. At the sensor side, measure resistance between

IMT (IMRC) valve position sensor 3P connector
terminals No. 2 and No. 3.

Go to step 9.

Go to step 16.

9. Measure resistance between IMT (IMRC) valve

position sensor 3P connector terminals No. 1 and
No. 2.

Go to step 10.

Go to step 16.

10. Jump the SCS line with the HDS.

11. Disconnect ECM/PCM connector A (31P).

Wire side of female terminals

Terminal side of male terminals

Is DT C P0661 indicated?

Is ther e about 5 V ?

Is ther e about 3.2 k

at r oom temper atur e?

Is ther e about 9.5 k

at r oom temper atur e?

05/06/27 17:41:56 61S6M040_110_0386

０４

０５

０６

０７

−

YES

11-387

IMTVPS
(IMRCVPS)
(RED/YEL)

IMT (IMRC) VALVE POSITION
SENSOR 3P CONNECTOR

ECM/PCM CONNECTOR B (24P)

IMTVPS
(IMRCVPS)
(RED/BLU)

JUMPER WIRE

IMTVPS
(IMRCVPS)
(RED/YEL)

IMT (IMRC) VALVE POSITION
SENSOR 3P CONNECTOR

ECM/PCM CONNECTOR A (31P)

VCC1
(YEL/RED)

SG1
(GRN/WHT)

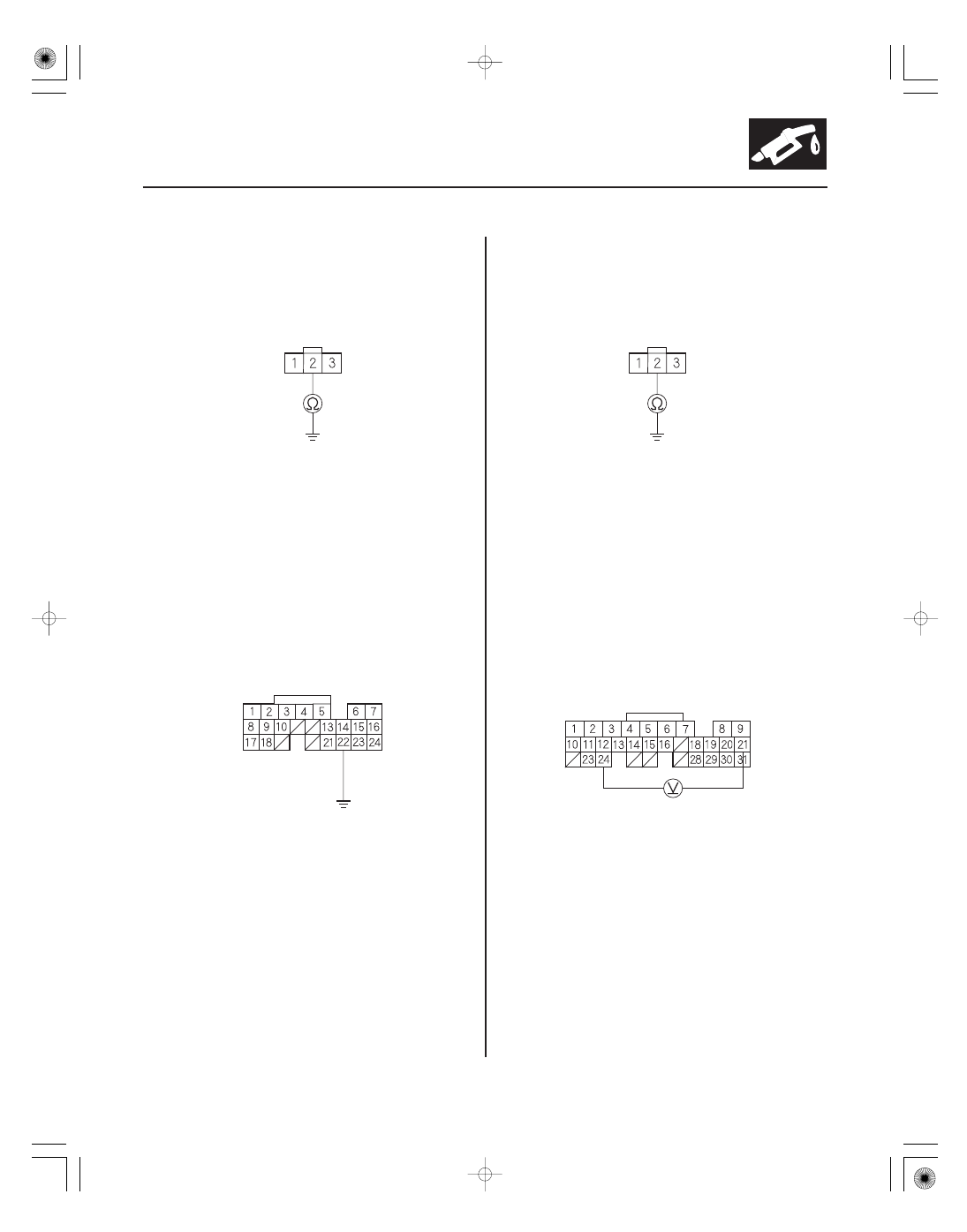

12. At the wire harness side, check for continuity

between IMT (IMRC) valve position sensor 3P
connector terminal No. 2 and body ground.

Repair short in the wire between the ECM/

PCM (B22) and the IMT (IMRC) valve position
sensor, then go to step 17.

Go to step 13.

13. Connect ECM/PCM connector terminal B22 to body

ground with a jumper wire.

14. At the wire harness side, check for continuity

between IMT (IMRC) valve position sensor 3P
connector terminal No. 2 and body ground.

Go to step 22.

Repair open in the wire between the ECM/

PCM (B22) and the IMT (IMRC) valve position
sensor, then go to step 17.

15. Measure voltage between ECM/PCM connector

terminals A21 and A24.

Repair open in the wire between the ECM/

PCM (A21) and the IMT (IMRC) valve position
sensor, then go to step 17.

Go to step 22.

(cont’d)

Wire side of female terminals

Is ther e continuity?

Is ther e about 5 V ?

05/06/27 17:41:56 61S6M040_110_0387

−

YES

11-388

Intake Air System

DTC Troubleshooting (cont’d)

16. Replace the IMT (IMRC) valve position sensor

(see page 11-413).

17. Reconnect all connectors.

18. Turn the ignition switch ON (II).

19. Reset the ECM/PCM with the HDS.

20. Do the ECM/PCM idle learn procedure (see page

11-349).

21. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0661 is indicated, check for poor

connections or loose terminals at the IMT (IMRC)
valve position sensor and the ECM/PCM, then go to
step 1. If any other Temporary DTCs or DTCs are
indicated, go to the indicated DTC’s
troubleshooting.

Troubleshooting is complete.

22. Update the ECM/PCM if it does not have the latest

software, or substitute a known-good ECM/PCM
(see page 11-6).

23. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0661 is indicated, check for poor

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-284).

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:41:56 61S6M040_110_0388

０１

０２

Ｓ６Ｍ６ＡＥＪＫ７２１０００９０６６２ＦＡＡＴ００

−

DTC P0662:

YES

11-389

IMT (IMRC) VALVE POSITION
SENSOR 3P CONNECTOR

SG1
(GRN/WHT)

VCC1
(YEL/RED)

ECM/PCM CONNECTOR A (31P)

VCC1
(YEL/RED)

SG1
(GRN/WHT)

IMT (IMRC) Valve Position Sensor

Circuit High Voltage
(2002-2004 models)

1. Reset the ECM/PCM (see page 11-4).

2. Turn the ignition switch ON (II).

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the IMT (IMRC) valve position sensor and the ECM/
PCM.

3. Turn the ignition switch OFF.

4. Disconnect the IMT (IMRC) valve position sensor 3P

connector.

5. Turn the ignition switch ON (II).

6. At the wire harness side, measure voltage between

IMT (IMRC) valve position sensor 3P connector
terminals No. 1 and No. 3.

Replace the IMT (IMRC) valve position

sensor (see page 11-413).

Go to step 7.

7. Measure voltage between ECM/PCM connector

terminals A11 and A21.

Repair open in the wire between the ECM/

PCM (A11) and the IMT (IMRC) valve position
sensor.

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Wire side of female terminals

Is DT C P0662 indicated?

Is ther e about 5 V ?
