DTC P2610:

YES

11-246

PGM-FI System

DTC Troubleshooting (cont’d)

ECM/PCM Internal Ignition Off

Internal Timer Malfunction
(2005-2006 models)

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Check for Temporary DTCs or DTCs with the HDS.

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Intermittent failure, system is OK at this

time.

Is DT C P2610 indicated?

05/06/27 17:38:33 61S6M040_110_0246

−

Ｓ６Ｍ６ＡＡＬＫ７２１０００９２Ａ００ＦＡＡＴ００

−

DTC P2A00:

YES

11-247

A/F Sensor (Sensor 1) Circuit

Range/Performance Problem
(2005-2006 models)

NOTE: Information marked with asterisk ( ) applies to
K20Z1 engine.

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

4. Test-drive under these conditions:

• Engine coolant temperature above 158 °F (70 °C)
• A/T in D position (M/T in 3rd gear)
• Drive the vehicle between 25

55 mph

(40

88 km/h) for 5 minutes

• Drive at a steady speed between 55

75 mph

(88

120 km/h) for 10 seconds, then slow down

with the throttle completely closed for 4 seconds

5. Monitor the OBD STATUS for DTC P2A00 in the

DTCs MENU with the HDS.

Go to step 6.

If the screen indicates PASSED, intermittent

failure, system is OK at this time. Check for poor
connections or loose terminals at the A/F sensor
(Sensor 1) and the ECM/PCM. If the screen
indicates EXECUTING, keep driving until a result
comes on. If the screen indicates OUT OF
CONDITION, go to step 3 and recheck.

6. Turn the ignition switch OFF.

7. Replace the A/F sensor (Sensor 1) (see page

11-279).

8. Turn the ignition switch ON (II).

9. Reset the ECM/PCM with the HDS.

10. Do the ECM/PCM idle learn procedure (see page

11-349).

11. Test-drive under these conditions:

• Engine coolant temperature above 158 °F (70 °C)
• A/T in D position (M/T in 3rd gear)
• Drive the vehicle between 25

55 mph

(40

88 km/h) for 5 minutes

• Drive at a steady speed between 55

75 mph

(88

120 km/h) for 10 seconds, then slow down

with the throttle completely closed for 4 seconds

12. Check for Temporary DTCs or DTCs with the HDS.

If DTC P2A00 is indicated, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the ECM/PCM, then go to step 1. If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.

Go to step 13.

13. Monitor the OBD STATUS for DTC P2A00 in the

DTCs MENU with the HDS.

Troubleshooting is complete.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the ECM/PCM, then go to step 1. If
the screen indicates EXECUTING, keep driving until
a result comes on. If the screen indicates OUT OF
CONDITION, go to step 10 and recheck.

Does the scr een indicate F AILED?

Ar e any T empor ar y DT Cs or DT Cs indicated?

Does the scr een indicate PASSED?

05/06/27 17:38:33 61S6M040_110_0247

Ｓ６Ｍ６ＡＺＦＡ２０３２６９３９９０２ＦＡＡＴ００

−

2002-2004 models

YES

11-248

PGM-FI System

MIL Circuit Troubleshooting

1. Connect a scan tool or the HDS to the DLC

(see page 11-3).

2. Turn the ignition switch ON (II) and read a scan tool

or the HDS.

Go to step 3.

Go to troubleshooting ‘‘DLC Circuit

Troubleshooting’’ (see page 11-273).

3. Check a scan tool or the HDS for DTCs.

Go to the indicated DTC’s troubleshooting.

Go to step 4.

4. Turn the ignition switch OFF.

5. Turn the ignition switch ON (II) and watch the

malfunction indicator lamp (MIL).

If the MIL stays on, go to step 74. But if the

MIL sometimes works normally, first check for
these problems.

• An intermittent short in the wire between the

ECM/PCM (E29) and the data link connector (DLC).

• An intermittent short in the wire between the

ECM/PCM (E31) and the gauge assembly.

• The readiness codes are not set (see page 11-90).

(This is indicated if the MIL blinks 5 times after
you turn the ignition switch ON (II) and wait
about 20 seconds.)

If the MIL is always off, go to step 6. But if the

MIL sometimes works normally, first check for
these problems:

• A loose No. 10 METER (7.5 A) fuse in the under-

dash fuse/relay box.

• A loose No. 20 IG (USA: 40 A, Canada: 50 A) fuse

in the under-hood fuse/relay box.

• A loose No. 6 ECU (ECM/PCM) (15 A) fuse in the

under-hood fuse/relay box.

• A loose No. 17 FUEL PUMP (15 A) fuse in the

under-dash fuse/relay box.

• A poor connection at ECM/PCM terminal E31.
• An intermittent open in the GRN/ORN wire

between the ECM/PCM (E31) and the gauge
assembly.

• An intermittent short in the wire between the

ECM/PCM (A21) and the manifold absolute
pressure (MAP) sensor, intake manifold tuning
(IMT) (intake manifold runner control (IMRC))
valve position sensor, or output shaft
(countershaft) speed sensor (A/T).

• An intermittent short in the wire between the

ECM/PCM (A20) and the throttle position (TP)
sensor, input shaft (mainshaft) speed sensor
(A/T).

• An intermittent short in the wire between the

ECM/PCM (E5) and the fuel tank pressure (FTP)
sensor.

Does a scan tool or the HDS communicate with the
ECM/ PCM?

Ar e any DT Cs indicated?

Does the MIL come on and stay on f or mor e than
20 seconds?

05/06/27 17:38:33 61S6M040_110_0248

０１

−

YES

11-249

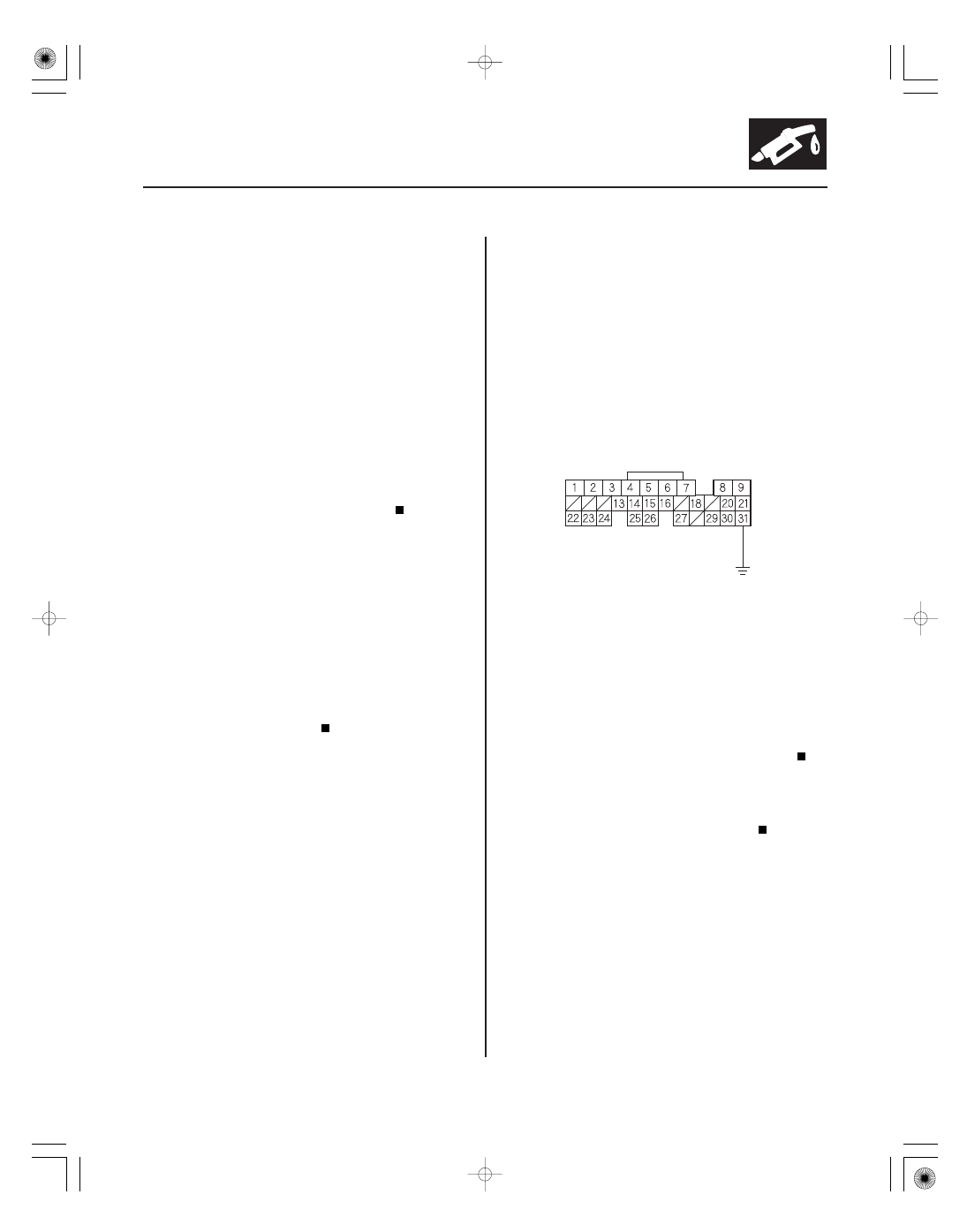

ECM/PCM CONNECTOR E (31P)

MIL
(GRN/ORN)

JUMPER WIRE

6. Check the low oil pressure indicator (with the

ignition switch ON).

Go to step 9.

Go to step 7.

7. Inspect the No. 10 METER (7.5 A) fuse in the under-

dash fuse/relay box.

Go to step 8.

Repair short in the wire between No. 10

METER (7.5 A) fuse and the gauge assembly. Also
replace the No. 10 METER (7.5 A) fuse.

8. Inspect the No. 20 IG (USA: 40 A, Canada: 50 A)

fuse in the under-hood fuse/relay box.

Repair open in the wire between the No. 20

IG (USA: 40 A, Canada: 50 A) fuse and the gauge
assembly. If the wires are OK, test the ignition
switch (see page 22-104).

Repair short in the wire between No. 20 IG

(USA: 40 A, Canada: 50 A) fuse and the under-dash
fuse/relay box. Also replace the No. 20 IG (USA:
40 A, Canada: 50 A) fuse.

9. Try to start the engine.

Go to step 10.

Go to step 13.

10. Turn the ignition switch OFF.

11. Connect ECM/PCM connector terminal E31 to body

ground with a jumper wire.

12. Turn the ignition switch ON (II).

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Check for an open in the wire between the

ECM/PCM (E31) and the gauge assembly. Also
check for a blown MIL bulb. If the wires and the
bulb are OK, replace the gauge assembly.

13. Turn the ignition switch OFF.

14. Inspect the No. 6 ECU (ECM/PCM) (15 A) fuse in the

under-hood fuse/relay box.

Go to step 22.

Go to step 15.

(cont’d)

Wire side of female terminals

Is the low oil pr essur e indicator on?

Is the f use OK ?

Does the engine star t?

Is the MIL on?

Is the f use OK ?

05/06/27 17:38:33 61S6M040_110_0249
