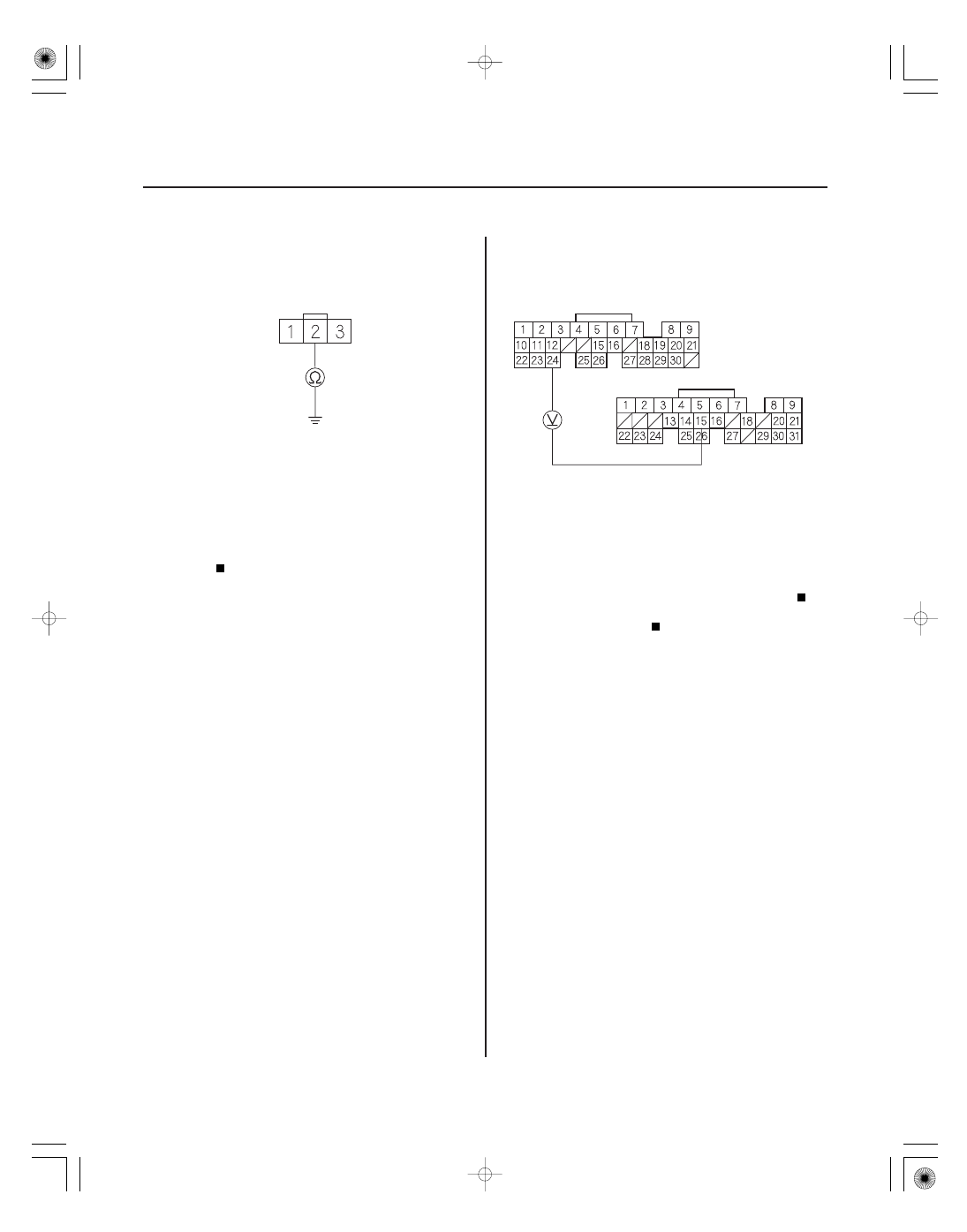

11-230

PGM-FI System

DTC Troubleshooting (cont’d)

ELD 3P CONNECTOR

GND
(BLK)

ECM/PCM CONNECTORS

A (31P)

E (31P)

LG1 (BRN/YEL)

ELD (GRN/RED)

12. Check for continuity between ELD 3P connector

terminal No. 2 and body ground.

Go to step 13.

Repair open in the wire between the ELD and

G301.

13. Reconnect the ELD 3P connector and ECM/PCM

connector E (31P).

14. Start the engine, and let it idle.

15. While measuring voltage between ECM/PCM

connector terminals A24 and E15, turn the
headlights on (high).

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Replace the ELD.

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Does the voltage dr op?

05/06/27 17:37:54 61S6M040_110_0230

01

02

03

S6M6AALK72100091298FAAT00

DTC P1298:

YES

NO

YES

NO

YES

NO

11-231

ELD 3P CONNECTOR

IG1
(BLK/ORN)

ELD 3P CONNECTOR

ELD
(GRN/RED)

JUMPER WIRE

ECM/PCM CONNECTOR E (31P)

ELD (GRN/RED)

ELD Circuit High Voltage

(2005-2006 models)

1. Start the engine, and let it idle.

2. Check the ELD in the DATA LIST with the HDS.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the ELD and the ECM/PCM.

3. Turn the ignition switch OFF.

4. Disconnect the ELD 3P connector.

5. Turn the ignition switch ON (II).

6. Measure voltage between ELD 3P connector

terminal No. 1 and body ground.

Go to step 7.

Repair open in the wire between the No. 4

ACG (10 A) fuse and the ELD, then go to step 14.

7. Turn the ignition switch OFF.

8. Connect ELD 3P connector terminal No. 3 to body

ground with a jumper wire.

9. Jump the SCS line with the HDS.

10. Disconnect ECM/PCM connector E (31P).

11. Check for continuity between ECM/PCM connector

terminal E15 and body ground.

Go to step 12.

Repair open in the wire between the ECM/

PCM (E15) and the ELD, then go to step 14.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is 0.2 A or less indicated?

Is ther e batter y voltage?

Is ther e continuity?

05/06/27 17:37:54 61S6M040_110_0231

04

YES

NO

YES

NO

YES

NO

11-232

PGM-FI System

DTC Troubleshooting (cont’d)

ELD 3P CONNECTOR

GND (BLK)

12. Check for continuity between ELD 3P connector

terminal No. 2 and body ground.

Go to step 13.

Repair open in the wire between the ELD and

G301, then go to step 14.

13. Replace the under-hood fuse/relay box.

14. Reconnect all connectors.

15. Turn the ignition switch ON (II).

16. Reset the ECM/PCM with the HDS.

17. Do the ECM/PCM idle learn procedure (see page

11-349).

18. Check for Temporary DTCs or DTCs with the HDS.

Go to step 19.

Troubleshooting is complete.

19. Update the ECM/PCM if it does not have the latest

software, or substitute a known-good ECM/PCM
(see page 11-6).

20. Check for Temporary DTCs or DTCs with the HDS.

If DTC P1298 is indicated, check for poor

connections or loose terminals at the ELD and the
ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-284).

Wire side of female terminals

Is ther e continuity?

Ar e any T empor ar y DT Cs or DT Cs with the HDS?

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:37:54 61S6M040_110_0232

S6M6AALK72100091549FAAT00

DTC P1549:

YES

NO

YES

NO

11-233

Charging System High Voltage

(2005-2006 models)

NOTE: If a high voltage battery (24 V, etc.) is connected
to the vehicle, this DTC can be stored.

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine.

4. Check under these conditions:

• A/C off
• Headlights off
• Rear window defogger off

5. Hold the engine speed at 2,000 rpm (in Park or

neutral) for 1 minute.

6. Check for Temporary DTCs or DTCs with the HDS.

Replace the alternator (see page 4-46), then

go to step 7.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the alternator and the under-hood fuse/relay box.

7. Turn the ignition switch ON (II).

8. Reset the ECM/PCM with the HDS.

9. Do the ECM/PCM idle learn procedure (see page

11-349).

10. Start the engine.

11. Check under these conditions:

• A/C off
• Headlights off
• Rear window defogger off

12. Hold the engine speed at 2,000 rpm (in Park or

neutral) for 1 minute.

13. Check for Temporary DTCs or DTCs with the HDS.

If DTC P1549 is indicated, check for poor

connections or loose terminals at the alternator and
the under-hood fuse/relay box, then go to step 1. If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.

Troubleshooting is complete.

Is DT C P1549 indicated?

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:37:54 61S6M040_110_0233
