Acura RSX Honda Integra. Manual - part 127

Ｓ６Ｍ６ＡＡＬＫ７２１０００９１１２８ＦＡＡＴ００

−

DTC P1128:

YES

11-214

PGM-FI System

DTC Troubleshooting (cont’d)

MAP Sensor Circuit Lower Than

Expected
(2005-2006 models)

NOTE: Information marked with an asterisk ( ) applies
to K20Z1 engine.

1. Turn the ignition switch ON (II).

2. Check the MAP SENSOR in the DATA LIST with the

HDS.

Go to step 7.

Go to step 3.

3. Clear the DTC with the HDS.

4. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

5. Test-drive under these conditions:

• Engine coolant temperature above 158 °F (70 °C)
• Engine speed between 1,050 (1,300) and 6,700

(7,800) rpm

• A/T in D position (M/T in 3rd gear)
• Vehicle speed above 15 mph (24 km/h)
• Engine speed between 1,000 and 4,000 rpm for

2 seconds or more

6. Monitor the OBD STATUS for DTC P1128 in the

DTCs MENU with the HDS.

Go to step 7.

If the screen indicates PASSED, intermittent

failure, system is OK at this time. Check for poor
connections or loose terminals at the MAP sensor
and the ECM/PCM. If the screen indicates NOT
COMPLETED, go to step 4 and recheck.

7. Turn the ignition switch OFF.

8. Replace the MAP sensor (see page 11-412).

9. Turn the ignition switch ON (II).

10. Reset the ECM/PCM with the HDS.

11. Do the ECM/PCM idle learn procedure (see page

11-349).

12. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

13. Test-drive under these conditions:

• Engine coolant temperature above 158 °F (70 °C)
• Engine speed between 1,050 (1,300) and 6,700

(7,800) rpm

• A/T in D position (M/T in 3rd gear)
• Vehicle speed above 15 mph (24 km/h)
• Engine speed between 1,000 and 4,000 rpm for

2 seconds or more

14. Check for Temporary DTCs or DTCs with the HDS.

If DTC P1128 is indicated, check for poor

connections or loose terminals at the MAP sensor
and the ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Go to step 15.

15. Monitor the OBD STATUS for DTC P1128 in the

DTCs MENU with the HDS.

Troubleshooting is complete.

If the screen indicates FAILED, check for poor

connections or loose terminals at the MAP sensor
and the ECM/PCM, then go to step 1. If the screen
indicates NOT COMPLETED, go to step 12 and
recheck.

Is less than 54.1 kPa ( 16.0 in.Hg, 406 mmHg) or
1.61 V held f or mor e than 5 seconds?

Does the scr een indicate F AILED?

Ar e any T empor ar y DT Cs or DT Cs indicated?

Does the scr een indicate PASSED?

05/06/27 17:37:51 61S6M040_110_0214

Ｓ６Ｍ６ＡＡＪＫ７２１０００９１１２９ＦＡＡＴ００

−

Ｓ６Ｍ６ＡＡＬＫ７２１０００９１１２９ＦＡＡＴ００

−

DTC P1129:

YES

11-215

MAP Sensor Circuit Higher Than

Expected
(2002-2004 models)

MAP Sensor Circuit Higher Than

Expected
(2005-2006 models)

1. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

2. Check the MAP with a scan tool or the HDS.

Intermittent failure, system is OK at this

time.

Replace the MAP sensor (see page 11-412).

NOTE: Information marked with an asterisk ( ) applies
to K20Z1 engine.

1. Check for vacuum leaks in these parts:

• PCV valve
• PCV hose
• EVAP canister purge valve
• Throttle body
• Intake manifold
• Brake booster hose

Go to step 2.

Repair or replace parts with vacuum leaks,

then go to step 9.

2. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

3. Check the MAP SENSOR in the DATA LIST with the

HDS.

Go to step 7.

Go to step 4.

4. Clear the DTC with the HDS.

5. Test-drive under these conditions:

• Engine coolant temperature above 158 °F (70 °C)
• Engine speed between 1,050 (1,300) and 6,700

(7,800) rpm

• A/T in D position (M/T in 5th gear)
• Maintain a vehicle speed of 55

75 mph

(88

121 km/h) for 10 seconds

• Decelerate with throttle fully closed for at least

2 seconds

(cont’d)

Is 36.9 kPa ( 10.9 in.Hg, 27 7 mmHg), 1.1 V , or less
indicated?

Ar e ther e any vacuum leaks?

Is mor e than 36.9 kPa ( 11.0 in.Hg, 27 7 mmHg) or
1.1 V held f or mor e than f or 5 seconds?

05/06/27 17:37:51 61S6M040_110_0215

−

YES

11-216

PGM-FI System

DTC Troubleshooting (cont’d)

6. Monitor the OBD STATUS for DTC P1129 in the

DTCs MENU with the HDS.

Go to step 7.

If the screen indicates PASSED, intermittent

failure, system is OK at this time. Check for poor
connections or loose terminals at the MAP sensor
and the ECM/PCM. If the screen indicates NOT
COMPLETED, go to step 5 and recheck.

7. Turn the ignition switch OFF.

8. Replace the MAP sensor (see page 11-412).

9. Turn the ignition switch ON (II).

10. Reset the ECM/PCM with the HDS.

11. Do the ECM/PCM idle learn procedure (see page

11-349).

12. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

13. Test-drive under these conditions:

• Engine coolant temperature above 158 °F (70 °C)
• Engine speed between 1,050 (1,300) and 6,700

(7,800) rpm

• A/T in D position (M/T in 5th gear)
• Maintain a vehicle speed of 55

75 mph

(88

121 km/h) for 10 seconds

• Decelerate with throttle fully closed for at least

2 seconds

14. Check for Temporary DTCs or DTC with the HDS.

If DTC P1129 is indicated, check for poor

connections or loose terminals at the MAP sensor
and the ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Go to step 15.

15. Monitor the OBD STATUS for DTC P1129 in the

DTCs MENU with the HDS.

Troubleshooting is complete.

If the screen indicates FAILED, check for poor

connections or loose terminals at the MAP sensor
and the ECM/PCM, then go to step 1. If the screen
indicates NOT COMPLETED, go to step 12 and
recheck.

Does the scr een indicate F AILED?

Ar e any T empor ar y DT Cs or DT Cs indicated?

Does the scr een indicate PASSED?

05/06/27 17:37:51 61S6M040_110_0216

０１

０２

０３

Ｓ６Ｍ６ＡＡＣＫ７２１０００９１１５７ＦＡＡＴ００

＋

−

＋

−

＋

−

DTC P1157:

YES

11-217

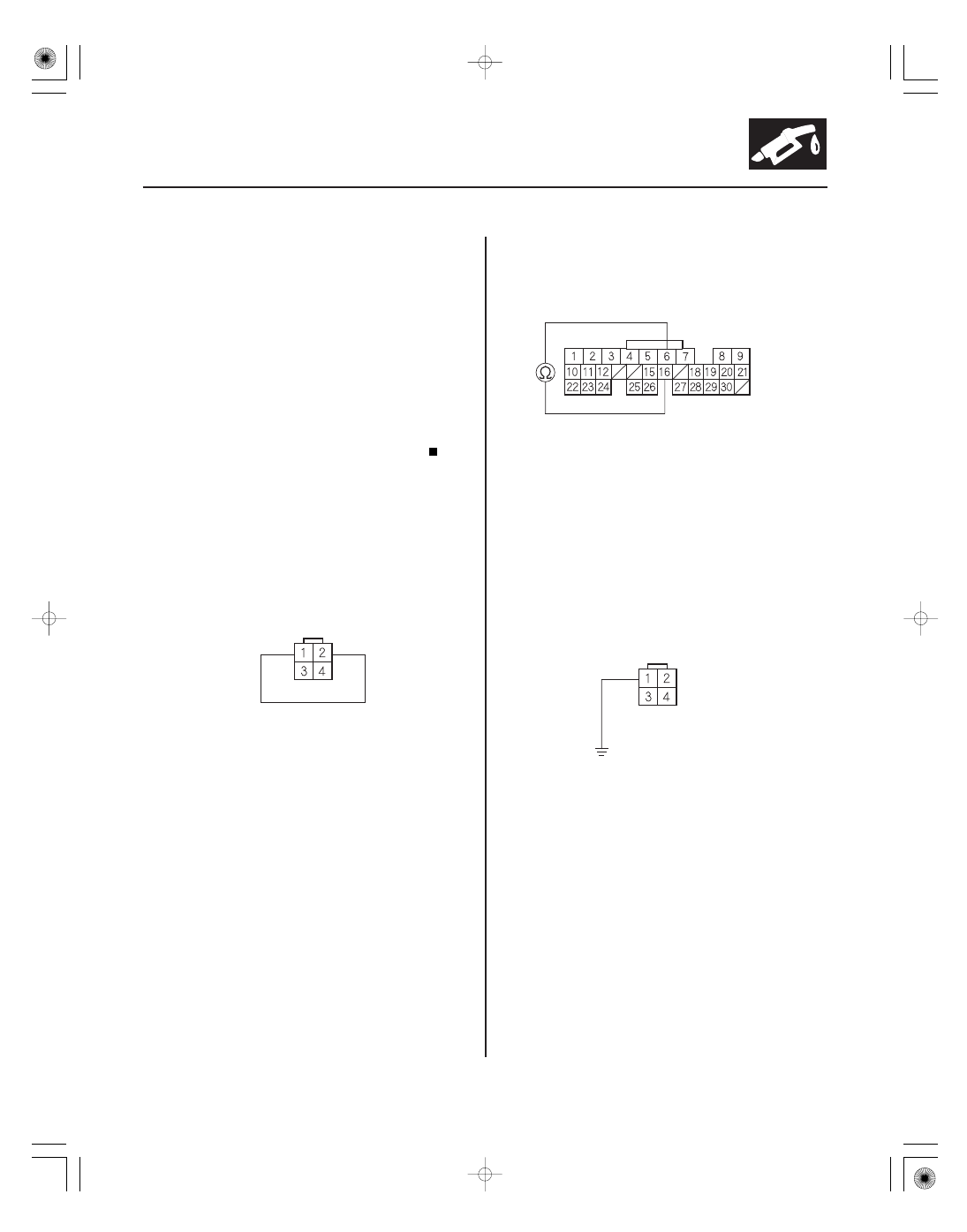

A/F SENSOR (SENSOR 1) 4P CONNECTOR

AFS

(RED)

AFS

(YEL/GRN)

JUMPER WIRE

ECM/PCM CONNECTOR A (31P)

AFS

(RED)

AFS

(RED/YEL)

A/F SENSOR (SENSOR 1) 4P CONNECTOR

AFS

(RED)

JUMPER WIRE

A/F Sensor (Sensor 1) AFS Circuit

High Voltage
(2004 model)

1. Reset the ECM/PCM (see page 11-4).

2. Start the engine.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the A/F sensor (Sensor 1) and the ECM/PCM.

3. Turn the ignition switch OFF.

4. Disconnect the A/F sensor (Sensor 1) 4P connector

and ECM/PCM connector A (31P).

5. Connect A/F sensor (Sensor 1) 4P connector

terminals No. 1 and No. 2 with a jumper wire.

6. Check for continuity between ECM/PCM connector

terminals A6 and A16.

Go to step 9.

Go to step 7.

7. Connect A/F sensor (Sensor 1) 4P connector

terminal No. 1 to body ground with a jumper wire.

(cont’d)

Wire side of female terminals

Is DT C P1157 indicated?

Is ther e continuity?

05/06/27 17:37:51 61S6M040_110_0217
