Acura RSX Honda Integra. Manual - part 35





07

08

09

10

5-4

Engine Assembly

Engine Removal (cont’d)

A

B

A

B

B

A

B

A

12. Disconnect the engine control module (ECM)/

powertrain control module (PCM) connectors (A)
and main wire harness connector (B).

13. Remove the harness clamps (A) and grommet (B),

then pull the engine wire harness through the
bulkhead.

14. Remove the fuel feed line (see page 11-369).

15. Remove the evaporative emission (EVAP) canister

hose (A) and brake booster vacuum hose (B).

16. Remove the clutch slave cylinder (A) and clutch line

bracket mounting bolt (B) (M/T).

11

12

13

14

5-5

B

A

17. Remove the shift cable (A) and select cable (B)

(M/T).

18. Remove the drive belt (see page 4-43).

19. Remove the power steering (P/S) pump without

disconnecting the P/S hoses.

20. Remove the bolt securing the P/S hose bracket.

21. Remove the radiator cap.

22. Raise the vehicle on the hoist to full height.

23. Remove the front wheels.

24. Remove the splash shield.

25. Loosen the drain plug in the radiator, and drain the

engine coolant (see page 10-6).

26. Drain the transmission fluid:

• Manual transmission (see page 13-4).
• Automatic transmission (see page 14-272).

27. Drain the engine oil (see page 8-8).

(cont’d)

01

16

5-6

Engine Assembly

Engine Removal (cont’d)

A

B

C

D

C

D

F

E

A

B

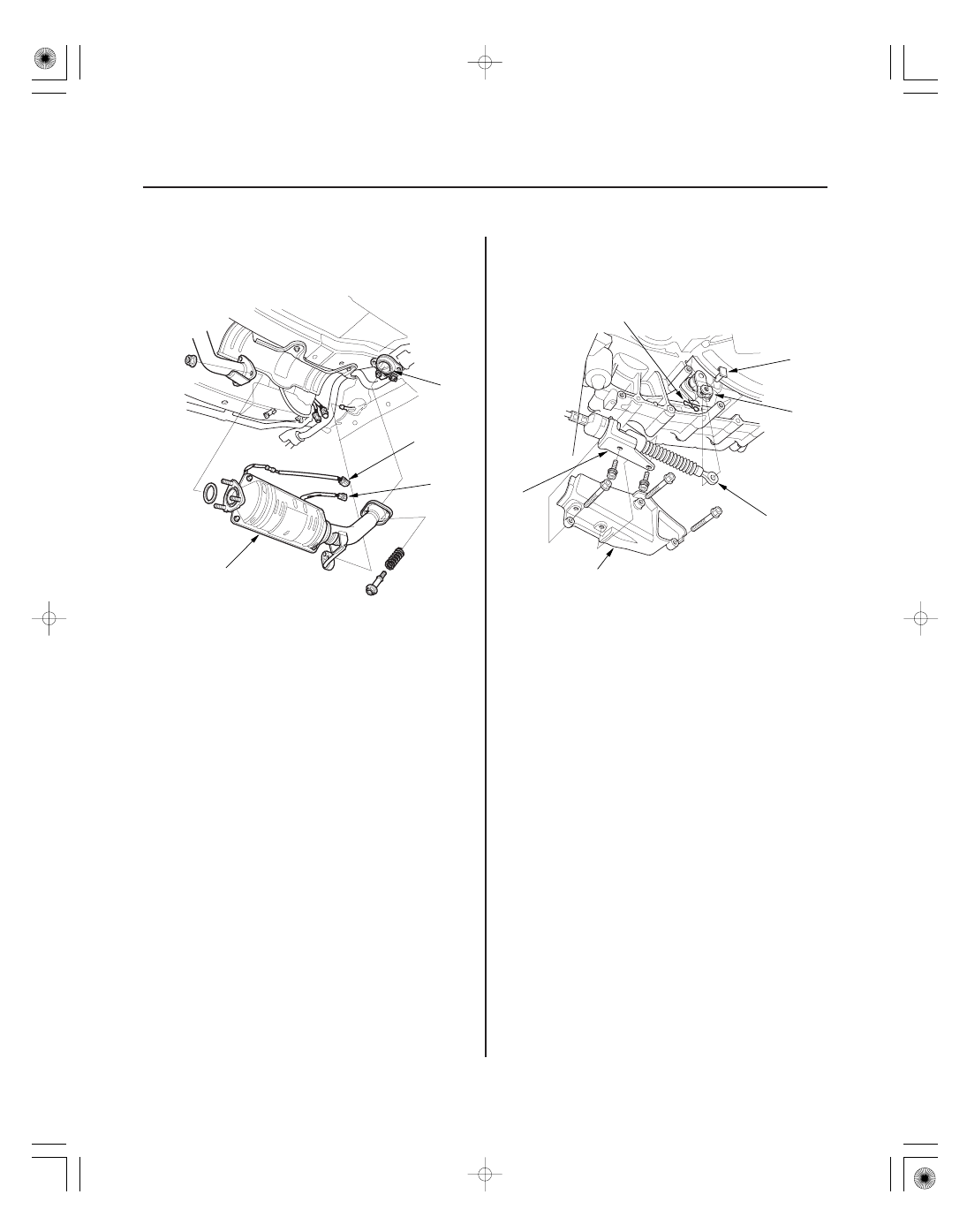

28. Disconnect the air fuel ratio (A/F) sensor connector

(A) and secondary heated oxygen sensor
(secondary HO2S) connector (B).

29. Remove the three way catalytic converter (TWC)

assembly (C).

30. 2005-2006 models: Check the flexible joint gasket

(D) for damage. If the flexible joint gasket is
damaged, replace the flexible joint gasket
(see page 9-16).

NOTE: Do not reuse the flexible joint gasket, when
removing it.

31. Disconnect the suspension lower arm ball joints

(see page 18-10) and the stabilizer links (see page
18-18).

32. Remove the driveshafts (see page 16-4). Coat all

precision finished surfaces with clean engine oil.
Tie plastic bags over the driveshaft ends.

33. Remove the shift cable holder (A), then remove the

shift cable cover (B). To prevent damage to the
control lever joint, be sure to remove the bolts
securing the shift cable cover (A/T).

34. Remove the spring clip (C) and control pin (D), then

separate the shift cable (E) from the control lever
(F) (A/T).

17

01

18

19

5-7

A

B

B

A

M/T

A/T

35. Remove the lower hose.

36. Remove the automatic transmission fluid (ATF)

filter mounting bolt (A) (A/T).

37. Remove the ATF cooler hoses (B), then plug the

ATF cooler hoses and lines (A/T).

38. Lower the vehicle on the hoist.

39. Remove the upper hose (A) and heater hoses (B).

40. Remove the radiator (see page 10-12).

41. Attach the chain hoist to the engine as shown.

(cont’d)
