Acura RL (1996-2004 year). Manual - part 364

(To page

11-26

)

Main Menu

Table of Contents

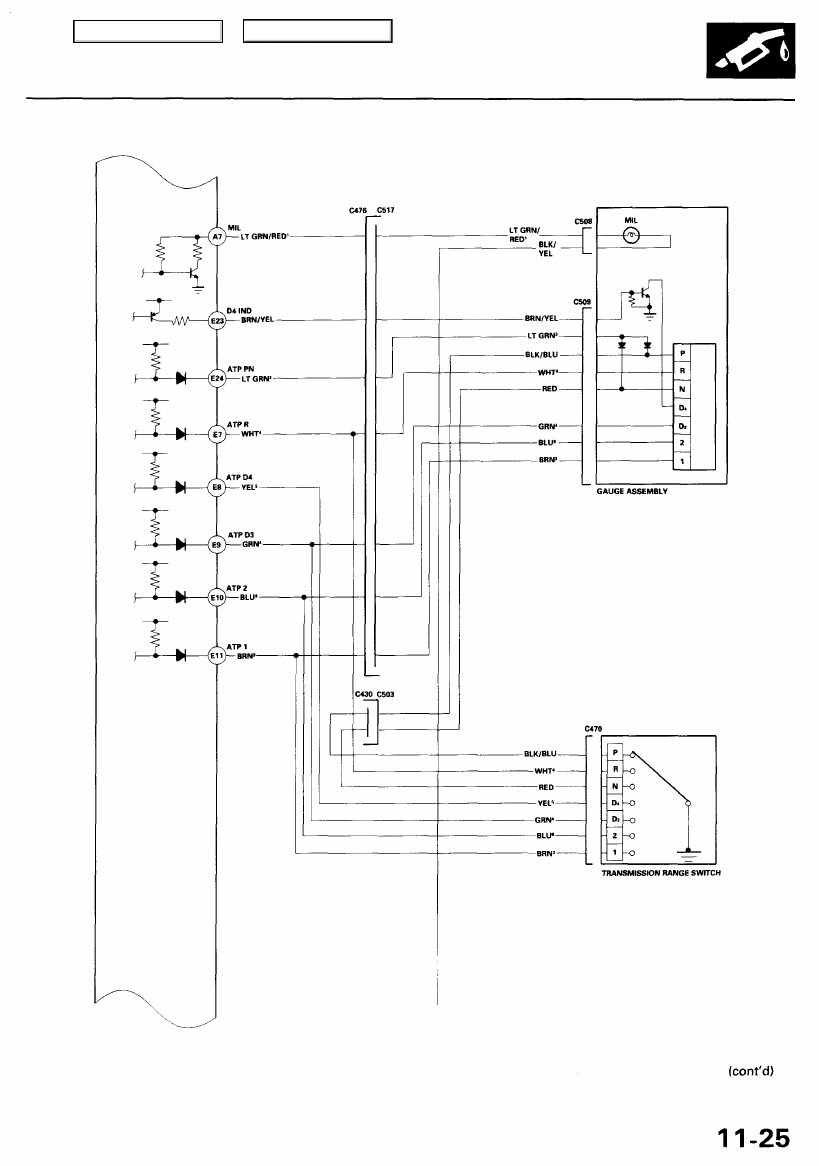

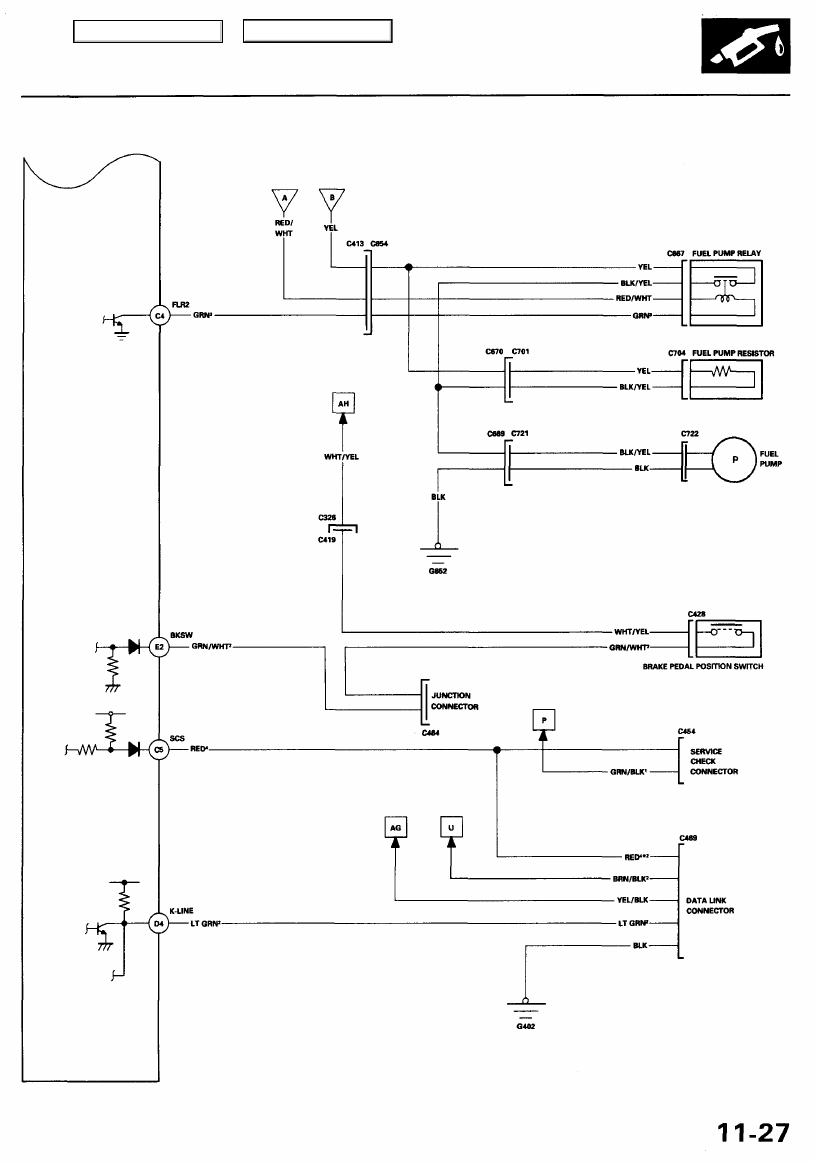

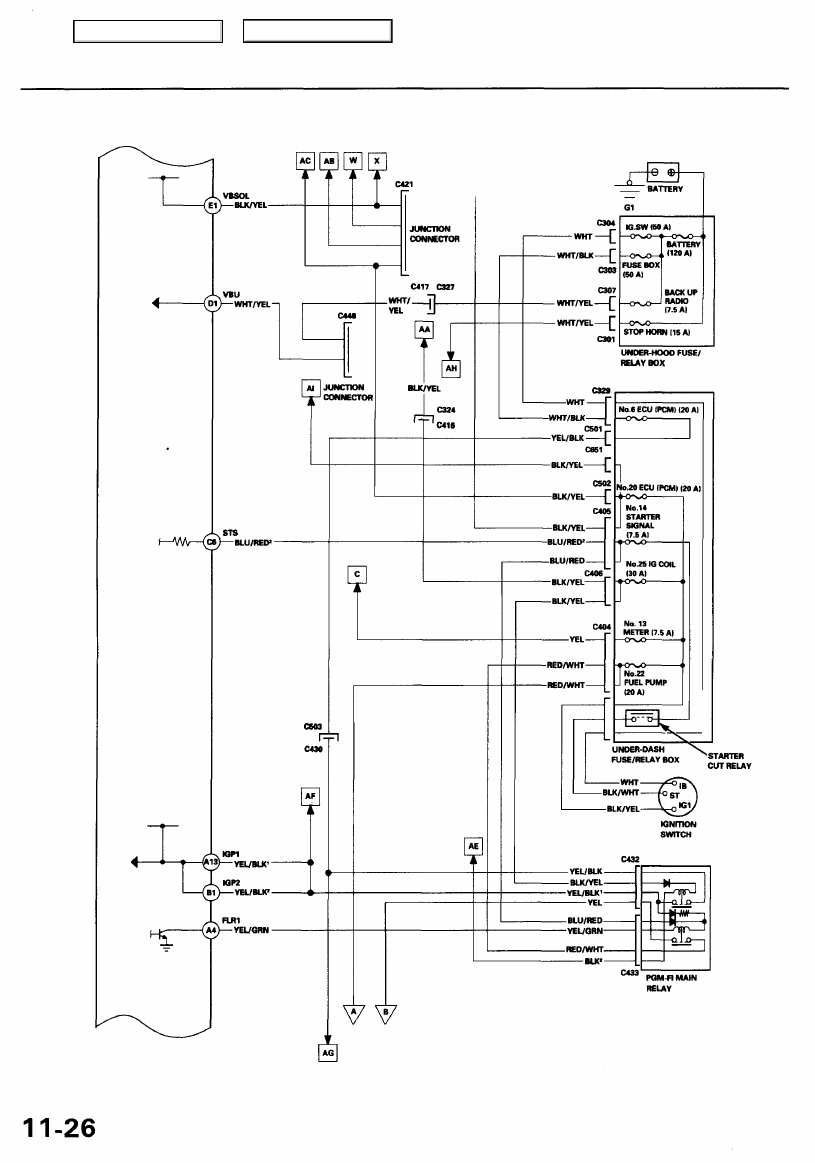

System Description

Electrical Connections (cont'd)

(From page

11-25

)

(To page

11-27

)

Main Menu

Table of Contents

(From page

11-26

)

•2: '00 - 01 models

Main Menu

Table of Contents

System Description

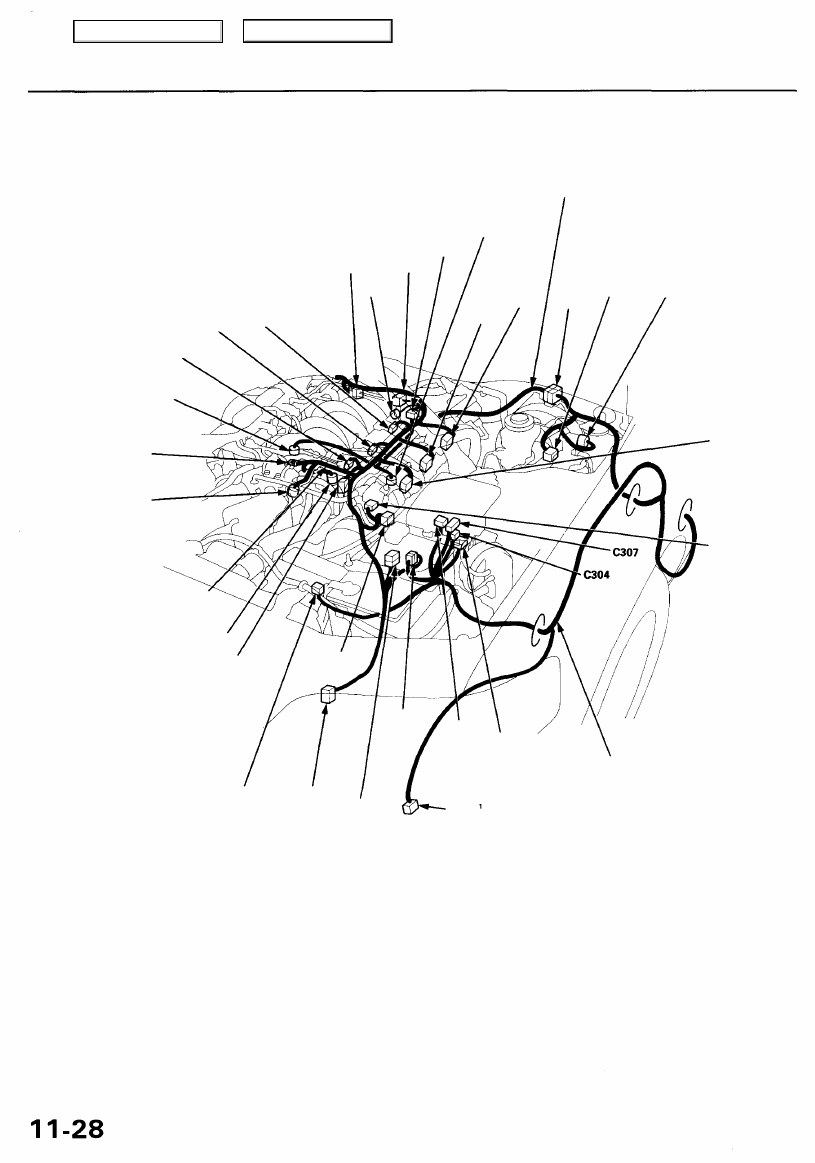

System Connectors [Engine Compartment]

A/T SUB-HARNESS

C144

C143

C163

G101

C129

C110
C161

C162

C106

C137

C127

C344

LEFT ENGINE
COMPARTMENT WIRE
HARNESS

C125

C316*

*1: '96 - 99 models

C131

C308

C124

C301

C303

C130

C128

C126

ENGINE
WIRE
HARNESS

C145

C109

C108

C138

C139

C323

C171

C320*

1

C319*

1
