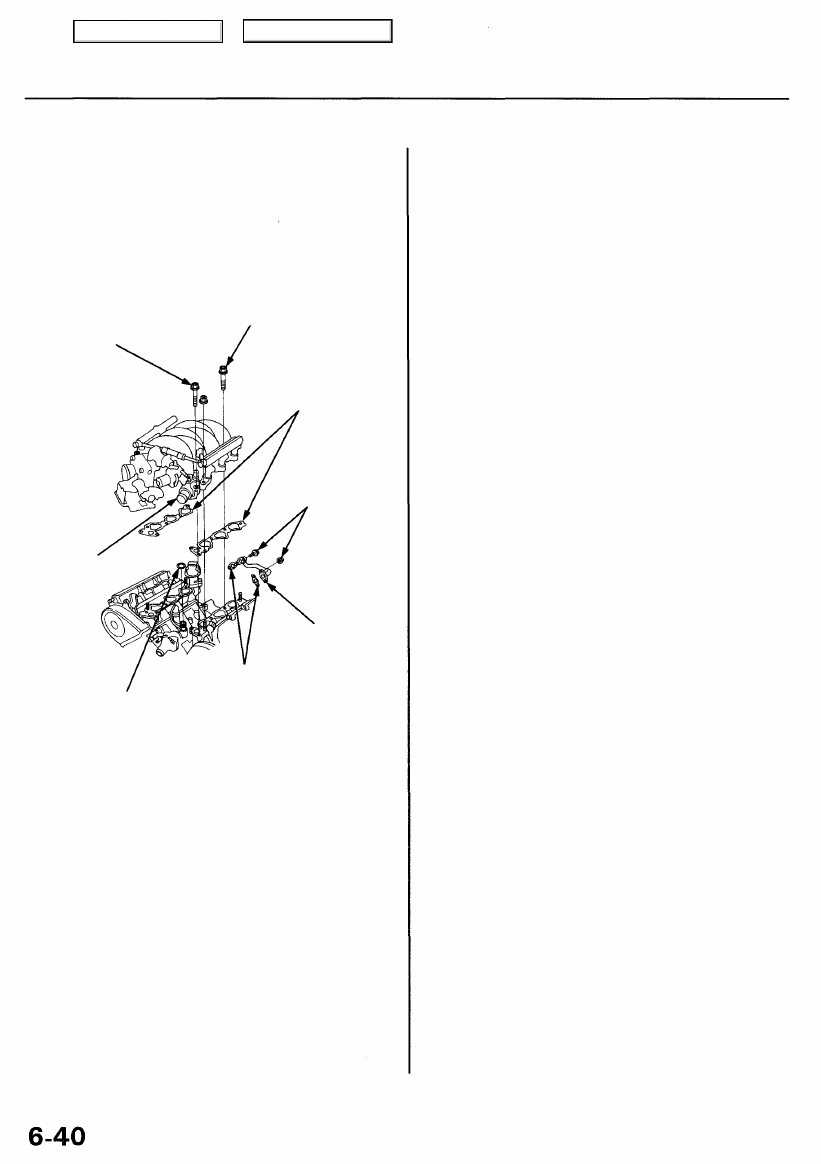

Cylinder Heads Installation (cont'd) 12. Install the intake manifold and water passage, then tighten the intake manifold mounting bolts and nuts in a crisscross pattern in 2 or 3 steps, beginning with the inner bolts. NOTE: Always use new intake manifold gaskets. 13. Install the EGR pipe. 6 x 1.0 mm 12 N-m (1.2 kgf-m, 8.7 Ibf-ft) 8 x 1.25 mm 22 N-m (2.2 kgf-m, 16 Ibf-ft) GASKETS 6 x 1.0 mm 12 N-m (1.2 kgf-m, 8.7 Ibf-ft) WATER EGR PIPE GASKETS Replace. O-RING 14. Install the exhaust manifolds. Tighten the nuts in a crisscross pattern in 2 or 3 steps, beginning with the ). NOTE: Always use new exhaust manifold gaskets. 15. After installation, check that all tubes, hoses and connectors are installed correctly. 16. Enter the anti-theft code for the radio, then enter the customer's radio station presets. Main Menu Table of Contents |
