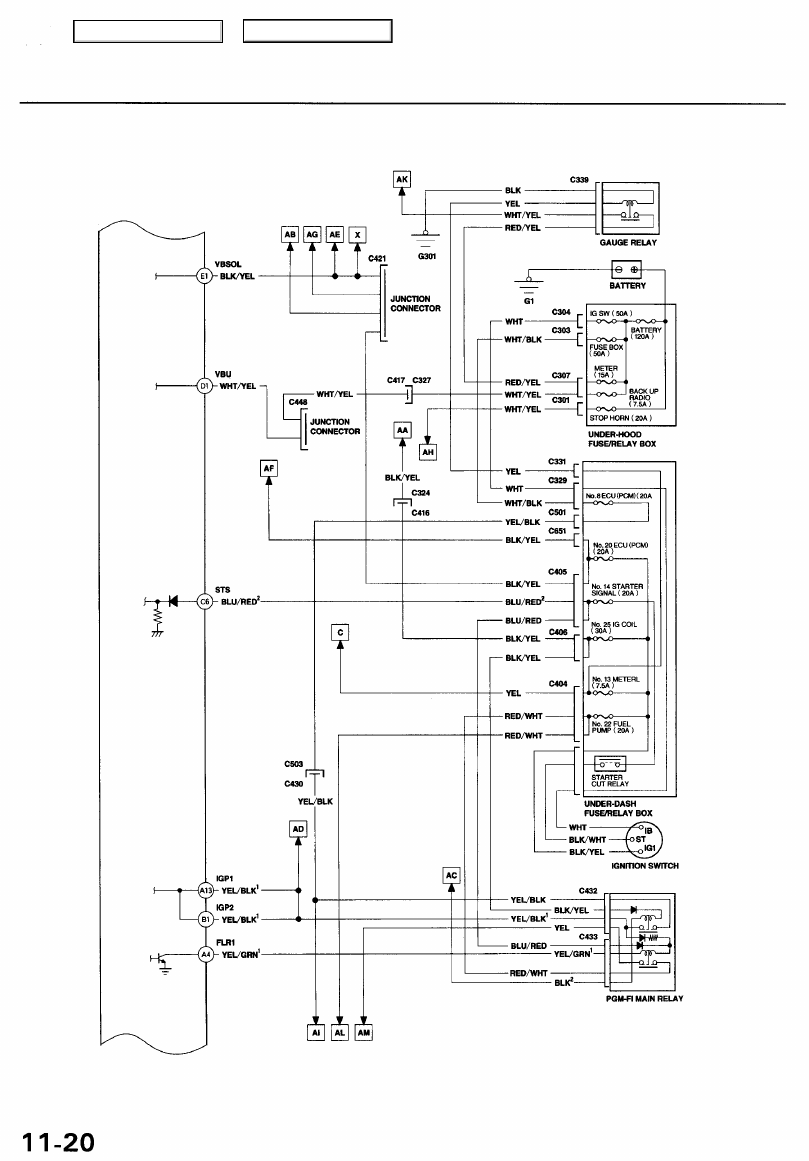

System Description

Electrical Connections (cont'd)

Main Menu

Table of Contents

(cont'd)

Main Menu

Table of Contents

System Description

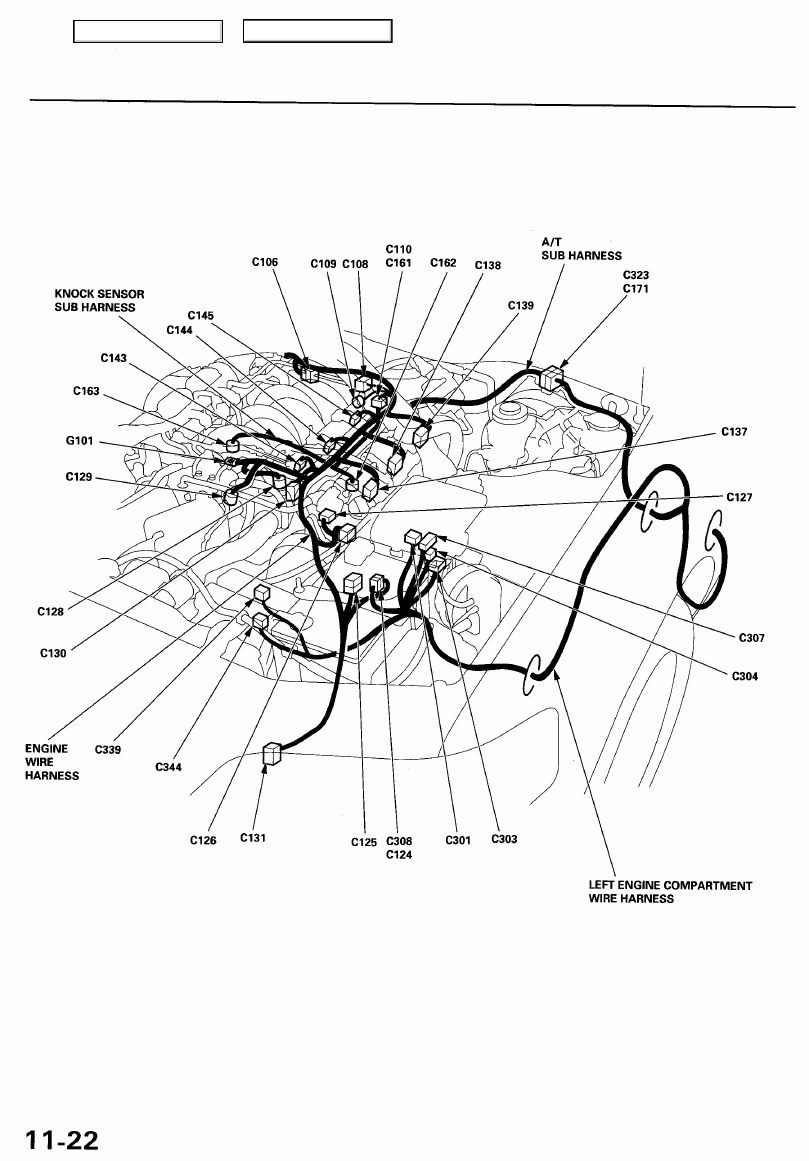

System Connectors [Engine Compartment]

Main Menu

Table of Contents

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK

1

and YEL/BLK

2

 are not the same).

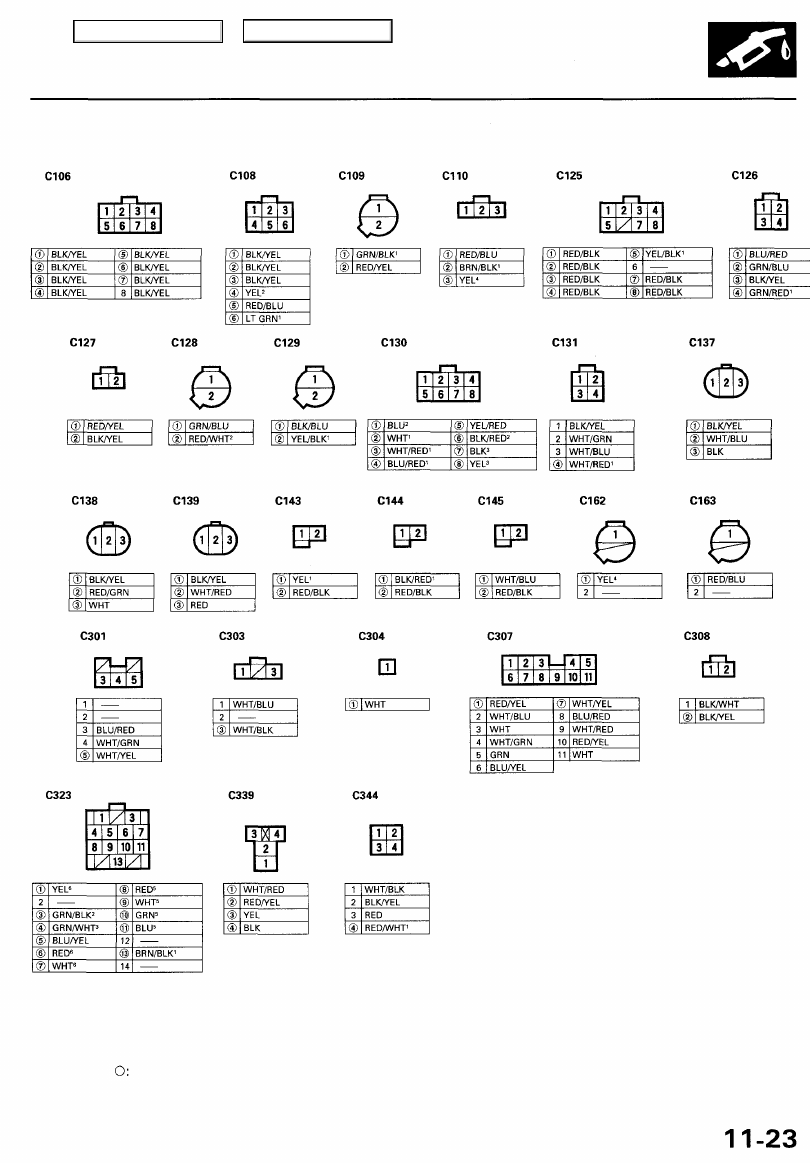

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire side

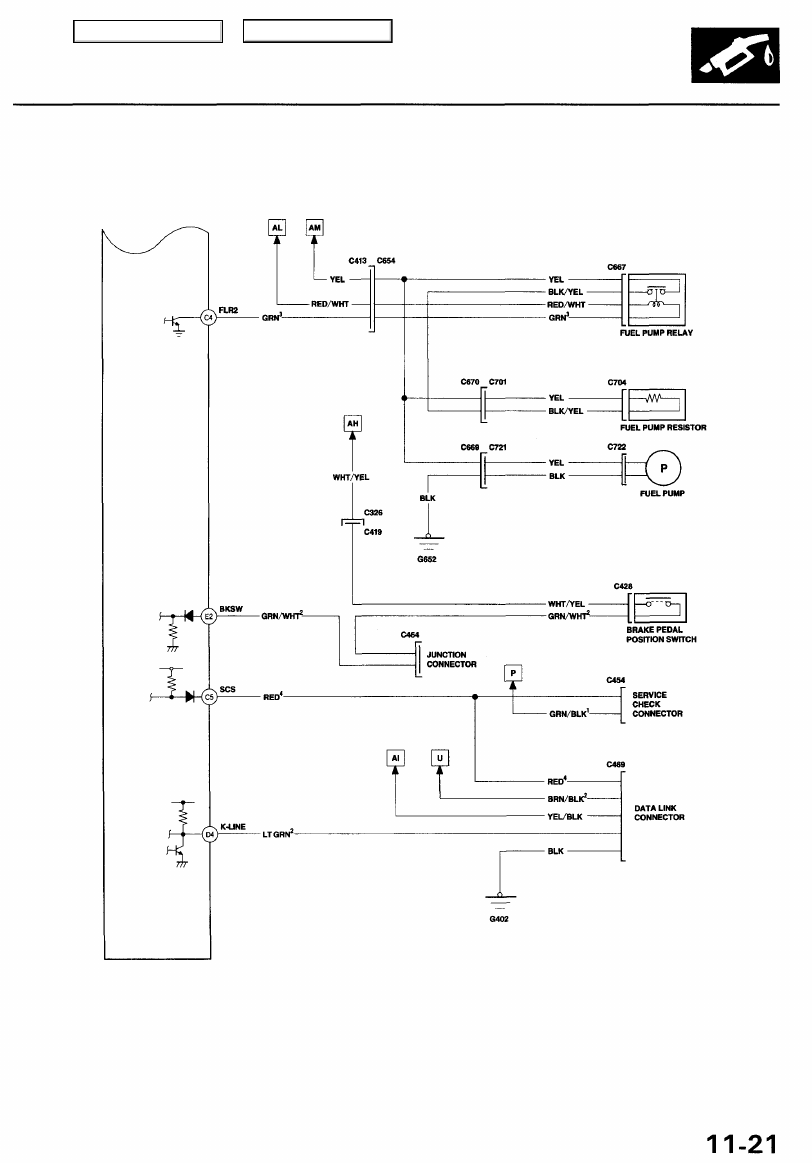

• Related to Fuel and Emissions System. (cont'd)
