Acura RL. Manual - part 933

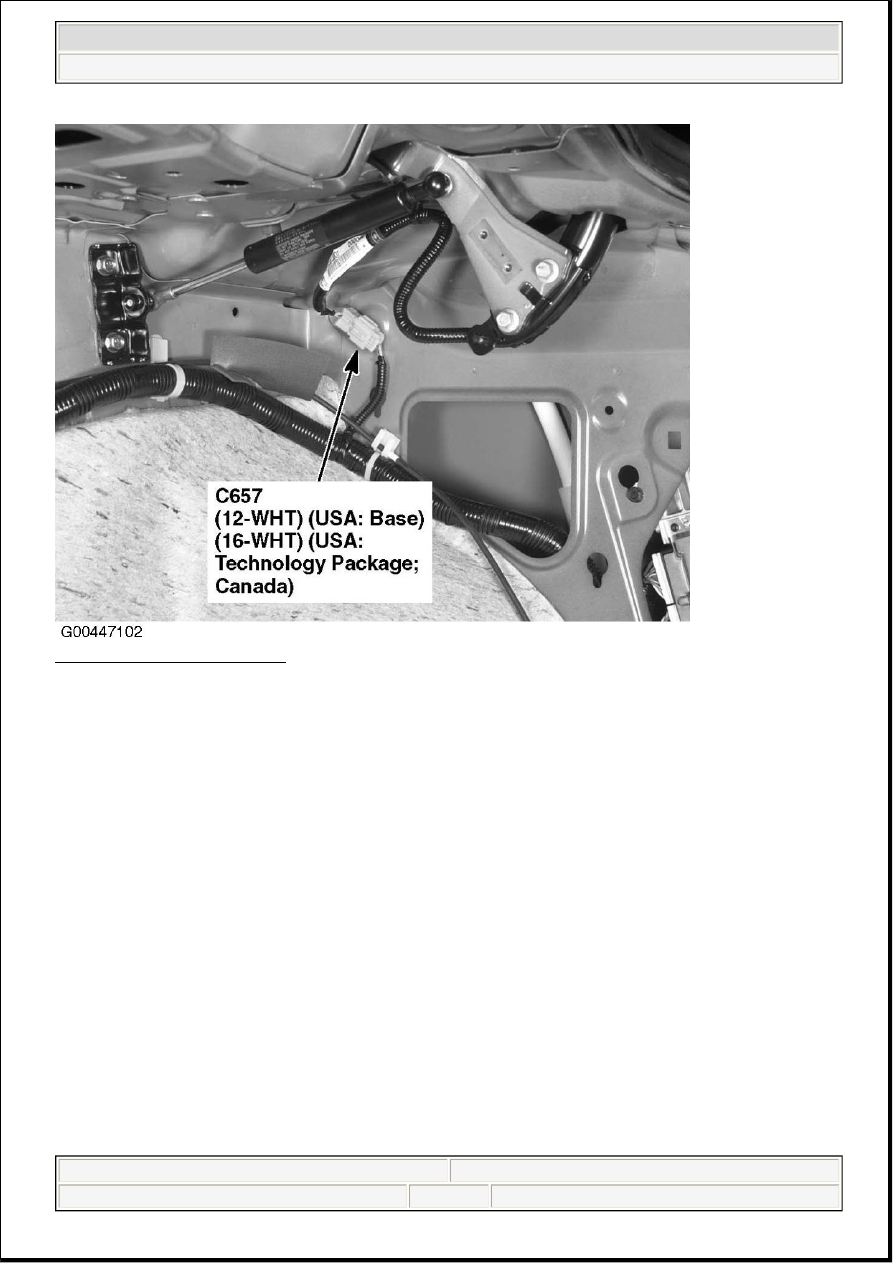

Fig. 161: Right Side Of Trunk
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:18 PM

Page 172  © 2005 Mitchell Repair Information Company, LLC.

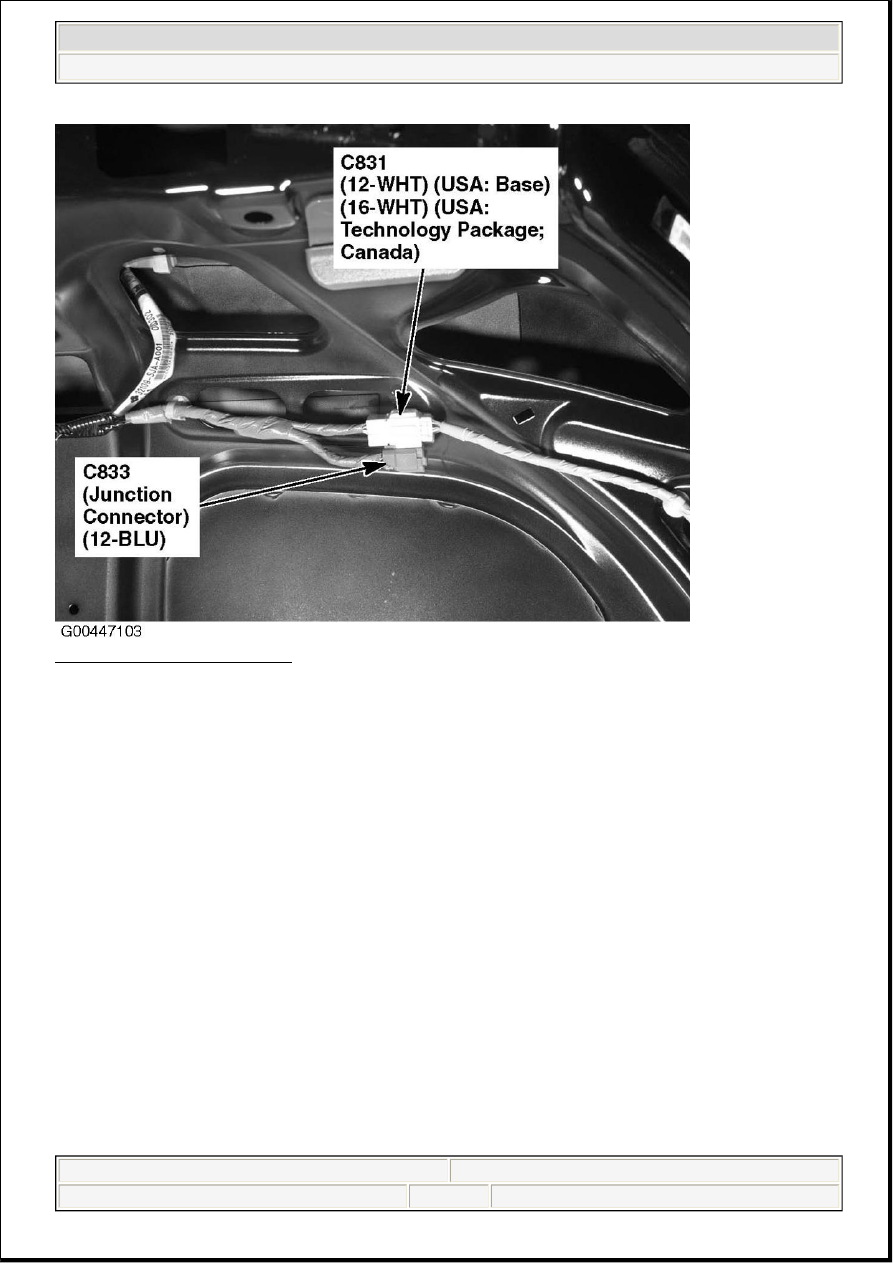

Fig. 162: Middle Of Trunk Lid
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:18 PM

Page 173  © 2005 Mitchell Repair Information Company, LLC.

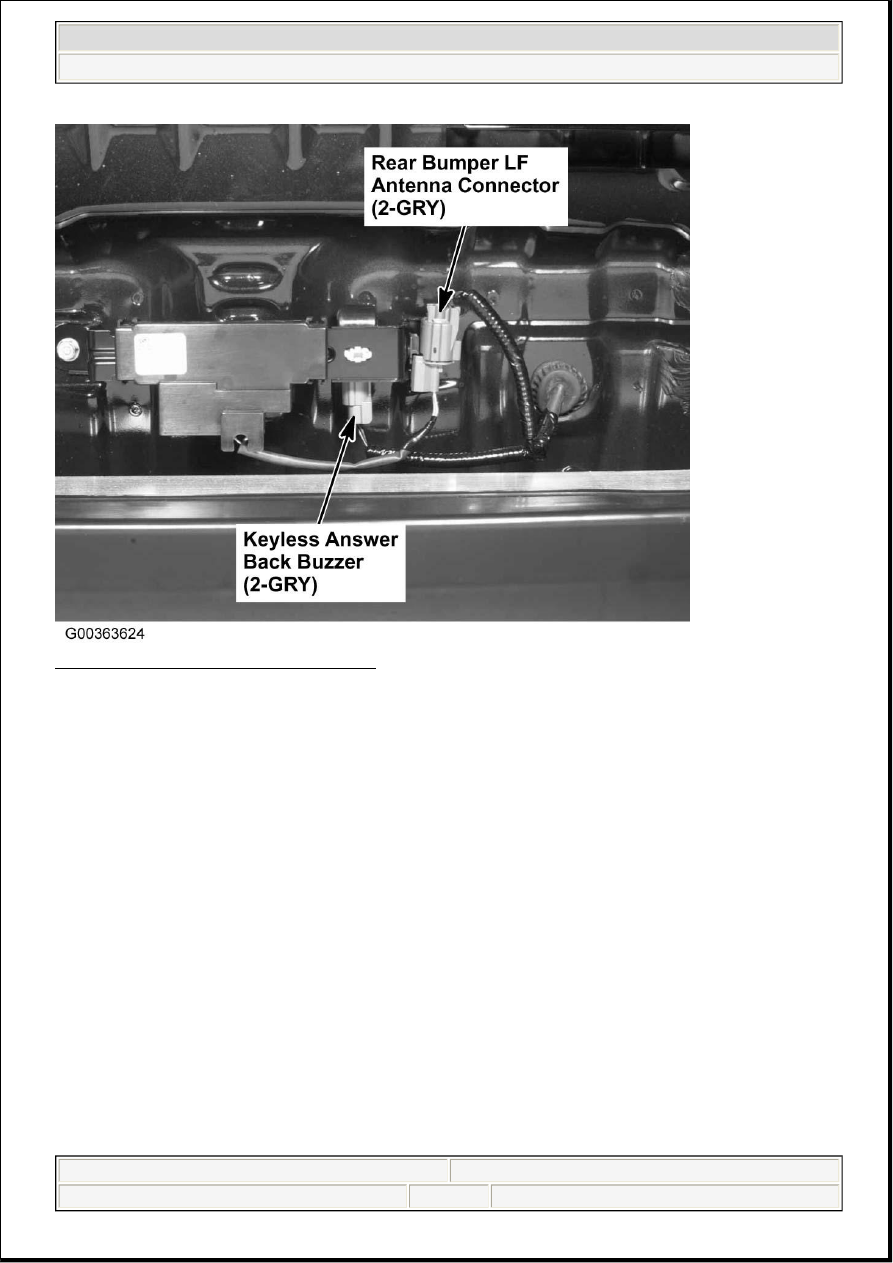

Fig. 163: Behind Middle Of Rear Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:18 PM

Page 174  © 2005 Mitchell Repair Information Company, LLC.

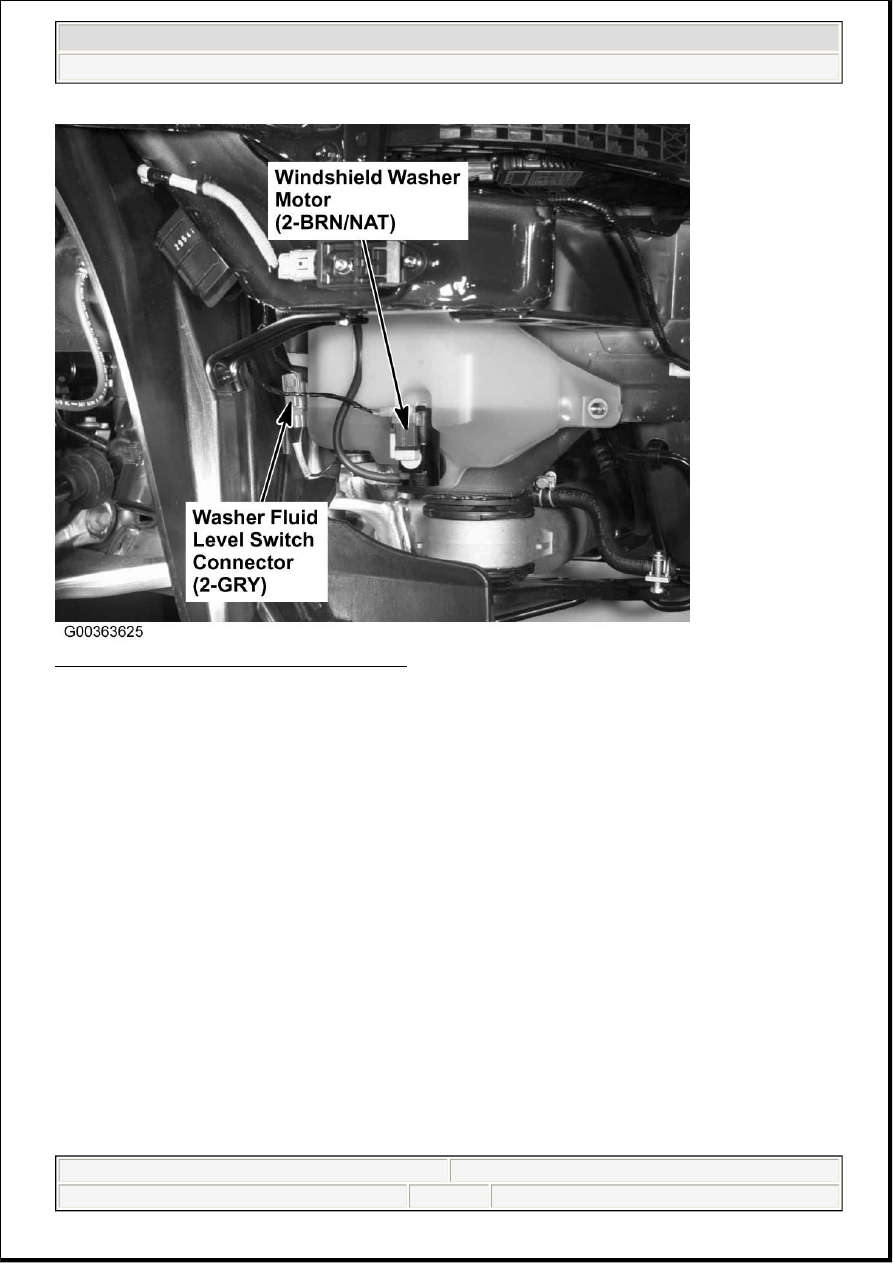

Fig. 164: Behind Right Side Of Front Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:18 PM

Page 175  © 2005 Mitchell Repair Information Company, LLC.
