Acura RL. Manual - part 929

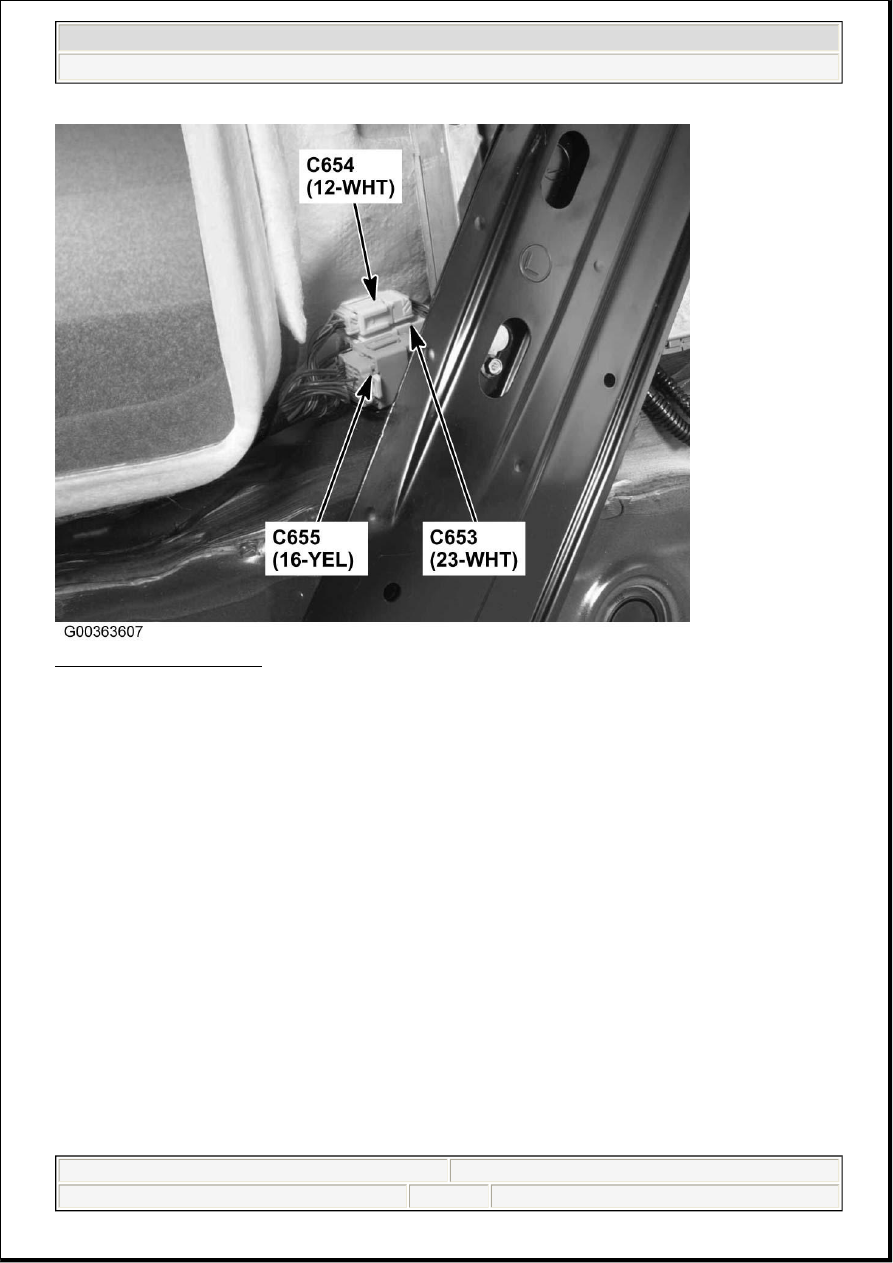

Fig. 145: Left "C" Pillar
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 156  © 2005 Mitchell Repair Information Company, LLC.

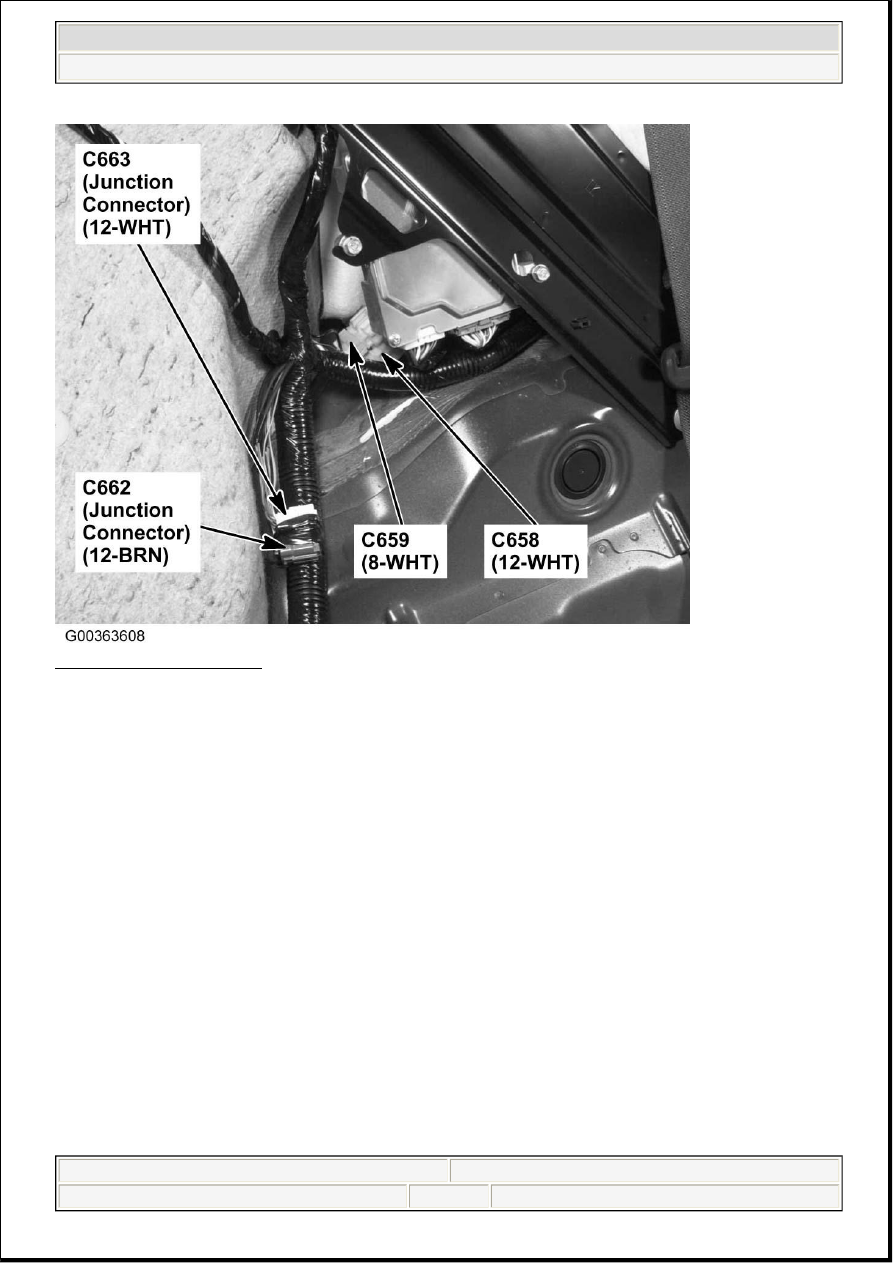

Fig. 146: Behind Rear Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 157  © 2005 Mitchell Repair Information Company, LLC.

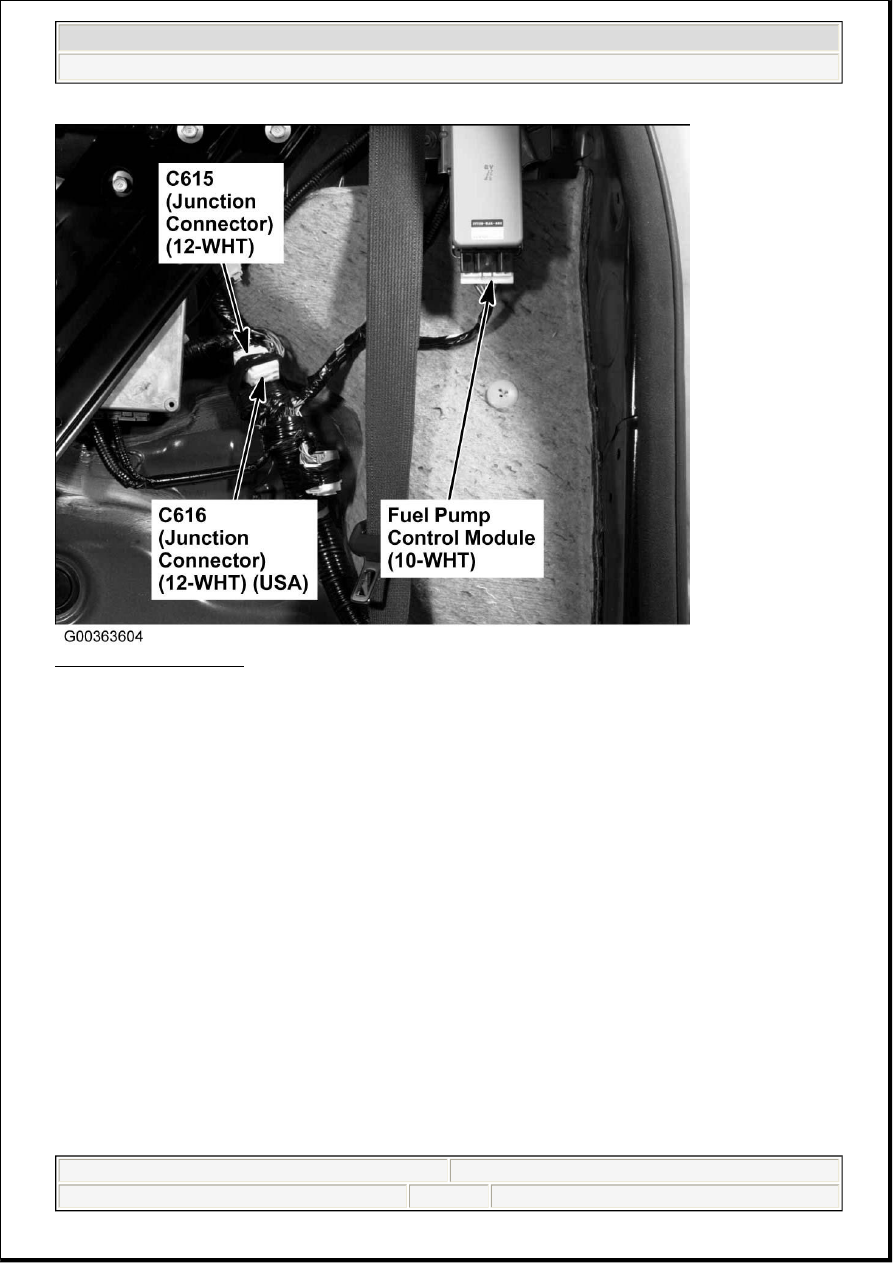

Fig. 147: Behind Rear Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 158  © 2005 Mitchell Repair Information Company, LLC.

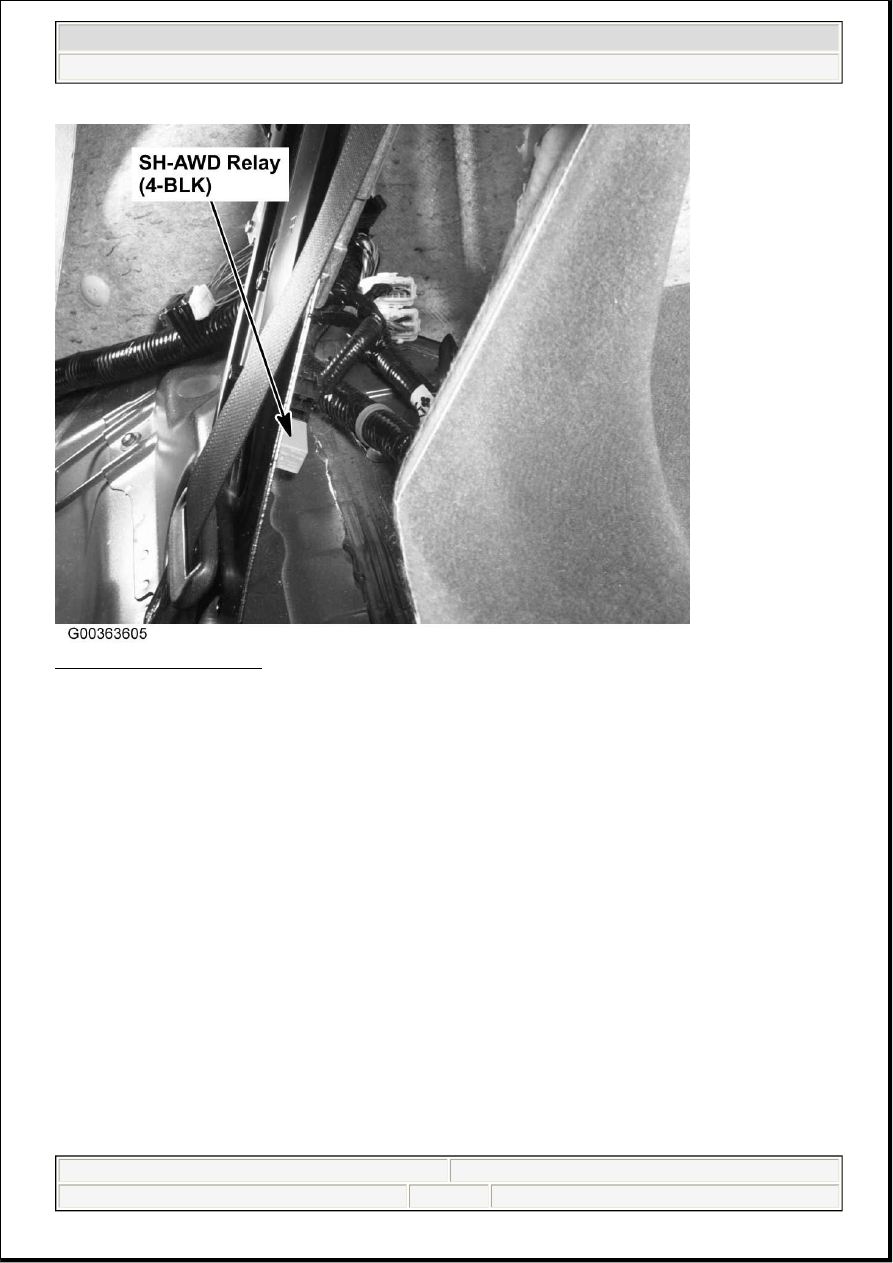

Fig. 148: Behind Rear Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 159  © 2005 Mitchell Repair Information Company, LLC.
