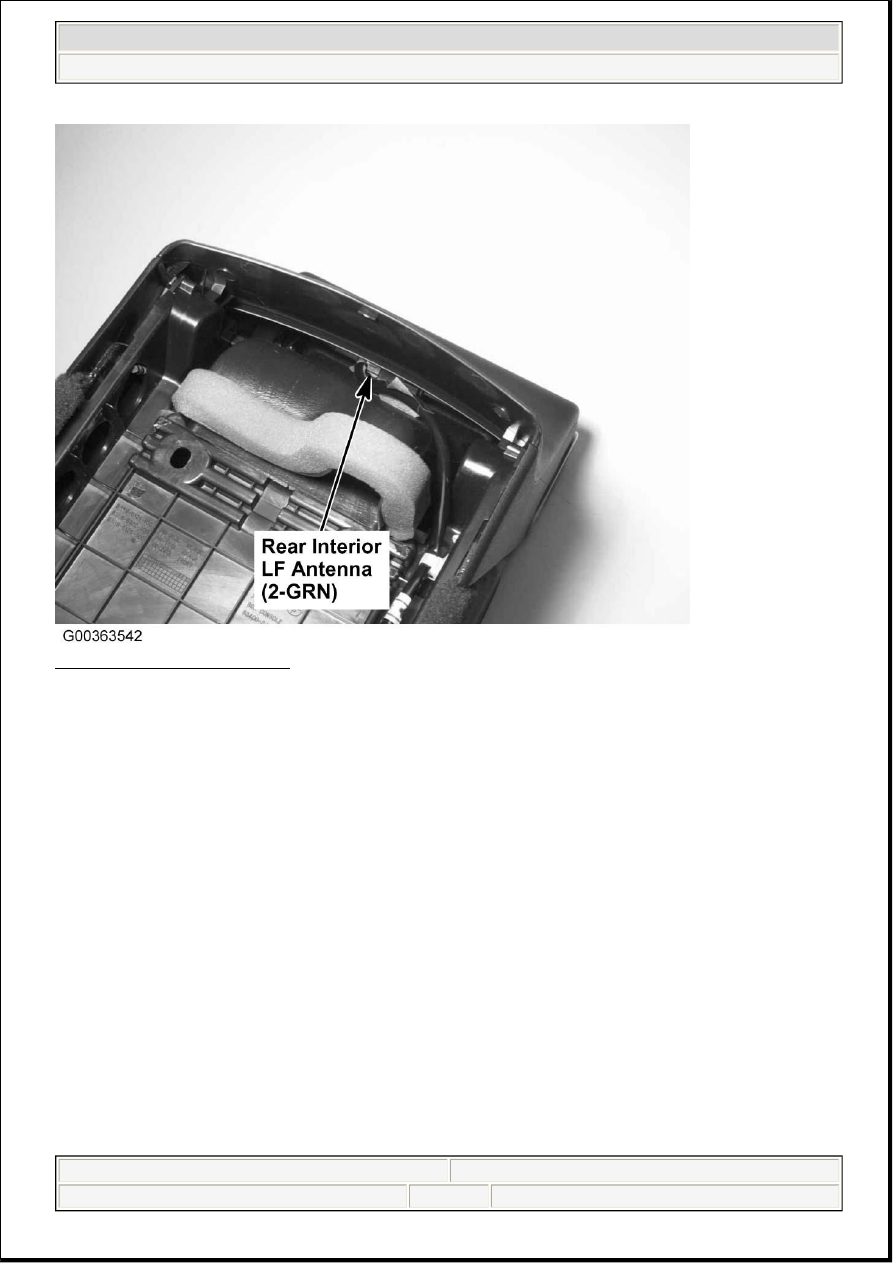

Fig. 81: Under Center Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 92

© 2005 Mitchell Repair Information Company, LLC.

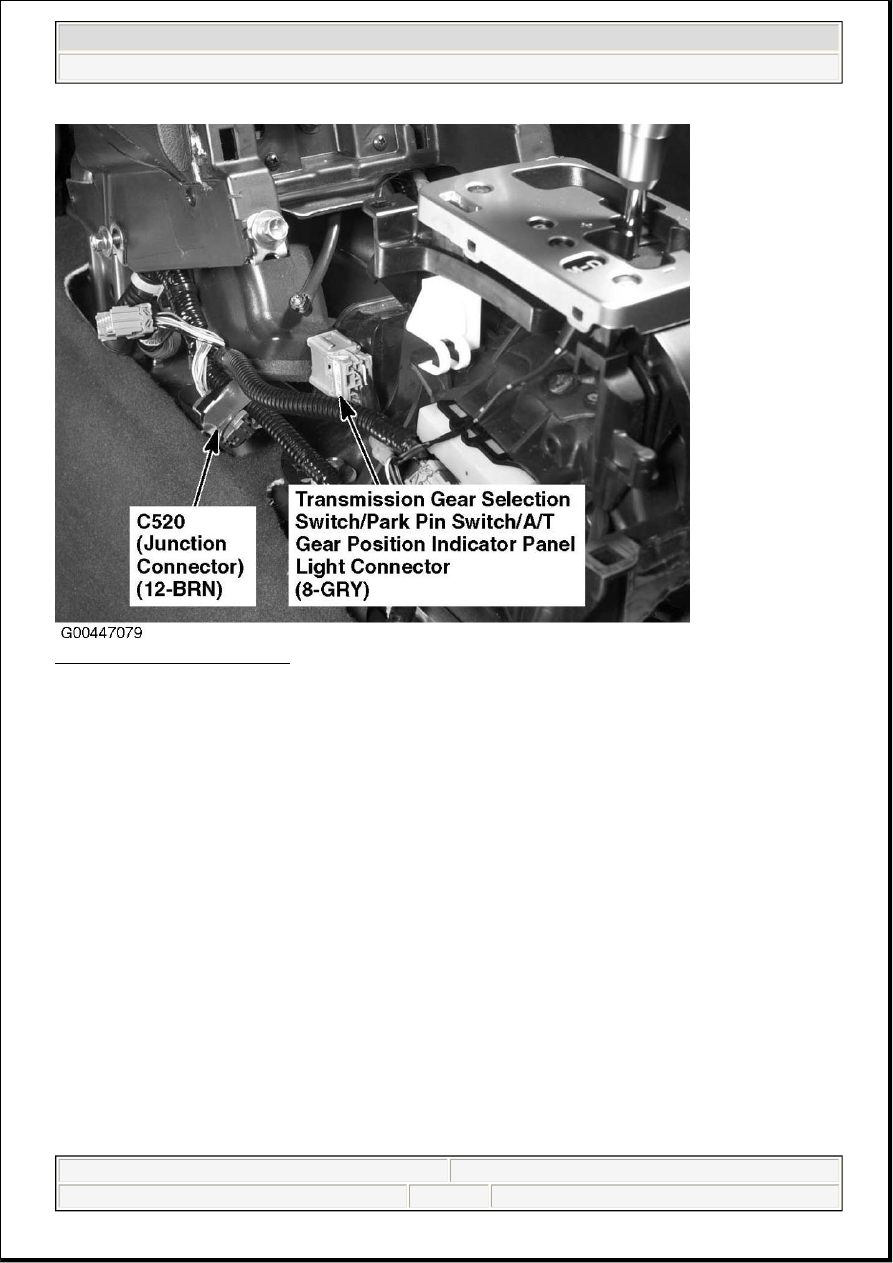

Fig. 82: Under Center Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 93

© 2005 Mitchell Repair Information Company, LLC.

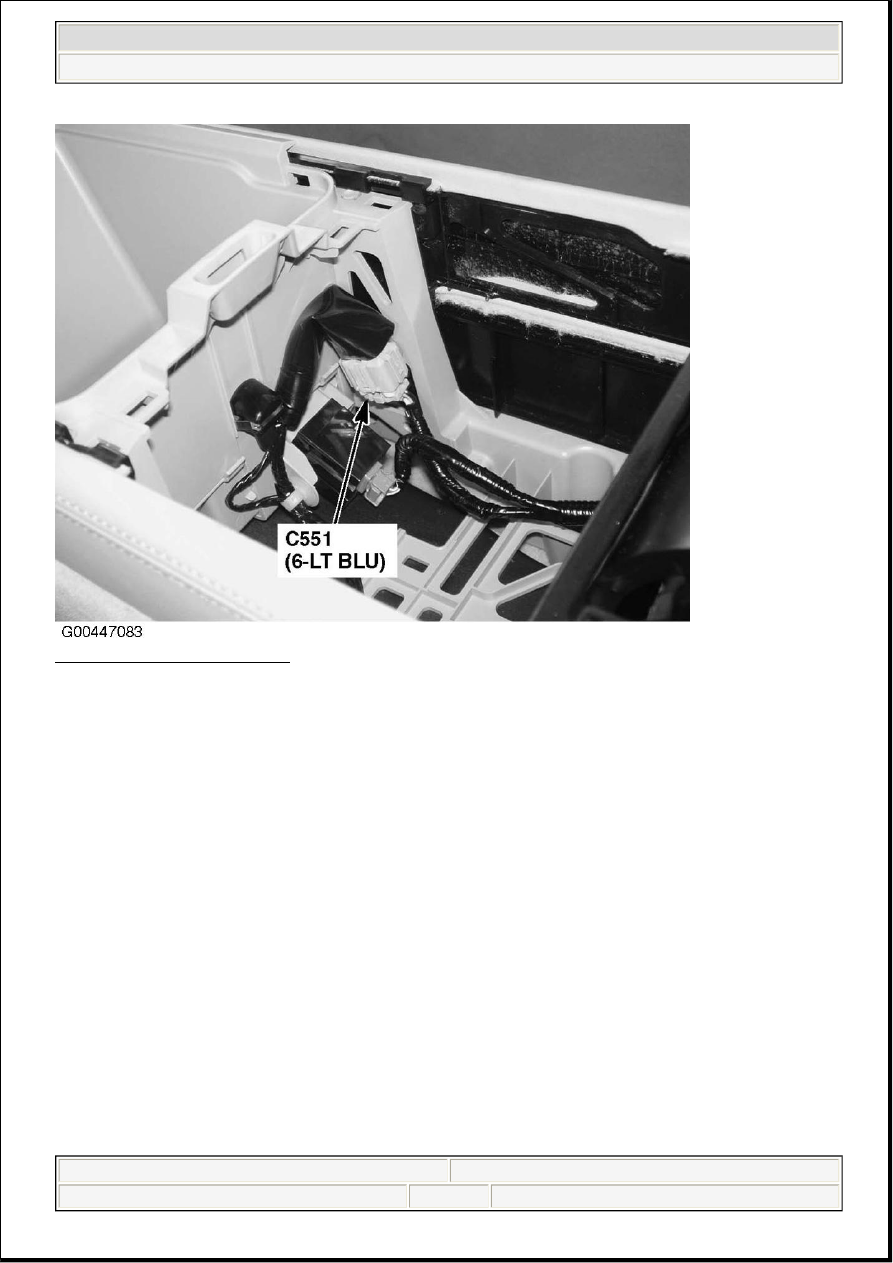

Fig. 83: Under Center Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 94

© 2005 Mitchell Repair Information Company, LLC.

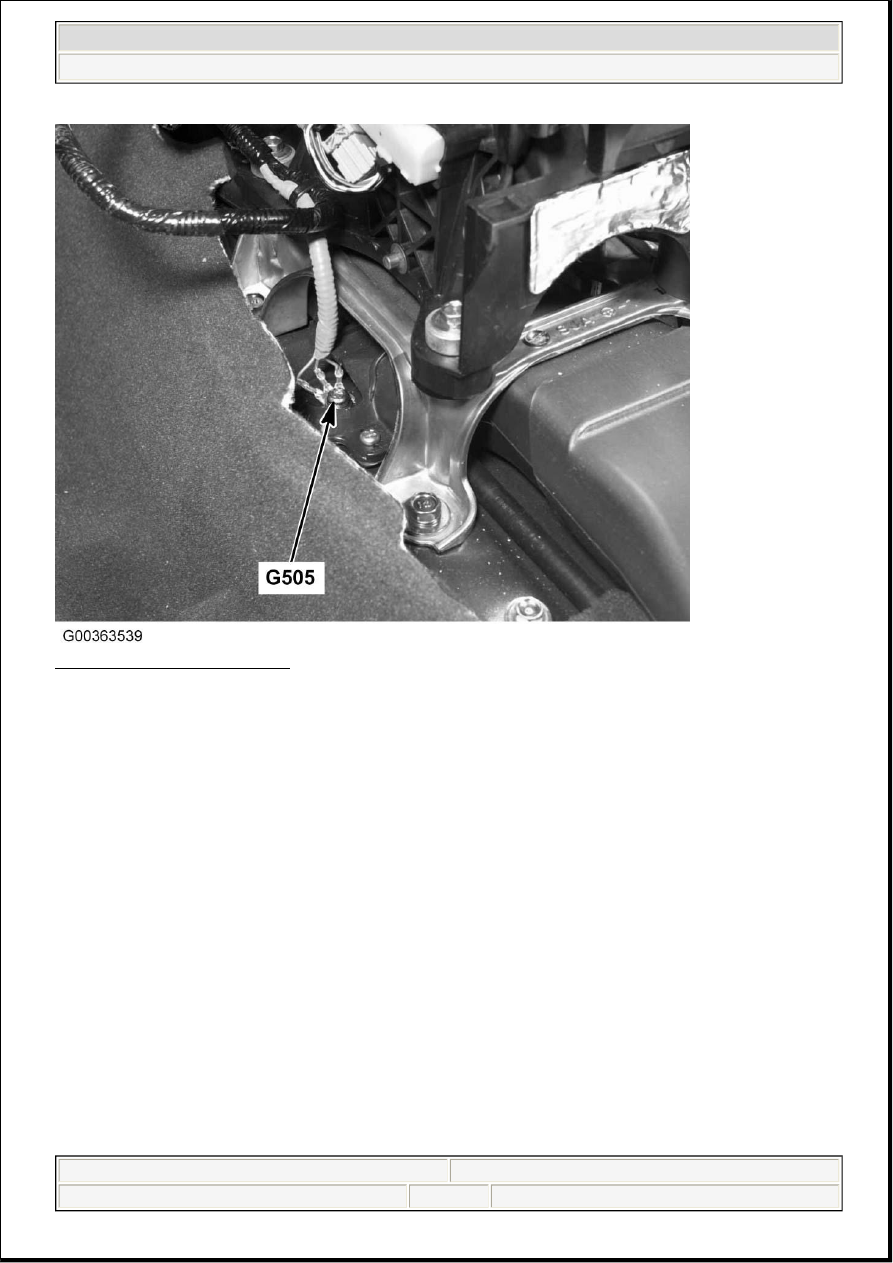

Fig. 84: Under Center Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 95

© 2005 Mitchell Repair Information Company, LLC.
