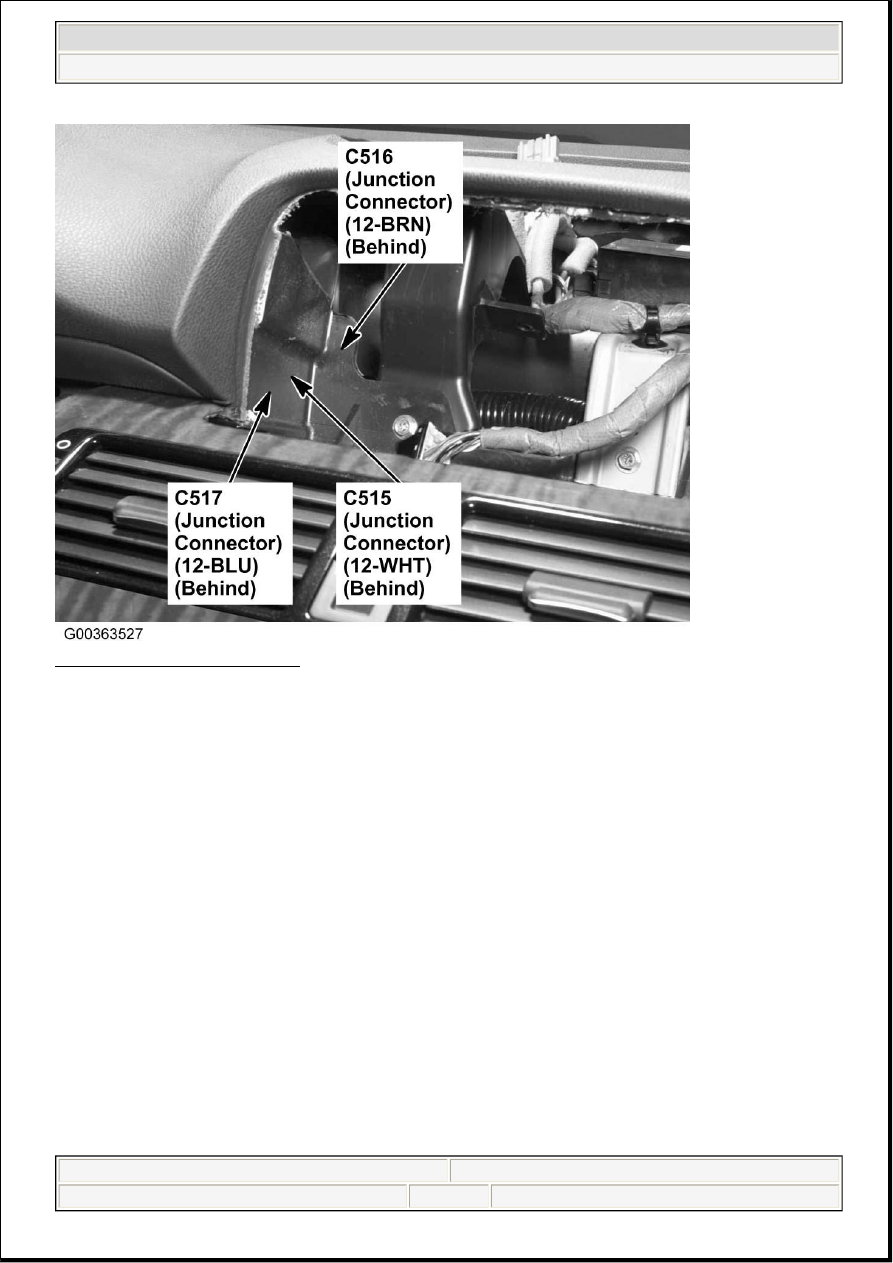

Fig. 69: Behind Middle Of Dash
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 80

© 2005 Mitchell Repair Information Company, LLC.

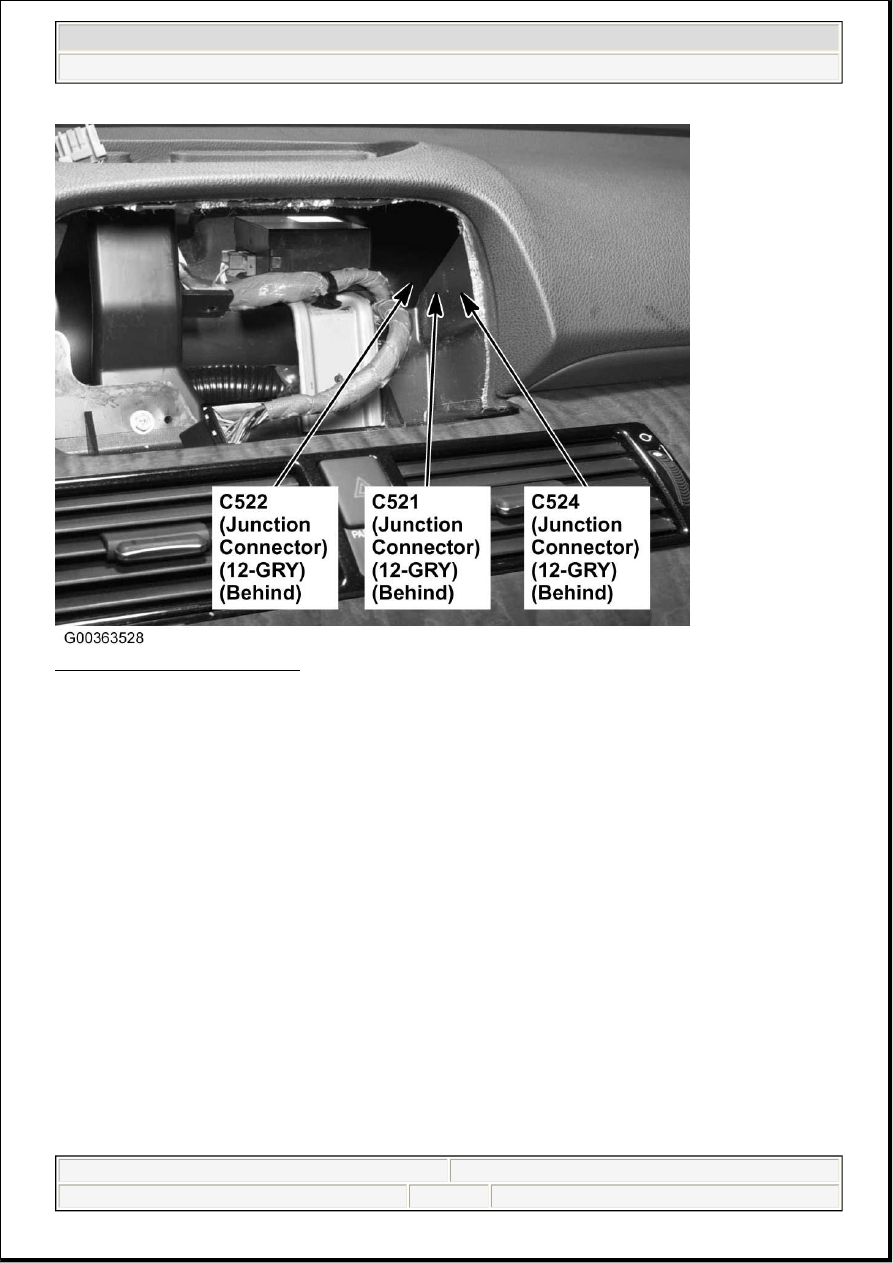

Fig. 70: Behind Middle Of Dash
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 81

© 2005 Mitchell Repair Information Company, LLC.

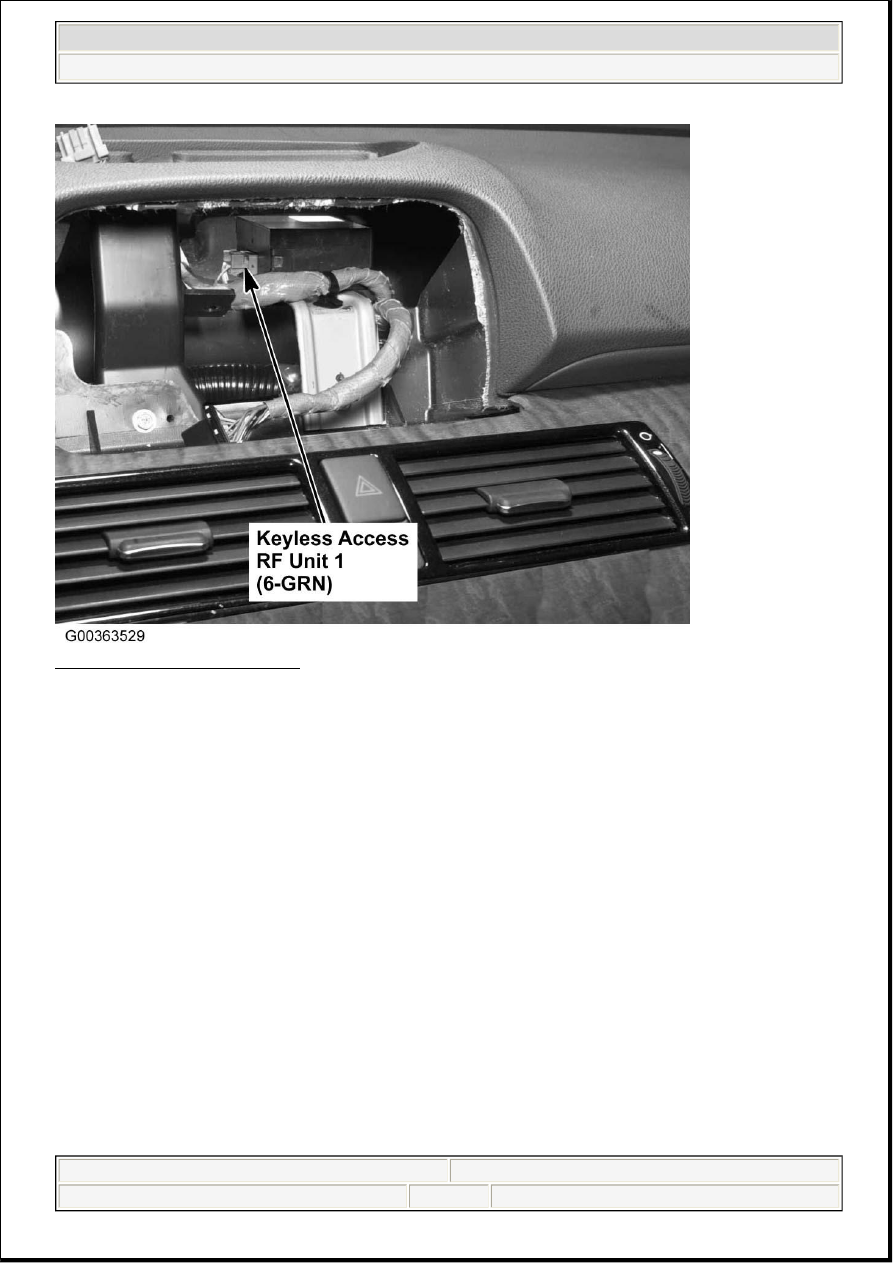

Fig. 71: Behind Middle Of Dash
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 82

© 2005 Mitchell Repair Information Company, LLC.

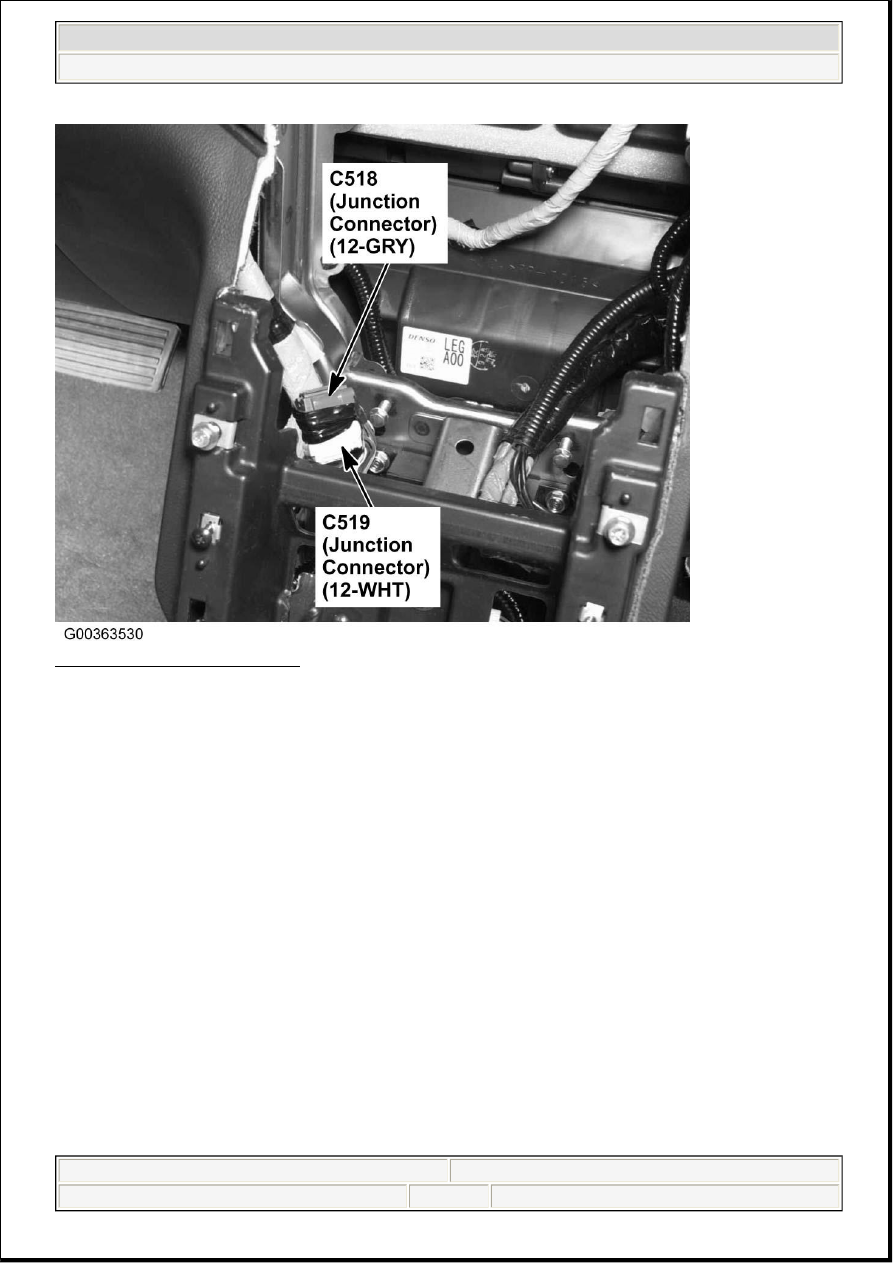

Fig. 72: Behind Middle Of Dash
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 83

© 2005 Mitchell Repair Information Company, LLC.
