Acura RL. Manual - part 859

7. Reconnect the 8P connector to the wiper/washer switch, and make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, replace the wiper/washer switch (combination switch control
unit).

WIRE CAVITY REFERENCE CHART

HEADLIGHT WASHER SWITCH TEST/REPLACEMENT

'07-08 CANADA MODELS

1. Carefully pry the switch panel out from the dashboard.

2. Disconnect the 5P connector (A) from the headlight washer switch (B).

under-dash fuse/relay

box connector N (45P)

terminal and body ground:
There should be no continuity.

in the wire

WHT

Under all conditions

Check for continuity between the No. 1
terminal and under-hood fuse/relay box
connector J (10P) No. 6 terminal:
There should be continuity.

An open in the
wire

Disconnect under-hood

fuse/relay box connector

J (10P)

Check for continuity between the No. 1
terminal and body ground:
There should be no continuity.

A short to ground
in the wire

Cavity Wire Test condition Test: Desired result

Possible cause if desired result is not

obtained

BLK

Under all
conditions

Measure the voltage
to ground:
There should be less
than 0.5 V.



Poor ground (G501)



An open in the wire

WHT

Under all
conditions

Measure the voltage
to ground:
There should be
battery voltage.



Blown No. 15 (40 A) fuse in the under-
hood fuse/relay box



Blown No. 7 (10 A) fuse in the driver's
under-dash fuse/relay box



An open in the wire

YEL

Ignition switch
ON (II)

Measure the voltage
to ground:
There should be
battery voltage.



Blown No. 21 (10 A) fuse in the driver's
under-dash fuse/relay box



An open in the wire

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - RL

Friday, June 05, 2009 3:19:36 PM

Page 13

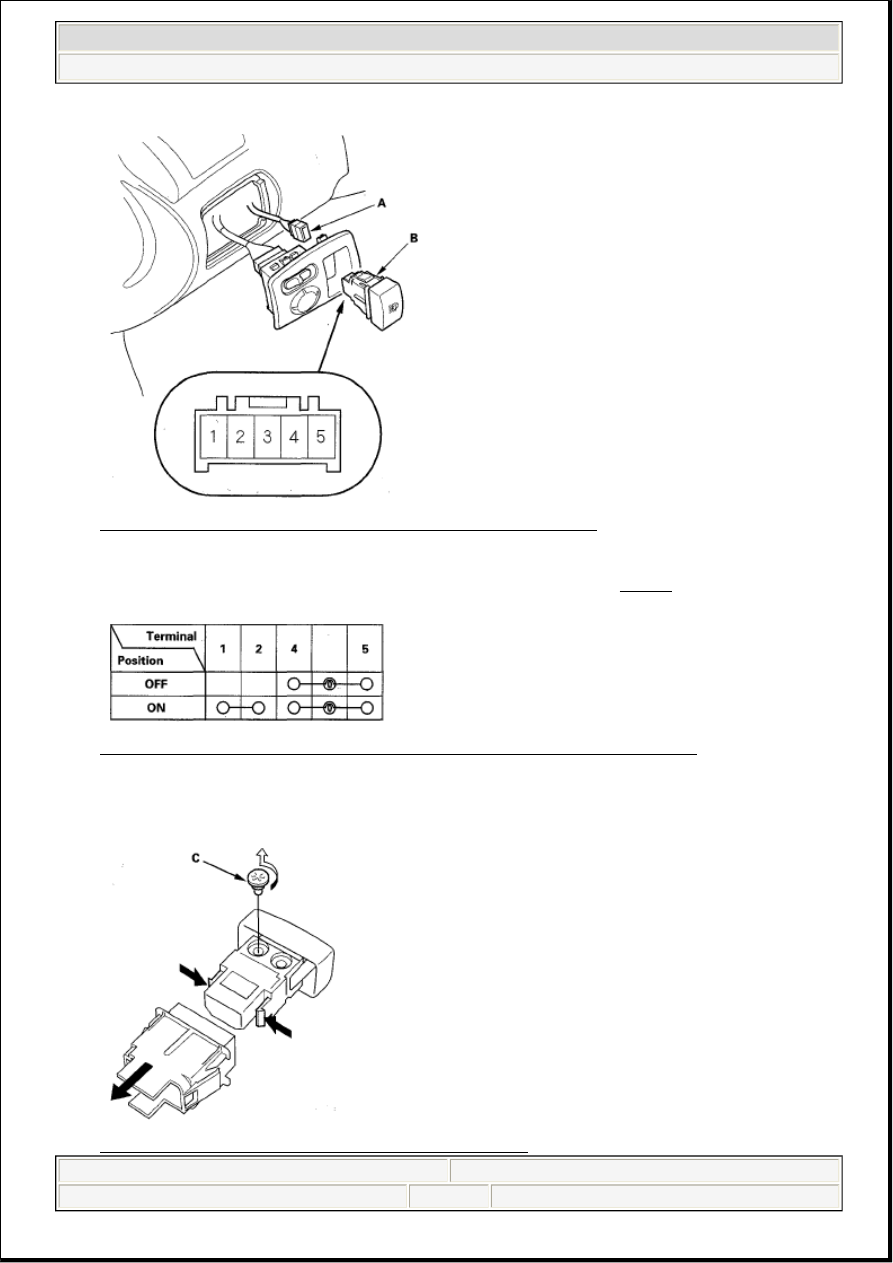

Fig. 14: Identifying Headlight Washer Switch And 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check for continuity between the terminals in each switch position (see Fig. 15).

Fig. 15: Checking For Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If the continuity is not as specified, replace the bulb (C) or the headlight washer switch.

Fig. 16: Identifying Headlight Washer Switch And Bulb

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - RL

Friday, June 05, 2009 3:19:36 PM

Page 14

Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install in the reverse order of removal.

WIPER MOTOR TEST

1. Open the hood, and remove the wiper arms (see WIPER MOTOR REPLACEMENT ).

2. Remove the hood seal and cowl covers.

3. Disconnect the 5P connector (A) from the wiper motor (B).

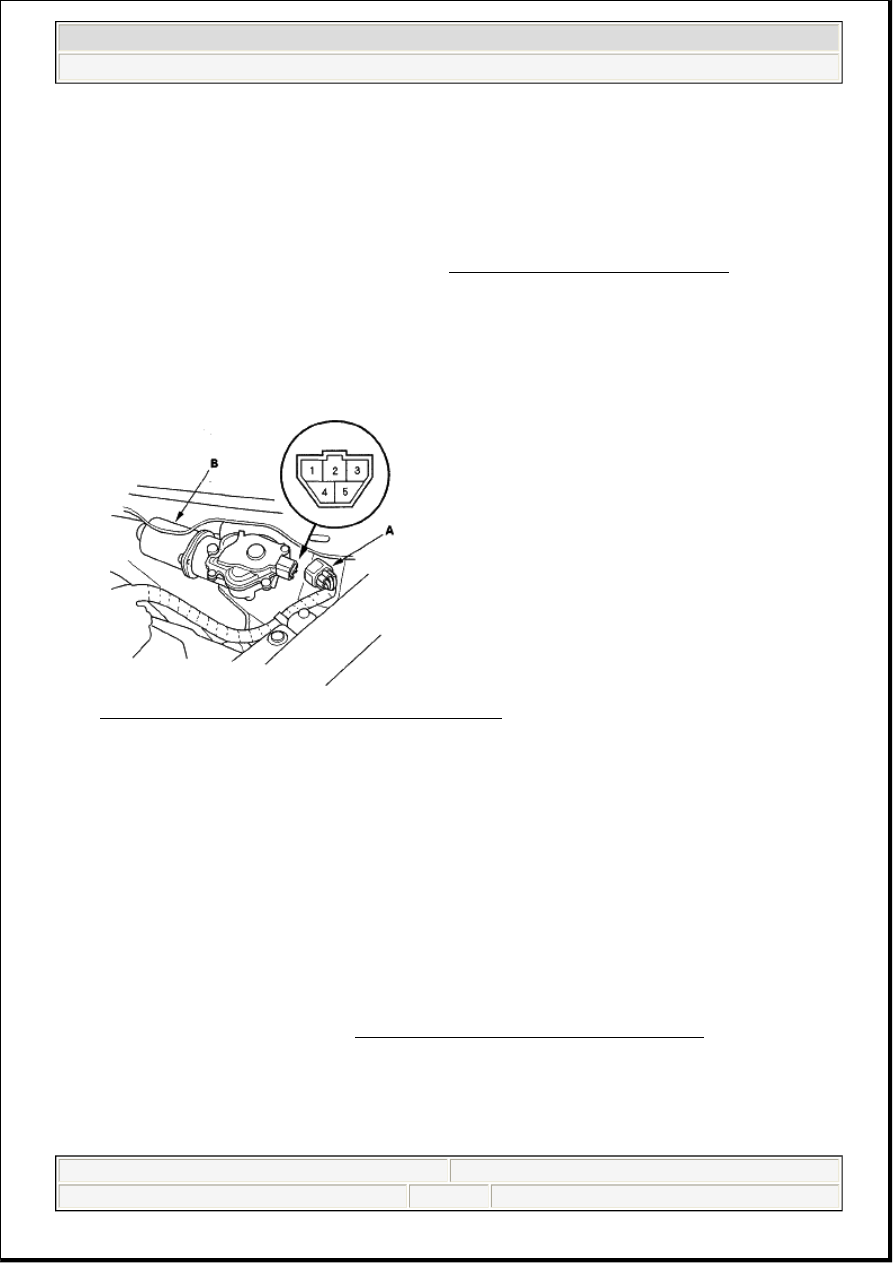

Fig. 17: Identifying Wiper Motor And 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Test the motor by connecting battery power to the No. 2 terminal and grounding the No. 3 terminal of

the wiper motor 5P connector. The motor should run at low speed. If the motor does not run or fails to
run smoothly, replace the motor.

5. Test the motor by connecting battery power to the No. 2 terminal and grounding the No. 5 terminal of

the wiper motor 5P connector. The motor should run at high speed. If the motor does not run or fails
to run smoothly, replace the motor.

6. Connect an analog ohmmeter between the No. 1 and No. 4 terminals, and run the motor at low or high

speed. The ohmmeter should indicate continuity and no continuity alternately. If it does not, replace
the motor.

WASHER MOTOR TEST

1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).

2. Disconnect the 2P connector (A) from the washer motor (B).

NOTE:

Carefully remove the wiper arms so that they do not touch the hood.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - RL

Friday, June 05, 2009 3:19:36 PM

Page 15

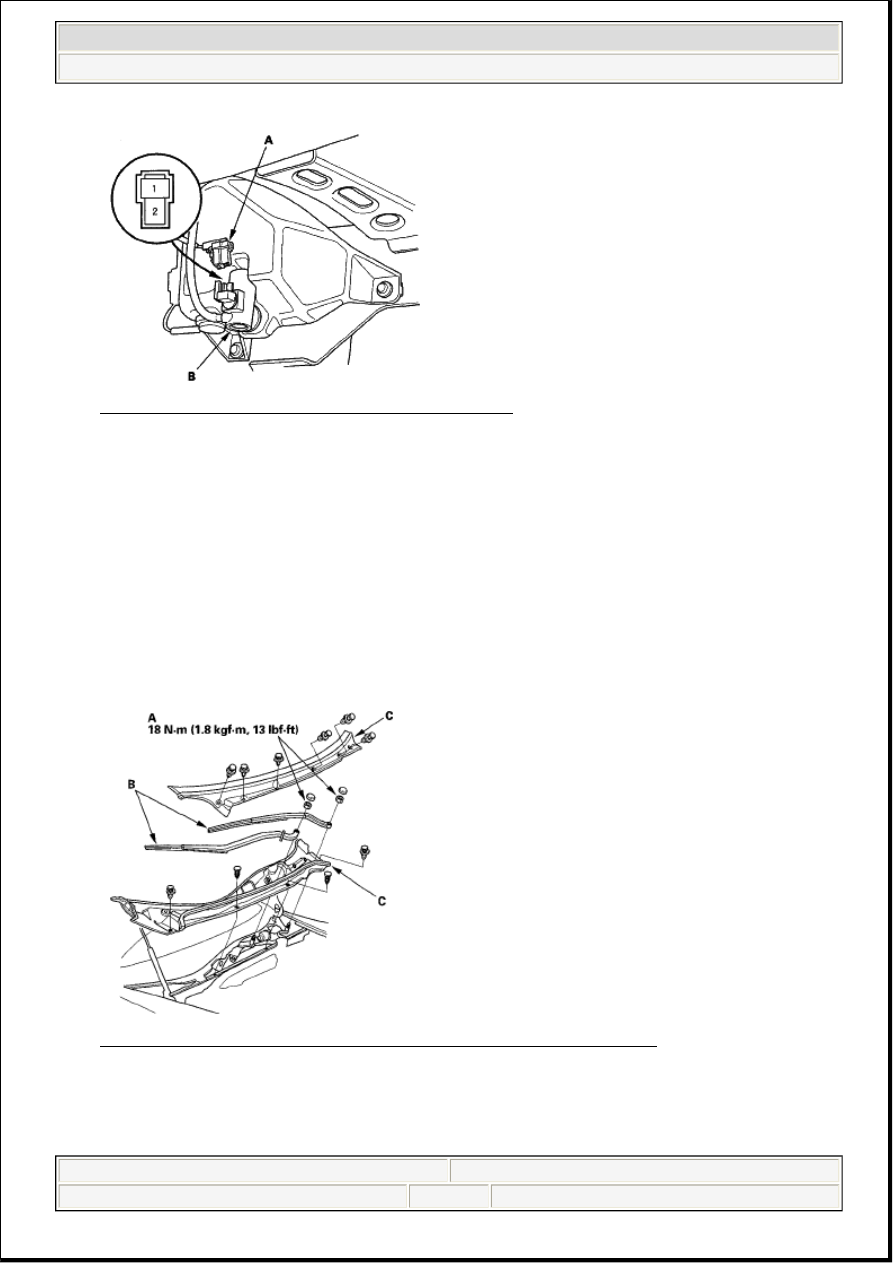

Fig. 18: Identifying Washer Motor And 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Test the motor by connecting battery power to the No. 1 terminal and grounding the Non terminal of

the washer motor. The motor should run.



If the motor does not run or fails to run smoothly, replace it.



If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or
blocked washer hose, or a clogged washer motor outlet.

WIPER MOTOR REPLACEMENT

1. Open the hood.

2. Remove the caps, nuts (A), and the windshield wiper arms (B).

Fig. 19: Identifying Windshield Wiper Arms With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the cowl covers (C).

4. Disconnect the 5P connector (A) from the wiper motor.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - RL

Friday, June 05, 2009 3:19:36 PM

Page 16
