Fig. 44: Identifying Valve Stem, Screw, And Sensor-Transmitter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Before installing the tire pressure sensor, clean the mating surfaces on the sensor and the wheel.

3. Install the tire pressure sensor (A) to the wheel (B), and tighten the valve nut (C) finger tight. Make

sure the pressure sensor is resting on the wheel.

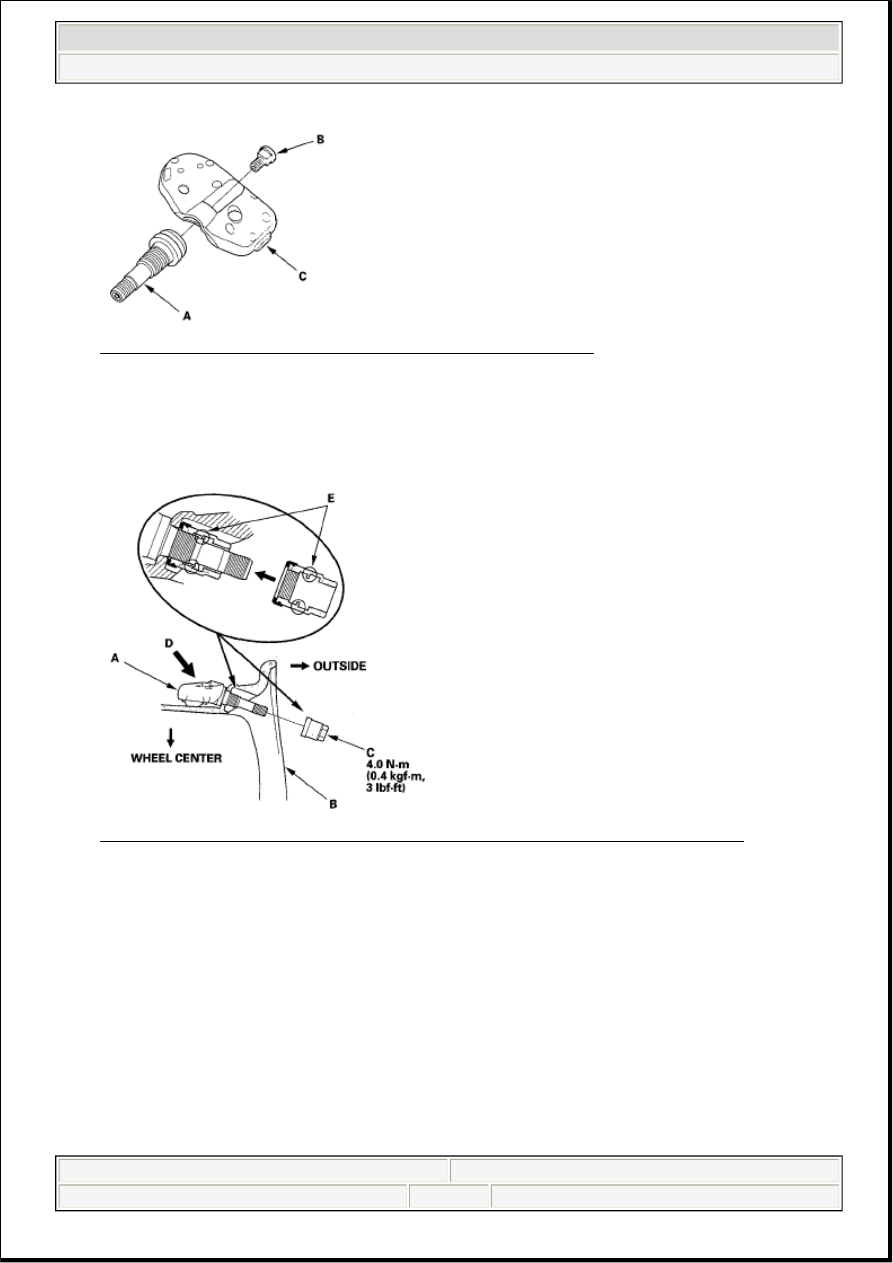

Fig. 45: Identifying Positioning Of Tire Pressure Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Tighten the valve nut to the specified torque while holding the tire pressure sensor toward (D) the

wheel. You may hear a snap or pop as you tighten the nut. This is normal.

5. Lube the tire bead, and position the wheel so the tire machine (A) and tire iron (B) are next to the

NOTE:



Do not reuse the nuts that had been tightened, even one time, to
the specified torque, as they are deformed inside (E).



Do not use air or electric impact tools to tighten a valve stem nut.



Tightening the nut beyond the specified torque can damage the
nut.



Make sure that there is no space between the sensor and the
wheel.



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:25 PM

Page 53

© 2005 Mitchell Repair Information Company, LLC.

valve stem (C) and will move away from it when the machine starts. Then install the tire onto the
wheel.

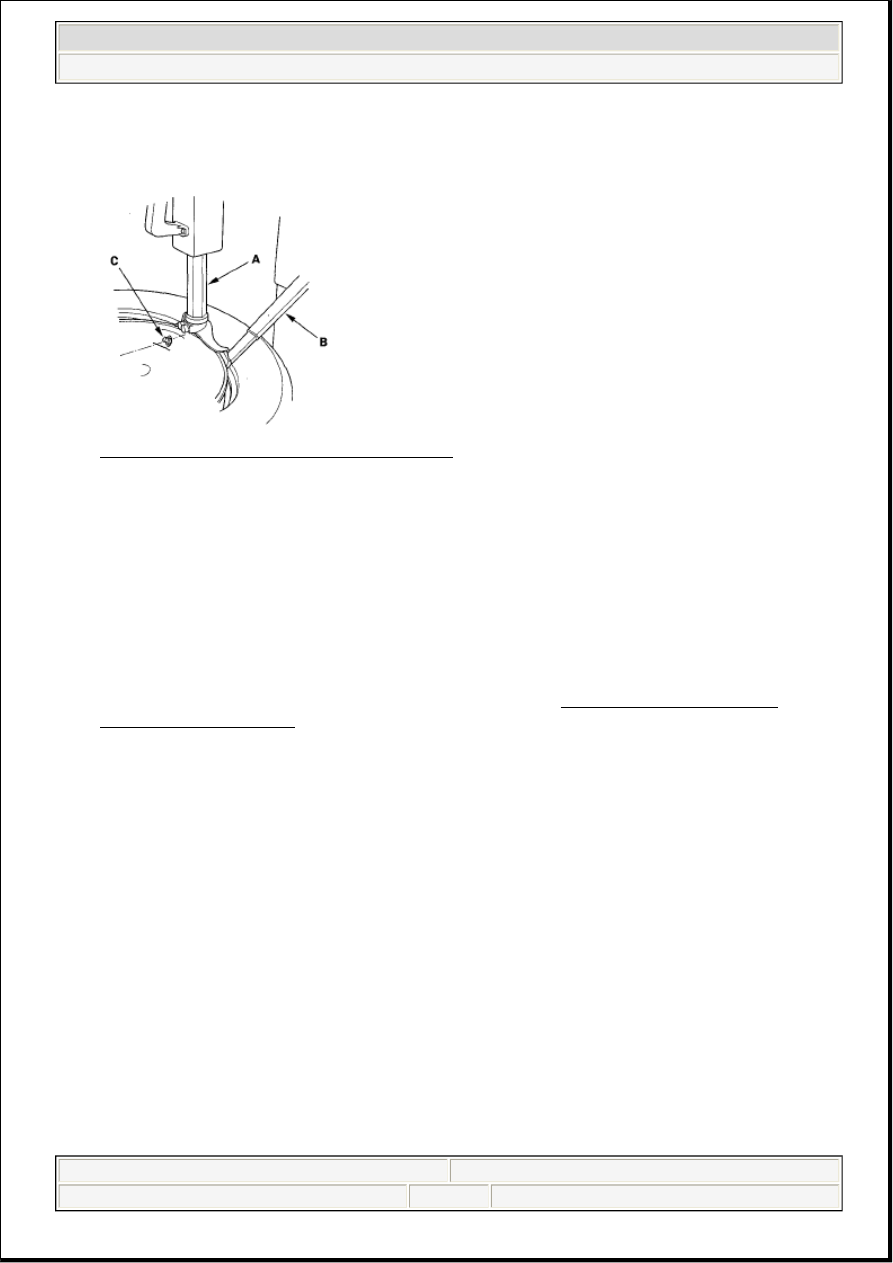

Fig. 46: Identifying Tire Iron And Valve Stem
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Inflate the tire to 300 kPa (3.1 kgf/cm

2

 , 44 psi) to seat the tire bead to the rim, then adjust the tire

pressure to front 220 kPa (2.2 kgf/cm

2

 ,32 psi), rear 210 kPa (2.1 kgf/cm

2

 ,30 psi), and install the

valve stem cap.

7. Check and adjust the wheel balance, then install the wheels to the vehicle.

8. Remove the safety stands, and lower the vehicle.

9. Connect the HDS, and memorize the pressure sensor ID(s) (see MEMORIZING THE TIRE

PRESSURE SENSOR ID ).

RESETTING THE PAX SYSTEM WARNING

When a tire goes flat or is very low on pressure, the multi-information display will show "PAX SYSTEM
WARNING, RUN FLAT DRIVING." After the tire is repaired or replaced, you must reset the warning
indicator (and the mileage counter that supports it), no matter how far the vehicle was driven in the run flat
mode.

1. Put the gauge control module into the self-diagnostic mode:



Turn the headlight switch to ON.



Press and hold the SELECT/RESET (SELECT/RESET Information switch).



Turn the ignition switch to ON (II).



Within 5 seconds, turn the headlights to AUTO, then to ON, and then to AUTO again.



Within 5 seconds, release the SELECT/RESET switch, then push and release the switch three
times.

2. Once the gauge control module is in the self-diagnostic mode, press and hold the INFO button on the

steering wheel for 5 seconds to get to the CUSTOMIZE MENU.

3. With the INFO button, scroll through to the PAX RESET screen, then press the SEL/RESET button

on the steering wheel.

NOTE:

Make sure the tire bead is seated on both sides of the rim uniformly.



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:25 PM

Page 54

© 2005 Mitchell Repair Information Company, LLC.

4. With the INFO button, scroll through to the appropriate wheel, then press the SEL/RESET button on

the steering wheel to reset the system warning. The screen should display PAX RESET
"COMPLETED".

5. Use the INFO button to scroll through to EXIT, then press the SEL/RESET button.

6. Turn the ignition switch OFF to exit the self-diagnostic mode.



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:25 PM

Page 55

© 2005 Mitchell Repair Information Company, LLC.

2007-08 ELECTRICAL

Under-Hood Fuse/Relay Box - RL

REMOVAL AND INSTALLATION

REMOVAL

1. Make sure you have the anti-theft codes for the audio system and navigation system (if equipped).

Make sure the ignition switch is OFF.

2. Disconnect the negative battery cable, then disconnect the positive cable, and wait at least 3 minutes.

3. Remove the screws (A) for the alternator and battery cable terminals from the under-hood fuse/relay

box.

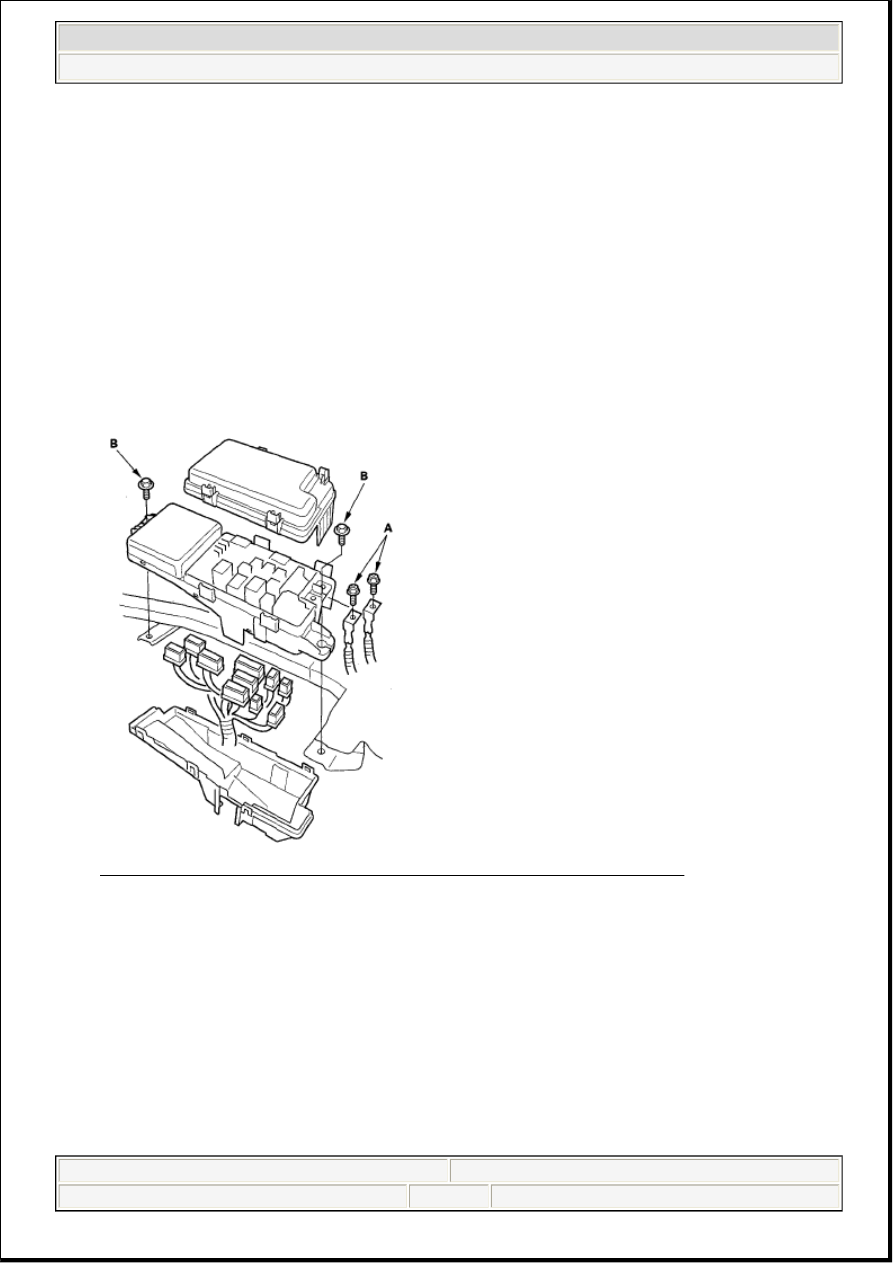

Fig. 1: Identifying Under-Hood Fuse/Relay Box Mounting Bolts And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the two mounting bolts (B) from the under-hood fuse/relay box.

5. Remove the bottom cover from the under-hood fuse/relay box.

6. Disconnect the connectors from the under-hood fuse/relay box.

7. Carefully remove the relays by prying under the base of the relay.

INSTALLATION

NOTE:

Do not use pliers. Pliers will damage the relays, which could cause the
engine to stall or not start.
