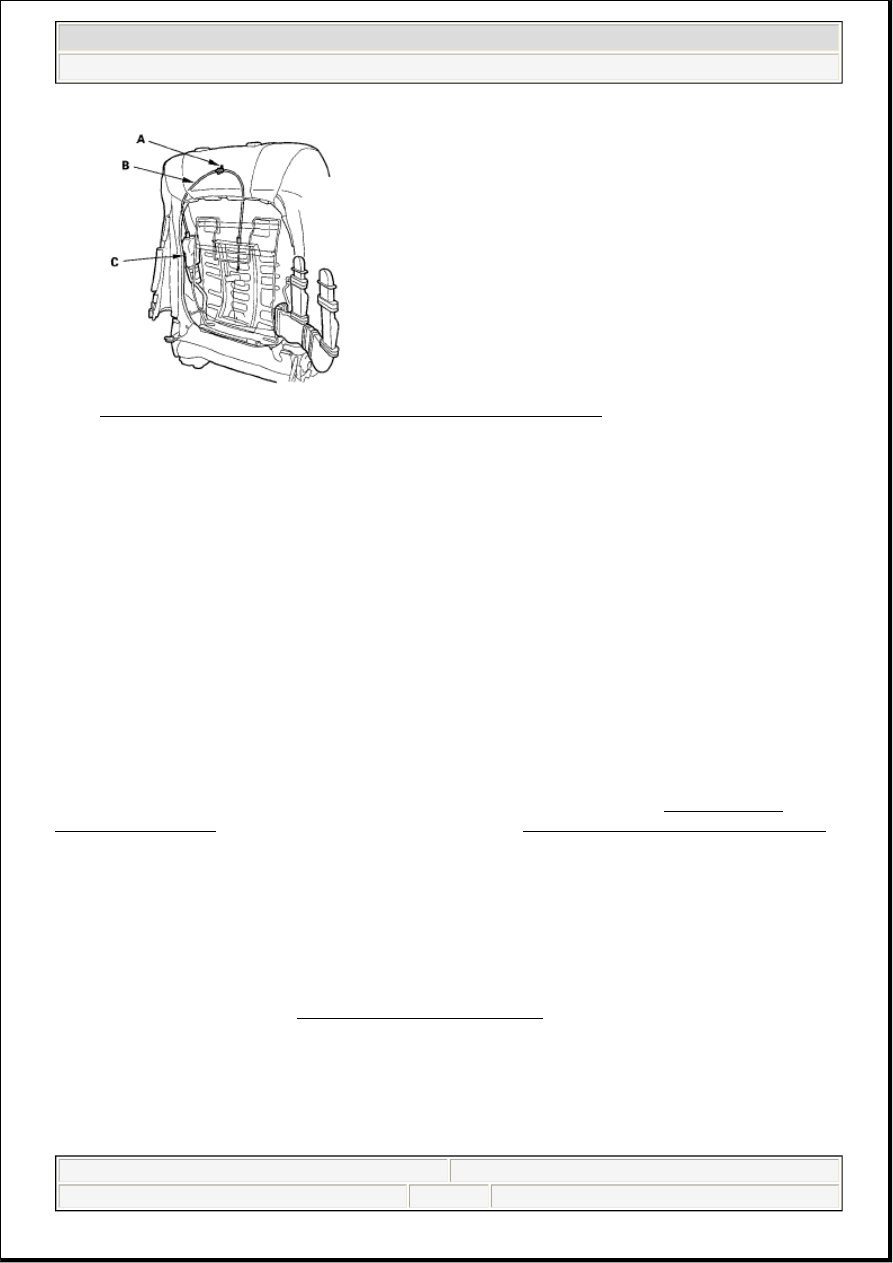

Fig. 27: Identifying Lumbar Support Cable, Motor And Wire Tie
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Install the lumbar support in the reverse order of removal, and note these items:



Make sure the cable is connected securely.



To prevent wrinkles when installing a seat-back cover, make sure the material is stretched
evenly over the pad before securing the hook strips.



Replace the back panel clips with new ones.



Replace the metal clips with new ones.

FRONT SEAT-BACK COVER REPLACEMENT

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES )
before doing repairs or service.

1. Remove the seat-back (see SEAT-BACK/SEAT CUSHION ).

2. Remove the head restraint.

3. Detach the clips and hooks (A) by pulling the bottom of the back panel (B) back, then gently pull

down the panel to release the hooks (C) from the seat-back frame, and remove the panel.

NOTE:



Use the appropriate tool from the KTC trim tool set to avoid damage
when prying components.



Take care not to tear the seams of damage the seat covers.



Put on gloves to protect your hands.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:16 PM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

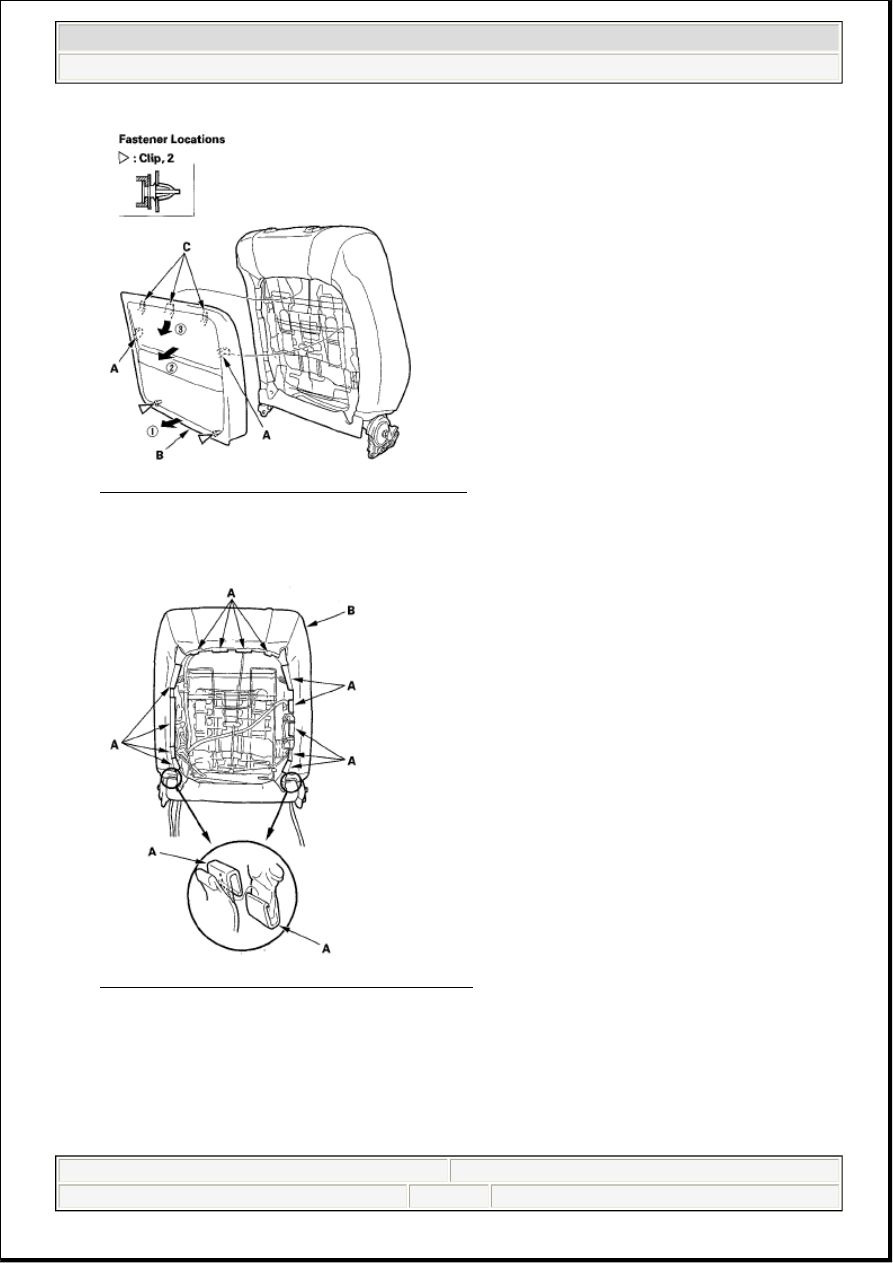

Fig. 28: Identifying Seat Back Panel And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Release the hooks (A), then loosen the seat-back cover (B).

Fig. 29: Identifying Seat-Back Cover And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Pull the recline motor harness (A), seat-back heater harness (B), side airbag harness (C) and the OPDS

harness (D) (passenger's seat) out through the holes (E) in the seat-back cover.

Driver's seat-back



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:16 PM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

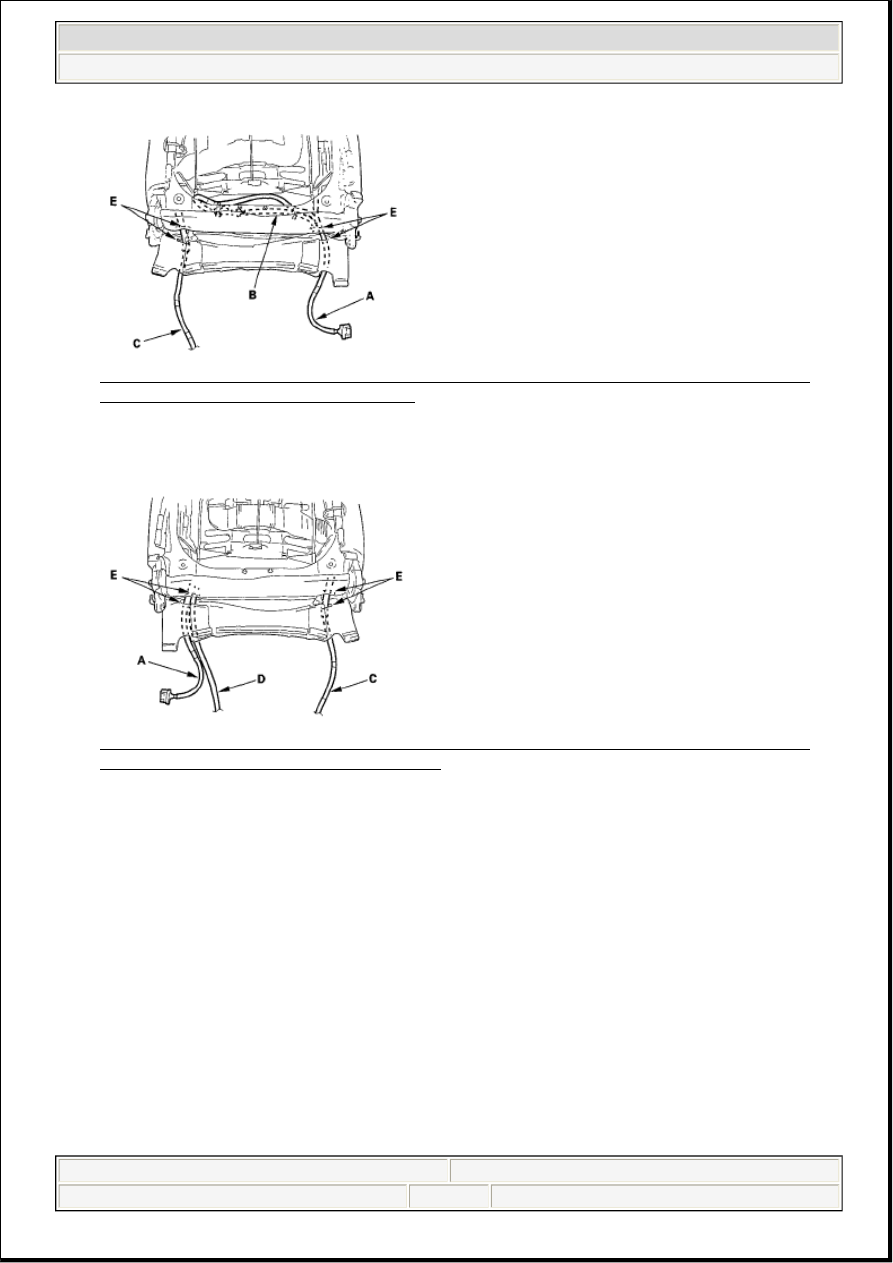

Fig. 30: Identifying Recline Motor Harness, Seat-Back Heater Harness, Side Airbag Harness
And OPDS Harness (Driver's Seat-Back)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Passenger's seat-back

Fig. 31: Identifying Recline Motor Harness, Seat-Back Heater Harness, Side Airbag Harness
And OPDS Harness (Passenger's Seat-Back)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Passenger's: Release the hooks (A), then turn over the seat back cover (B). Detach the hooks (C), then

remove the OPDS unit cover (D). Disconnect the OPDS unit sensor connectors (E), then release the
harness band (F).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:16 PM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

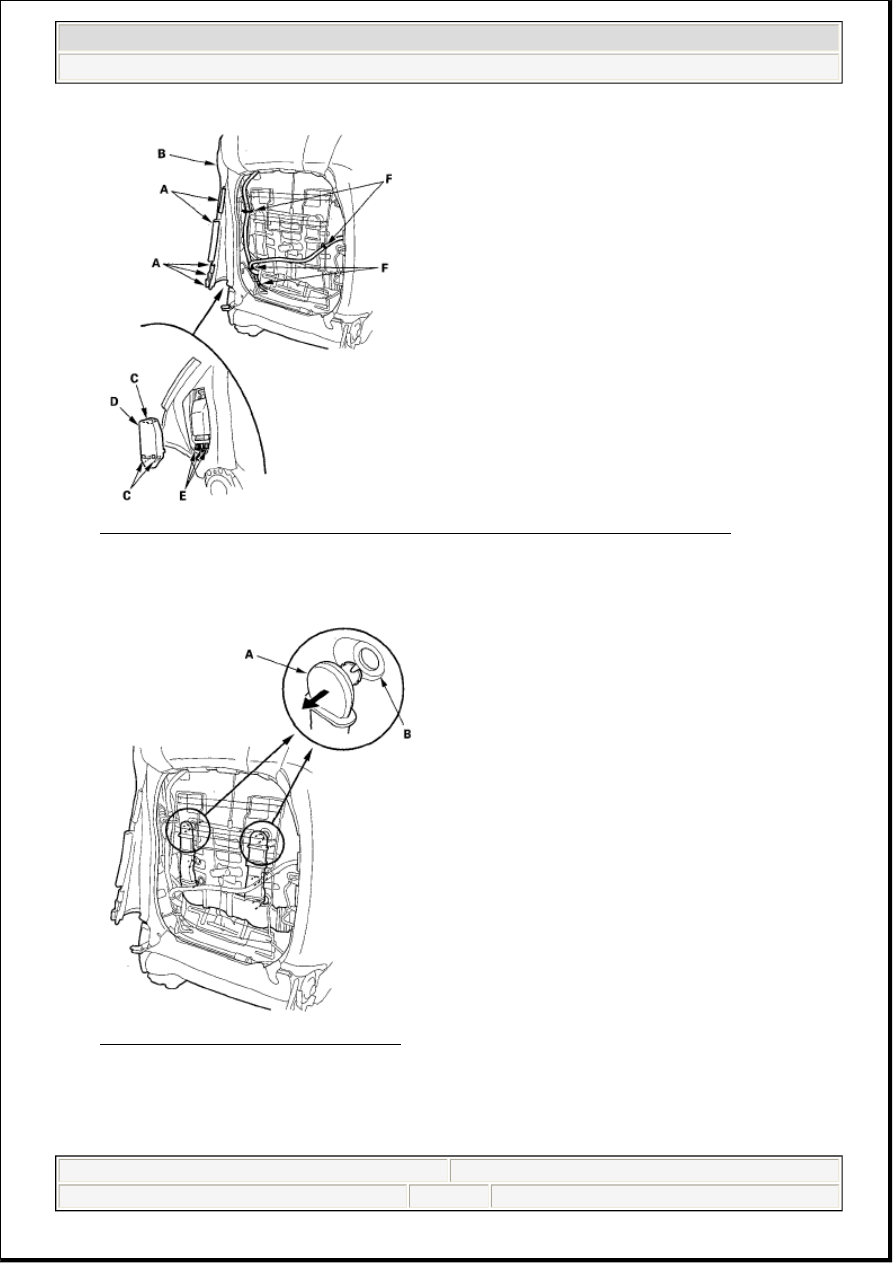

Fig. 32: Identifying Seat Back Cover, Hooks OPDS Unit Cover And Harness Band
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Pull out the duct (A) from seat-back pad (B).

Fig. 33: Pulling Duct Of Seat-Back Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Release the front hook (A) and rear hook (B) of the reinforcing cloth (C) from seat-back frame (D).
