Fig. 5: Identifying Control Motor Relay (HVAC) Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

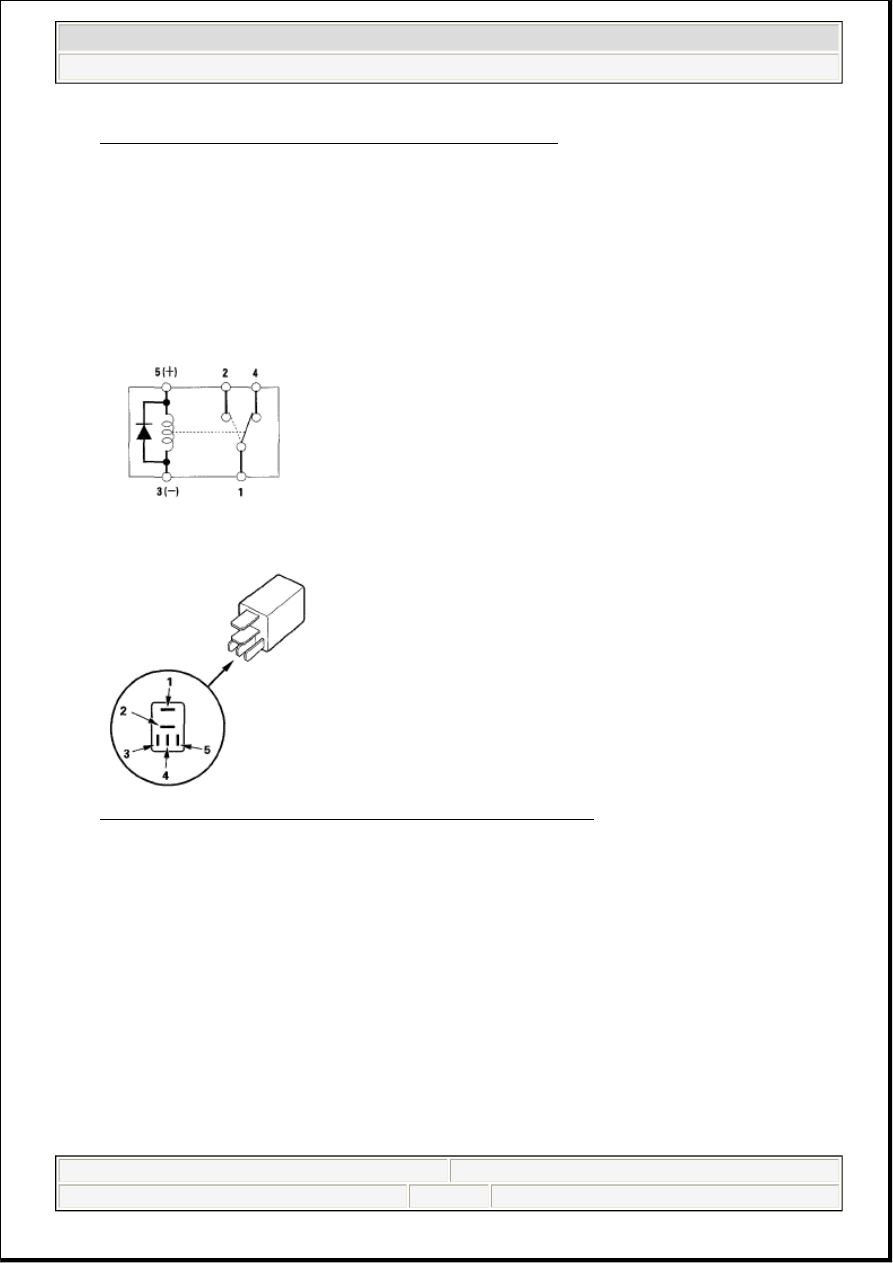

FIVE-TERMINAL TYPE B
Check for continuity between the terminals.
There should be continuity between the No. 1 and No. 2 terminals when power is connected to the No.
5 terminal and ground the No. 3 terminal.
There should be continuity between the No. 1 and No. 4 terminals when power is disconnected.
Fig. 6: Checking Continuity Between No. 1 And No. 2 Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

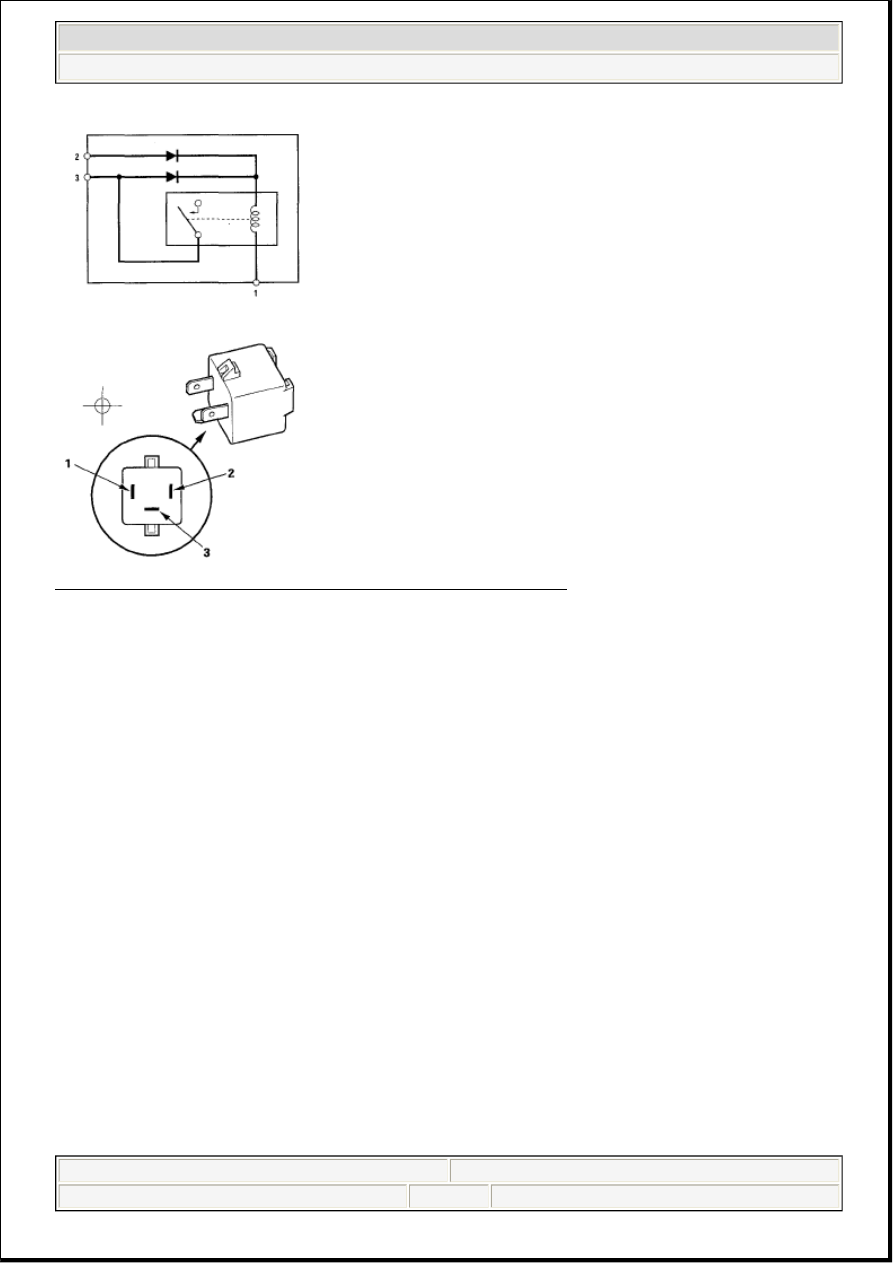

TURN SIGNAL/HAZARD RELAY 2 (SOUNDER)
Check for a sound from the turn signal/hazard relay 2 The relay should sound once when power and ground
are connected to the No. 2 and No. 1 terminals, and No. 3 and No. 1 terminals.
