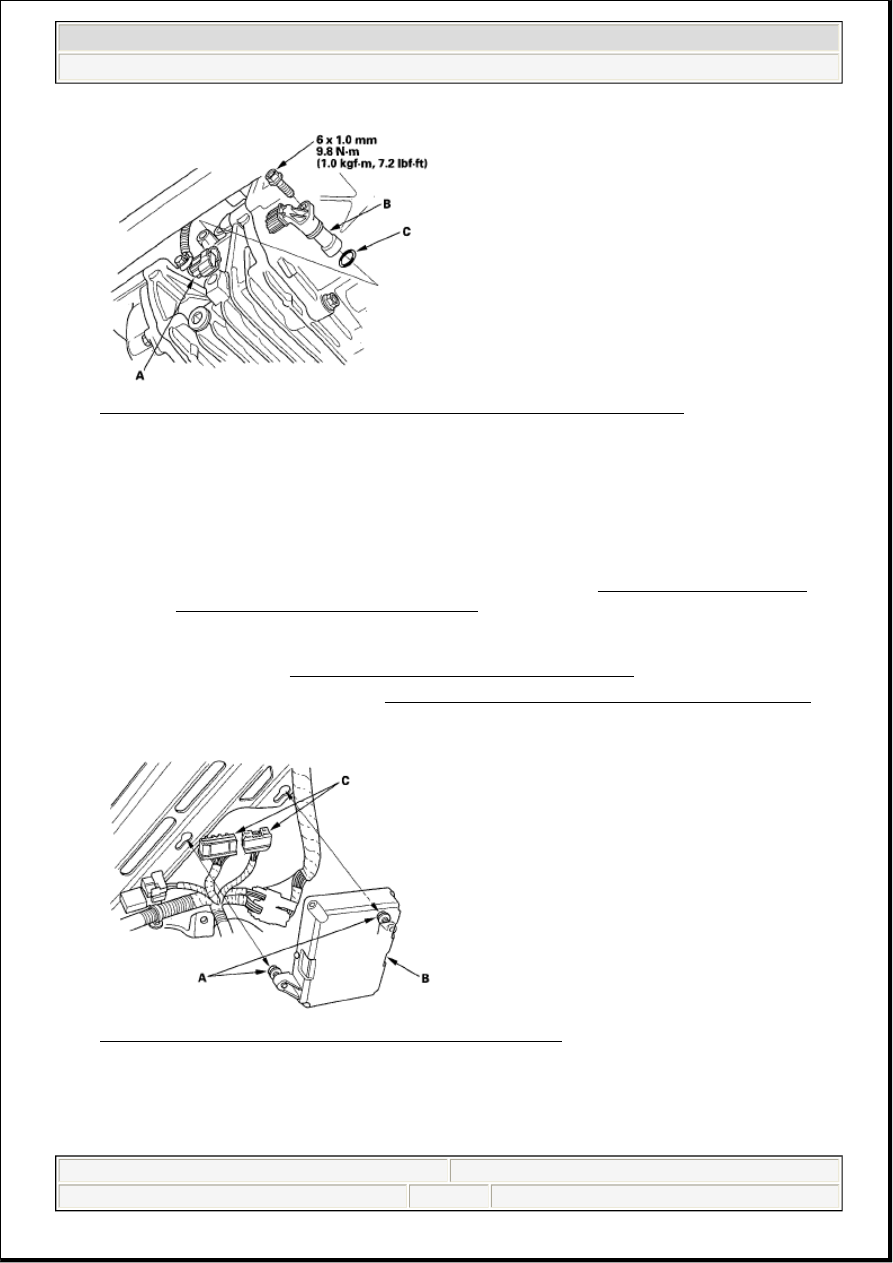

Fig. 168: Identifying Hypoid Gear Speed Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the hypoid gear speed sensor (B).

3. Install the hypoid gear speed sensor with a new O-ring (C) in the reverse order of removal.

SH-AWD CONTROL UNIT REPLACEMENT

1. Remove the rear seat (see REAR SEAT REMOVAL/INSTALLATION ).

2. Remove the trunk front trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).

3. Loosen the SH-AWD control unit mounting bolts (A), then remove the SH-AWD control unit (B).

Fig. 169: Identifying SH-AWD Control Unit Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Disconnect the SH-AWD control unit connectors (C).

5. Install the SH-AWD control unit in the reverse order of removal.

NOTE:

The SH-AWD control unit must be initialized (see SH-AWD DIFFERENTIAL
CLUTCH TORQUE MEMORIZATION ) after replacement, otherwise the SH-
AWD system will not function.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 131  © 2005 Mitchell Repair Information Company, LLC.

SH-AWD RELAY REPLACEMENT

1. Remove the rear seat (see REAR SEAT REMOVAL/INSTALLATION ).

2. Remove the trunk front trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).

3. Remove the SH-AWD relay (A).

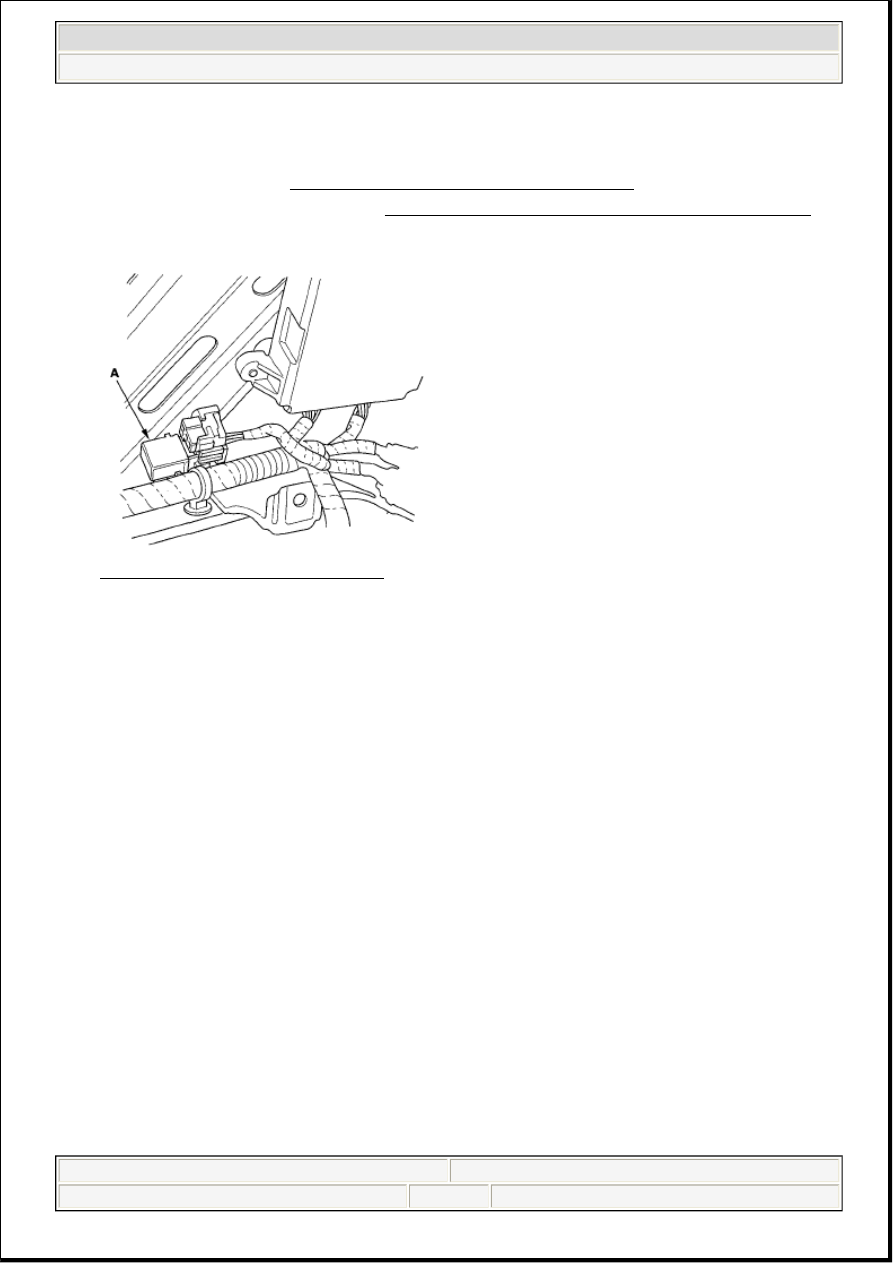

Fig. 170: Identifying SH-AWD Relay
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the SH-AWD relay in the reverse order of removal.

REAR DIFFERENTIAL MOUNT REPLACEMENT



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 132  © 2005 Mitchell Repair Information Company, LLC.

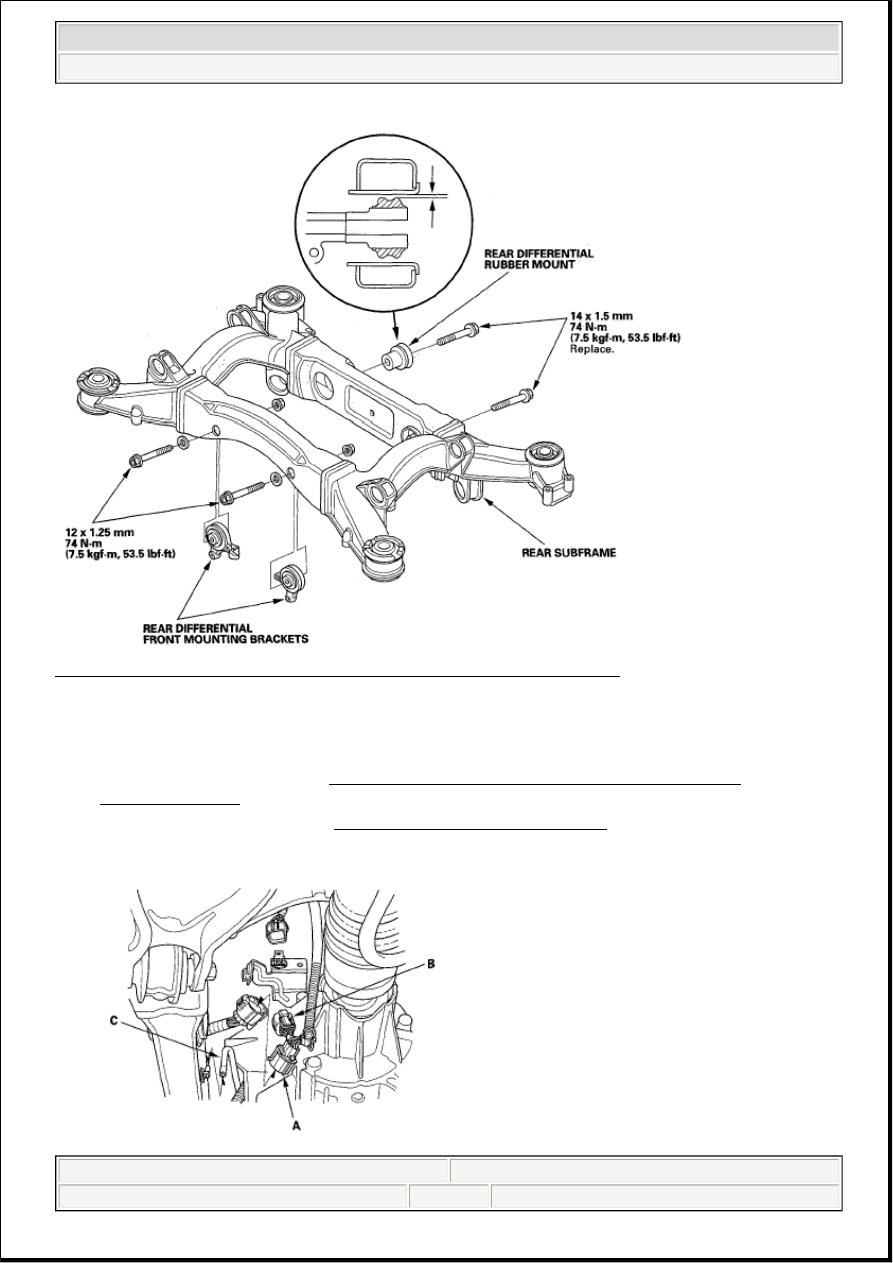

Fig. 171: Identifying Rear Differential Mount With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR DIFFERENTIAL REMOVAL

1. Drain the differential fluid (see REAR DIFFERENTIAL FLUID INSPECTION AND

REPLACEMENT ).

2. Remove the propeller shaft (see PROPELLER SHAFT REMOVAL ).

3. Disconnect the rear differential harness connectors (A, B).



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 133  © 2005 Mitchell Repair Information Company, LLC.

Fig. 172: Identifying Rear Differential Harness Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Disconnect the breather hose (C).

5. Using a pair of screwdrivers, pry out both inboard joints (A) from the differential (B).

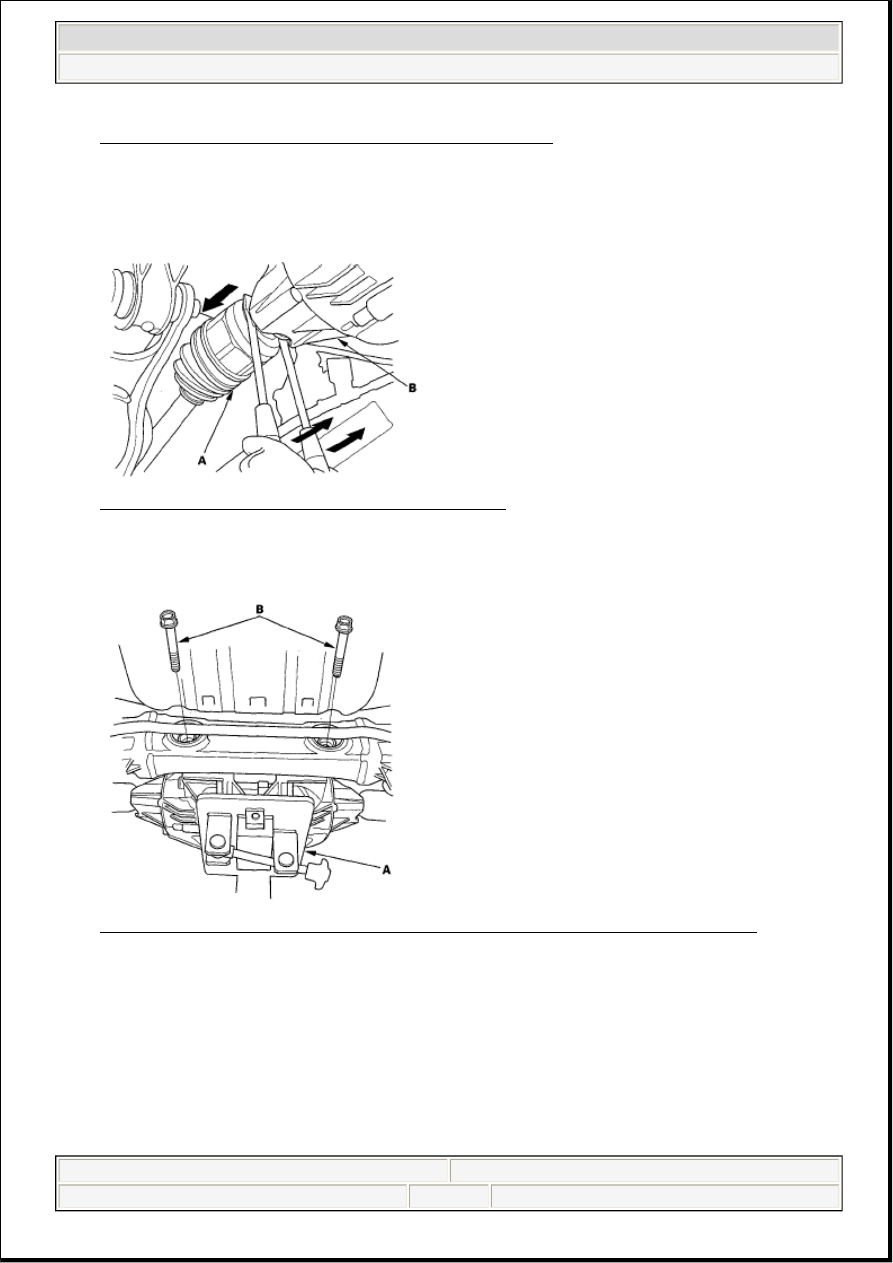

Fig. 173: Identifying Differential And Inboard Joints
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Place the transmission jack under the rear differential (A).

Fig. 174: Identifying Transmission Jack Under Rear Differential And Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the differential's rear mounting bolts (B).

8. Remove the differential's front mounting bolts.
