5. Check for continuity between SH-AWD control unit connector terminals A6 and A19.

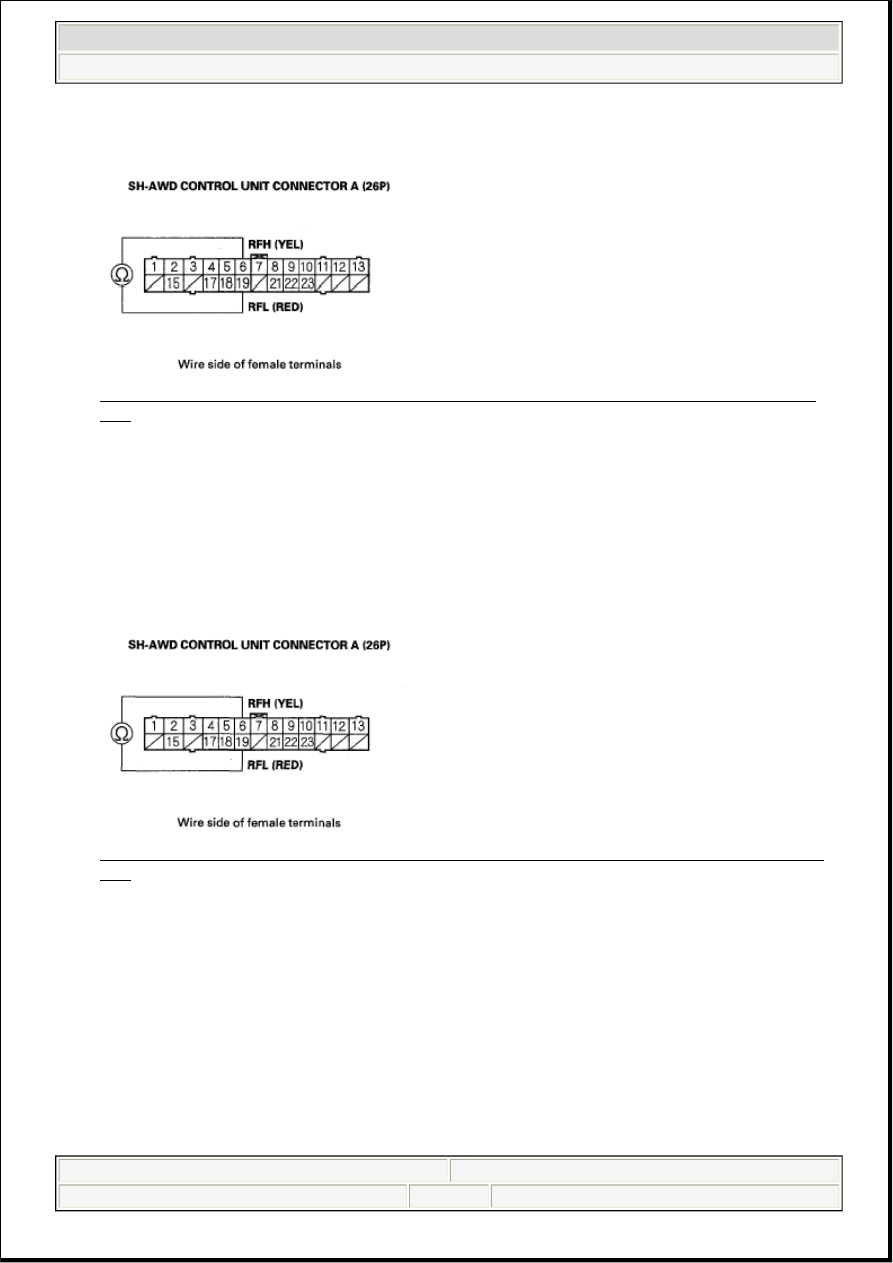

Fig. 153: Checking Continuity Between SH-AWD Control Unit Connector Terminals A6 And
A19
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 6.

NO - Go to step 8.

6. Measure the resistance between SH-AWD control unit connector terminals A6 and A19.

Fig. 154: Measuring Resistance Between SH-AWD Control Unit Connector Terminals A6 And
A19
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 2.0 ohms or more?

YES - Go to step 7.

NO - Go to step 9.

7. Check for continuity between SH-AWD control unit connector terminal A6 and body ground.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 119  © 2005 Mitchell Repair Information Company, LLC.

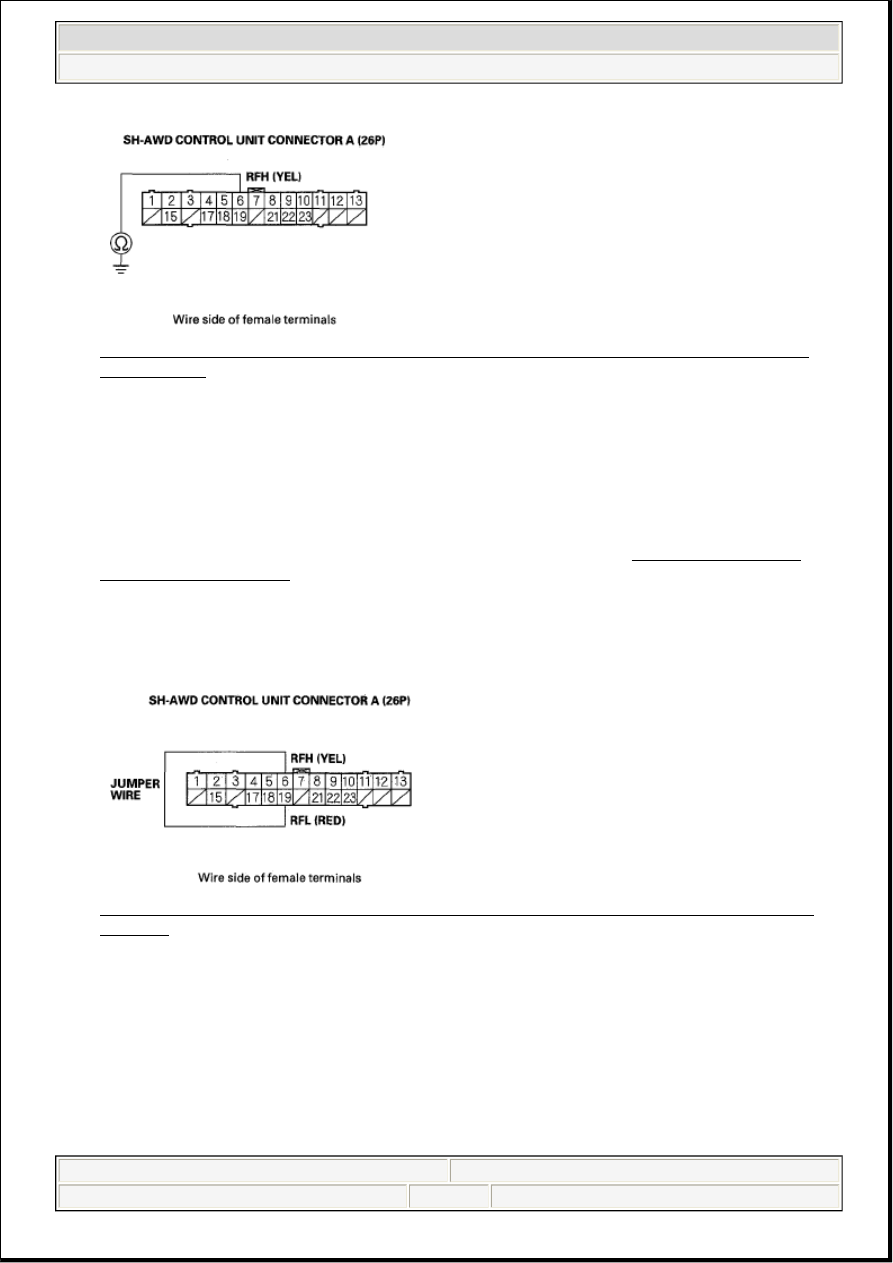

Fig. 155: Checking Continuity Between SH-AWD Control Unit Connector Terminal A6 And
Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire between SH-AWD control unit connector terminal A6 and body
ground.

NO - Check for loose connector terminals at the SH-AWD control unit and repair if necessary. If the
connections are OK, substitute a known-good SH-AWD control unit (see SH-AWD CONTROL
UNIT REPLACEMENT ) and recheck.

8. Connect a jumper wire between SH-AWD control unit connector terminals A6 and A19. Disconnect

the right search coil sensor 2P connector, then check for continuity between right search coil sensor
2P connector terminals No. 1 and No. 2.

Fig. 156: Connecting Jumper Wire Between SH-AWD Control Unit Connector Terminals A6
And A19
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 120  © 2005 Mitchell Repair Information Company, LLC.

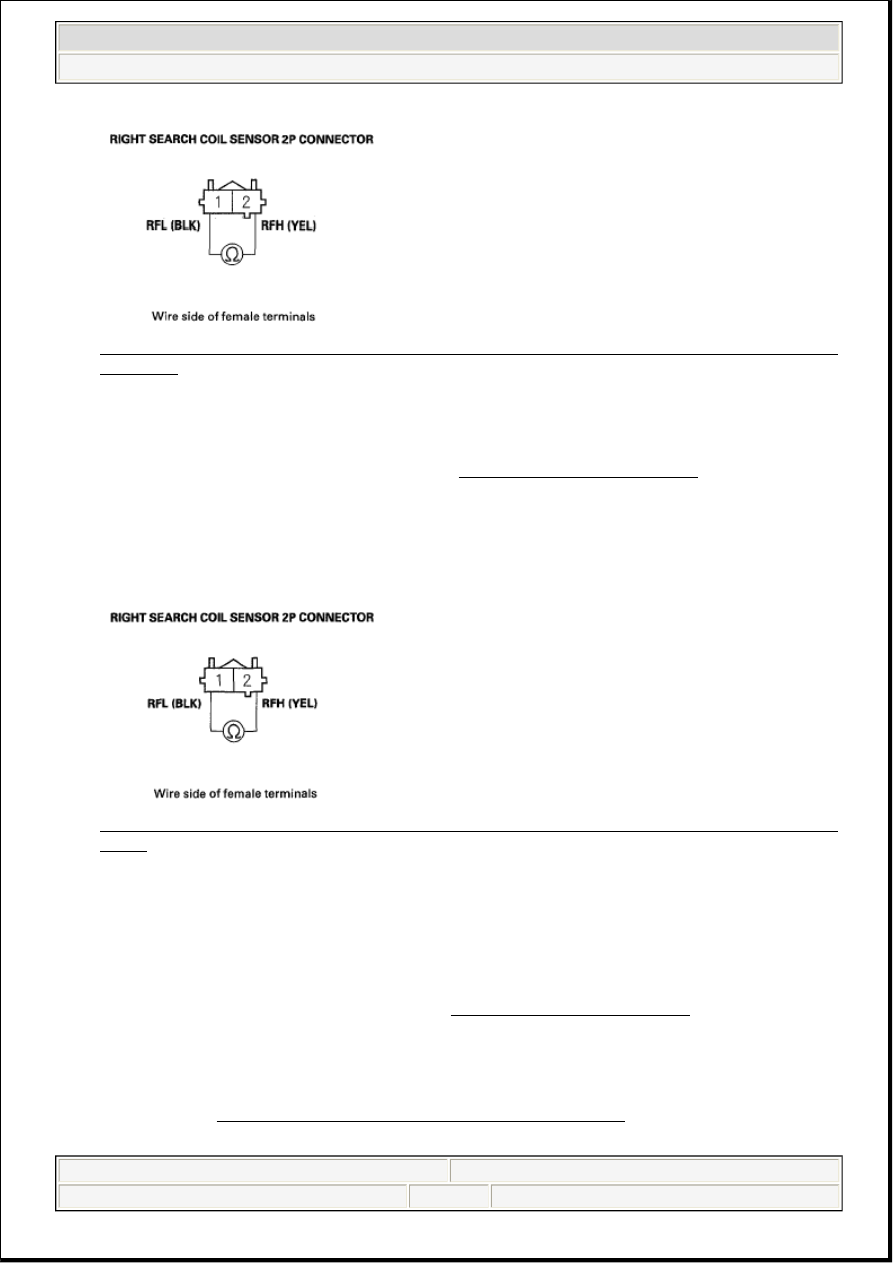

Fig. 157: Checking Continuity Between Right Search Coil Sensor 2P Connector Terminals No. 1
And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Replace the rear differential side case (see SIDE CASE REPLACEMENT ).

NO - Repair open in the wire between right search coil sensor connector terminals No. 1 and No. 2.

9. Disconnect the right search coil sensor 2P connector, then check for continuity between right search

coil sensor 2P connector terminals No. 1 and No. 2.

Fig. 158: Checking Continuity Between Right Search Coil Sensor 2P Connector Terminals No. 1
And 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short to ground in the wire between SH-AWD control unit connector A and the right
search coil sensor connector.

NO - Replace the rear differential side case (see SIDE CASE REPLACEMENT ).

DTC 82-3: RIGHT SEARCH COIL SENSOR MAGNETIC FLUX CHARACTERISTIC

NOTE:

Before you troubleshoot, review the general troubleshooting information
(see GENERAL TROUBLESHOOTING INFORMATION ).



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 121  © 2005 Mitchell Repair Information Company, LLC.

1. Turn the ignition switch ON (II).

2. Make sure the HDS communicates with the vehicle and the SH-AWD control unit. If it doesn't,

troubleshoot the DLC circuit; '05-07 models (see '05-07 MODELS ), '08 model (see '08 MODEL ).

3. Turn the ignition switch OFF.

4. Disconnect SH-AWD control unit connector A (26P).

5. Measure the resistance between SH-AWD control unit connector terminals A6 and A19.

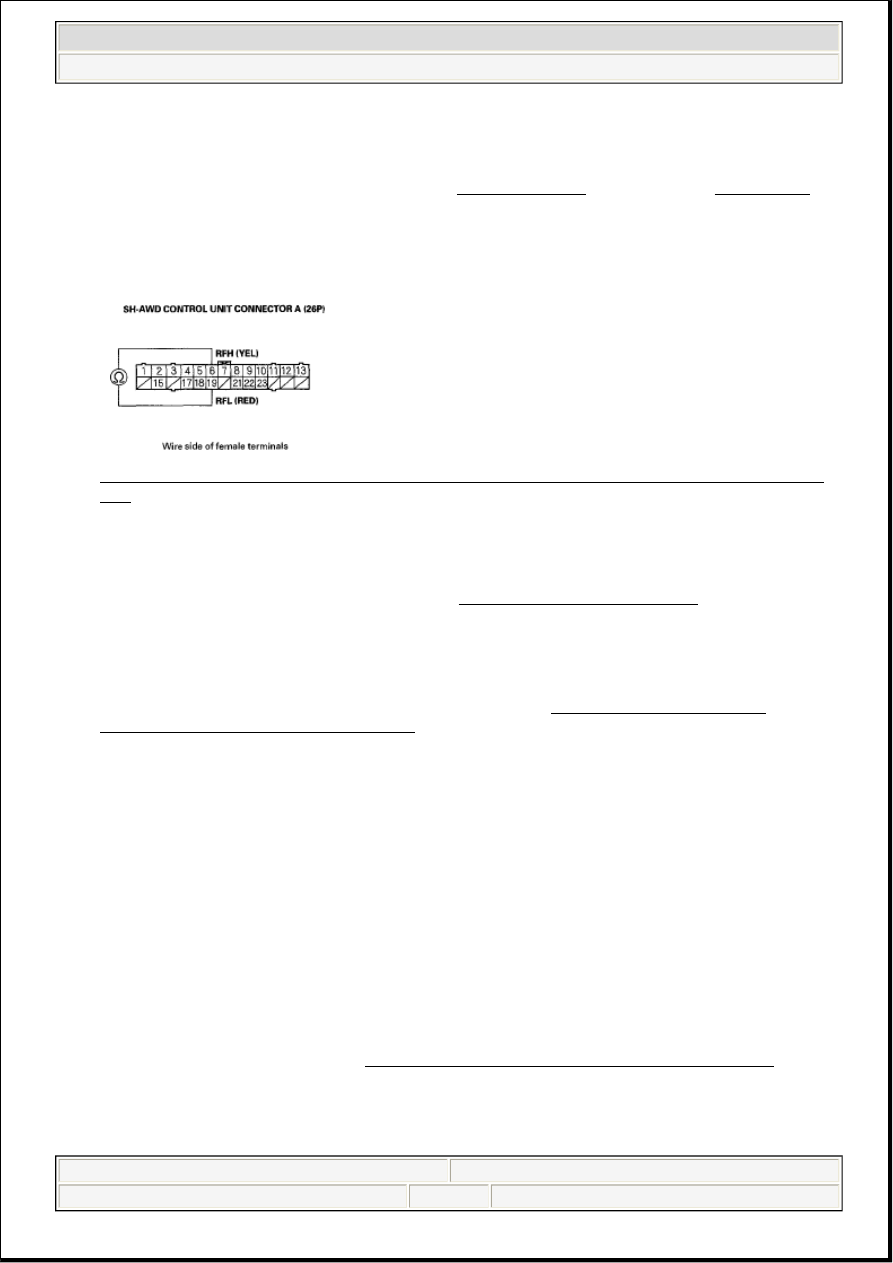

Fig. 159: Measuring Resistance Between SH-AWD Control Unit Connector Terminals A6 And
A19
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 2.0 ohms or less?

YES - Replace the rear differential side case (see SIDE CASE REPLACEMENT ).

NO - Go to step 6.

6. Clear the DTC with the HDS.

7. Do the SH-AWD differential clutch torque memorization (see SH-AWD DIFFERENTIAL

CLUTCH TORQUE MEMORIZATION ).

8. Test-drive the vehicle at a speed of more than 1 mph (2 km/h) for at least 1 second.

9. Check for DTCs with the HDS.

Is DTC 81-1, 81-2, 82-1, and/or 82-2 indicated?

YES - Go to the indicated DTCs troubleshooting.

NO - Intermittent failure, the system is OK at this time.

SYMPTOM TROUBLESHOOTING

THE SH-AWD INDICATOR DOES NOT GO OFF, AND NO DTCS ARE STORED

NOTE:



Before you troubleshoot, review the general troubleshooting
information (see GENERAL TROUBLESHOOTING INFORMATION ).



Make sure the No. 1 (30 A) fuse in the under-hood fuse/relay box is OK.



Make sure there are no loose connector terminals at the SH-AWD
control unit.
