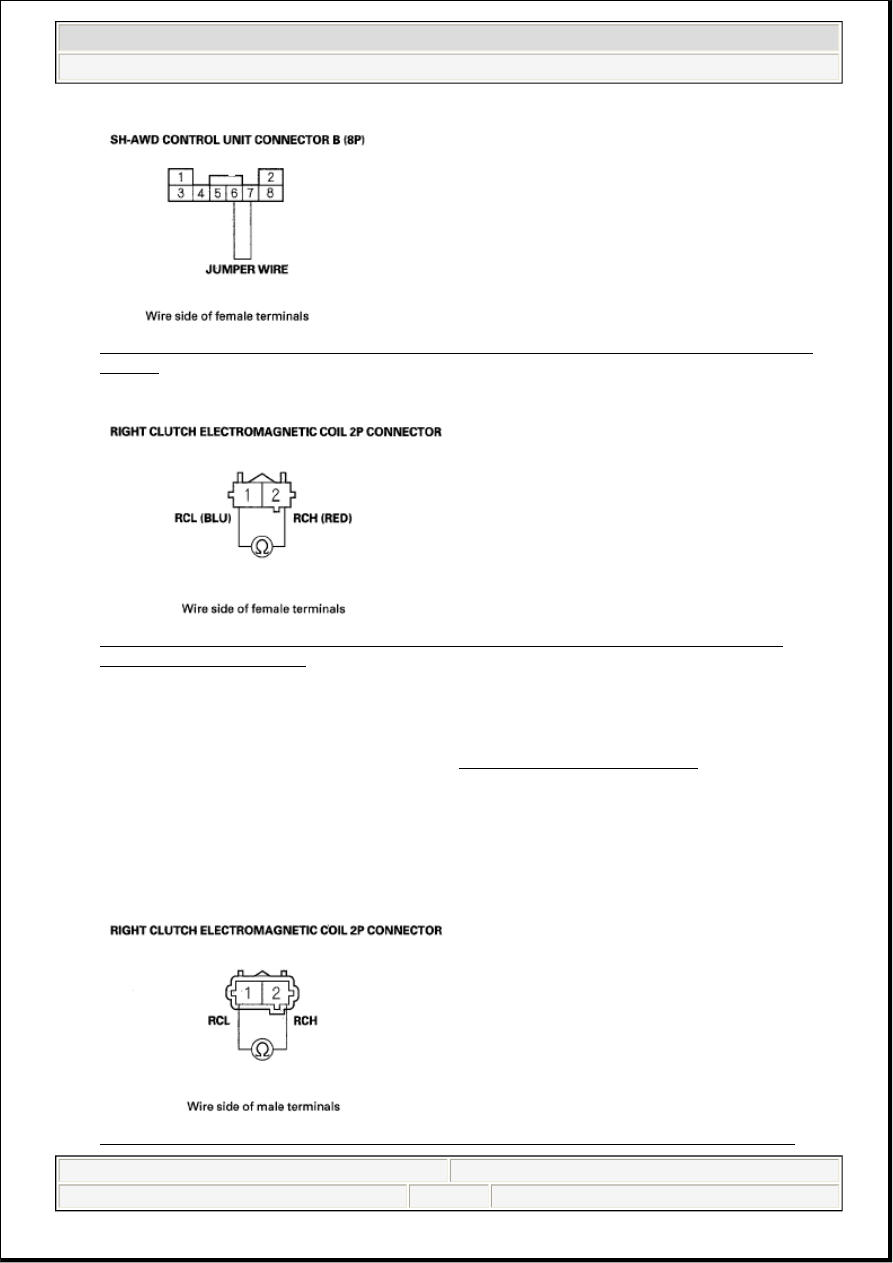

Fig. 120: Connecting Jumper Wire Between SH-AWD Control Unit Connector Terminals B6
And B7
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig. 121: Checking Continuity Between Right Clutch Electromagnetic Coil 2P Connector
Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Replace the rear differential side case (see SIDE CASE REPLACEMENT ).

NO - Repair open in the wire between the SH-AWD control unit and the right clutch electromagnetic
coil.

11. Measure the resistance, between right clutch electromagnetic coil 2P connector terminals No. 1 and

No. 2.

Fig. 122: Measuring Resistance, Between Right Clutch Electromagnetic Coil 2P Connector



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:18 PM

Page 95

© 2005 Mitchell Repair Information Company, LLC.

Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 0.6 ohms or less?

YES - Replace the rear differential side case (see SIDE CASE REPLACEMENT ).

NO - Replace the SH-AWD control unit (see SH-AWD CONTROL UNIT REPLACEMENT ).

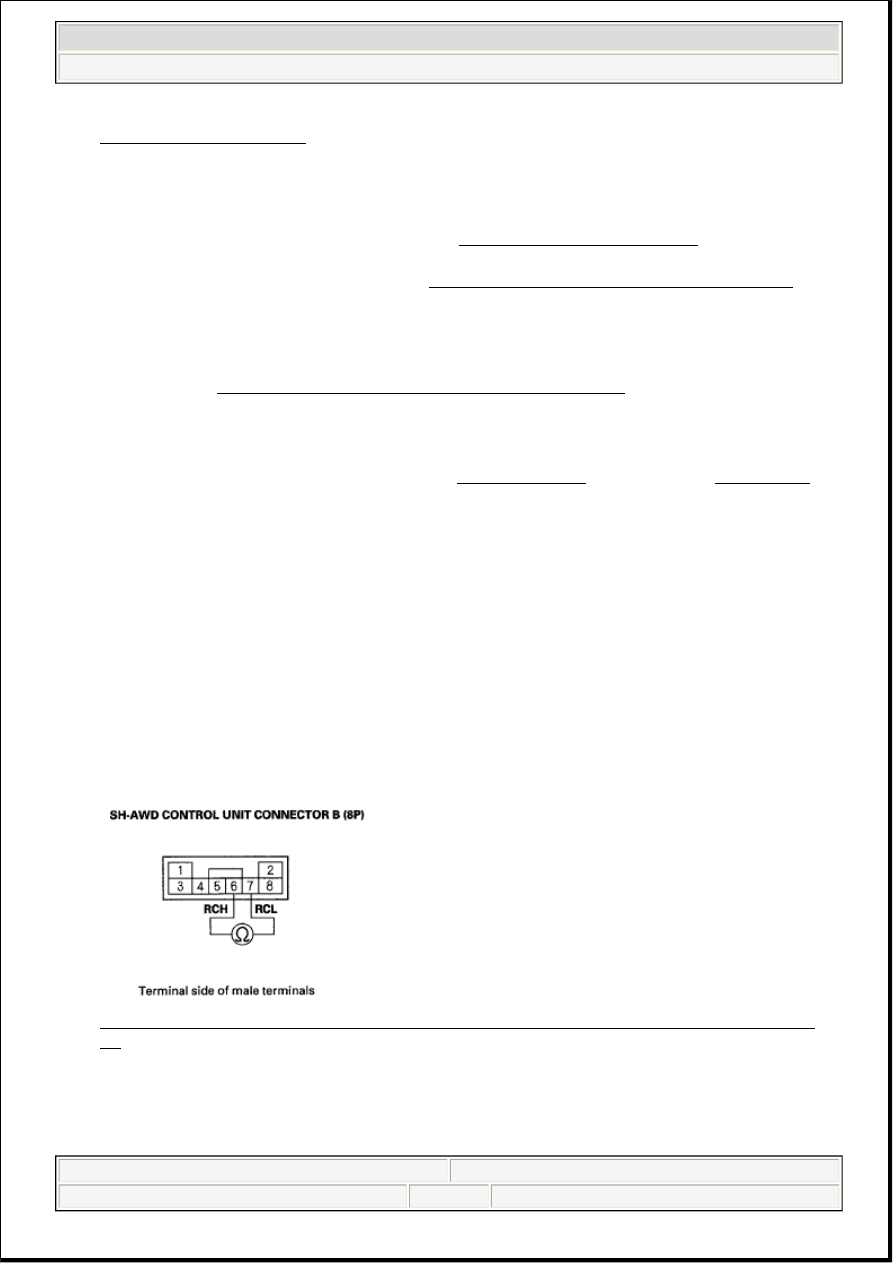

DTC 57-3: RIGHT CLUTCH ELECTROMAGNETIC COIL (OPEN)

1. Turn the ignition switch ON (II).

2. Make sure the HDS communicates with the vehicle and the SH-AWD control unit. If it doesn't,

troubleshoot the DLC circuit; '05-07 models (see '05-07 MODELS ), '08 model (see '08 MODEL ).

3. Clear the DTC with the HDS.

4. Do the clutch function test with the HDS.

5. Check for DTCs with the HDS.

Is DTC 57-3 indicated?

YES - Go to step 6.

NO - Intermittent failure, the system is OK at this time.

6. Turn the ignition switch OFF.

7. Disconnect SH-AWD control unit connector B (8P).

8. Check for continuity between SH-AWD control unit connector terminals B6 and B7.

Fig. 123: Checking Continuity Between SH-AWD Control Unit Connector Terminals B6 And
B7
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 9.

NOTE:

Before you troubleshoot, review the general troubleshooting information
(see GENERAL TROUBLESHOOTING INFORMATION ).



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:18 PM

Page 96

© 2005 Mitchell Repair Information Company, LLC.

NO - Go to step 10.

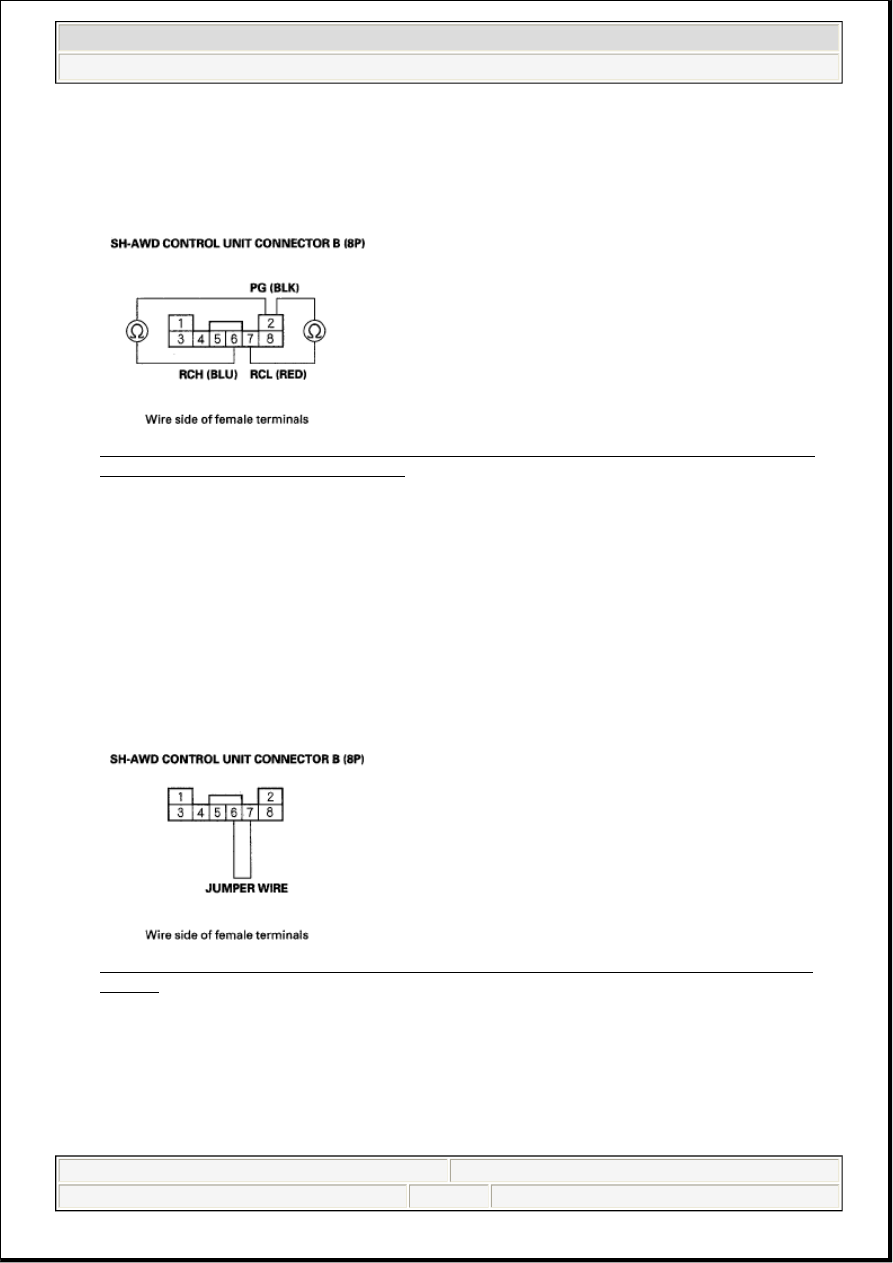

9. Check for continuity between SH-AWD control unit connector terminals B2 and B6, and between

terminals B2 and B7.

Fig. 124: Checking Continuity Between SH-AWD Control Unit Connector Terminals B2 And
B6, And Between Terminals B2 And B7
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short to ground in the wire between the SH-AWD control unit and the right clutch
electromagnetic coil.

NO - Go to step 11.

10. Connect a jumper wire between SH-AWD control unit connector terminals B6 and B7. Disconnect the

right clutch electromagnetic coil 2P connector, then check for continuity between right clutch
electromagnetic coil 2P connector terminals No. 1 and No. 2.

Fig. 125: Connecting Jumper Wire Between SH-AWD Control Unit Connector Terminals B6
And B7
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:18 PM

Page 97

© 2005 Mitchell Repair Information Company, LLC.

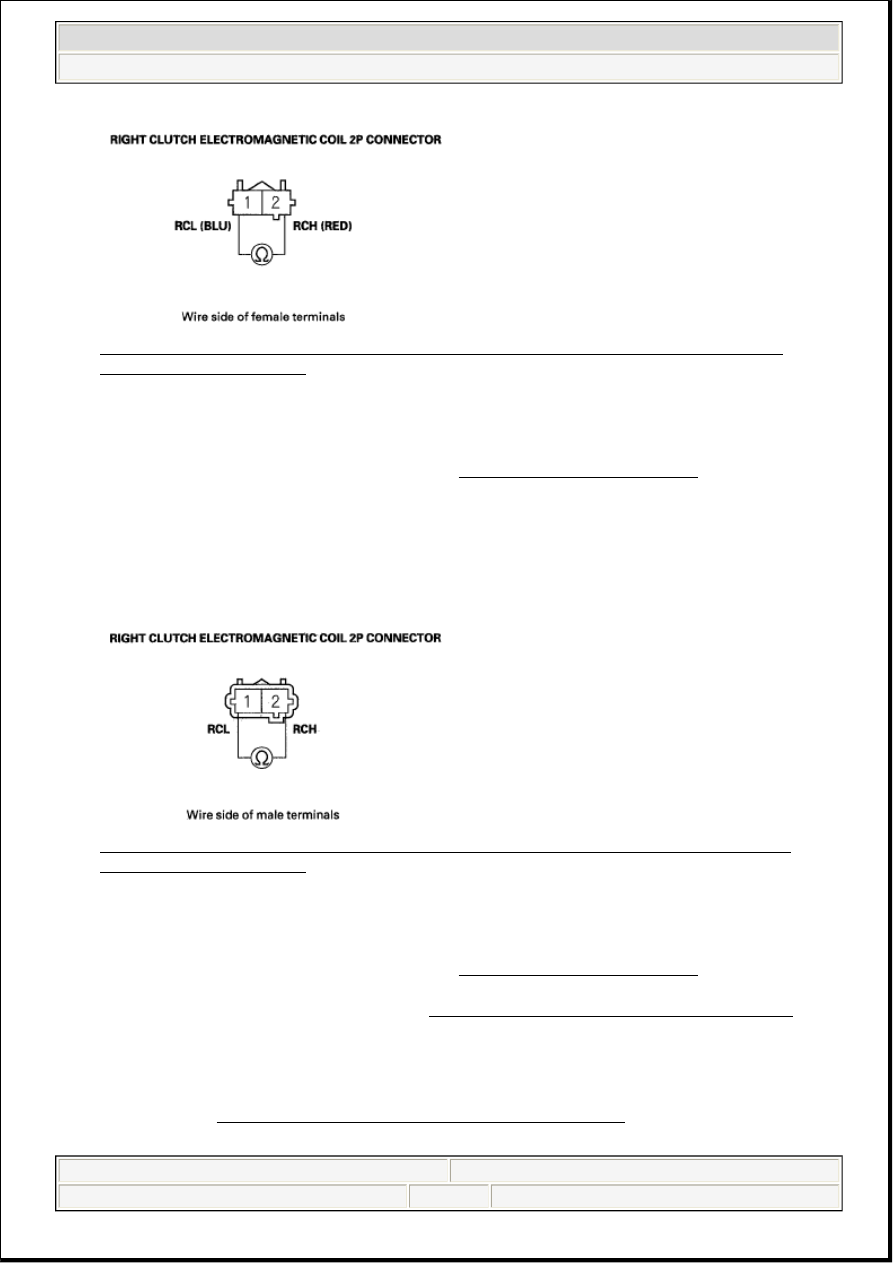

Fig. 126: Checking Continuity Between Right Clutch Electromagnetic Coil 2P Connector
Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Replace the rear differential side case (see SIDE CASE REPLACEMENT ).

NO - Repair open in the wire between the SH-AWD control unit and the right clutch electromagnetic
coil.

11. Measure the resistance between right clutch electromagnetic coil 2P connector terminals No. 1 and

No. 2.

Fig. 127: Measuring Resistance Between Right Clutch Electromagnetic Coil 2P Connector
Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 1.5 ohms or more?

YES - Replace the rear differential side case (see SIDE CASE REPLACEMENT ).

NO - Replace the SH-AWD control unit (see SH-AWD CONTROL UNIT REPLACEMENT ).

DTC 57-4: RIGHT CLUTCH ELECTROMAGNETIC COIL (SHORT)

NOTE:

Before you troubleshoot, review the general troubleshooting information
(see GENERAL TROUBLESHOOTING INFORMATION ).
