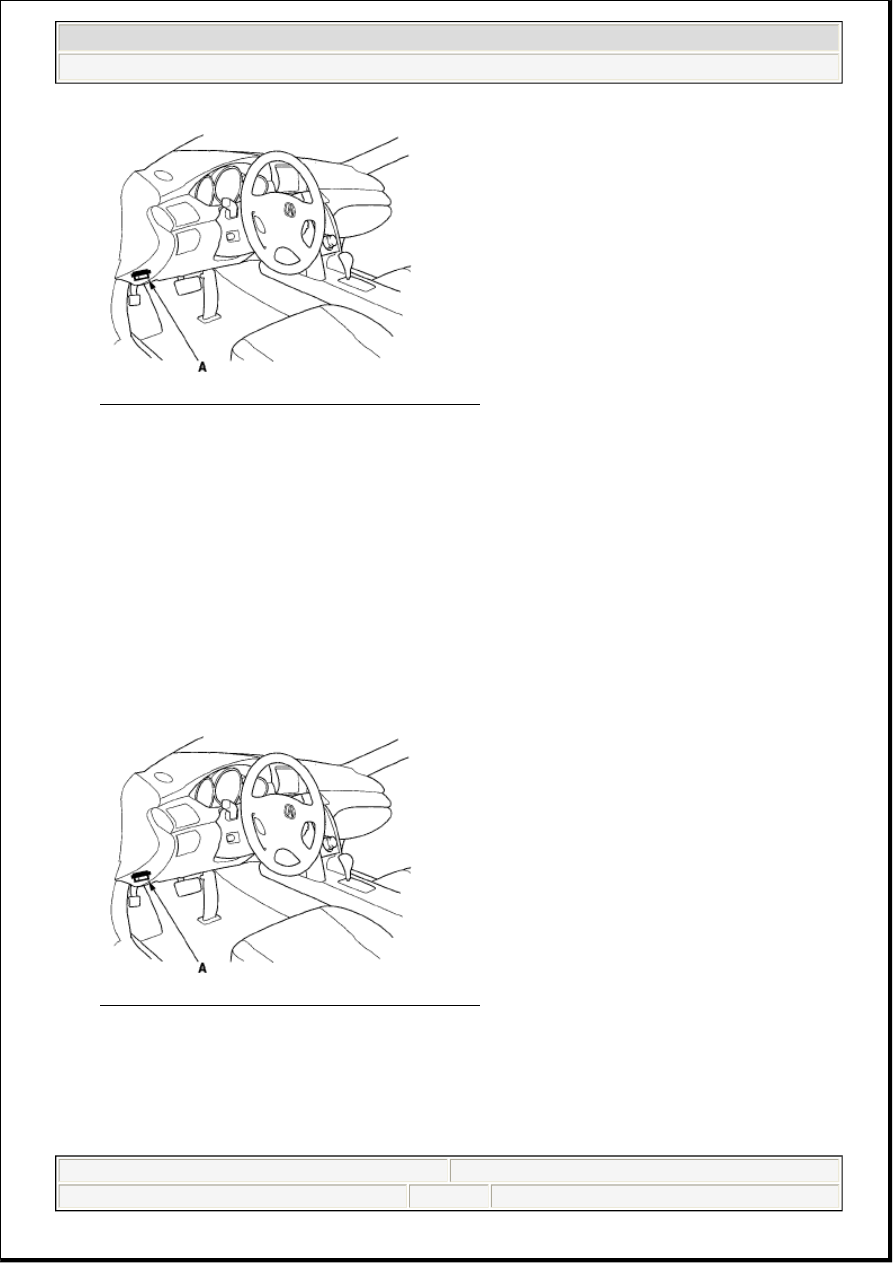

Fig. 7: Identifying Data Link Connector Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Turn the ignition switch ON (II).

3. From the mode menu, select miscellaneous test, then select neutral menu and follow the screen

prompts.

SH-AWD CONTROL UNIT INITIALIZATION

Whenever the SH-AWD control unit is replaced, it must initialized.

1. With the ignition switch OFF, connect the HDS to the 16P DLC (A) behind the driver's dashboard

lower cover.

Fig. 8: Identifying Data Link Connector Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Turn the ignition switch ON (II).

3. From the mode menu, select miscellaneous test, then select neutral menu and follow the screen

prompts.

NOTE:

See the HDS help menu for specific instructions.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:17 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

DTC TROUBLESHOOTING INDEX

DTC TROUBLESHOOTING CHART

NOTE:

See the HDS help menu for specific instructions.

DTC

(1)

SH-AWD

Indicator

Light

Detection Item

Refer to

12-1

ON

Lateral/Longitudinal Acceleration
Sensor Malfunction



12-2

ON

Lateral/Longitudinal Acceleration
Sensor Malfunction



12-3

ON

Lateral/Longitudinal Acceleration
Sensor Malfunction



14-1

ON

Lateral/Longitudinal Acceleration
Sensor Neutral Position



14-2

ON

Lateral/Longitudinal Acceleration
Sensor Neutral Position



16-1

ON

Steering Angle Sensor Signal



19-1

ON

Steering Angle Sensor (Open)



19-2

ON

Steering Angle Sensor (Short)



19-3

ON

Steering Angle Sensor
Malfunction



19-4

ON

Steering Angle Sensor Circuit



27-1

ON

Hypoid Gear Speed Sensor (Open
or Short)



27-2

ON

Hypoid Gear Speed Sensor
Malfunction



33-1

ON

Yaw Rate Sensor Malfunction



33-2

ON

Yaw Rate Sensor Malfunction



33-3

ON

Yaw Rate Sensor Malfunction



35-1

ON

Yaw Rate Sensor Neutral Position



35-2

ON

Yaw Rate Sensor Neutral Position



41-1

ON

Loss of Communication with PCM



41-2

ON

Loss of Communication with VSA
Modulator-Control Unit



41-3

ON

Loss of Communication with
Gauge Assembly



42-1

ON

Differential Oil Temperature
Sensor (Open)



42-2

ON

Differential Oil Temperature
Sensor (Short)



43-1

ON

Differential Oil Temperature
Sensor Circuit



44-11

ON

SH-AWD Control Unit



44-12

ON

SH-AWD Relay Stuck ON





2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:17 PM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

44-21

ON

SH-AWD Control Unit



44-31

ON

SH-AWD Relay Stuck OFF



44-32

ON

SH-AWD Control Unit Power
Supply Stuck ON



44-41

ON

SH-AWD Control Unit Power
Supply Stuck OFF



44-50

ON

SH-AWD Control Unit Power
Supply Voltage Low



46-1

ON

SH-AWD Control Unit Internal
Power Supply Circuit (Open or
Short)



52-3

ON

Left Clutch Electromagnetic Coil
Current Malfunction



53-1

ON

Left Clutch Electromagnetic Coil
(Open)



53-2

ON

Left Clutch Electromagnetic Coil
(Short)



53-3

ON

Left Clutch Electromagnetic Coil
(Open)



53-4

ON

Left Clutch Electromagnetic Coil
(Short)



56-3

ON

Right Clutch Electromagnetic Coil
Current Malfunction



57-1

ON

Right Clutch Electromagnetic Coil
(Open)



57-2

ON

Right Clutch Electromagnetic Coil
(Short)



57-3

ON

Right Clutch Electromagnetic Coil
(Open)



57-4

ON

Right Clutch Electromagnetic Coil
(Short)



59-1

ON

SH-AWD Control Unit Power
Supply Monitor Circuit



61-1

ON

Shift Solenoid Valve (Open)



61-2

ON

Shift Solenoid Valve (Short)



74-1

ON

One Way Clutch Malfunction



75-1

ON

Acceleration Device Malfunction
(Stuck OFF)



75-2

ON

Acceleration Device Malfunction
(Stuck ON)



76-1

ON

Rear Differential Fluid Overheats



77-1

ON

The Functional Abnormalities of
Fuel Emission or Automatic-
Transmission

Go to DTC TROUBLESHOOTING

INDEX and SYMPTOM

TROUBLESHOOTING INDEX

77-2

ON

The Functional Abnormalities of
VSA Modulator-Control Unit

Go to DTC TROUBLESHOOTING

INDEX and SYMPTOM

TROUBLESHOOTING INDEX



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:17 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

SYMPTOM TROUBLESHOOTING INDEX

SYMPTOM TROUBLESHOOTING CHART

77-3

ON

The Functional Abnormalities of
Gauge Assembly

Go to DTC TROUBLESHOOTING

78-

XX

ON

SH-AWD Control Unit Self-
diagnostic Malfunction



81-1

ON

Left Search Coil Sensor
Malfunction



81-2

ON

Left Search Coil Sensor (Open or
Short)



81-3

ON

Left Clutch Electromagnetic Coil
Magnetic Flux Characteristic



82-1

ON

Right Search Coil Sensor
Malfunction



82-2

ON

Right Search Coil Sensor (Open or
Short)



82-3

ON

Right Search Coil Sensor
Magnetic Flux Characteristic



(1)

DTCs are indicated by the SH-AWD indicator when the 16P data link connector (DLC) is
connected to the HDS.

NOTE:

Most problems in the unit are to be diagnosed by identifying noises from the
gears or bearings. Care should be taken during diagnosis not to confuse
differential noises with those from other drivetrain components.

Symptom

Diagnostic Procedure

Also check for

The SH-AWD indicator
does not go off, and no
DTCs are stored

Symptom troubleshooting (see THE SH-AWD
INDICATOR DOES NOT GO OFF, AND
NO DTCS ARE STORED ).



The SH-AWD indicator
does not come on

Symptom troubleshooting (see THE SH-AWD
INDICATOR DOES NOT GO OFF, AND
NO DTCS ARE STORED ).



Gear or bearing noises



Fluid level too low.



Incorrect or worn out fluid.



Damaged or chipped gears.



Incorrect side case clearance.



Incorrect tire size (rolling
circumference).



Add fluid



Drain and fill the
differential



Replace the
differential carrier
assembly



Side case
clearance
adjustment

Rear differential overheats



Fluid level too low.



Incorrect fluid type.



Incorrect tire size (rolling
circumference).



Add fluid



Drain and fill the
differential
