6. Reconnect the connector to the right rear power window switch, and make these input tests at the

connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the right rear power window switch must be faulty; replace it
(see PASSENGER'S POWER WINDOW SWITCH TEST/REPLACEMENT ) and go to
step 7.

TEST CONDITION AND POSSIBLE CAUSE REFERENCE CHART

ground:

There should be no

continuity.

fuse/relay box



A short to ground in
the wire

1

RED

Connect the No. 8 and No. 1
terminals with a jumper wire,
and connect the No. 7
terminal to body ground.

Check the right rear power
window motor operation:
The motor should run (the
window should go down).



Blown No. 5 (20A)
fuse in the
passenger's under-
dash fuse/relay box



Faulty right rear
power window
motor



An open in the wire

7

BLU

Connect the No. 8 and No. 7
terminals with a jumper wire,
and connect the No. 1
terminal to body ground.

Check the right rear power
window motor operation:
The motor should run (the
window should go up).



Blown No. 5 (20A)
fuse in the
passenger's under-
dash fuse/relay box



Faulty right rear
power window
motor



An open in the wire

Cavity Wire

Test condition

Test: Desired result

Possible cause if

desired result is not

obtained

6

BLK Under all conditions

Measure the voltage to
ground:
There should be less
than 0.5 V.



Poor ground
(G651)



An open in the
wire

14

BLK Under all conditions

Measure the voltage to
ground:
There should be less
than 0.5 V.



Poor ground
(G651)



An open in the
wire

Measure the voltage to
ground:



Blown No. 22
(70A) fuse in the
under-hood
fuse/relay box



Blown No. 5
(20A) fuse in the
passenger's under-



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 60

© 2005 Mitchell Repair Information Company, LLC.

7. Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL

UNIT ).

POWER WINDOW MOTOR TEST

Motor Test

1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

8

PUR Under all conditions

There should be battery
voltage.

dash fuse/relay
box



Faulty passenger's
under-dash
fuse/relay box



An open in the
wire

3

PNK Ignition switch ON (II)

Measure the voltage to
ground:
There should be battery
voltage.



Faulty right rear
power window
switch



An open in the
wire

5

LTGRN

Ignition switch ON (II) and right
rear power window motor runs
by connecting the No. 8 and No.
1 terminals with a jumper wire,
and connect the No. 7 terminal to
body ground.

Measure the voltage
between the No. 5 and
No. 6 terminals:
There should be 0-about
5 V - 0-about 5 V
repeatedly (a digital
voltmeter reads about
2.5 V while the window
moves).



Blown No. 5
(20A) fuse in the
passenger's under-
dash fuse/relay
box



Faulty right rear
power window
switch



Faulty right rear
power window
motor



An open in the
wire

4

ORN

Ignition switch ON (II) and right
rear power window motor runs
by connecting the No. 8 and No.
1 terminals with a jumper wire,
and connect the No. 7 terminal to
body ground.

Measure the voltage
between the No. 4 and
No. 6 terminals:
There should be 0-about
5 V - 0-about 5 V
repeatedly (a digital
voltmeter reads about
2.5 V while the window
moves).



Blown No. 5
(20A) fuse in the
passenger's under-
dash fuse/relay
box



Faulty right rear
power window
switch



Faulty right rear
power window
motor



An open in the
wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 61

© 2005 Mitchell Repair Information Company, LLC.

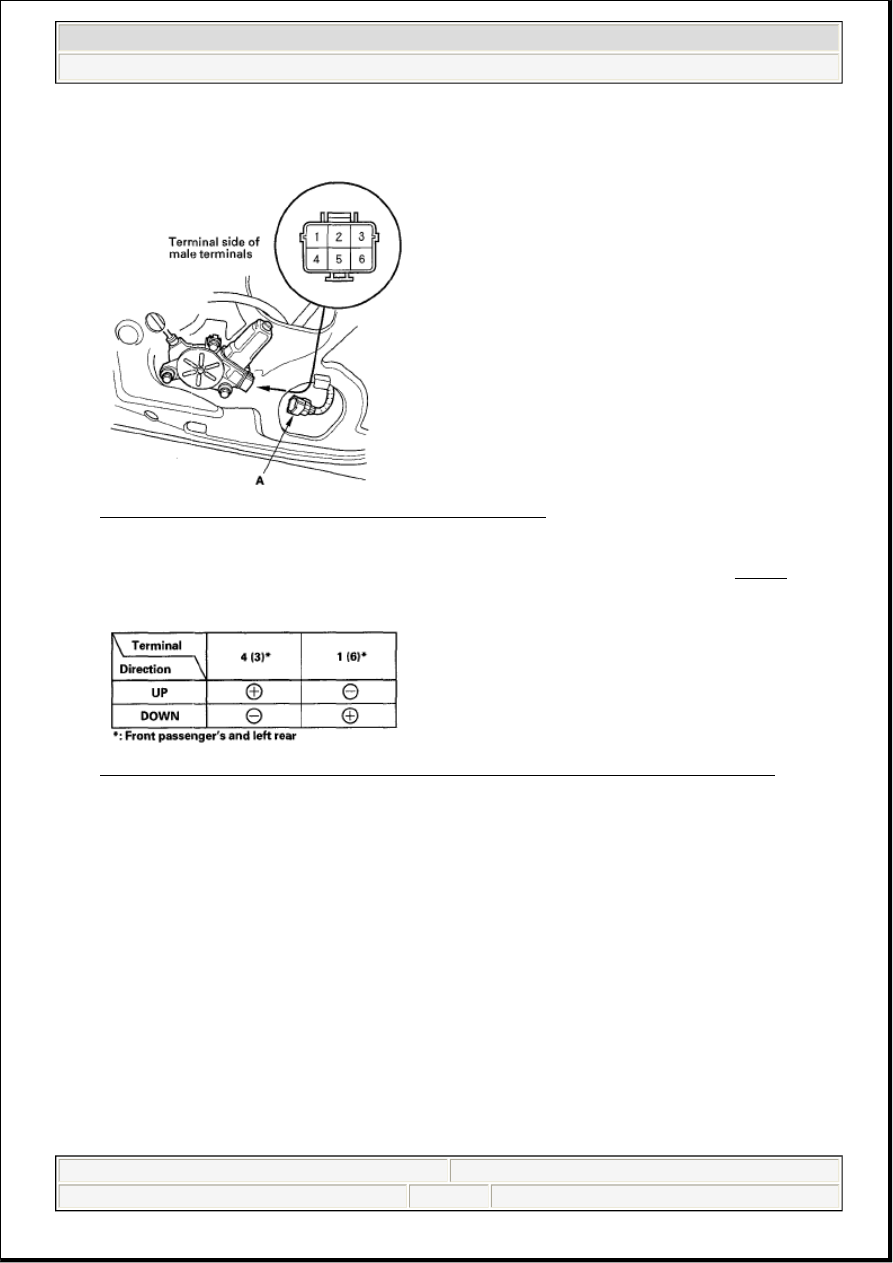

2. Disconnect the 6P connector (A) from the power window motor.

Fig. 52: Identifying Power Window Motor Connector (6P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Test the motor in each direction by connecting battery power and ground as shown (see Fig. 53).

When the motor stops running, disconnect one lead immediately.

Fig. 53: Testing Motor Operation By Connecting Battery Power And Ground As Shown
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If the motor does not run or fails to run smoothly, replace it.

Pulser Test

5. Measure the voltage between the terminals.

Common

There should be battery voltage between the No. 6 (No. 1)* (+) and No. 5 (No. 2)* (-(terminals when
the ignition switch is ON (II).

* : Front passenger's and left rear power window motor

Driver's power window motor

Connect an analog voltmeter between the No. 2 (PLSA) (+) and No. 5 (SGND) (-) terminals, and



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 62

© 2005 Mitchell Repair Information Company, LLC.

between No. 3 (PLSB) (+) and No. 5 (SGND) (-) terminals, then run the power window motor down
or up. The voltmeter needle should move back and forth alternately (a digital voltmeter should show
the average voltage between 0-5 V).

Front passenger's power window motor/Left rear power window motor

Connect an analog voltmeter between the No. 5 (PLSA) (+) and No. 2 (SGND) (-) terminals, and
between No. 4 (PLSB) (+) and No. 2 (SGND) (-) terminals, then run the power window motor down
or up. The voltmeter needle should move back and forth alternately (a digital voltmeter should show
the average voltage between 0-5 V).

Right rear power window motor

Connect an analog voltmeter between the No. 2 (PLSA) (+) and No. 5 (SGND) (-) terminals, and
between No. 3 (PLSB) (+) and No. 5 (SGND) (-) terminals, then run the power window motor down
or up. The voltmeter needle should move back and forth alternately (a digital voltmeter should show
the average voltage between 0-5 V).

6. If the voltage is not as specified, do these input tests:



Driver's MPCS unit input test (see DRIVER'S MPCS UNIT INPUT TEST ).



Front passenger's MPCS unit input test (see FRONT PASSENGER'S MPCS UNIT INPUT
TEST ).



Left power window switch input test (see LEFT REAR POWER WINDOW SWITCH
INPUT TEST ).



Right power window switch input test (see RIGHT REAR POWER WINDOW SWITCH
INPUT TEST ).

7. If the input tests are OK, replace the power window motor.

8. Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL

UNIT ).

POWER WINDOW MASTER SWITCH REPLACEMENT

1. Remove the driver's door armrest (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 6P connector (A) from the power window master switch (B).
