6. Reconnect the connectors to the driver's MPCS unit, and make these input tests at the connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the control unit must be faulty; replace the driver's MPCS unit
and go to step 7.

TEST CONDITION AND POSSIBLE CAUSE REFERENCE CHART

B1

LTGRN

Connect the B8 and B1
terminals with a jumper
wire, and connect the B7
terminal to body ground.

Check the driver's power window
motor operation:
The motor should run (the window
should go down).

driver's under-
dash fuse/relay
box



Faulty driver's
power window
motor



An open in the
wire

B7

BLU

Connect the B8 and B7
terminals with a jumper
wire, and connect the B1
terminal to body ground.

Check the driver's power window
motor operation:
The motor should run (the window
should go up).



Blown No. 27
(30A) fuse in the
driver's under-
dash fuse/relay
box



Faulty driver's
power window
motor



An open in the
wire

Cavity Wire

Test condition

Test: Desired result

Possible cause if

desired result is not

obtained

A5

BLK Under all conditions

Measure the voltage to
ground:
There should be less than
0.5 V.



Poor ground
(G601)



An open in the
wire

B14

BLK Under all conditions

Measure the voltage to
ground:
There should be less than
0.5 V.



Poor ground
(G601)



An open in the
wire

A7

WHT Under all conditions

Measure the voltage to
ground:
There should be battery
voltage.



Blown No. 15
(40A) fuse in the
under-hood
fuse/relay box



Blown No. 7
(10A) fuse in the
driver's under-
dash fuse/relay
box



Faulty driver's



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 48

© 2005 Mitchell Repair Information Company, LLC.

under-dash
fuse/relay box



An open in the
wire

B8

WHT Under all conditions

Measure the voltage to
ground:
There should be battery
voltage.



Blown No. 23
(P/W) (50A) fuse
in the under-hood
fuse/relay box



Blown No. 27
(30A) fuse in the
driver's under-
dash fuse/relay
box



Faulty driver's
under-dash
fuse/relay box



An open in the
wire

A25

YEL Ignition switch ON (II)

Measure the voltage to
ground:
There should be battery
voltage.



Blown No. 21
(10A) fuse in the
driver's under-
dash fuse/relay
box



Faulty driver's
under-dash
fuse/relay box



An open in the
wire

B9

LT

GRN

Ignition switch ON (II)

Measure the voltage to
ground:
There should be battery
voltage.



Faulty driver's
MPCS unit



Faulty power
window master
switch



A short to ground
in the wire

B3

RED Ignition switch ON (II)

Measure the voltage to
ground:
There should be battery
voltage.



Faulty driver's
MPCS unit



An open in the
wire

B6

GRN Under all conditions

Measure the continuity to
ground:
There should be
continuity.



Poor ground
(G601)



Faulty driver's
MPCS unit



An open in the
wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 49

© 2005 Mitchell Repair Information Company, LLC.

7. Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL

UNIT ).

FRONT PASSENGER'S MPCS UNIT INPUT TEST

1. Turn the ignition switch OFF.

2. Remove the front passenger's door panel (see FRONT DOOR PANEL

REMOVAL/INSTALLATION ).

3. Disconnect front passenger's MPCS unit (A) connectors A (28P) and B (14P).

B5

GRY

Ignition switch ON (II) and
driver's power window motor runs
by connecting the B8 and B1
terminals with a jumper wire, and
connect the B7 terminal to body
ground.

Measure the voltage
between the B5 and B6
terminals:
There should be 0-about 5
V-0- about 5 V repeatedly
(a digital voltmeter reads
about 2.5 V while the
window moves).



Blown No. 27
(30A) fuse in the
driver's under-
dash fuse/relay
box



Faulty driver's
MPCS unit



Faulty driver's
power window
motor



An open in the
wire

B4

BRN

Ignition switch ON (II) and
driver's power window motor runs
by connecting the B8 and B1
terminals with a jumper wire, and
connect the B7 terminal to body
ground.

Measure the voltage
between the B4 and B6
terminals:
There should be 0-about 5
V-0- about 5 V repeatedly
(a digital voltmeter reads
about 2.5 V while the
window moves).



Blown No. 27
(30A) fuse in the
driver's under-
dash fuse/relay
box



Faulty driver's
MPCS unit



Faulty driver's
power window
motor



An open in the
wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 50

© 2005 Mitchell Repair Information Company, LLC.

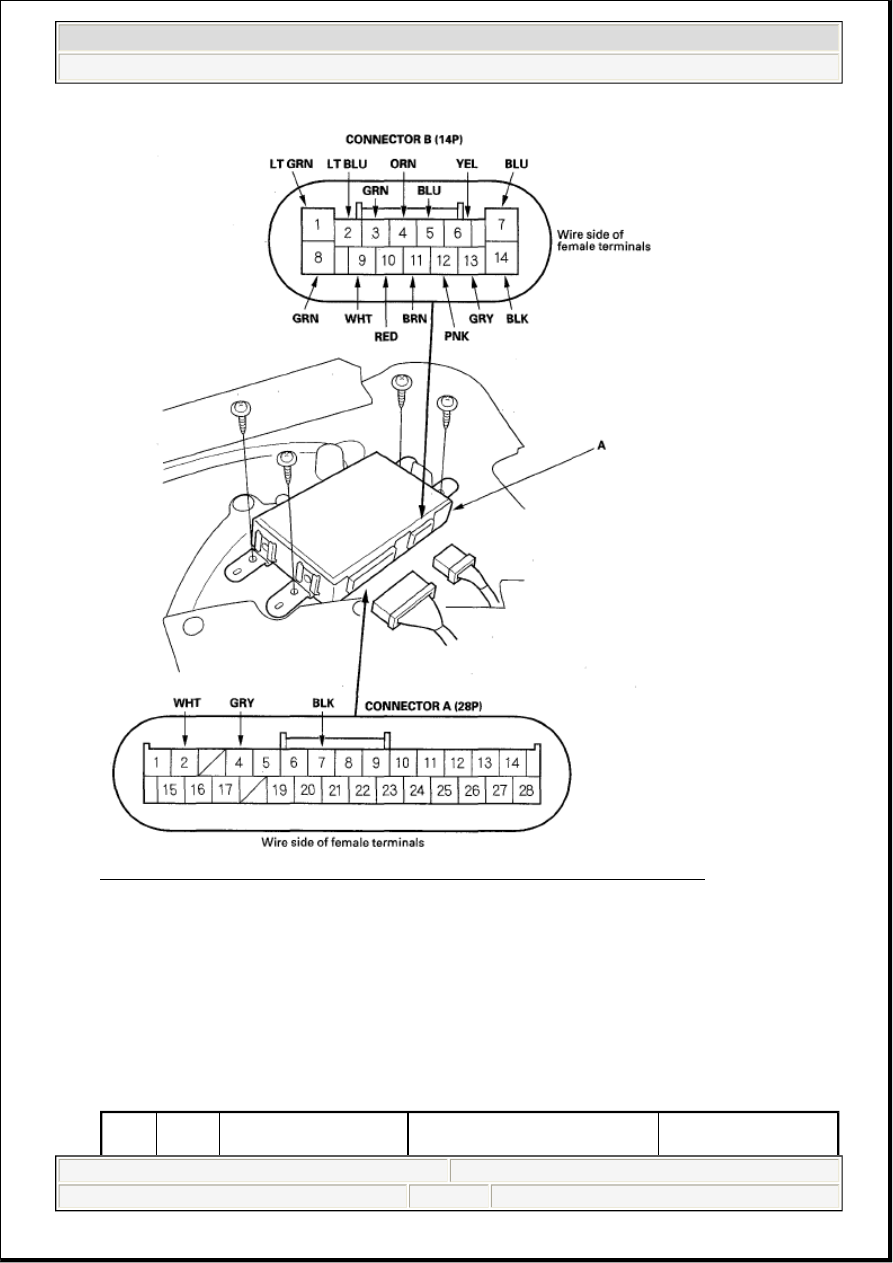

Fig. 49: Identifying Front Passenger's MPCS Unit Connectors (28P) And (14P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connectors still disconnected, make these input tests at the connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 6.

TEST CONDITION AND POSSIBLE CAUSE REFERENCE CHART

Cavity Wire

Test condition

Test: Desired result

Possible cause if

desired result is not
