Does the window motor operate?

YES - Go to step 6.

NO - Test the right rear power window motor (see POWER WINDOW MOTOR TEST ).

6. Select the POWER WINDOWS from the BODY ELECTRICAL system select menu and enter the

DATA LIST.

7. Check the DETECT/NONE information of the right rear window motor A-phase pulse signal in the

DATA LIST.

Does the information indicator display DETECT while the window is moving, and display NONE
when the window is stopped?

YES - Replace the right rear power window switch.

NO - Go to step 8.

8. Check for DTCs with the HDS.

Is DTC B1135 also indicated?

YES - Go to step 15.

NO - Go to step 9.

9. Turn the ignition switch OFF.

10. Disconnect the 14P connector from the right rear power window switch.

11. Disconnect the 6P connector from the right rear power window motor.

12. Check for continuity between right rear power window switch 14P connector No. 5 terminal and right

rear power window motor 6P connector No. 2 terminal.

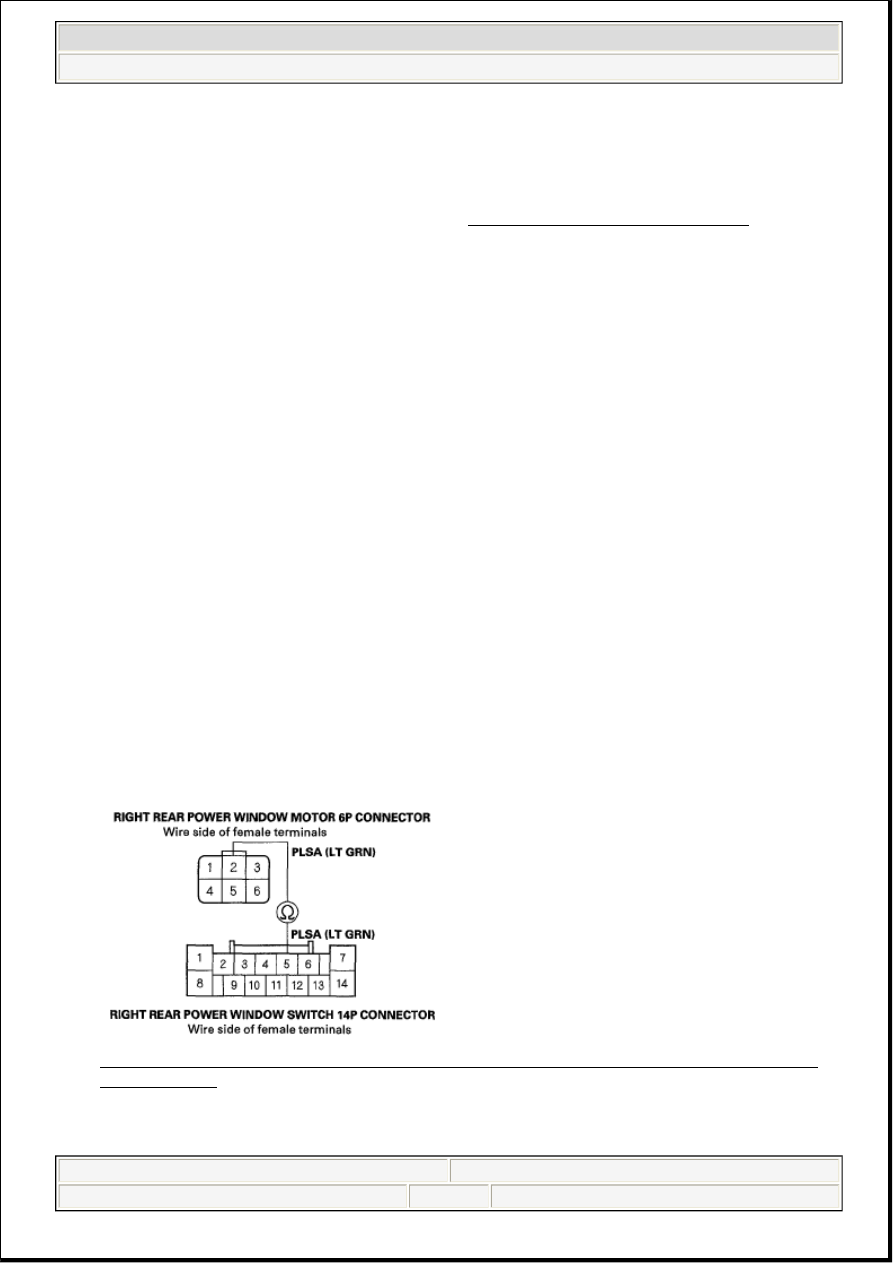

Fig. 17: Checking Continuity Between No. 5 Terminal And Right Rear Power Window Motor
No. 2 Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

YES - Go to step 13.

NO - Repair open in the wire.

13. Check for continuity between right rear power window motor 6P connector No. 2 terminal and body

ground.

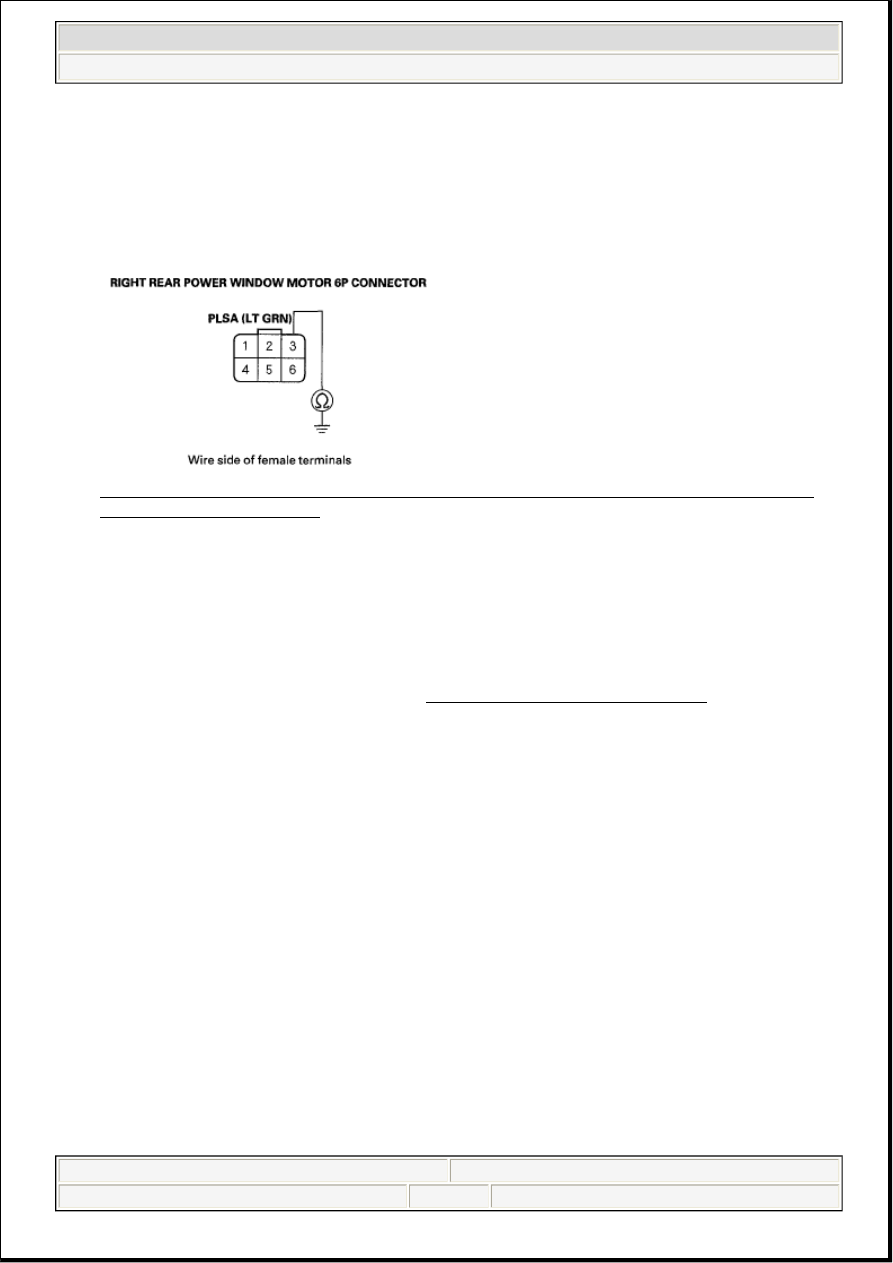

Fig. 18: Checking Continuity Between Right Rear Power Window Motor 6P Connector No. 2
Terminal And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short to ground in the wire.

NO - Go to step 14.

14. Test the right rear power window motor (see POWER WINDOW MOTOR TEST ).

Is the motor OK?

YES - Replace the right rear power window switch.

NO - Replace the right rear power window motor.

15. Check for continuity between the right rear power window switch 14P connector No. 3 and No. 6

terminals and the right rear power window motor 6P connector No. 5 and No. 6 terminals
respectively.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

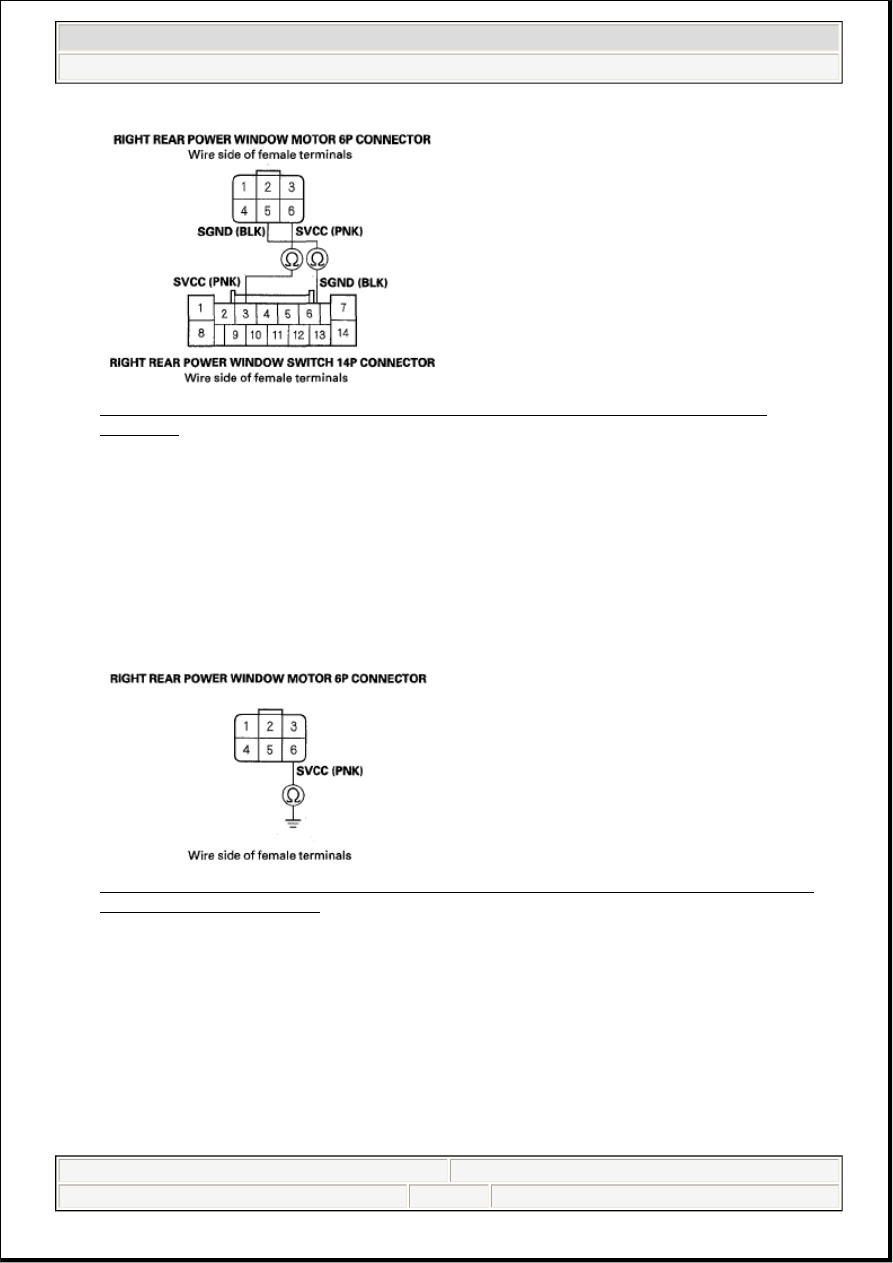

Fig. 19: Checking Continuity Between No. 3 And No. 6 Terminals And No. 5 And No. 6
Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 16.

NO - Repair an open in the wire.

16. Check for continuity between the right rear power window motor 6P connector No. 6 terminal and

body ground.

Fig. 20: Checking Continuity Between Right Rear Power Window Motor 6P Connector No. 6
Terminal And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair a short to ground in the wire.

NO - Replace the right rear power window motor.

DTC B1135: RIGHT REAR POWER WINDOW MOTOR PULSE B ERROR

NOTE:

If you are troubleshooting multiple DTCs, be sure to follow the instructions



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

1. Clear the DTCs with the HDS.

2. Turn the ignition switch OFF, and then back ON (II).

3. Open and close the right rear power window by using the right rear power window switch manually.

4. Check for DTCs with the HDS.

Is DTC B1135 indicated?

YES - Go to step 5.

NO - Intermittent failure, the system is OK at this time. Check for loose or poor connections.

5. Open and close the right rear power window by using the power window master switch manually.

Does the window motor operate?

YES - Go to step 6.

NO - Test the right rear power window motor (see POWER WINDOW MOTOR TEST ).

6. Select the POWER WINDOWS from the BODY ELECTRICAL system select menu and enter the

DATA LIST.

7. Check the DETECT/NONE information of the right rear window motor B-phase pulse signal in the

DATA LIST.

Does the information indicator display DETECT while the window is moving, and display NONE
when the window is stopped?

YES - Replace the right rear power window switch.

NO - Go to step 8.

8. Check for DTCs with the HDS.

Is DTC B1134 also indicated?

YES - Go to step 15.

NO - Go to step 9.

9. Turn the ignition switch OFF.

10. Disconnect the 14P connector from the right rear power window switch.

11. Disconnect the 6P connector from the right rear power window motor.

12. Check for continuity between right rear power window switch 14P connector No. 4 terminal and right

rear power window motor 6P connector No. 3 terminal.

in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN
SYSTEM DIAGNOSIS TEST MODE A ).
