2005-08 ACCESSORIES AND EQUIPMENT

Power Mirrors - RL

COMPONENT LOCATION INDEX

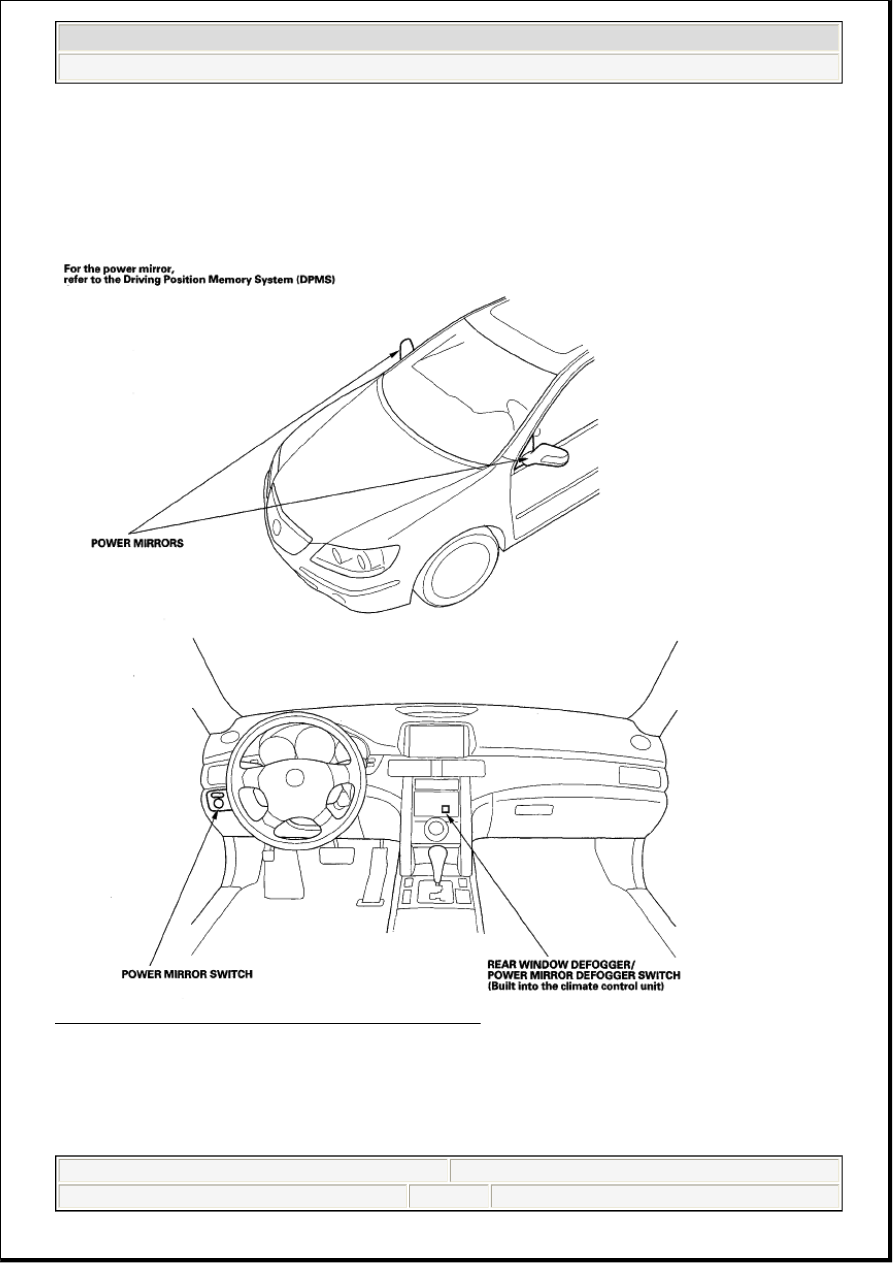

Fig. 1: Identifying Power Mirrors Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

POWER MIRROR SWITCH TEST/REPLACEMENT

1. Carefully pry the switch panel out from the dashboard.

2. Disconnect the 10P connector (A) from the power mirror switch (B).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Mirrors - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Mirrors - RL



me



Friday, June 05, 2009 3:29:57 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:30:01 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

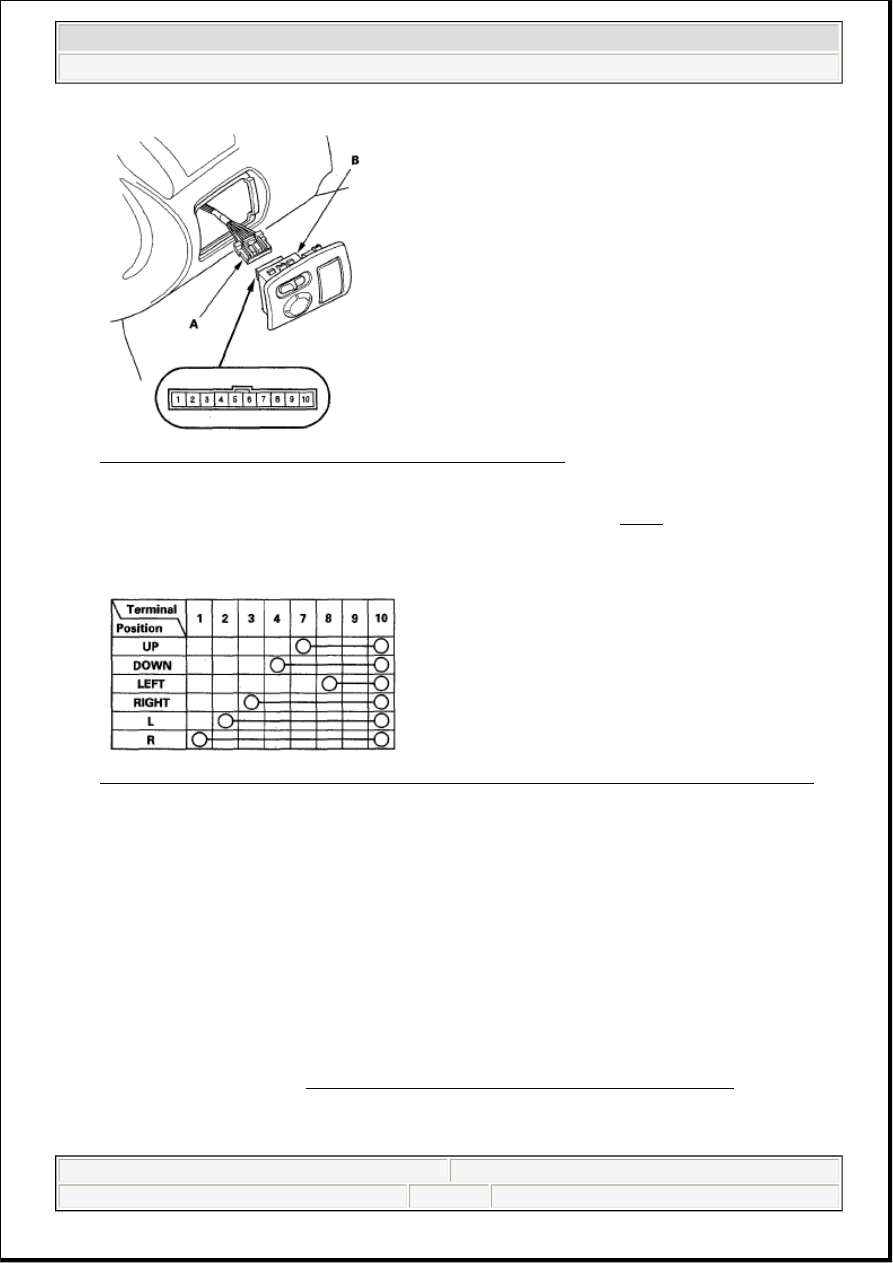

Fig. 2: Identifying Power Mirror Switch And 10P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check for continuity between the terminals in each switch position (see Fig. 3).

Mirror Switch:

Fig. 3: Checking For Continuity Between Terminals In Each Switch Position - Mirror Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If the continuity is not as specified, replace the power mirror switch.

POWER MIRROR ACTUATOR TEST

1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 16P connector (A) from the power mirror actuator (B).

NOTE:

The power mirror actuator can be tested by using the HDS and following
these steps:



Select BODY ELECTRICAL from the SYSTEM SELECT menu.



Select FUNCTION TEST, and then the appropriate power mirror function
test.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Mirrors - RL



me



Friday, June 05, 2009 3:29:57 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

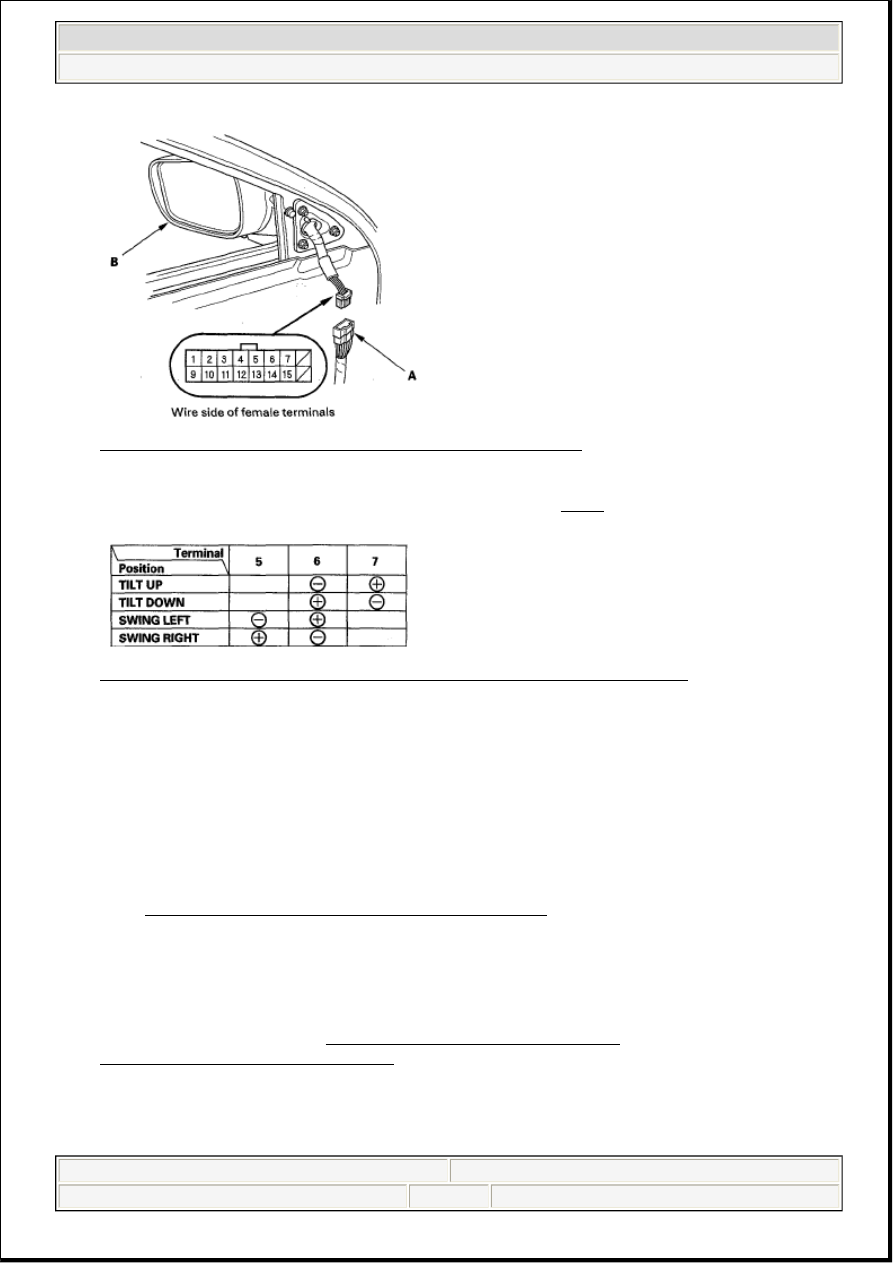

Fig. 4: Identifying Power Mirror Actuator And 16P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check actuator operation by connecting power and ground (see Fig. 5).

Fig. 5: Checking For Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If the mirror fails to work properly, replace the mirror actuator.

Defogger Test

5. Check the resistance between the No. 15 and No. 14 terminals of the 16P connector. There should be

about 8 ohms or less.



If the resistance is not as specified, check for an open circuit.



If there is no open circuit and the harness is OK, replace the power mirror actuator (see
POWER MIRROR ACTUATOR REPLACEMENT ).

POWER MIRROR ACTUATOR REPLACEMENT

Removal

1. Remove the mirror holder (see POWER MIRROR REPLACEMENT ), the power mirror (see

POWER MIRROR REPLACEMENT ), and disconnect the power mirror 16P connector.

2. Record the 16P connector terminal location and wire harness color.

3. Disassemble the power mirror 16P connector (A), and remove the terminals from it.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Mirrors - RL



me



Friday, June 05, 2009 3:29:57 PM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

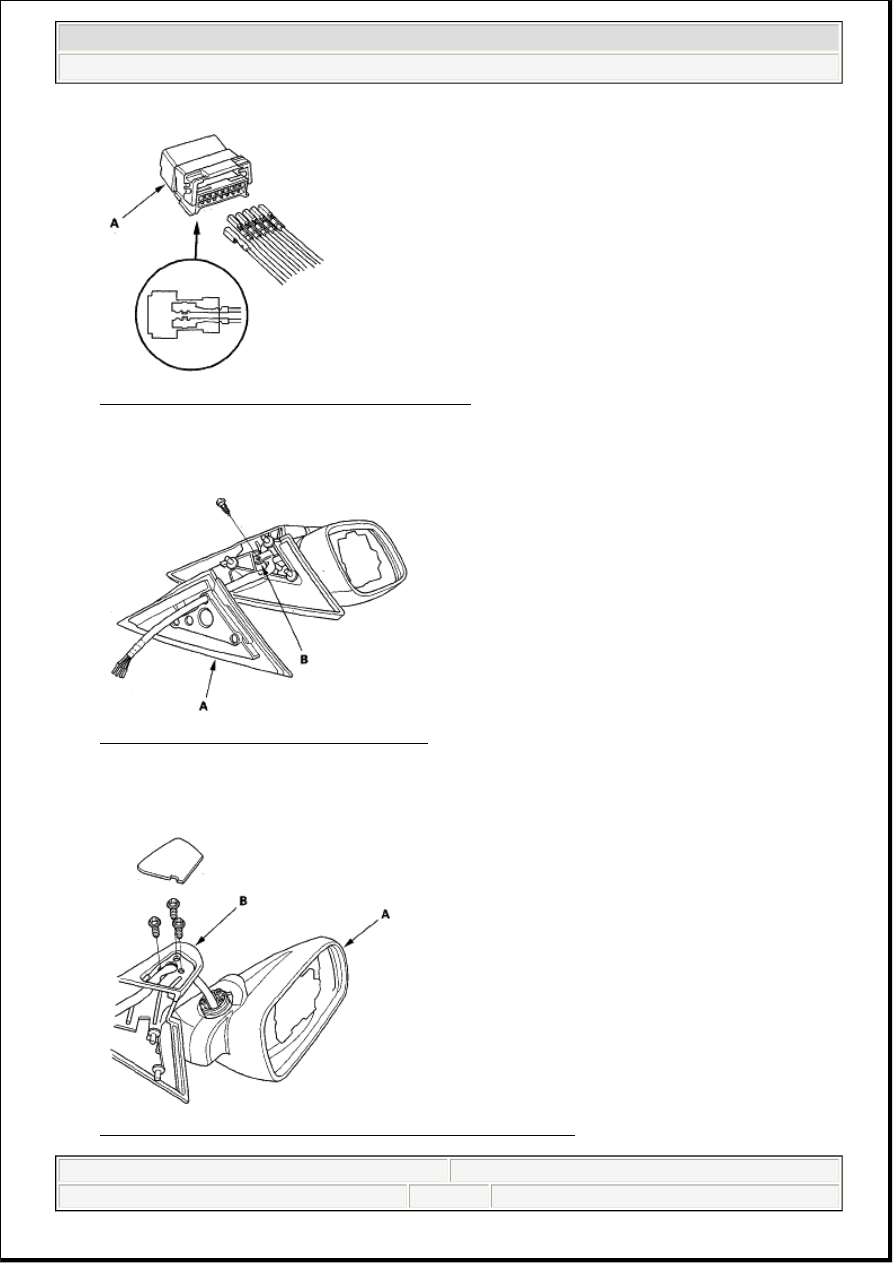

Fig. 6: Identifying Power Mirror 16P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the gasket (A), then remove the screw and clip (B).

Fig. 7: Identifying Gasket, Screw And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the three TORX screws, and separate the mirror housing (A) from the bracket (B).

Fig. 8: Identifying Mirror Housing, Bracket And Torx Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
