Courtesy of AMERICAN HONDA MOTOR CO., INC.

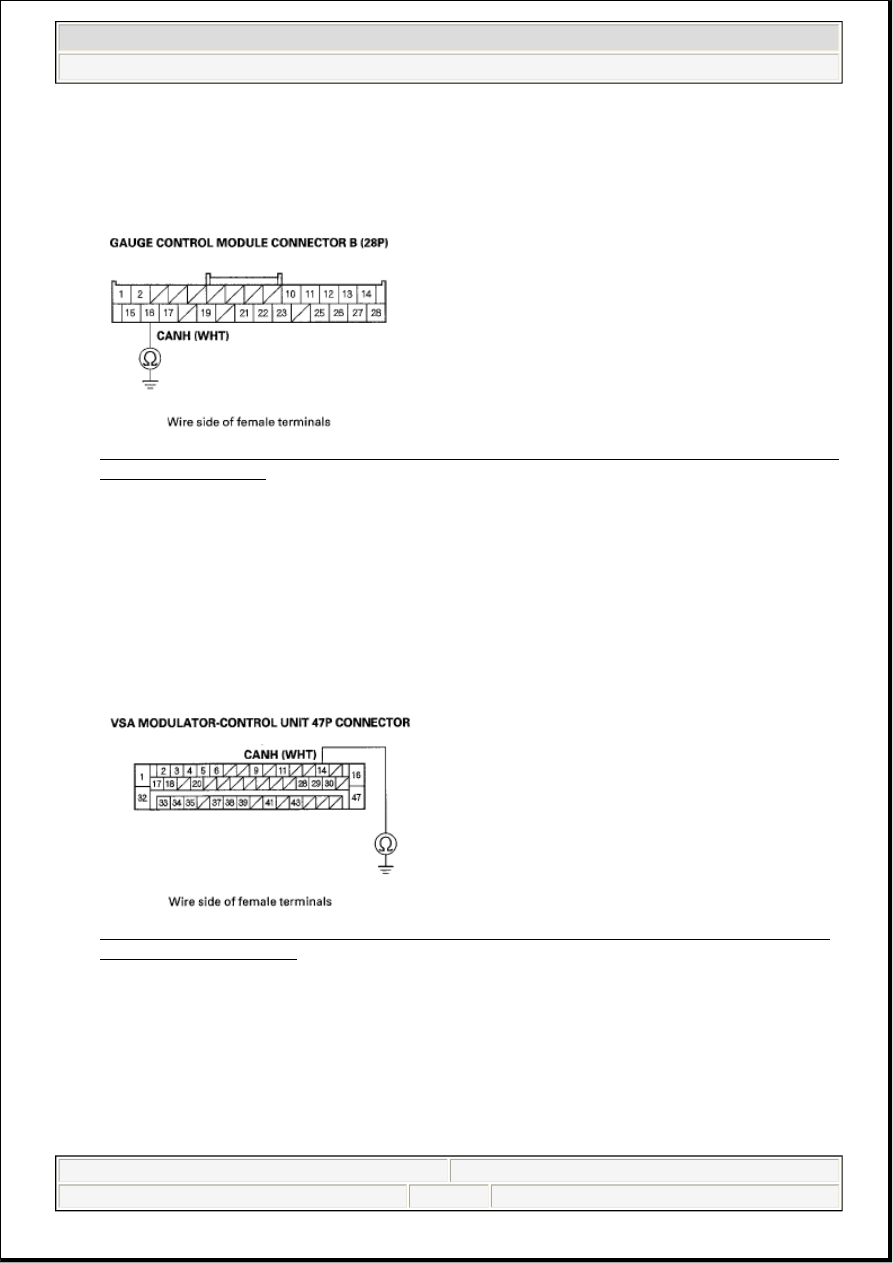

13. Check for continuity between gauge control module connector B (28P) terminal No. 16 and body

ground.

Fig. 132: Checking Continuity Between Gauge Control Module Connector B (28P) Terminal No.
16 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 14.

NO - Repair open in the wire between the PCM (E15) and the gauge control module

14. Check for continuity between VSA modulator-control unit 47P connector terminal No. 14 and body

ground.

Fig. 133: Checking Continuity Between VSA Modulator-Control Unit 47P Connector Terminal
No. 14 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 15.

NO - Repair open in the wire between the PCM (E15) and the VSA modulator-control unit

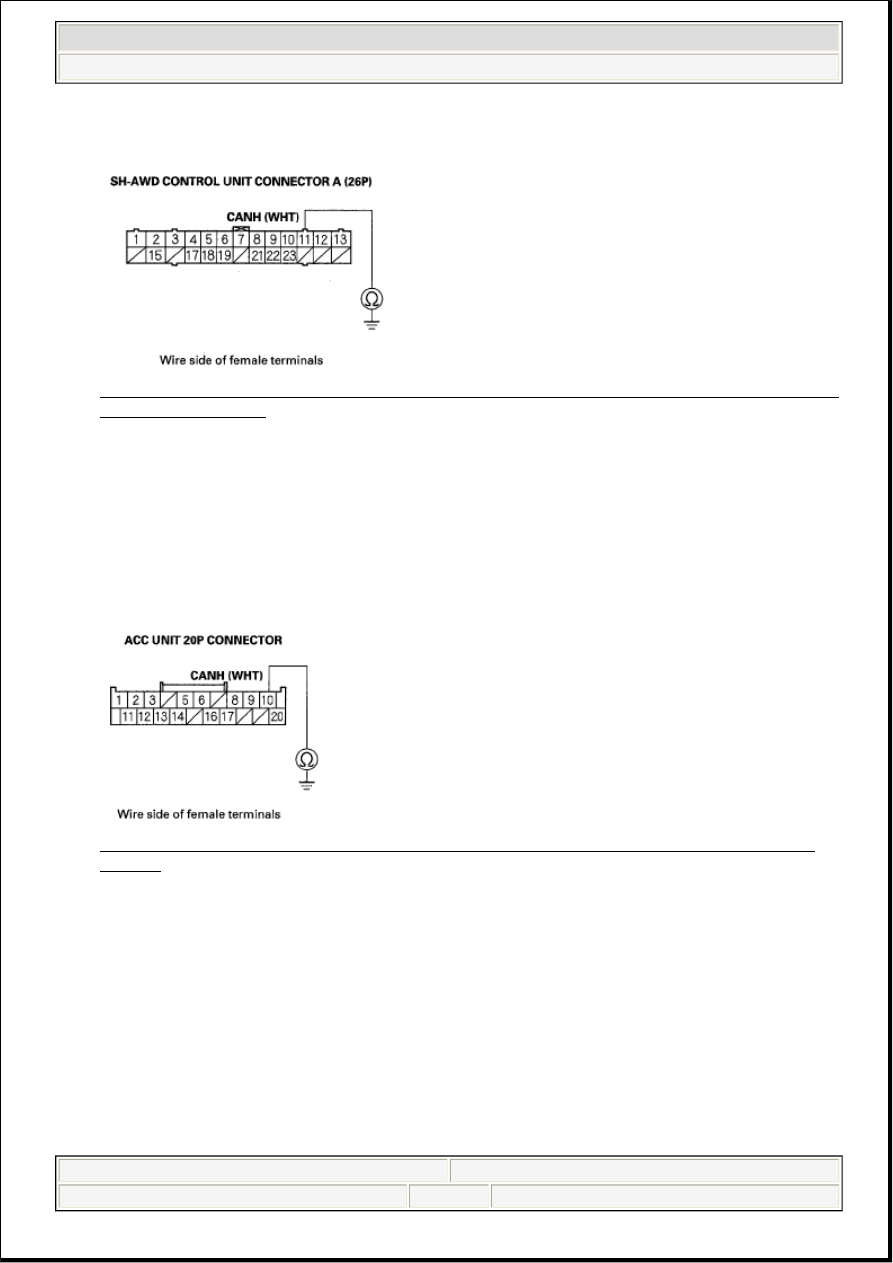

15. Check for continuity between SH-AWD control unit connector A (26P) terminal No. 11 and body



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 158  © 2005 Mitchell Repair Information Company, LLC.

ground.

Fig. 134: Checking Continuity Between SH-AWD Control Unit Connector A (26P) Terminal No.
11 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 16.

NO - Repair open in the wire between the PCM (E15) and the SH-AWD control unit

16. Check for continuity between ACC unit 20P connector terminal No. 10 and body ground.

Fig. 135: Checking Continuity Between ACC Unit 20P Connector Terminal No. 10 And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 17.

NO - Repair open in the wire between the PCM (E15) and ACC unit

17. Remove the jumper wire from PCM connector E (31P).

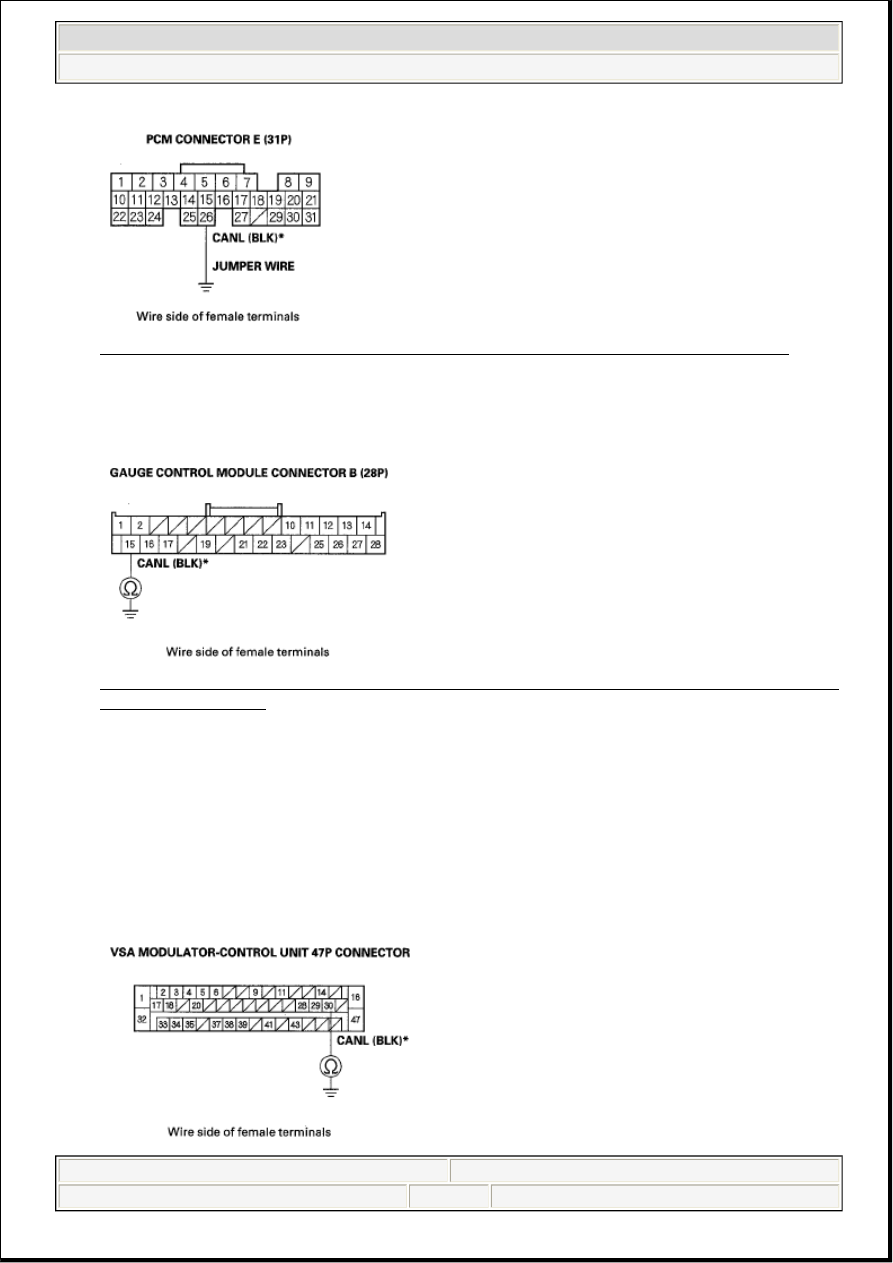

18. Connect PCM connector terminal E26* to body ground with a jumper wire.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 159  © 2005 Mitchell Repair Information Company, LLC.

Fig. 136: Connecting PCM Connector Terminal E26 To Body Ground With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

19. Check for continuity between gauge control module connector B (28P) terminal No. 15* and body

ground.

Fig. 137: Checking Continuity Between Gauge Control Module Connector B (28P) Terminal No.
15 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 20.

NO - Repair open in the wire between the PCM (E26) * and the gauge control module

20. Check for continuity between VSA modulator-control unit 47P connector terminal No. 30* and body

ground.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 160  © 2005 Mitchell Repair Information Company, LLC.

Fig. 138: Checking Continuity Between VSA Modulator-Control Unit 47P Connector Terminal
No. 30 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 21.

NO - Repair open in the wire between the PCM (E26)* and the VSA modulator-control unit

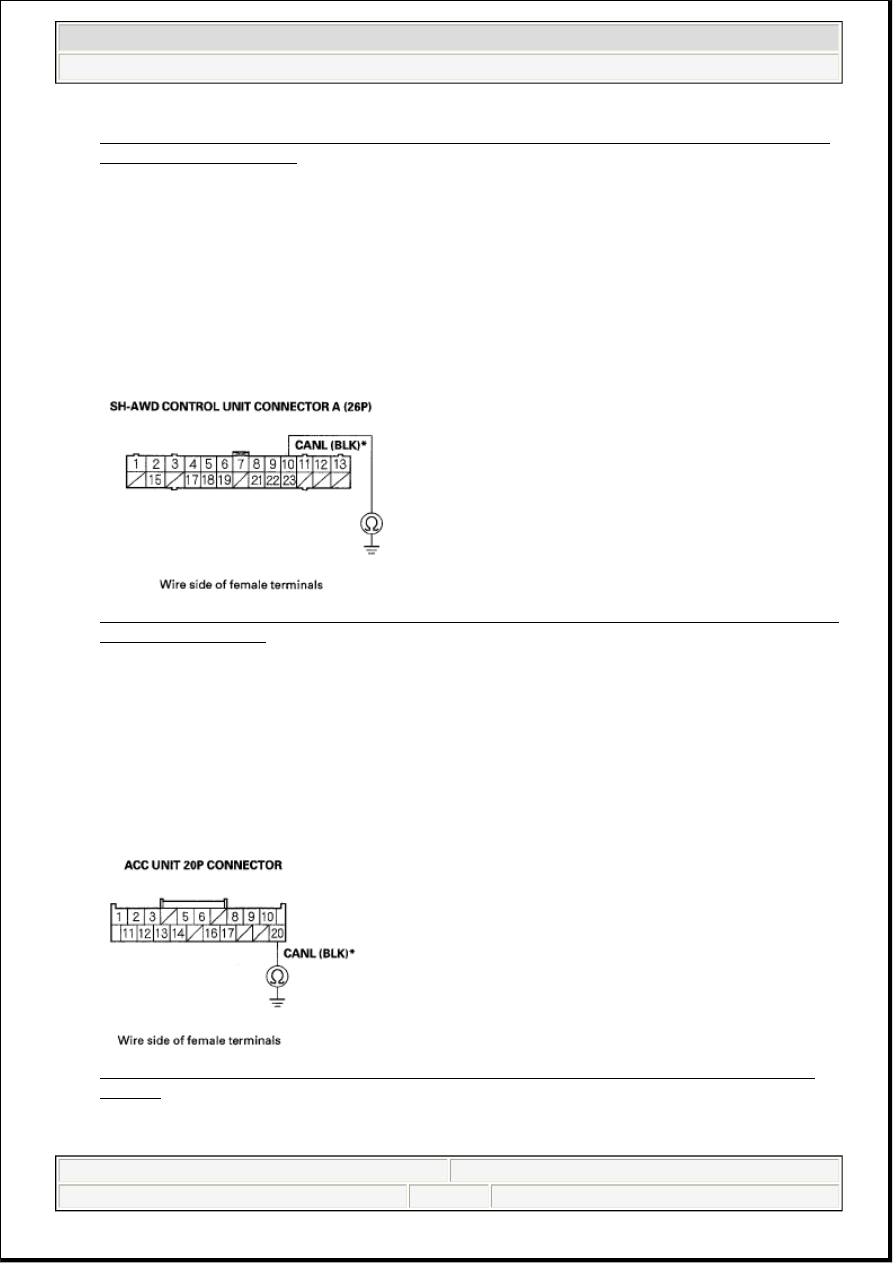

21. Check for continuity between SH-AWD control unit connector A (26P) terminal No. 10* and body

ground.

Fig. 139: Checking Continuity Between SH-AWD Control Unit Connector A (26P) Terminal No.
10 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 22.

NO - Repair open in the wire between the PCM (E26) * and the SH-AWD control unit

22. Check for continuity between ACC unit 20P connector terminal No. 20* and body ground.

Fig. 140: Checking Continuity Between ACC Unit 20P Connector Terminal No. 20 And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?
