NO - Repair open in the wire between the climate control unit and the sunlight sensor.

9. Check for continuity between the climate control unit 40P connector No. 33 terminal and the sunlight

sensor 5P connector No. 2 terminal.

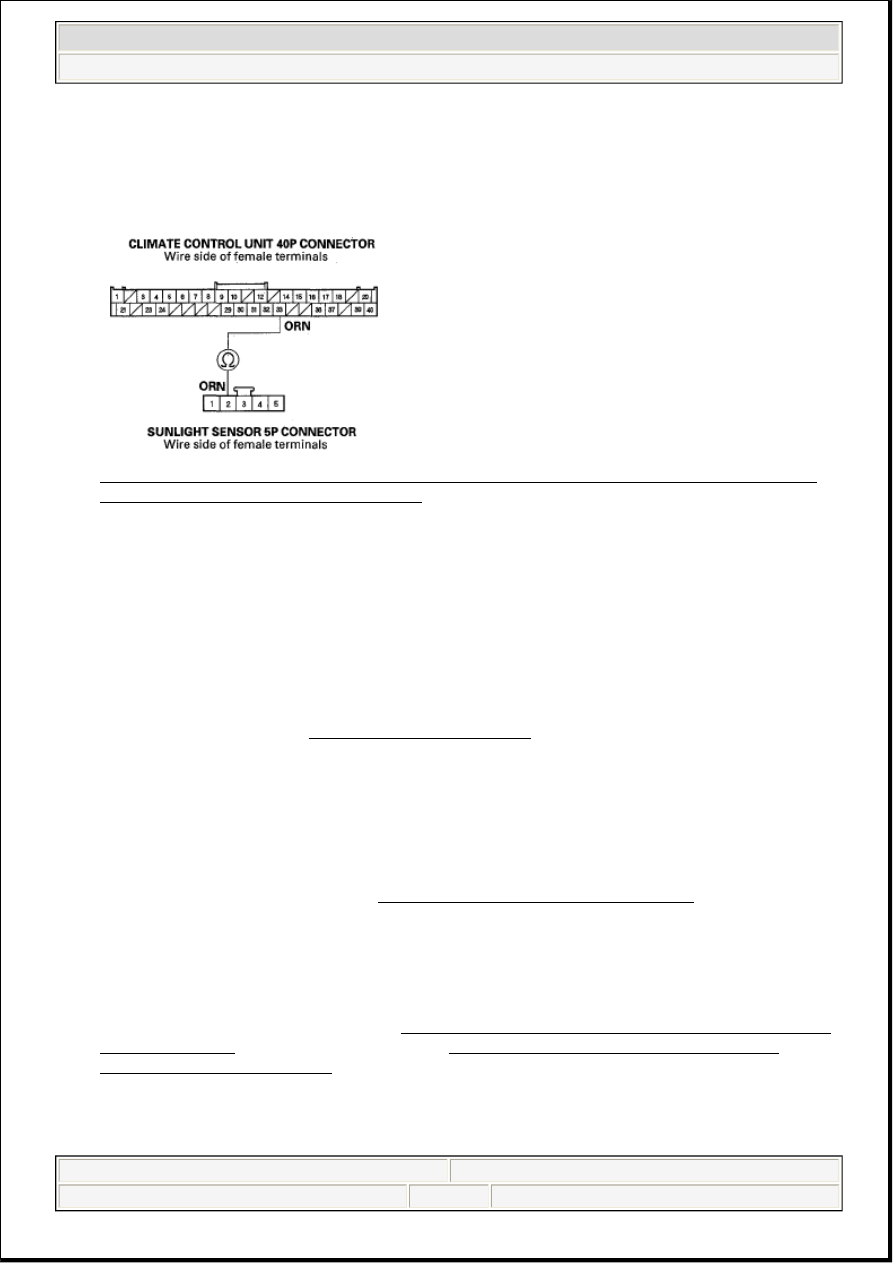

Fig. 33: Checking Continuity Between Climate Control Unit 40P Connector 33 Terminal And
Sunlight Sensor 5P Connector 2 Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 10.

NO - Repair open in the wire between the climate control unit and the sunlight sensor.

10. Reconnect the sunlight sensor 5P connector.

11. Reconnect the climate control unit 40P connector.

12. Test the sunlight sensor (see SUNLIGHT SENSOR TEST ).

Is the sunlight sensor OK?

YES - Check for loose wires or poor connections at the climate control unit 40P connector and at the
sunlight sensor 5P connector. If the connections are good, substitute a known-good climate control
unit, and recheck. If the symptom/indication goes away, replace the original climate control unit.

NO - Replace the sunlight sensor (see SUNLIGHT SENSOR REPLACEMENT ).

DTC B1230 or TS sensor short is indicated: A Short in the Sunlight Sensor Circuit

1. Clear the DTC with the HDS.

2. Turn the ignition switch OFF and then ON (II).

3. Do the self-diagnostic with the HDS (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION

WITH THE HDS ) or climate control unit (see HOW TO USE THE SELF-DIAGNOSTIC
FUNCTION WITHOUT HDS ).

4. Check for DTCs.

Is DTC B1230 or TS sensor short indicated?



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

YES - Go to step 5.

NO - Intermittent failure.

5. Turn the ignition switch OFF.

6. Disconnect the sunlight sensor 5P connector.

7. Disconnect the climate control unit 40P connector.

8. Check for continuity between body ground and the climate control unit 40P connector No. 18

terminal.

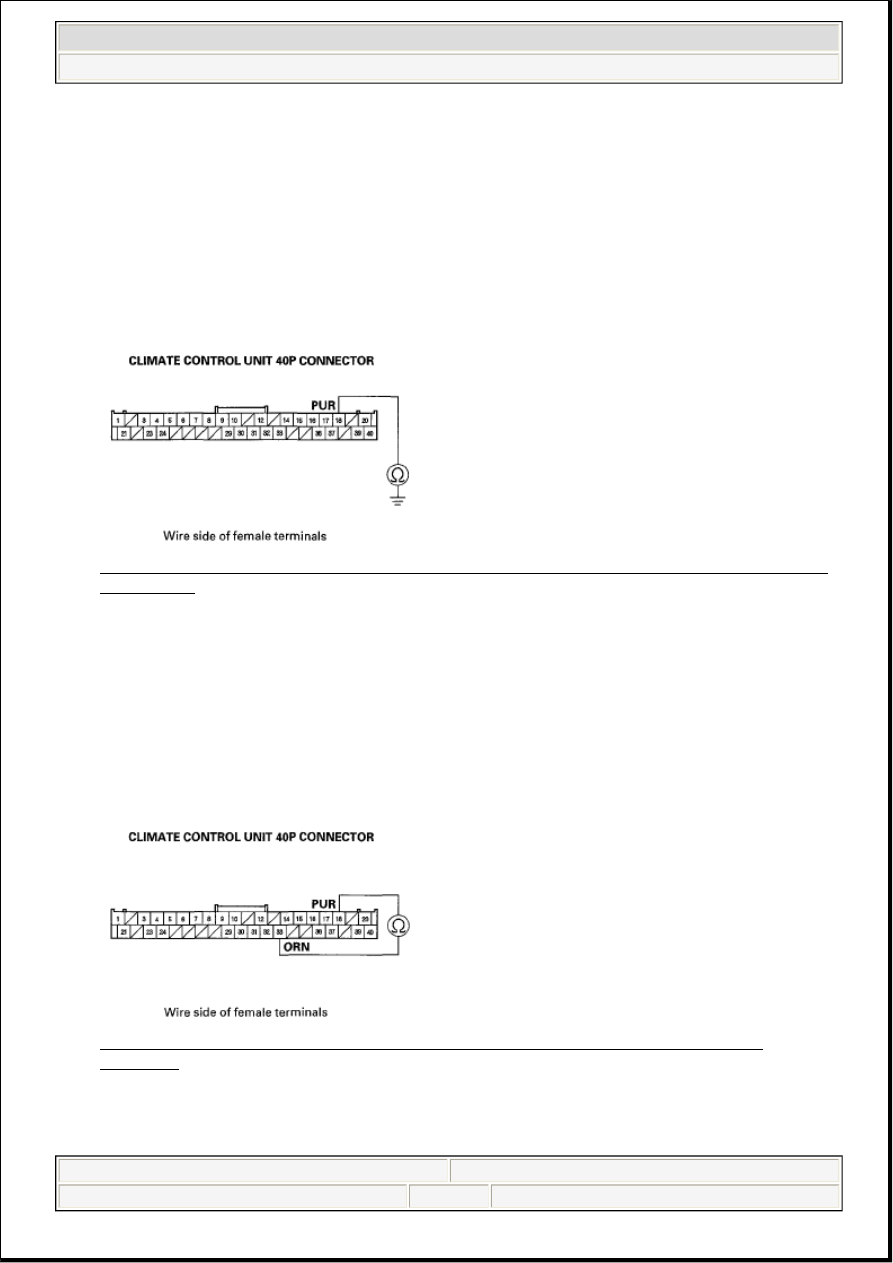

Fig. 34: Checking Continuity Between Body Ground And Climate Control Unit 40P Connector
18 Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short to body ground in the wire between the climate control unit and the sunlight
sensor.

NO - Go to step 9.

9. Check for continuity between the climate control unit 40P connector No. 18 and No. 33 terminals.

Fig. 35: Checking Continuity Between Climate Control Unit 40P Connector 18 And 33
Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 40

© 2005 Mitchell Repair Information Company, LLC.

YES - Repair short in the wires between the climate control unit and the sunlight sensor.

NO - Go to step 10.

10. Reconnect the sunlight sensor 5P connector.

11. Reconnect the climate control unit 40P connector.

12. Test the sunlight sensor (see SUNLIGHT SENSOR TEST ).

Is the sunlight sensor OK?

YES - Substitute a known-good climate control unit, and recheck. If the symptom/indication goes
away, replace the original climate control unit.

NO - Replace the sunlight sensor (see SUNLIGHT SENSOR REPLACEMENT ).

DTC B1231 or TE sensor open is indicated: An Open in the Evaporator Temperature Sensor Circuit

1. Clear the DTC with the HDS.

2. Turn the ignition switch OFF and then ON (II).

3. Do the self-diagnostic with the HDS (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION

WITH THE HDS ) or climate control unit (see HOW TO USE THE SELF-DIAGNOSTIC
FUNCTION WITHOUT HDS ).

4. Check for DTCs.

Is DTC B1231 or TE sensor open indicated?

YES - Go to step 4.

NO - Intermittent failure, check for loose wires or poor connections on the evaporator temperature
sensor circuit.

5. Turn the ignition switch OFF.

6. Remove the evaporator temperature sensor (see EVAPORATOR TEMPERATURE SENSOR

REPLACEMENT ) and test it (see EVAPORATOR TEMPERATURE SENSOR TEST ).

Is the evaporator temperature sensor OK?

YES - Go to step 7.

NO - Replace the evaporator temperature sensor.

7. Disconnect the climate control unit 40P connector.

8. Check for continuity between the climate control unit 40P connector No. 17 terminal and the

evaporator temperature sensor 2P connector No. 1 terminal.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

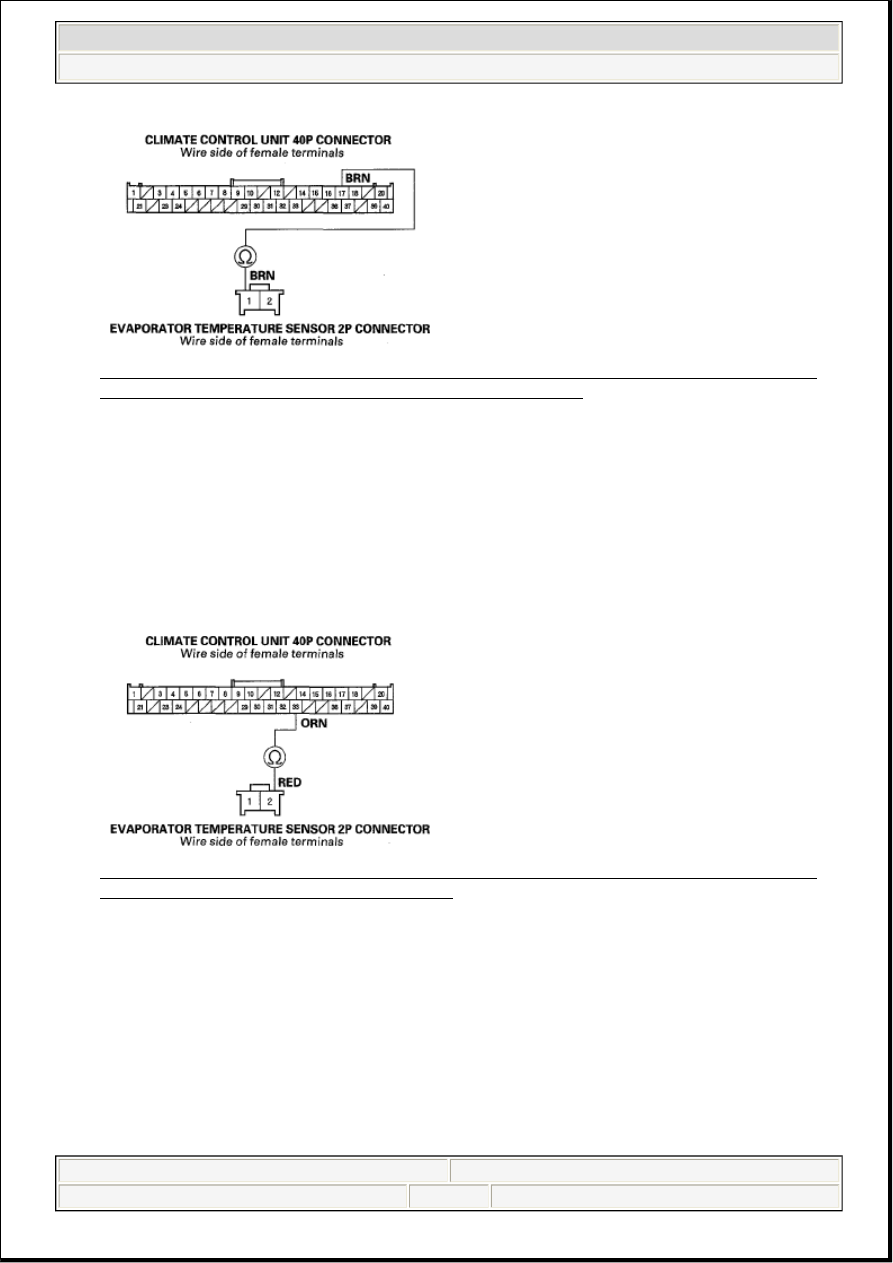

Fig. 36: Checking Continuity Between Climate Control Unit 40P Connector 17 Terminal And
Evaporator Temperature Sensor 2P Connector No. 1 Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 9.

NO - Repair open in the wire between the climate control unit and the evaporator temperature sensor.

9. Check for continuity between the climate control unit 40P connector No. 33 terminal and the

evaporator temperature sensor 2P connector No. 2 terminal.

Fig. 37: Checking Continuity Between Climate Control Unit 40P Connector 33 Terminal And
Evaporator Temperature Sensor 2P Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Check for loose wire or poor connections at the climate control unit 40P connector and at the
evaporator temperature sensor 2P connector. If the connections are good, substitute a known-good
climate control unit, and recheck. If the symptom/ indication goes away, replace the original climate
control unit.

NO - Repair open in the wire between the climate control unit and the evaporator temperature sensor.

DTC B1232 or TE sensor short is indicated: A Short in the Evaporator Temperature Sensor Circuit



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 42
