Check if the clips are damaged or stress-whitened, and if necessary, replace them with new
ones.



Push the clips into place securely.

HOOD INSULATOR REPLACEMENT

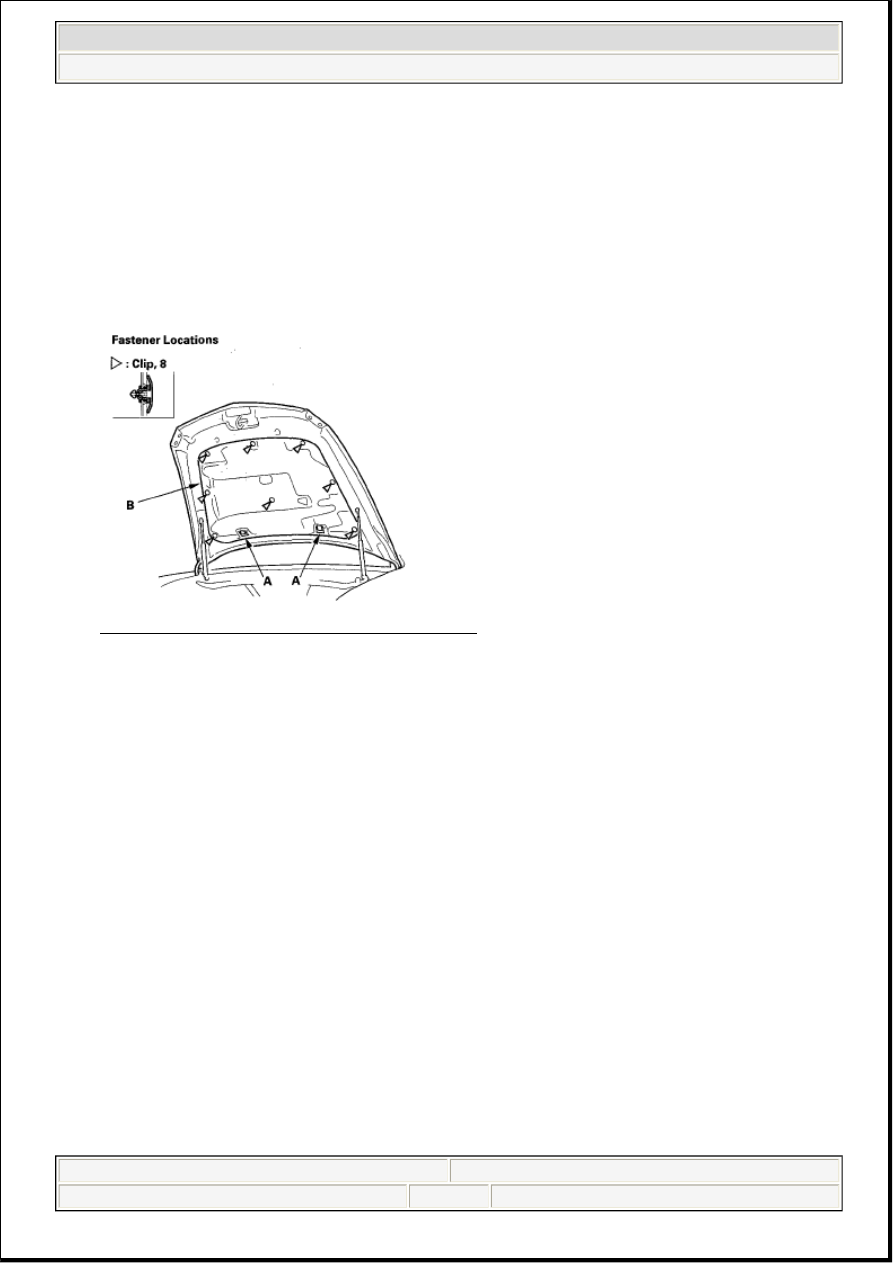

1. Using a clip remover, detach the clips. Release the hooks (A), then remove the hood insulator (B).

Take care not to scratch the hood.

Fig. 5: Identifying Hood Insulator And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the insulator in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new
ones.



Push the clips into place securely.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Hood - RL



me



Friday, June 05, 2009 3:37:53 PM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ACCESSORIES AND EQUIPMENT

Horns - RL

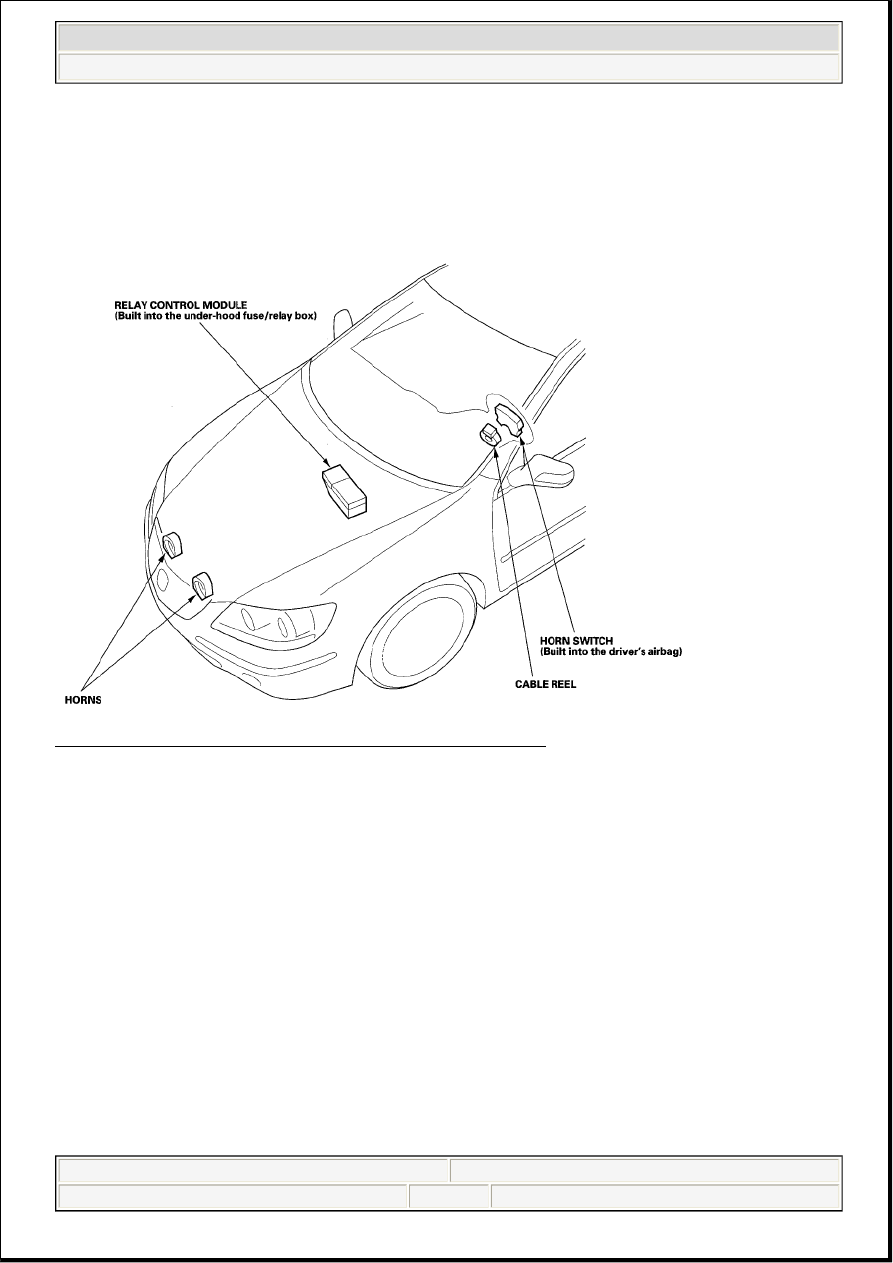

COMPONENT LOCATION INDEX

Fig. 1: Identifying Location Of Horns And Related Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Horns - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Horns - RL



me



Friday, June 05, 2009 3:32:08 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:32:11 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Fig. 2: Horns - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

HORN TEST/REPLACEMENT

1. Remove the upper grille (see UPPER GRILLE REPLACEMENT ).

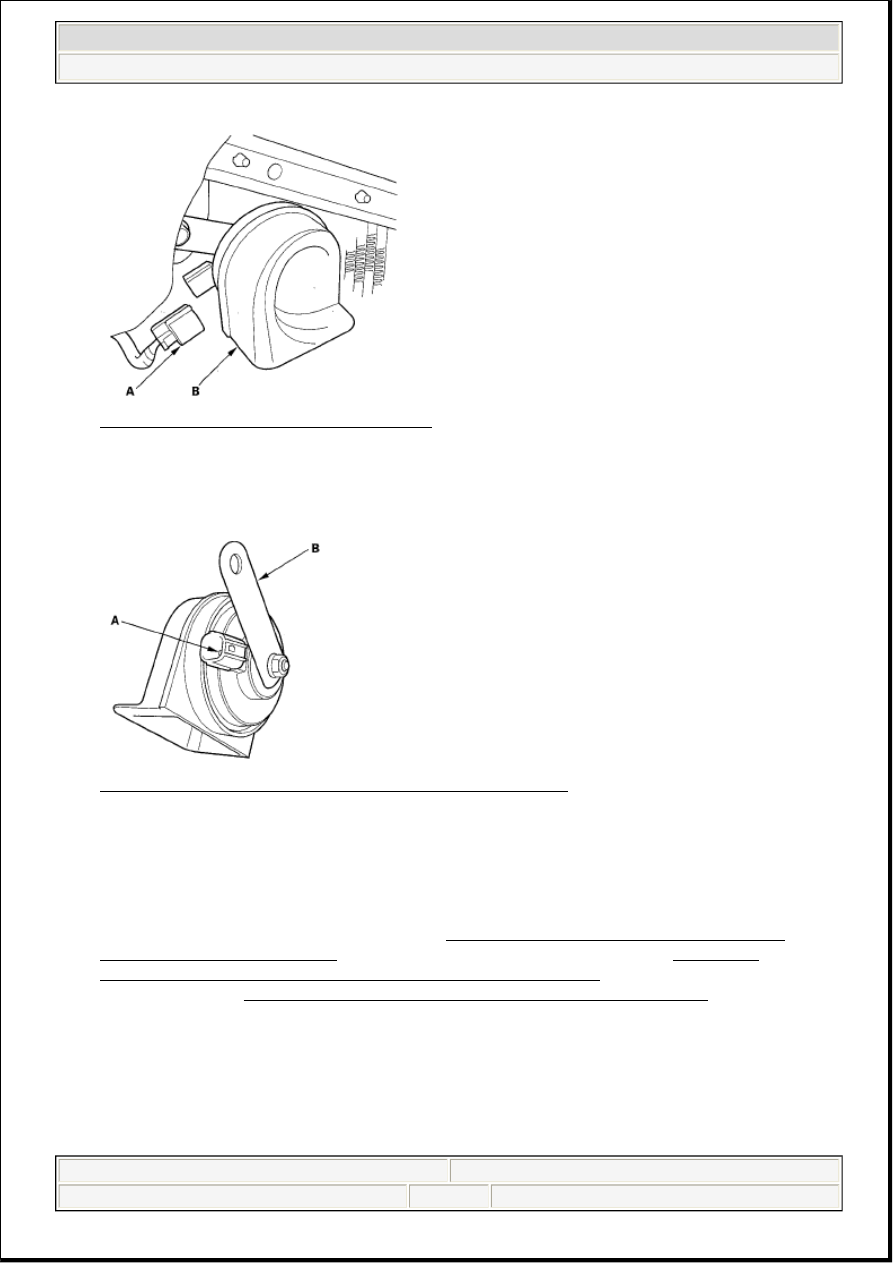

2. Disconnect the 1P connector (A) from each horn (B).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Horns - RL



me



Friday, June 05, 2009 3:32:08 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

Fig. 3: Identifying Horn And 1P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Test the horn by connecting battery power to the terminal (A) and grounding the bracket (B). The

horn should sound.

Fig. 4: Identifying Power Terminals And Grounding Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If it fails to sound, replace it.

HORN SWITCH TEST

1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER

REMOVAL/INSTALLATION ), and the driver's dashboard lower cover (see DRIVER'S
DASHBOARD LOWER COVER REMOVAL/INSTALLATION ), then remove the steering
column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).

2. Disconnect the 20P connector (A) from the cable reel (B).
