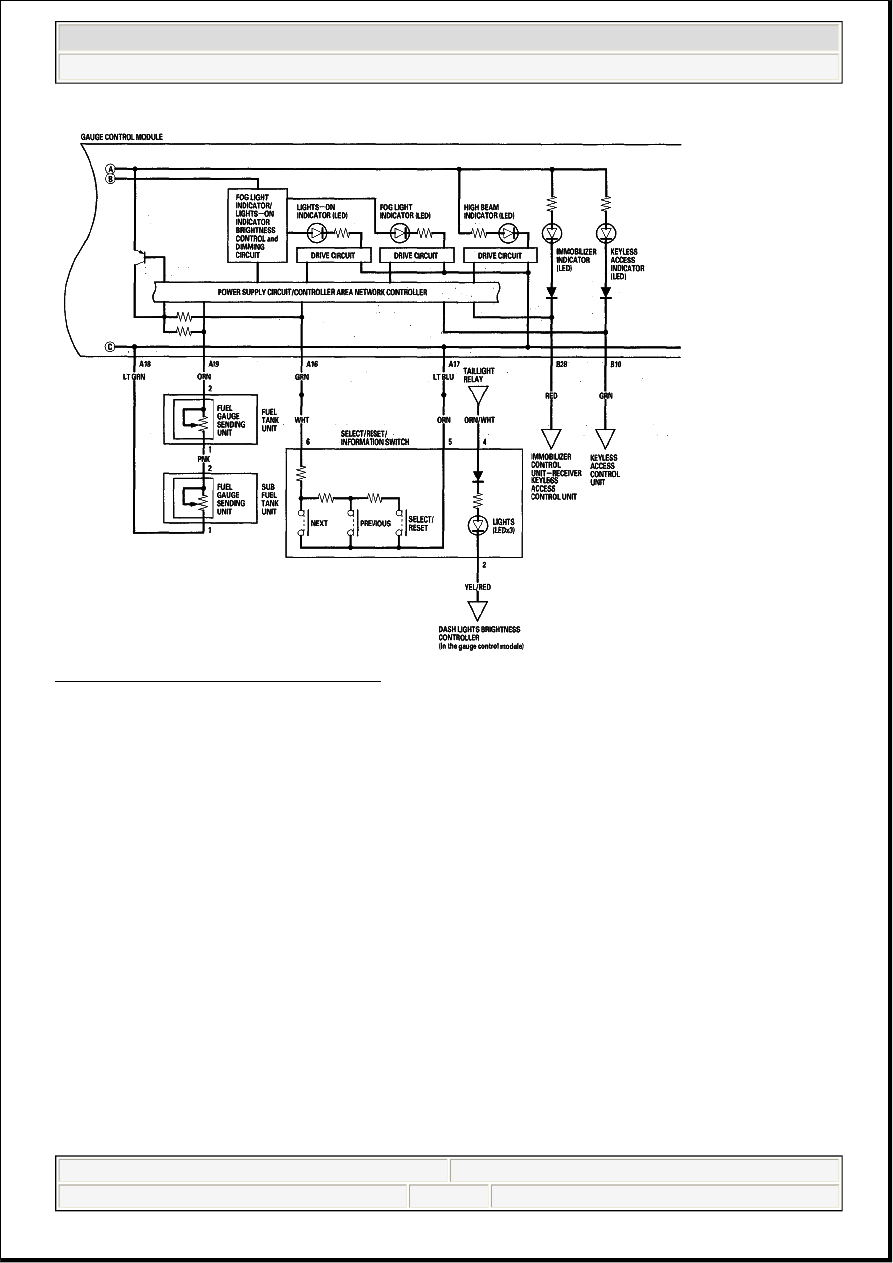

Fig. 10: Gauges - Circuit Diagram (2 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Gauges - RL



me



Friday, June 05, 2009 3:33:40 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

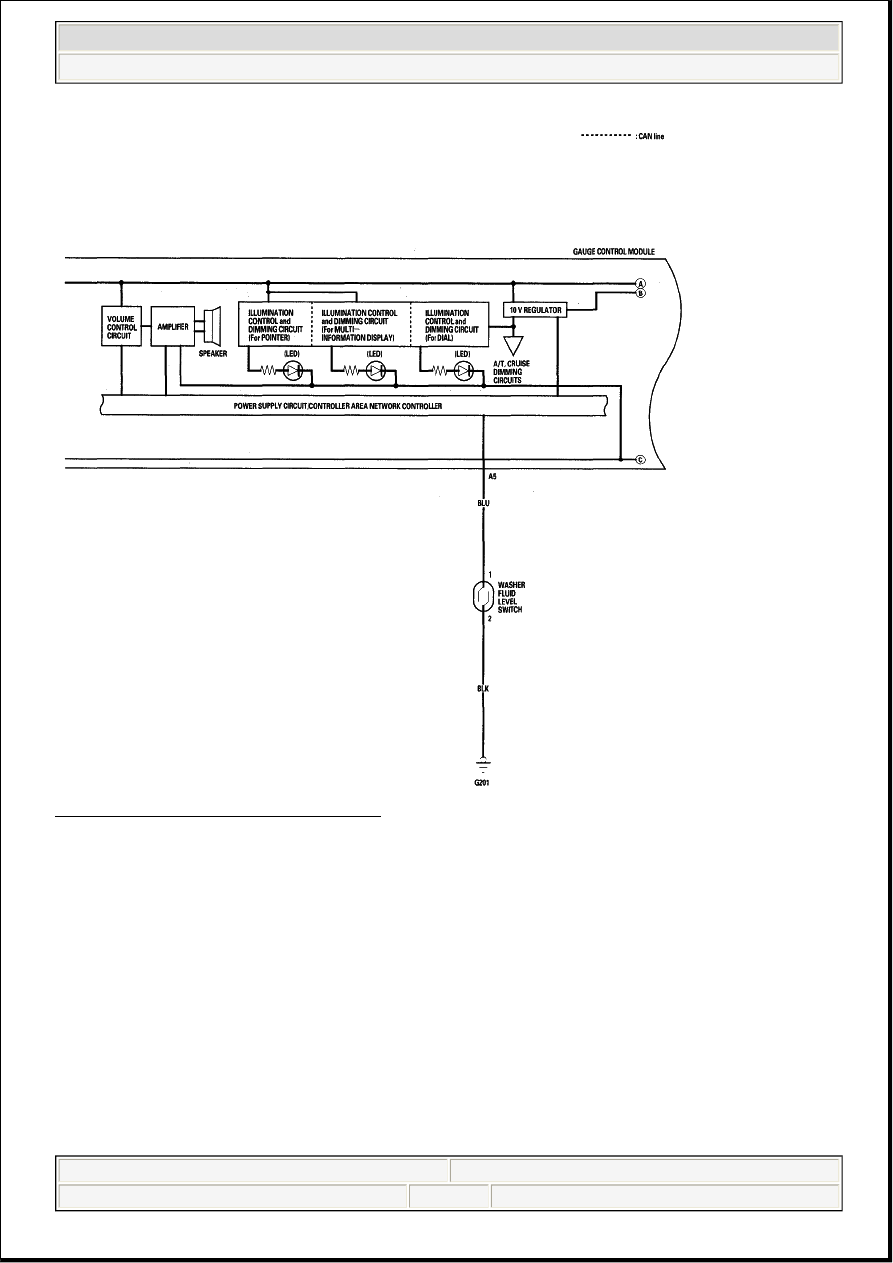

Fig. 11: Gauges - Circuit Diagram (3 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Gauges - RL



me



Friday, June 05, 2009 3:33:40 PM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

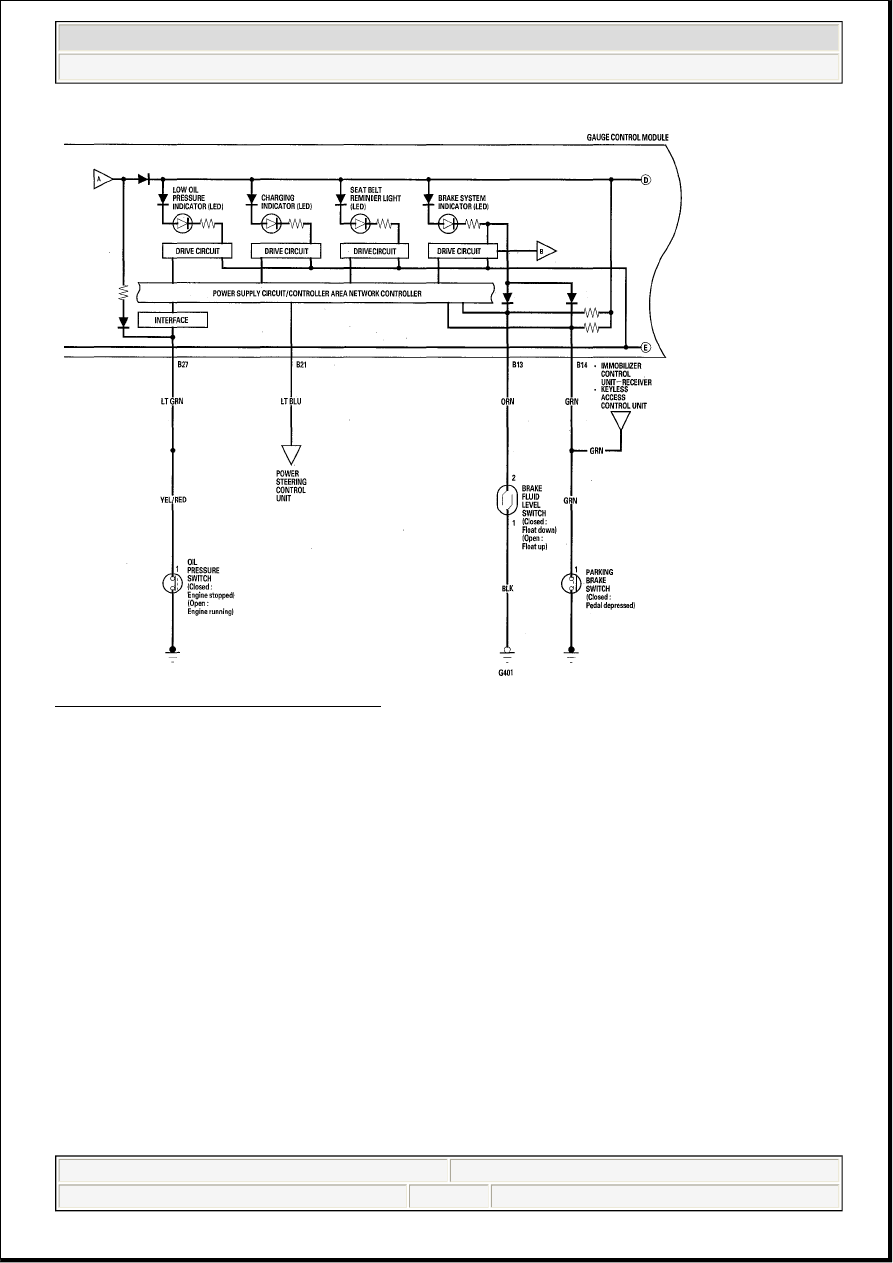

Fig. 12: Gauges - Circuit Diagram (4 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Gauges - RL



me



Friday, June 05, 2009 3:33:40 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

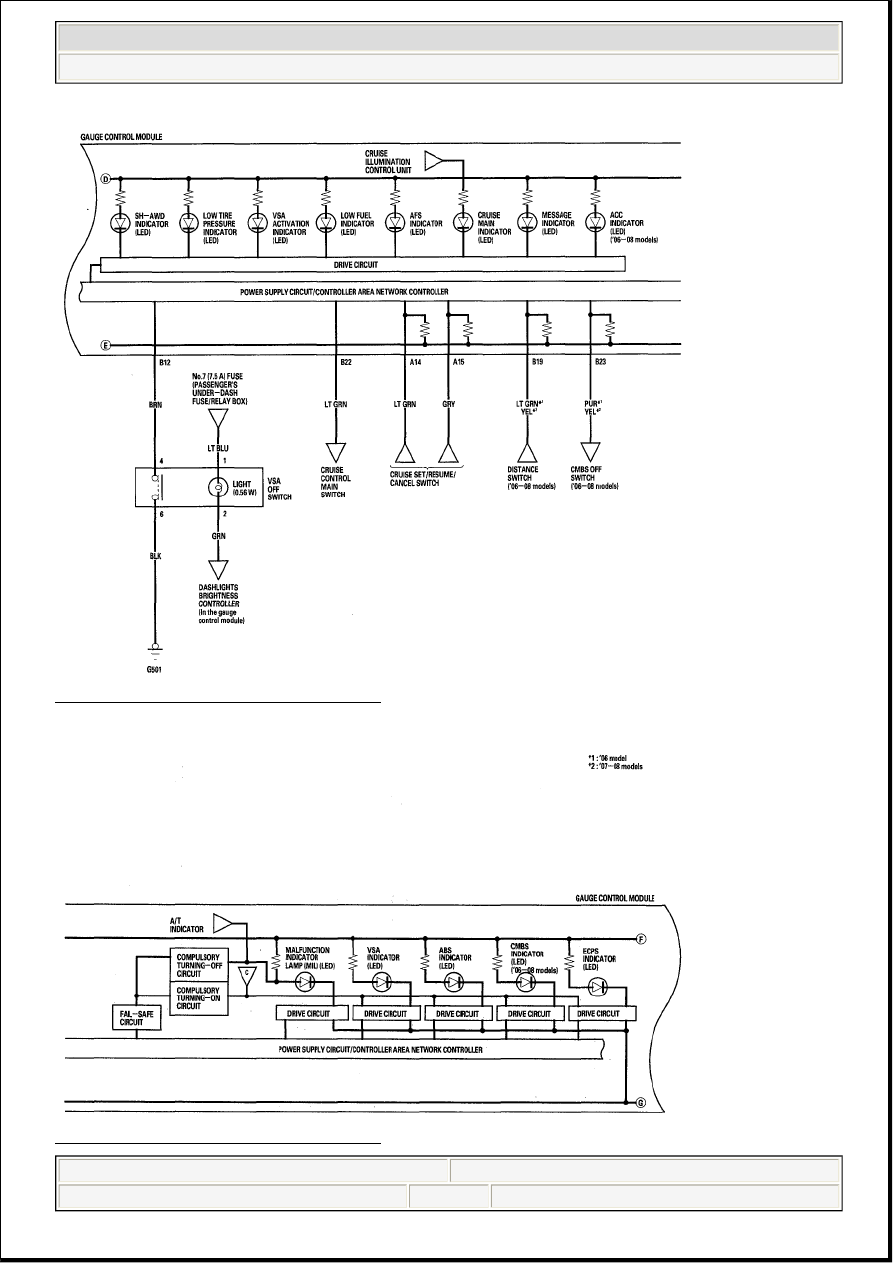

Fig. 13: Gauges - Circuit Diagram (5 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig. 14: Gauges - Circuit Diagram (6 Of 7)



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Gauges - RL



me



Friday, June 05, 2009 3:33:40 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.
