2005-08 ENGINE PERFORMANCE

Fuel Supply System - RL

COMPONENT LOCATION INDEX

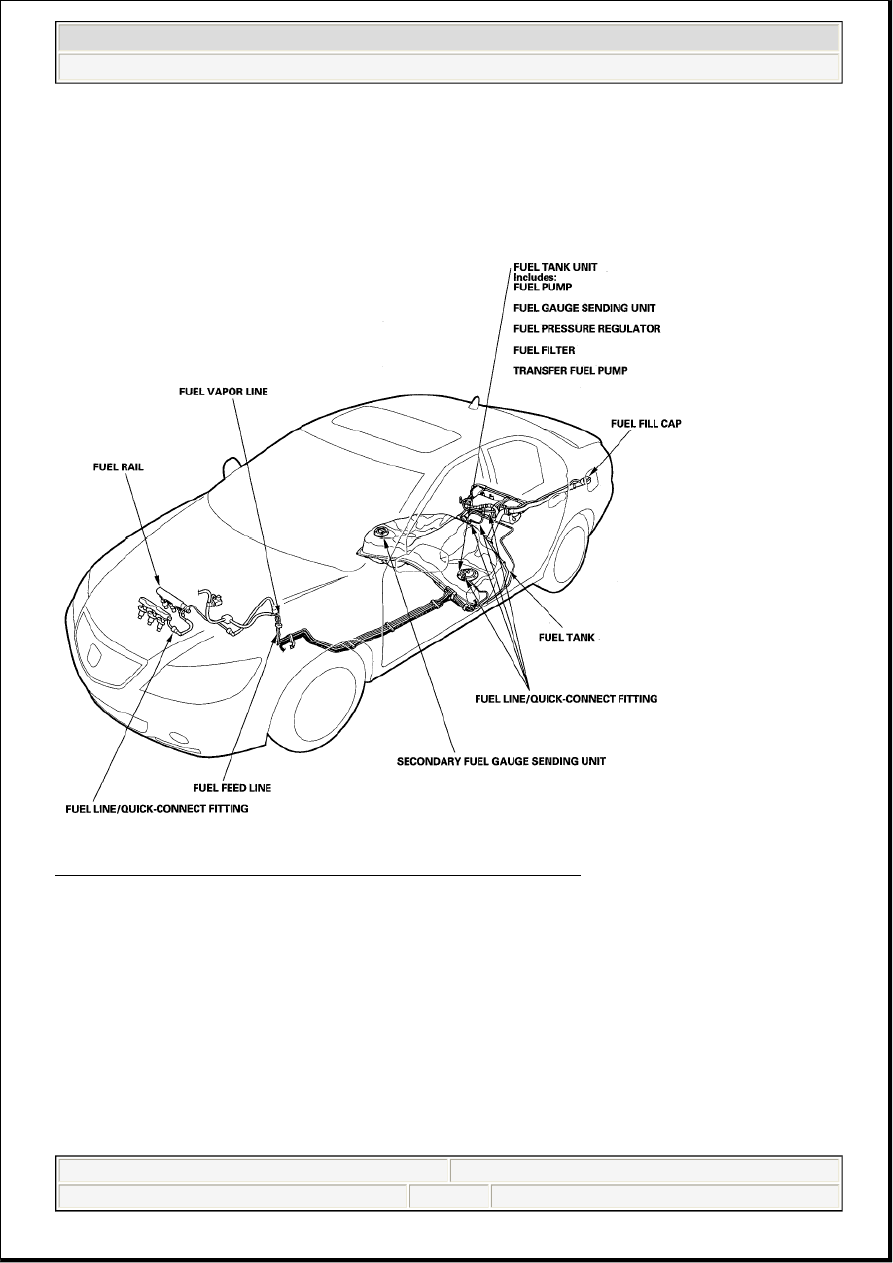

Fig. 1: Identifying Fuel Supply System Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL





2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL



me



Friday, June 05, 2009 3:13:30 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:13:35 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

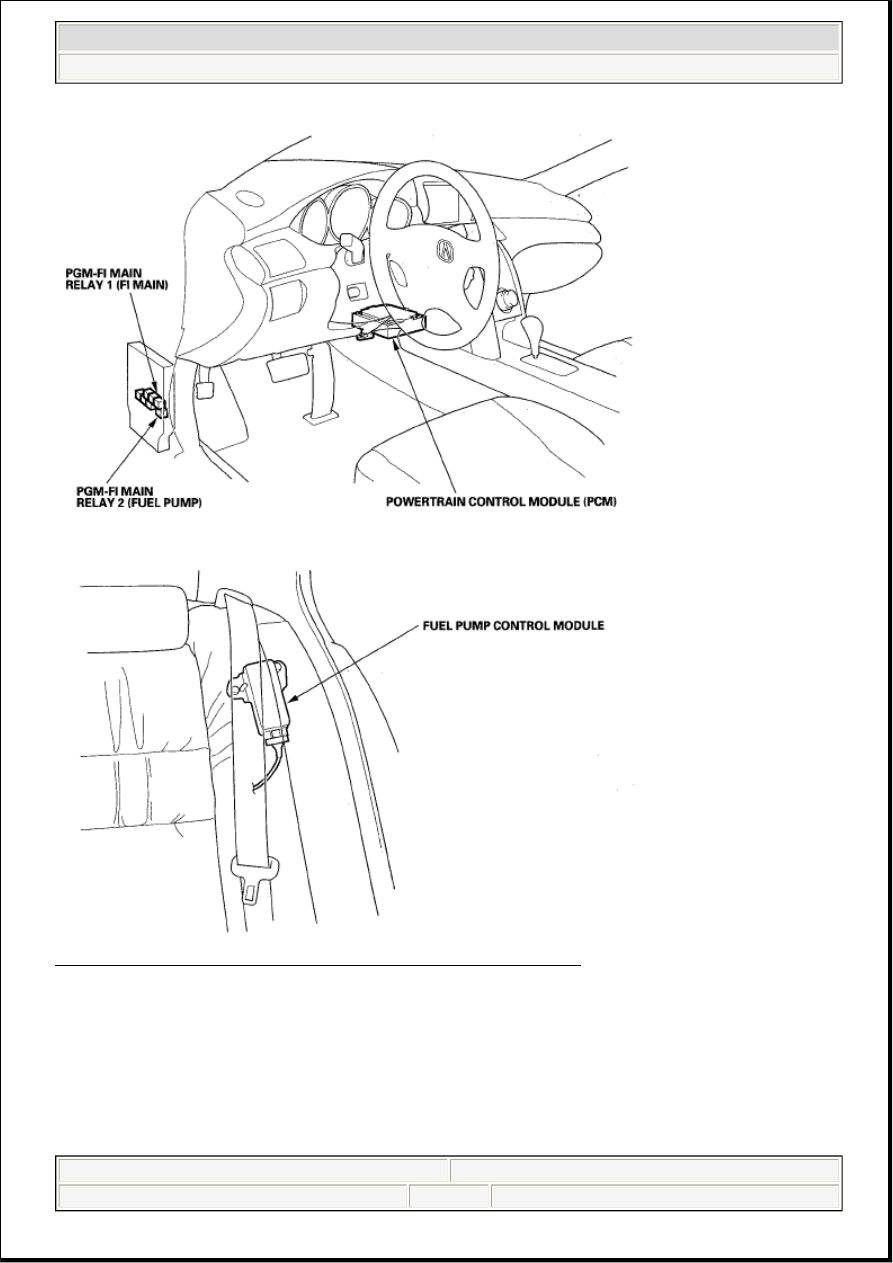

Fig. 2: Identifying Fuel Supply System Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DTC TROUBLESHOOTING

DTC P0461: FUEL LEVEL SENSOR (FUEL GAUGE SENDING UNIT) CIRCUIT
RANGE/PERFORMANCE PROBLEM

NOTE:



Before you troubleshoot, record all freeze data and any on-board



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL



me



Friday, June 05, 2009 3:13:30 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

1. Test the fuel gauge sending unit (see FUEL GAUGE SENDING UNIT TEST ).

Is the fuel gauge sending unit OK?

YES - Check for poor connections or loose terminals at the fuel gauge sending unit and the gauge
control module.

NO - Replace the fuel gauge sending unit (see FUEL PUMP/FUEL GAUGE SENDING UNIT
REPLACEMENT ), then go to step 2.

2. Turn the ignition switch ON (II).

3. Reset the PCM with the HDS.

4. Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).

5. Check for Temporary DTCs or DTCs with the HDS.

Are any Temporary DTCs or DTCs indicated?

YES - If DTC P0461 is indicated, check for poor connections or loose terminals at the fuel gauge
sending unit and the gauge control module, then go to step 1. If any other Temporary DTCs or DTCs
are indicated, go to the indicated DTCs troubleshooting.

NO - Troubleshooting is complete.

DTC P0462: FUEL LEVEL SENSOR (FUEL GAUGE SENDING UNIT) CIRCUIT LOW
VOLTAGE

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS, and wait 5 seconds.

3. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0462 indicated?

YES - Go to step 4.

NO - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals
at the gauge control module, the fuel gauge sending unit, and the secondary fuel gauge sending unit.

4. Turn the ignition switch OFF.

snapshot, and review the general troubleshooting information (see
GENERAL TROUBLESHOOTING INFORMATION ).



Because it requires 162 miles (260 km) of driving without refueling to
complete this diagnosis, DTC P0461 cannot be duplicated during this
troubleshooting.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot,
and review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL



me



Friday, June 05, 2009 3:13:31 PM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

5. Remove the rear seat cushion (see REAR SEAT REMOVAL/INSTALLATION ).

6. Remove the access panel from the right side of the floor.

7. Disconnect the secondary fuel gauge sending unit 5P connector.

8. Turn the ignition switch ON (II).

9. Clear the DTC with the HDS, and wait 5 seconds.

10. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0463 indicated?

YES - Check for secondary fuel gauge sending unit (see SECONDARY FUEL GAUGE SENDING
UNIT TEST ), then go to step 31.

NO - Go to step 11.

11. Turn the ignition switch OFF.

12. Remove the access panel from the leftside of the floor.

13. Disconnect the fuel pump 5P connector.

14. Turn the ignition switch ON (II).

15. Clear the DTC with the HDS, and wait 5 seconds.

16. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0463 indicated?

YES - Go to step 17.

NO - Go to step 21.

17. Turn the ignition switch OFF.

18. Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).

19. Disconnect the gauge control module connector A (20P).

20. Check for continuity between fuel tank unit 5P connector terminal No. 2 and body ground.

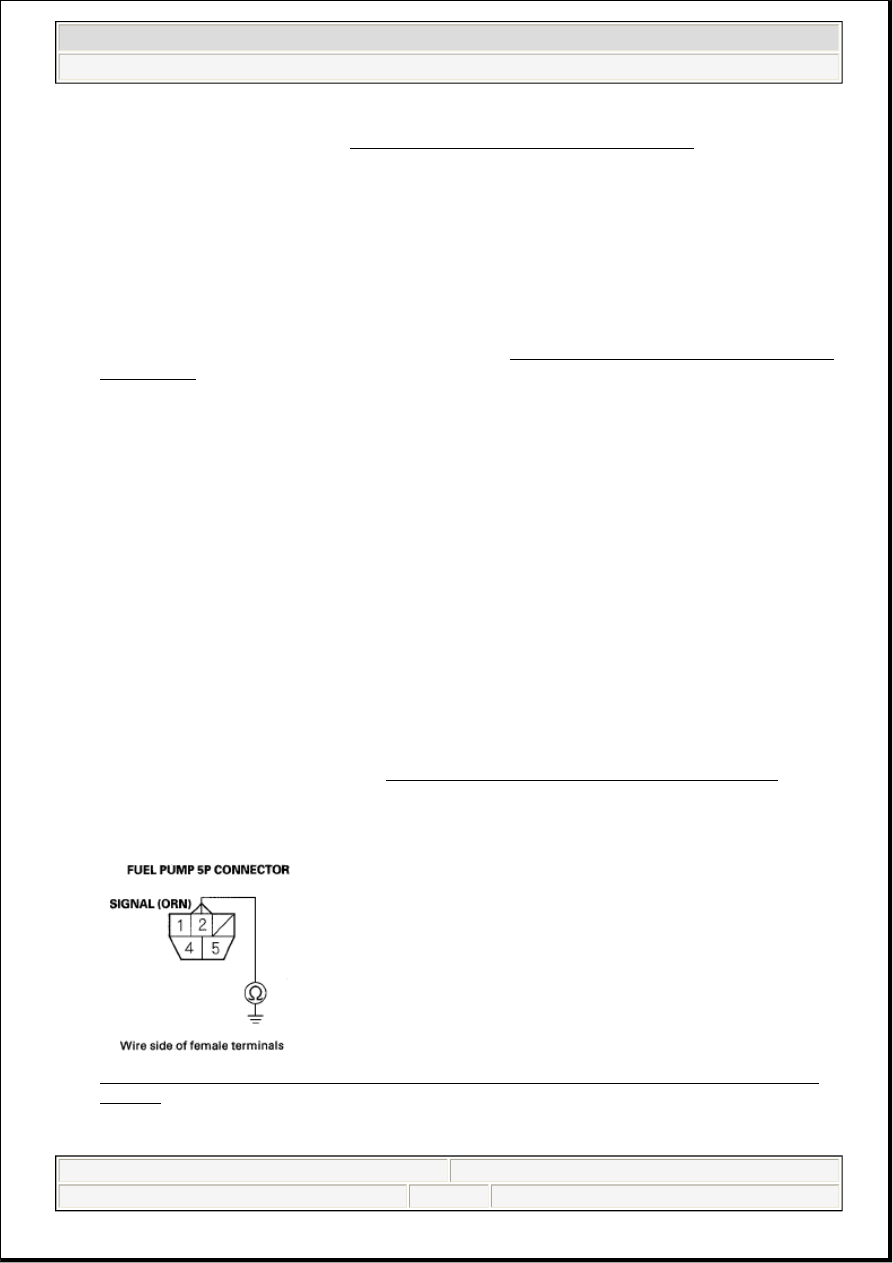

Fig. 3: Checking Continuity Between Fuel Tank Unit 5P Connector Terminal No. 2 And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
