Acura RL. Manual - part 508

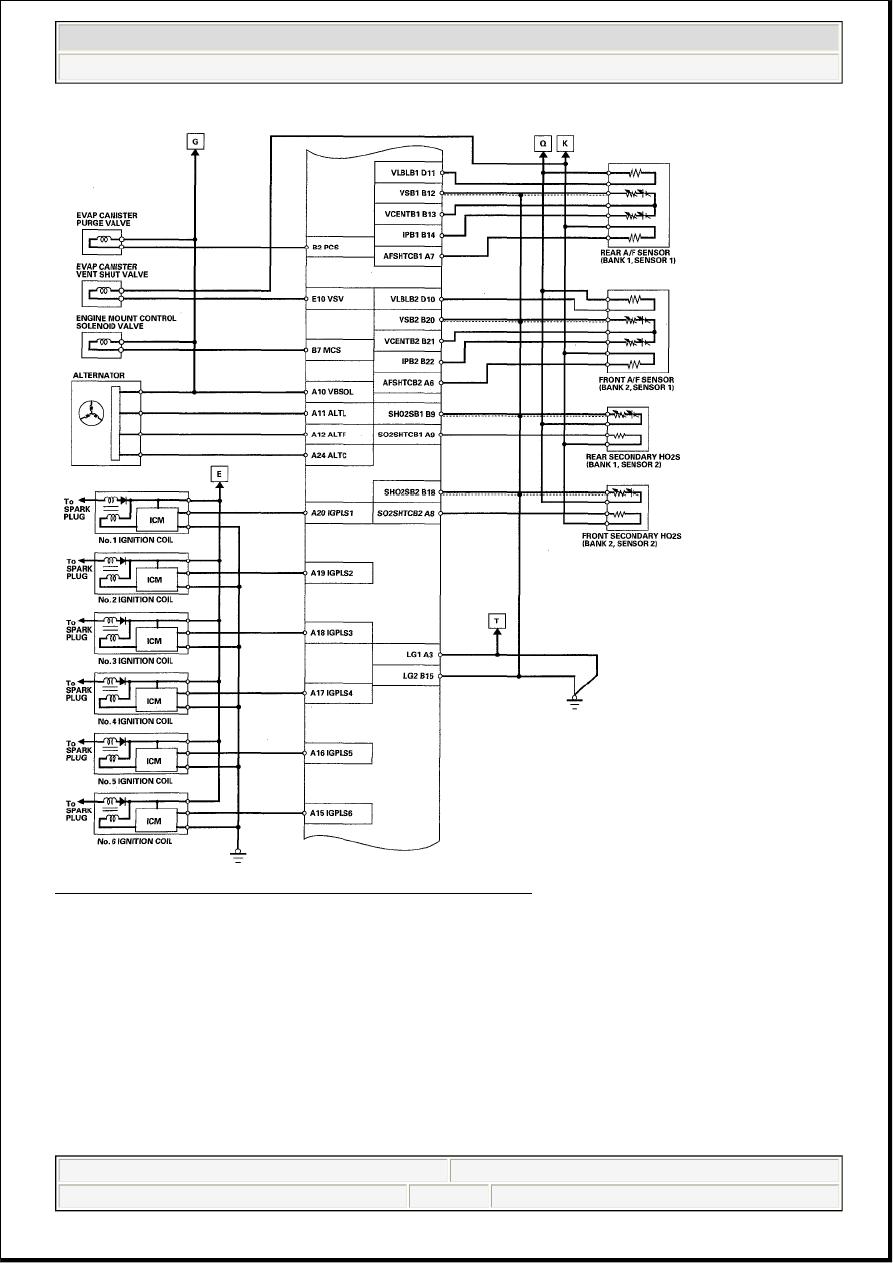

Fig. 11: PCM Electrical Connections Circuit Diagram (2 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

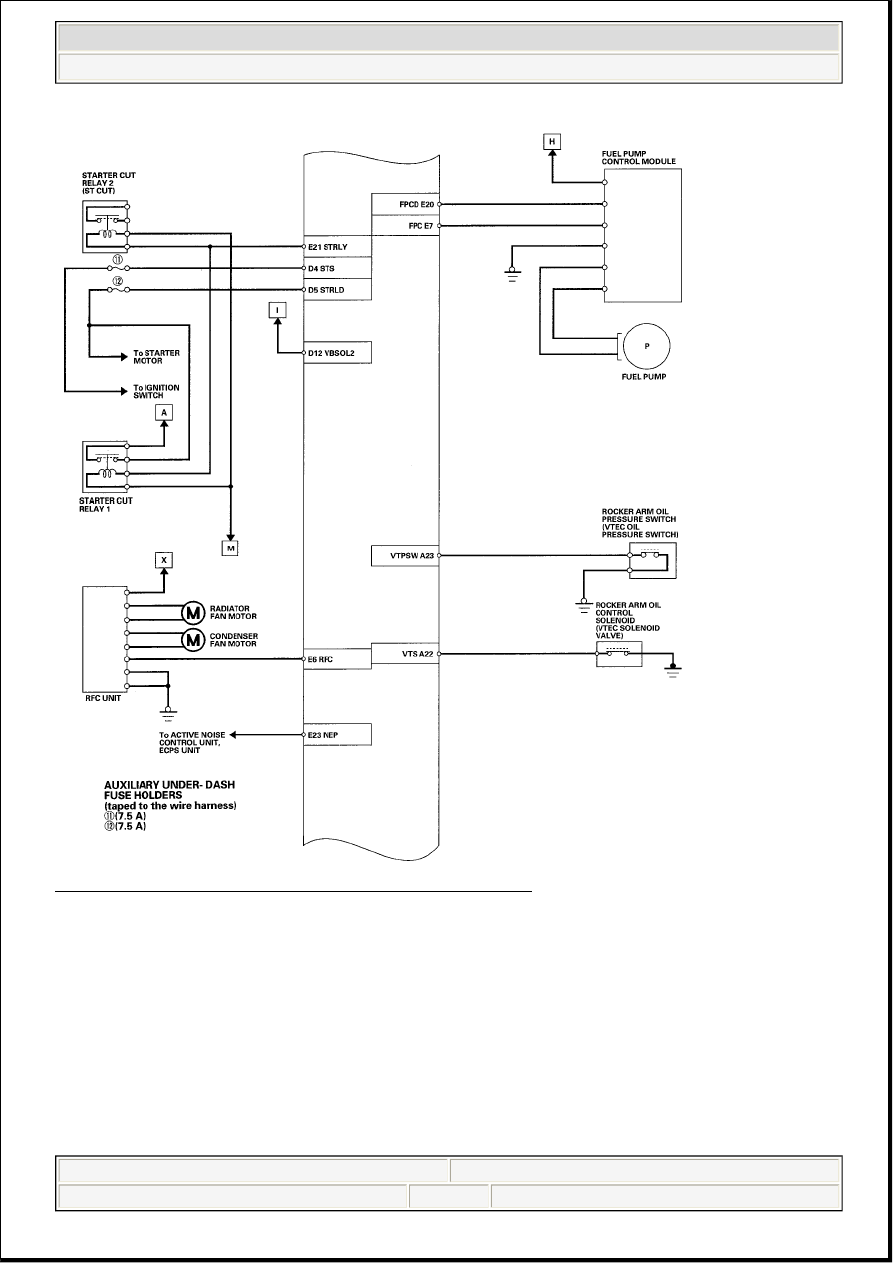

Fig. 12: PCM Electrical Connections Circuit Diagram (3 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

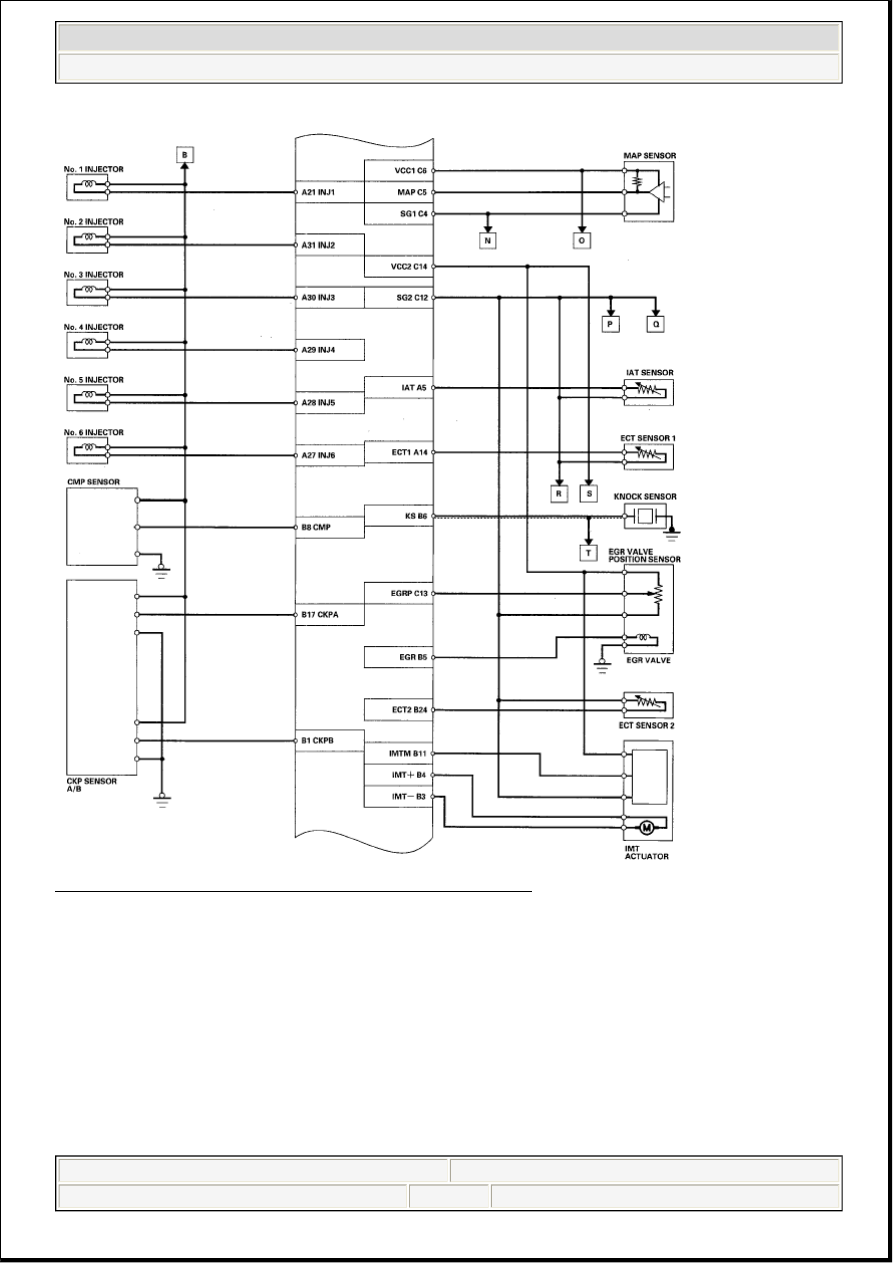

Fig. 13: PCM Electrical Connections Circuit Diagram (4 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

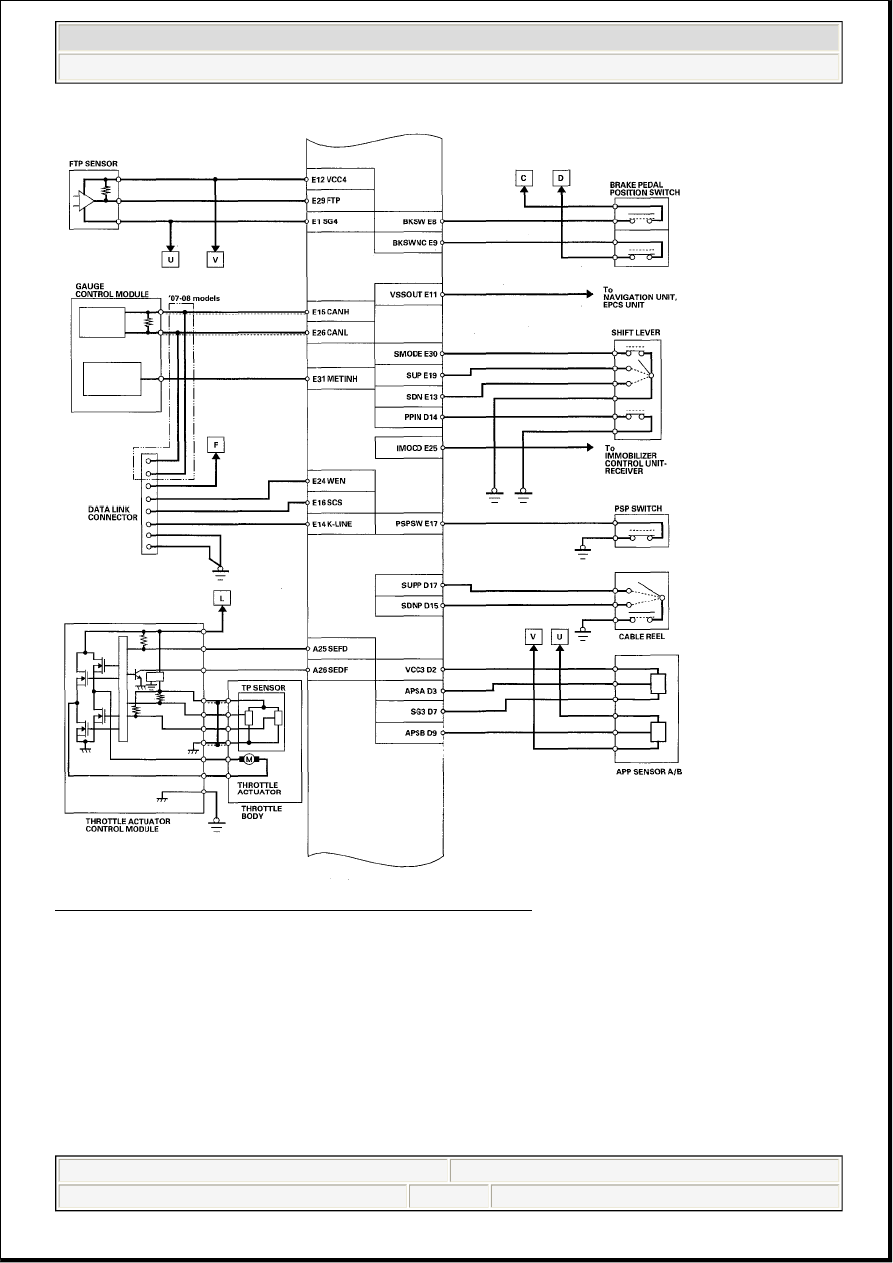

Fig. 14: PCM Electrical Connections Circuit Diagram (5 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 30

© 2005 Mitchell Repair Information Company, LLC.
