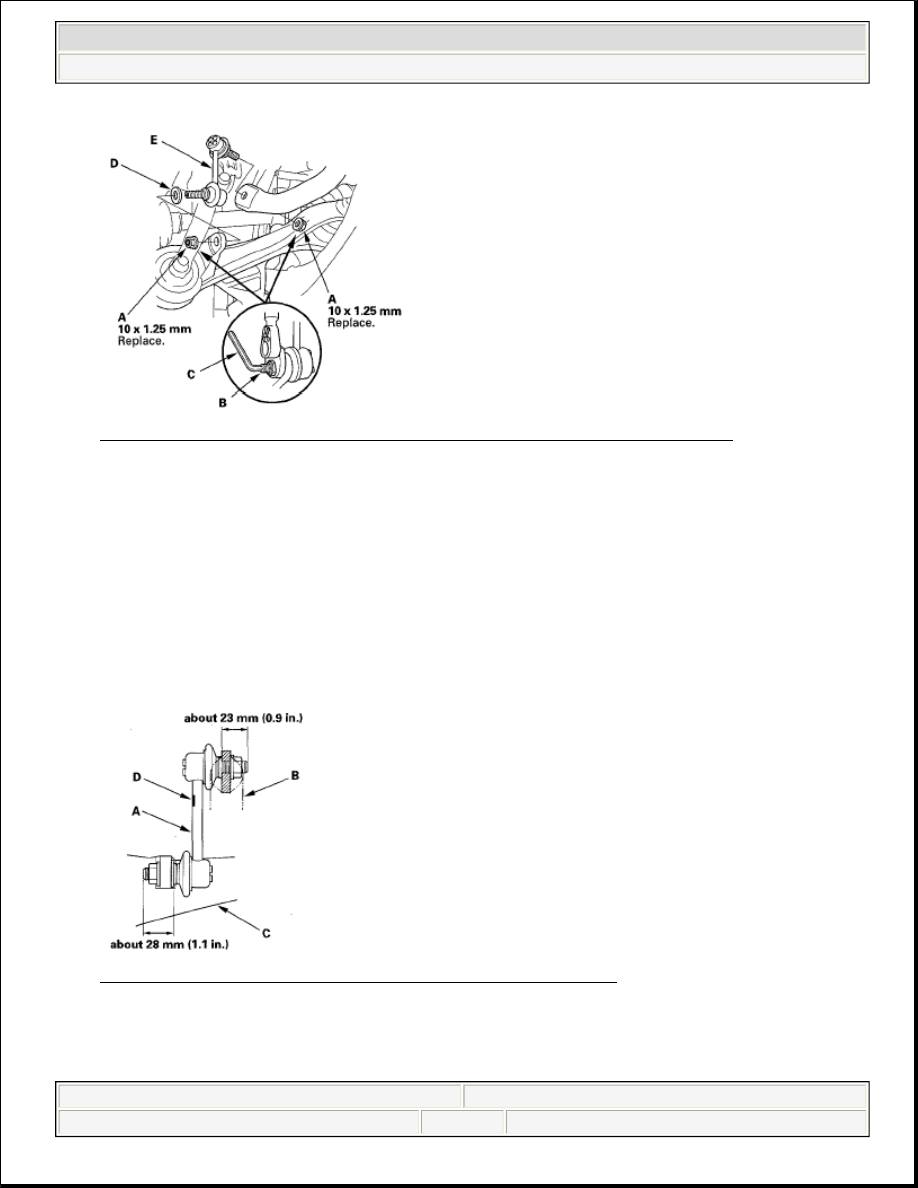

Fig. 23: Identifying Self-Locking Nuts, Joint Pin, Hex Wrench And Stabilizer Link
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Place the floor jack under the lower arm, and raise the suspension.

5. Install the stabilizer link (A) on the stabilizer bar (B) and lower arm (C) with the joint pins set at the

center of their range of movement.

Fig. 24: Identifying Stabilizer Link, Stabilizer Bar And Lower Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the washer and new self-locking nuts (A), and lightly tighten them.

NOTE:

Do not place the jack against the holder of the knuckle.

NOTE:

The paint mark (D) on the stabilizer link is near the upper end of the
stabilizer link.



2007 Acura RL

2005-08 SUSPENSION Front Suspension - RL



me



Friday, June 05, 2009 1:20:39 PM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

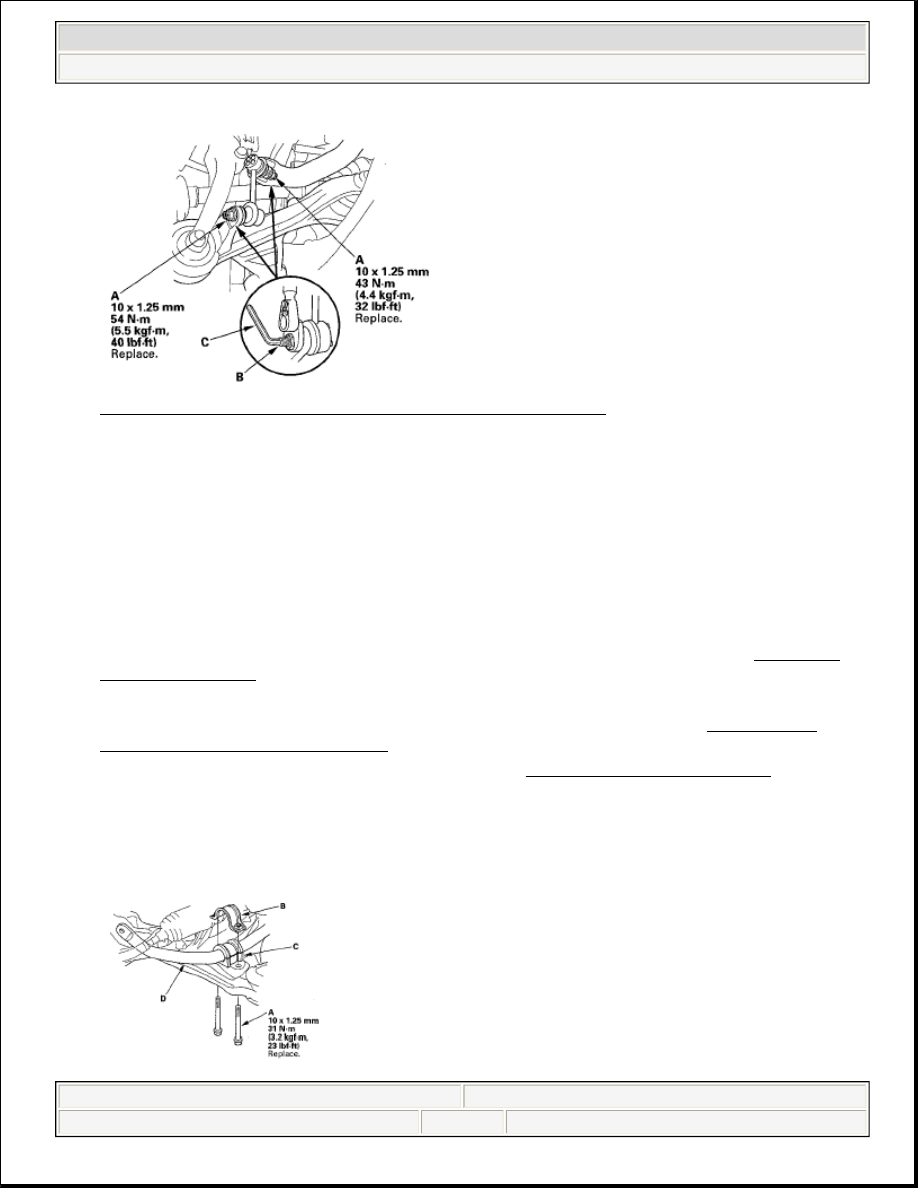

Fig. 25: Identifying Self-Locking Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Tighten the new self-locking nuts (A) to the specified torque values while holding the respective joint pin

(B) with a hex wrench (C).

8. Clean the mating surface of the brake disc and the inside of the wheel, then install the front wheel.

9. Test-drive the vehicle.

10. After 5 minutes of driving, tighten the self-locking nuts again to the specified torque value.

STABILIZER BAR REPLACEMENT

1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT AND

SUPPORT POINTS ).

2. Remove the front wheels, taking care not to scratch the caliper.

3. Disconnect the stabilizer links from the stabilizer bar on the right and left sides (see STABILIZER

LINK REMOVAL/INSTALLATION ).

4. Remove the front suspension subframe from the body (see SUBFRAME REPLACEMENT ).

5. Remove the flange bolts (A) and bushing holders (B), then remove the bushings (C) and the stabilizer bar

(D).

NOTE:

Use new flange bolts during reassembly.



2007 Acura RL

2005-08 SUSPENSION Front Suspension - RL



me



Friday, June 05, 2009 1:20:39 PM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

Fig. 26: Identifying Flange Bolts, Bushing Holders And Bushings With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the stabilizer bar in the reverse order of removal, and note these items:



Note the right and left direction of the stabilizer bar.



Align the ends of the paint marks (A) on the stabilizer bar with each end of the bushings (B).



Note the fore/aft direction of the bushing holders.



Refer to Stabilizer Link Replacement to connect the stabilizer bar to the links (see STABILIZER
LINK REMOVAL/INSTALLATION ).



Clean the mating surface of the brake disc and the inside of wheel, then install the front wheel.



Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).

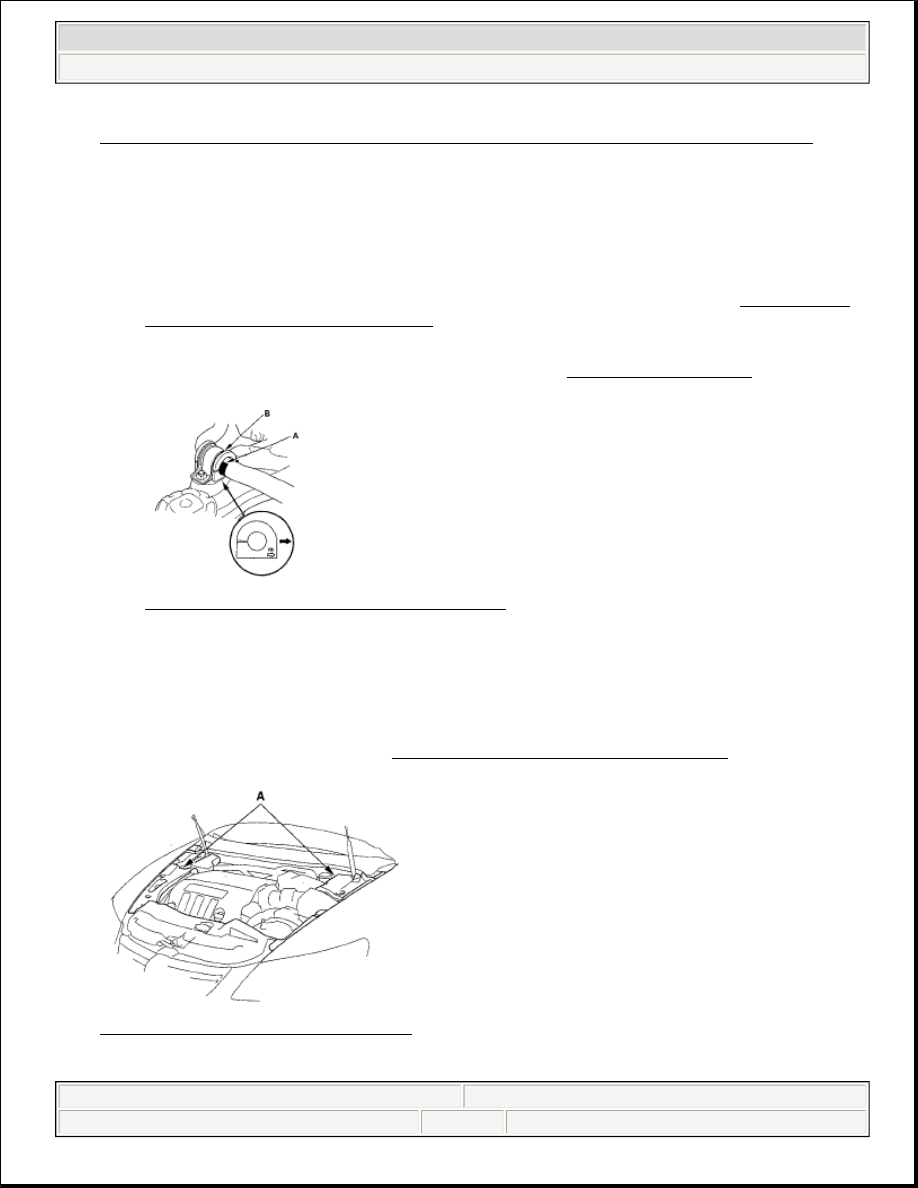

Fig. 27: Identifying Paint Marks And Bushings
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DAMPER/SPRING REMOVAL/INSTALLATION

REMOVAL

1. Remove the upper fender trims (A) (see UPPER FENDER TRIM REPLACEMENT ).

Fig. 28: Identifying Upper Fender Trims
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 SUSPENSION Front Suspension - RL



me



Friday, June 05, 2009 1:20:39 PM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

2. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT AND

SUPPORT POINTS ).

3. Remove the front wheel, taking care not to scratch the caliper.

4. Remove the damper fork (A) from the damper (B) and lower arm (C) while pushing the lower arm down.

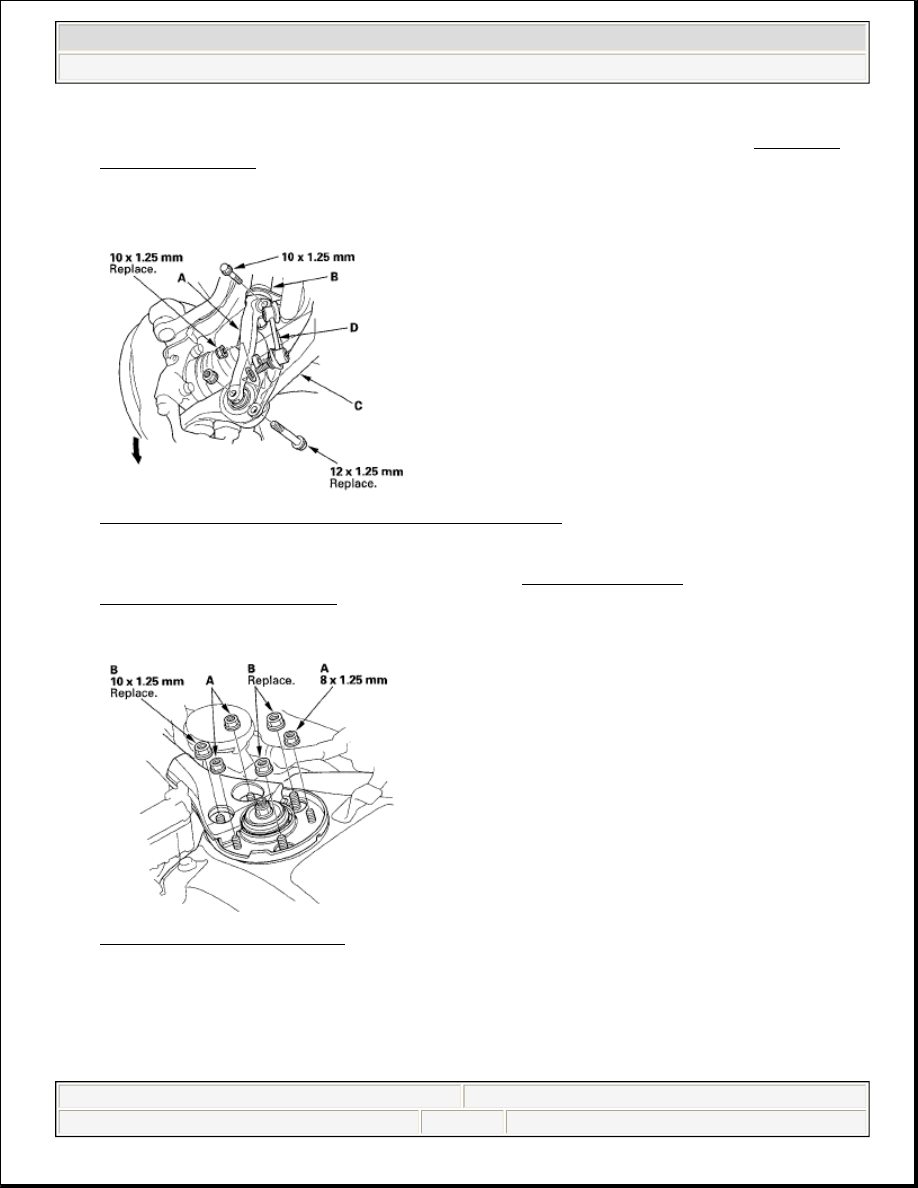

Fig. 29: Identifying Damper Fork, Damper And Lower Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Disconnect the stabilizer link (D) from the lower arm (see STABILIZER LINK

REMOVAL/INSTALLATION ).

6. Remove the 8 mm flange nuts (A) and the 10 mm flange nuts (B) from the top of the damper.

Fig. 30: Identifying Flange Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the damper assembly (A).

NOTE:



Before removing the damper assembly, make a space to remove the
damper assembly by rotating the steering wheel clockwise until it



2007 Acura RL

2005-08 SUSPENSION Front Suspension - RL



me



Friday, June 05, 2009 1:20:39 PM

Page 17

© 2005 Mitchell Repair Information Company, LLC.
