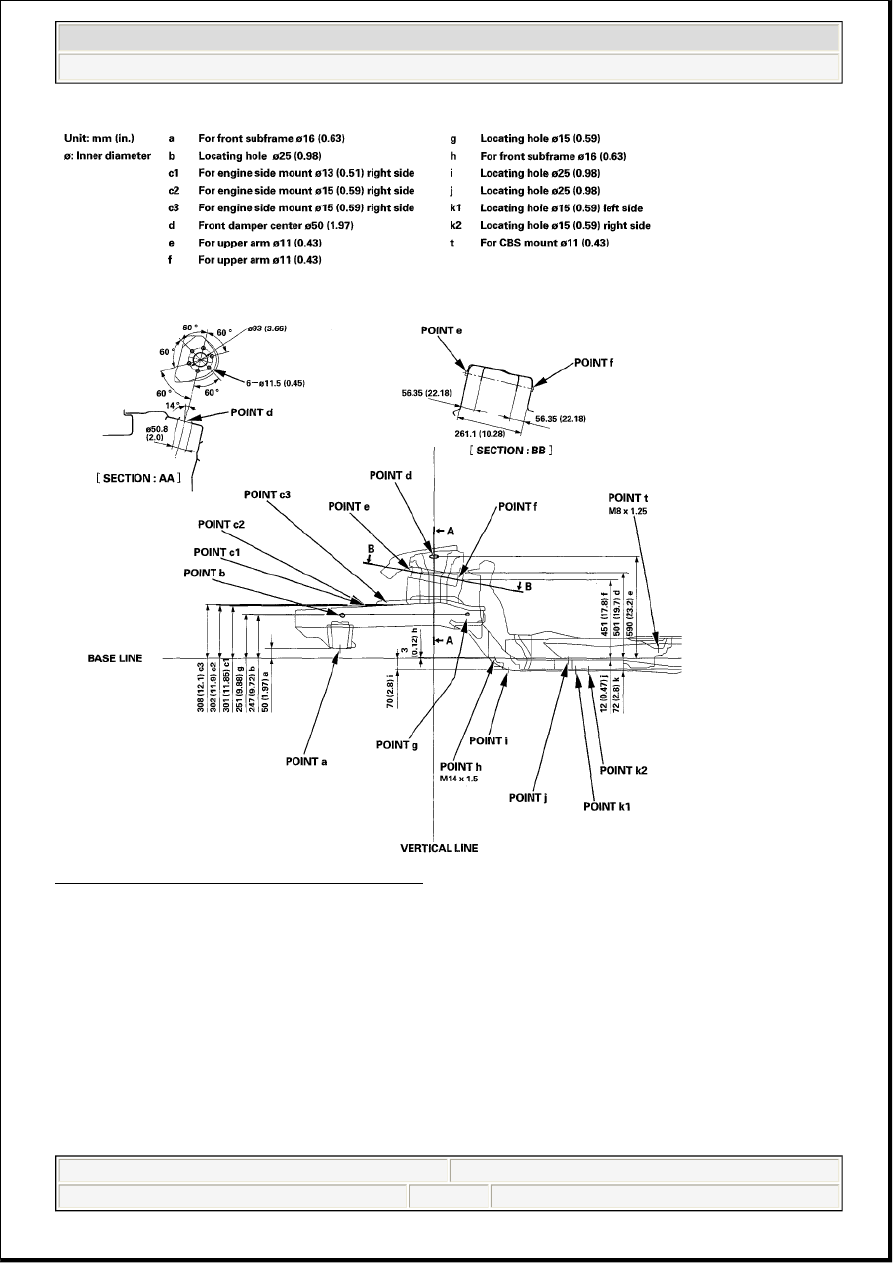

Fig. 7: Frame Repair Chart - Side View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Frame - RL



me



Friday, June 05, 2009 3:34:19 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

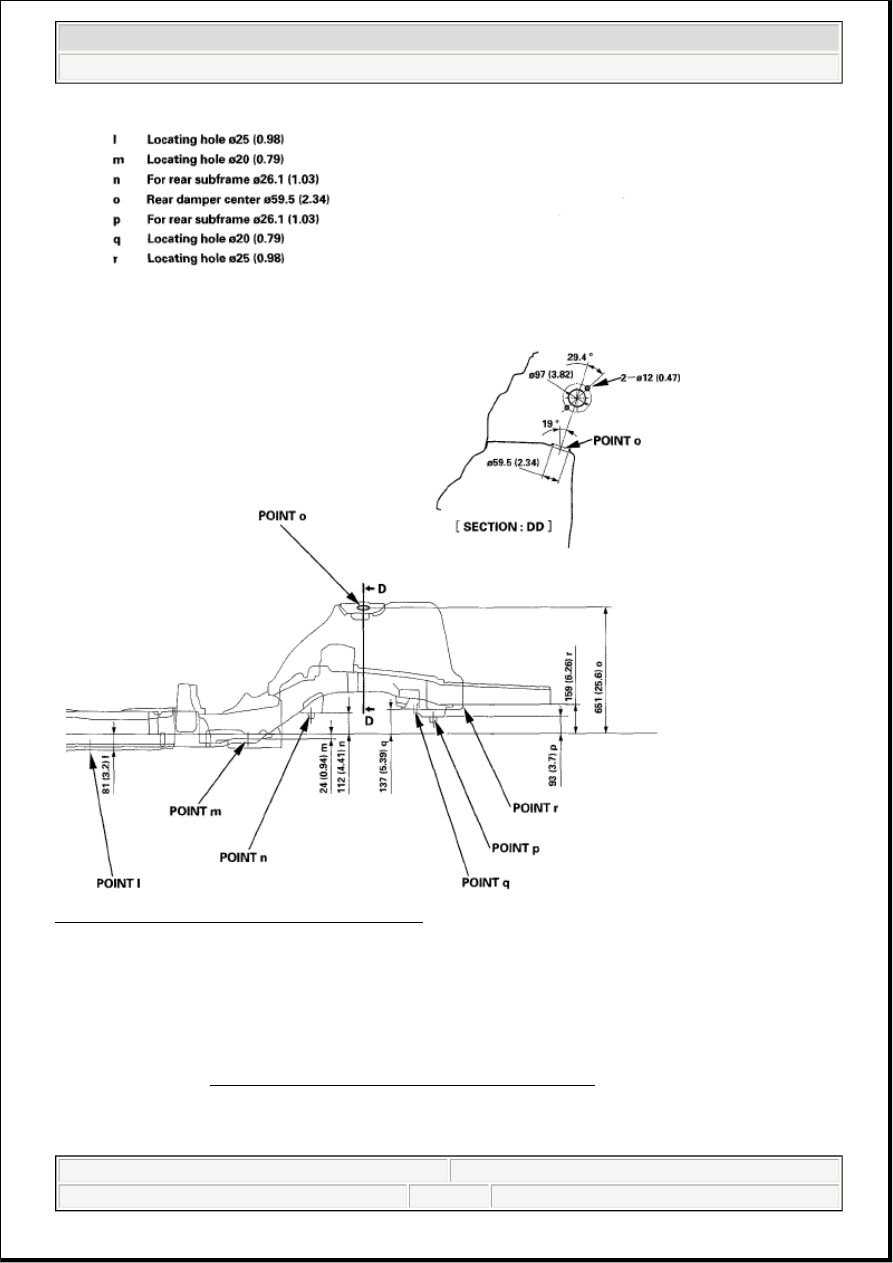

Fig. 8: Frame Repair Chart - Side View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) (If HVAC maintenance is required)

The Acura RL SRS includes a driver's airbag in the steering wheel hub, a passenger's airbag in the
dashboard above the glove box, seat belt tensioners in the front seat belt retractors, side curtain airbags in
the sides of the roof, and side airbags in the front seat-backs. Information necessary to safely service the
SRS is located in the SRS (SUPPLEMENTAL RESTRAINT SYSTEM) article. Items marked with an
asterisk (*) include or are located near SRS components. Servicing, disassembling, or replacing these items
requires special precautions and tools, and should be done by an authorized Acura dealer.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Frame - RL



me



Friday, June 05, 2009 3:34:19 PM

Page 8

© 2005 Mitchell Repair Information Company, LLC.



To avoid rendering the SRS inoperative, which could lead to personal injury or death in the event of a
severe frontal or side collision, all SRS service work should be done by an authorized Acura dealer.



Improper service procedures, including incorrect removal and installation of the SRS, could lead to
personal injury caused by unintentional deployment of the airbags and/or side airbags.



Do not bump or impact the SRS unit, front impact sensors, or side impact sensors when the ignition
switch is ON (II), or for at least 3 minutes after the ignition switch is turned OFF; otherwise, the
system may fail in a collision, or the airbags may deploy.



SRS electrical connectors are identified by yellow color coding. Related components are located in
the steering column, front console, dashboard, dashboard lower panel, in the dashboard above the
glove box, in the front seats, in the roof side, and around the floor. Do not use electrical test
equipment on these circuits.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Frame - RL



me



Friday, June 05, 2009 3:34:19 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

2005-08 SUSPENSION

Front Suspension - RL

KNUCKLE/HUB BEARING UNIT REPLACEMENT

EXPLODED VIEW

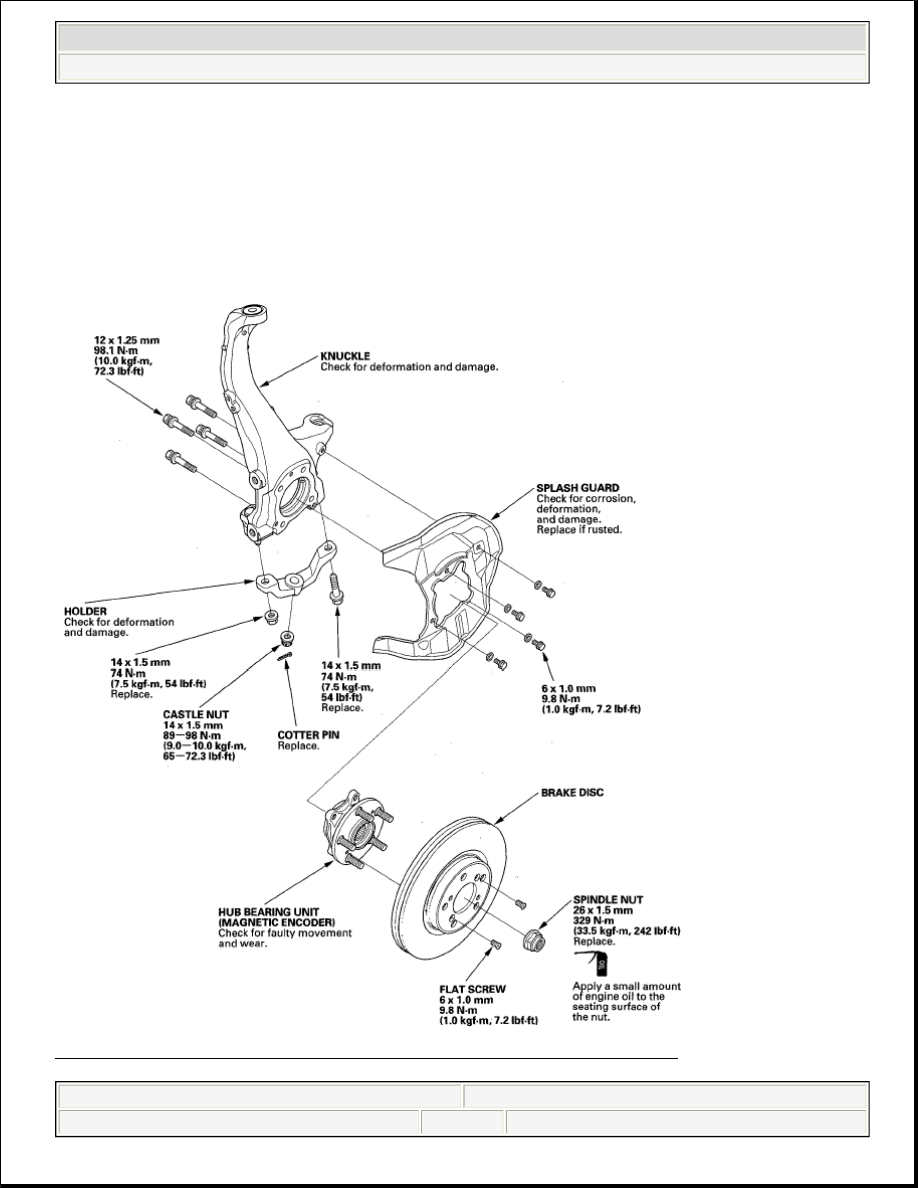

Fig. 1: Exploded View Of Knuckle/Hub Bearing Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
