6. Remove the timing belt drive pulley from the crankshaft.

7. Remove the oil pan (see OIL PAN REMOVAL ).

8. Remove the engine block end cover.

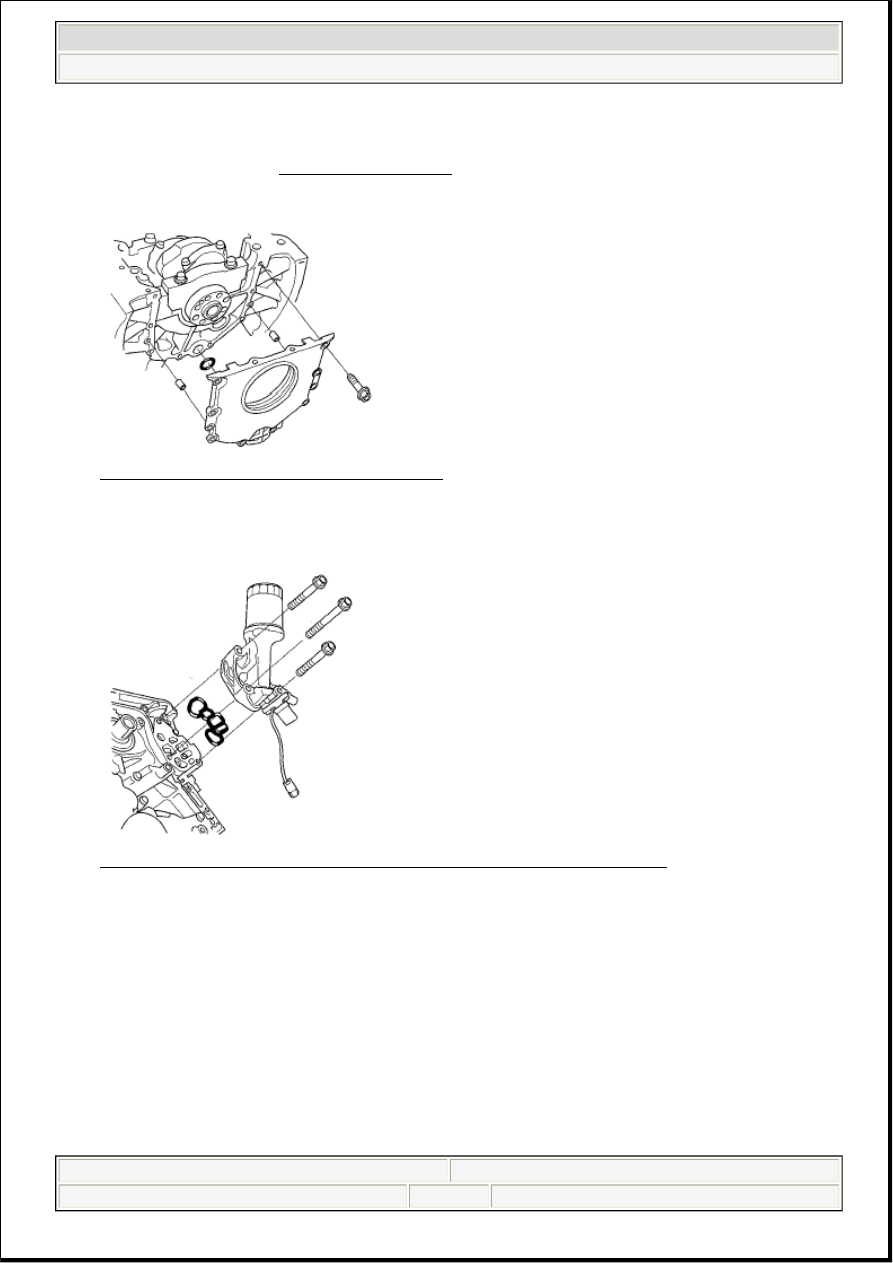

Fig. 20: Identifying Engine Block End Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Remove the rocker arm oil control solenoid/oil filter assembly.

Fig. 21: Identifying Rocker Arm Oil Control Solenoid/Oil Filter Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the oil screen (A), baffle plate (B), and oil pump (C).



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

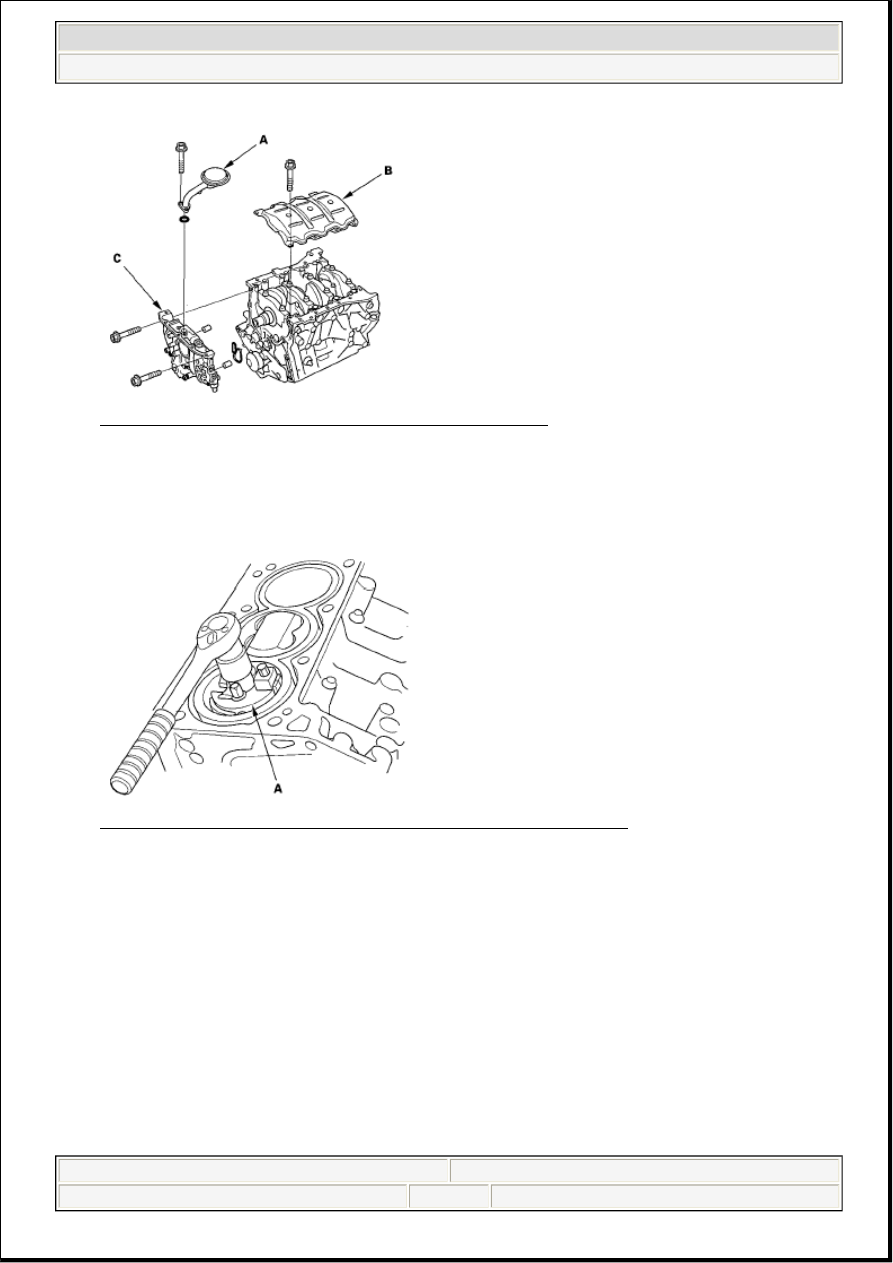

Fig. 22: Identifying Oil Screen, Baffle Plate And Oil Pump
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. If you can feel a ridge of metal or hard carbon around the top of any cylinder, remove it with a ridge

reamer (A). Follow the reamer manufacturer's instructions. If the ridge is not removed, it may damage
the piston as it's pushed out.

Fig. 23: Removing Hard Carbon From Cylinder With Ridge Reamer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Remove the connecting rod caps after setting the crank pin at bottom dead center (BDC) for each

cylinder. Remove the piston assembly by pushing on the connecting rod. Take care not to damage the
oil jets, crank pin, or cylinder with the connecting rod.



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

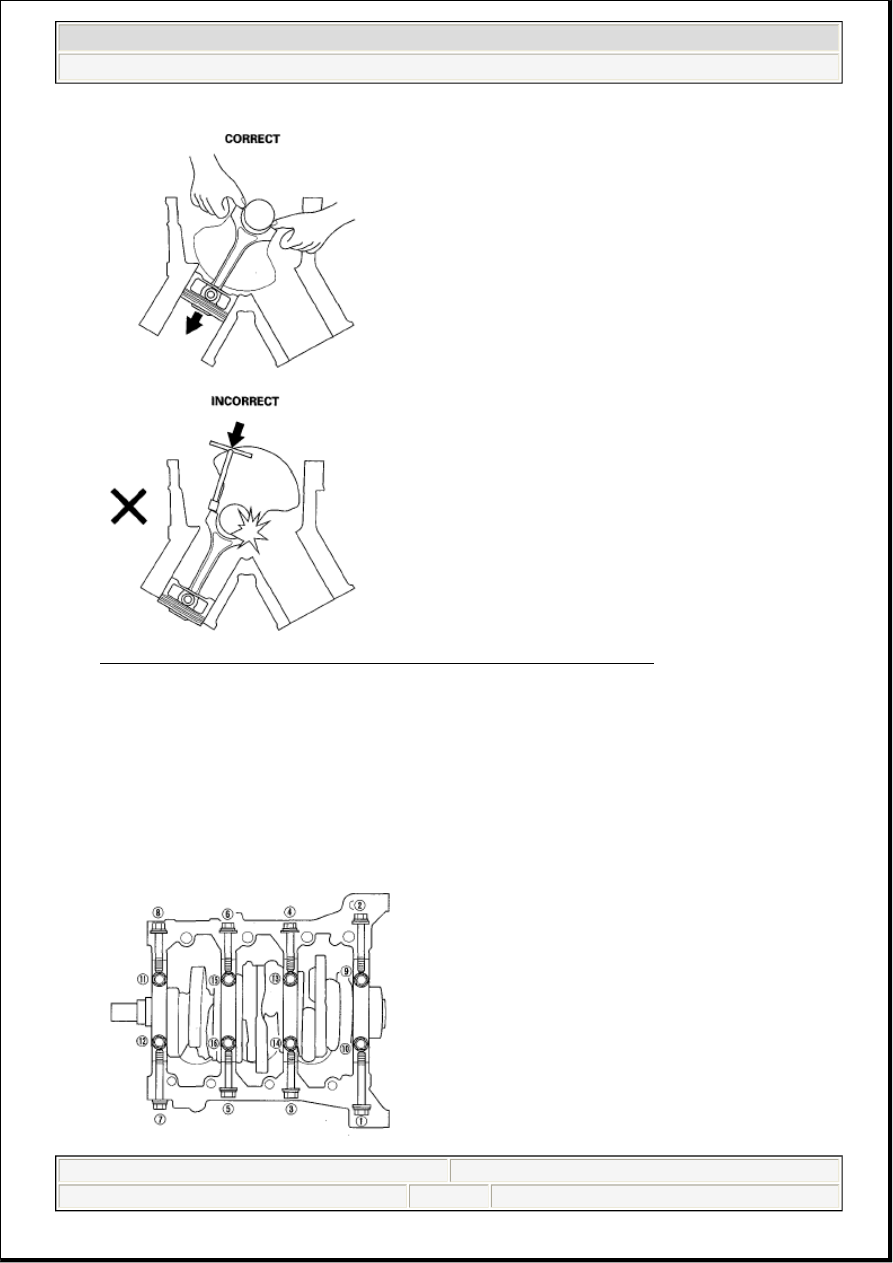

Fig. 24: Identifying Correct And Incorrect Removal Of Piston Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Remove the bearing from the cap. Keep all caps/ bearings in order.

14. Remove the upper bearing halves from the connecting rods, and set them aside with their respective

caps.

15. To avoid confusion during reassembly, mark each piston/connecting rod assembly with its cylinder

number.

16. Unscrew the bearing cap bolts and bearing cap side bolts in sequence 1/3 turn at a time; repeat the

sequence until all bolts are loosened.



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

Fig. 25: Identifying Loosening Sequence Of Bearing Cap Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Remove the bearing cap bolts (A) and bearing cap side bolts (B), then remove the bearing cap (C).

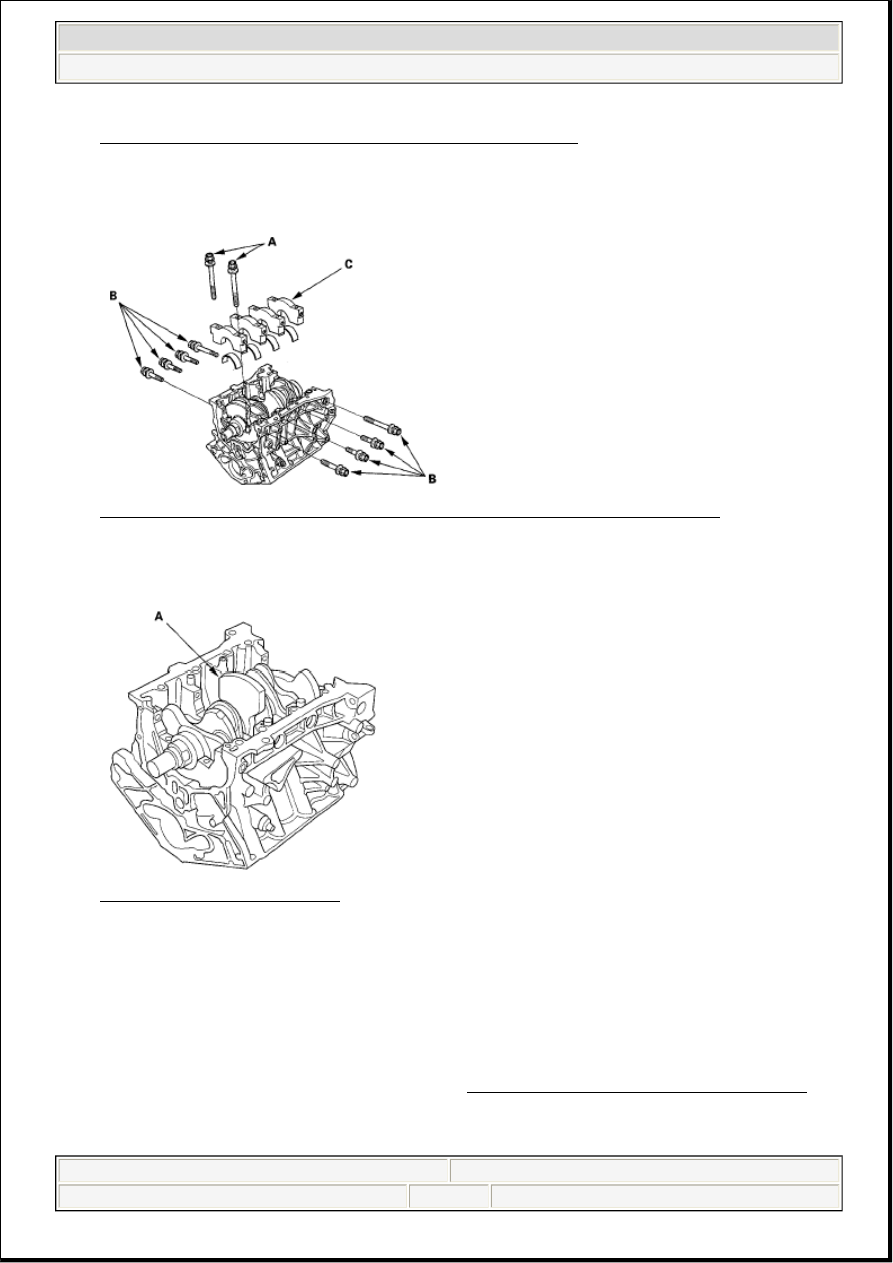

Fig. 26: Identifying Bearing Cap Bolts, Bearing Cap Side Bolts And Bearing Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Lift the crankshaft (A) out of the engine block, being careful not to damage the journals.

Fig. 27: Identifying Crankshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

19. Reinstall the main caps and bearings on the engine block in the proper order.
