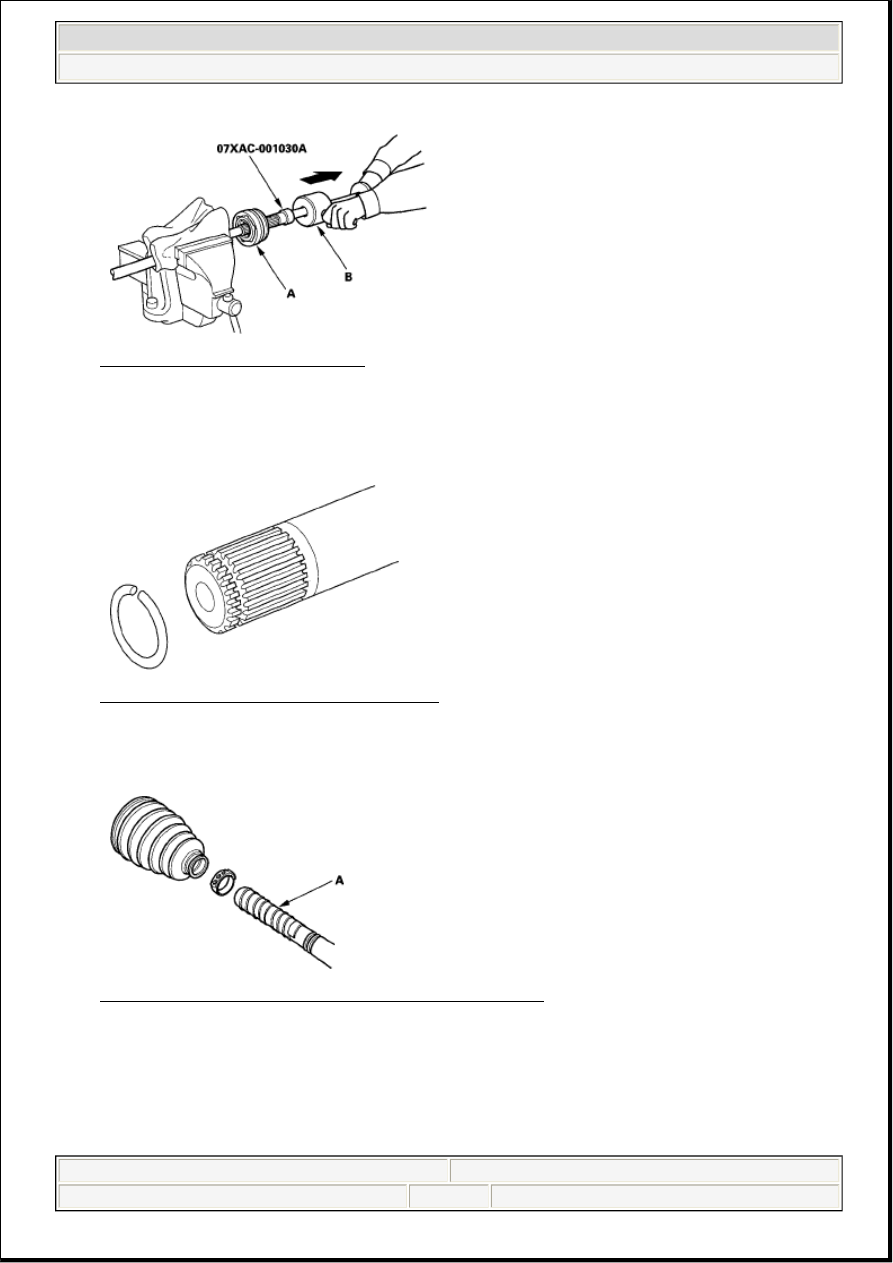

Fig. 21: Removing Outboard Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the driveshaft from the vise.

8. Remove the stop ring from the driveshaft.

Fig. 22: Identifying Stop Ring Of Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Wrap the splines on the driveshaft with vinyl tape (A) to prevent damage to the boot.

Fig. 23: Identifying Driveshaft Wrapped With Vinyl Tape
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the outboard boot. Be careful not to damage the boot.

11. Remove the vinyl tape.

DYNAMIC DAMPER REPLACEMENT

2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL

Friday, June 05, 2009 3:01:08 PM

Page 10

Special Tools Required

Bearing separator 07KAF-PS30200

1. Remove the inboard joint and outboard joint.

2. Mark the following position on the driveshaft (A).

Left driveshaft: 323.5-327.5 mm (12.74-12.88 in.)

Right driveshaft: 305.5-309.5 mm (12.03-12.18 in.)

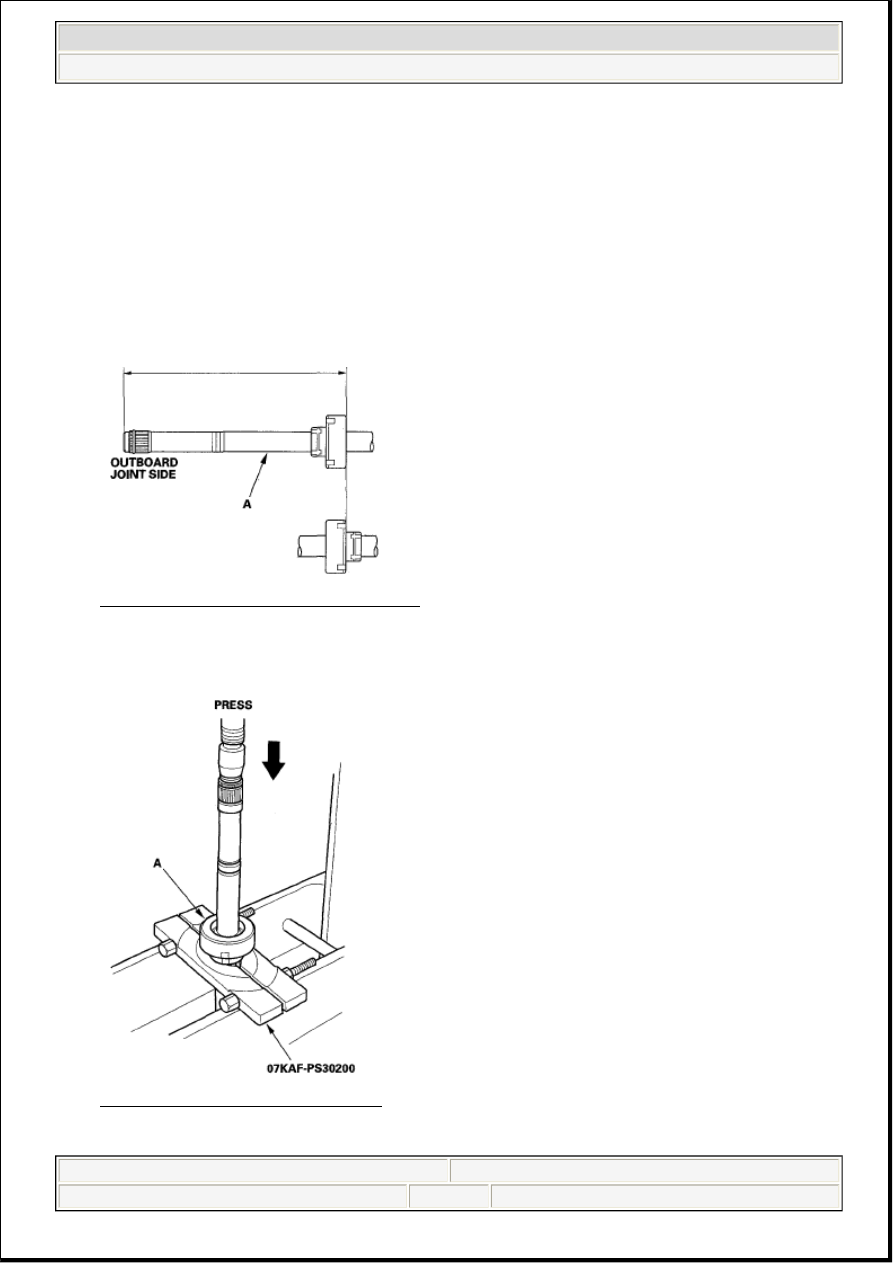

Fig. 24: Identifying Driveshaft Dimension
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the dynamic damper (A) using the bearing separator and a press as shown.

Fig. 25: Removing Dynamic Damper
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL

Friday, June 05, 2009 3:01:08 PM

Page 11

4. Install the dynamic damper (A) to the marked position using the bearing separator and a press as

shown.

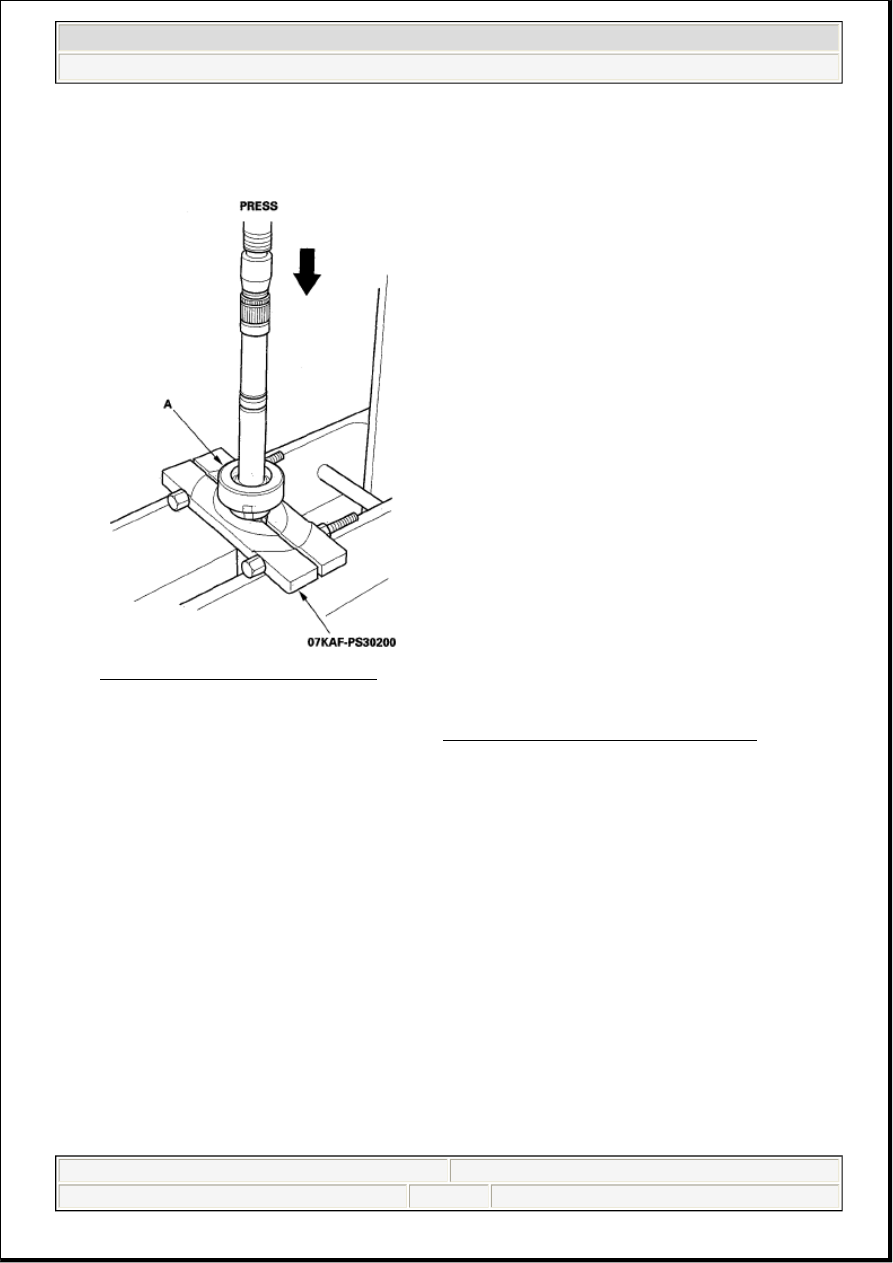

Fig. 26: Installing Dynamic Damper
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the inboard joint and outboard joint (see FRONT DRIVESHAFT REASSEMBLY ).

FRONT DRIVESHAFT REASSEMBLY

EXPLODED VIEW

2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL

Friday, June 05, 2009 3:01:08 PM

Page 12

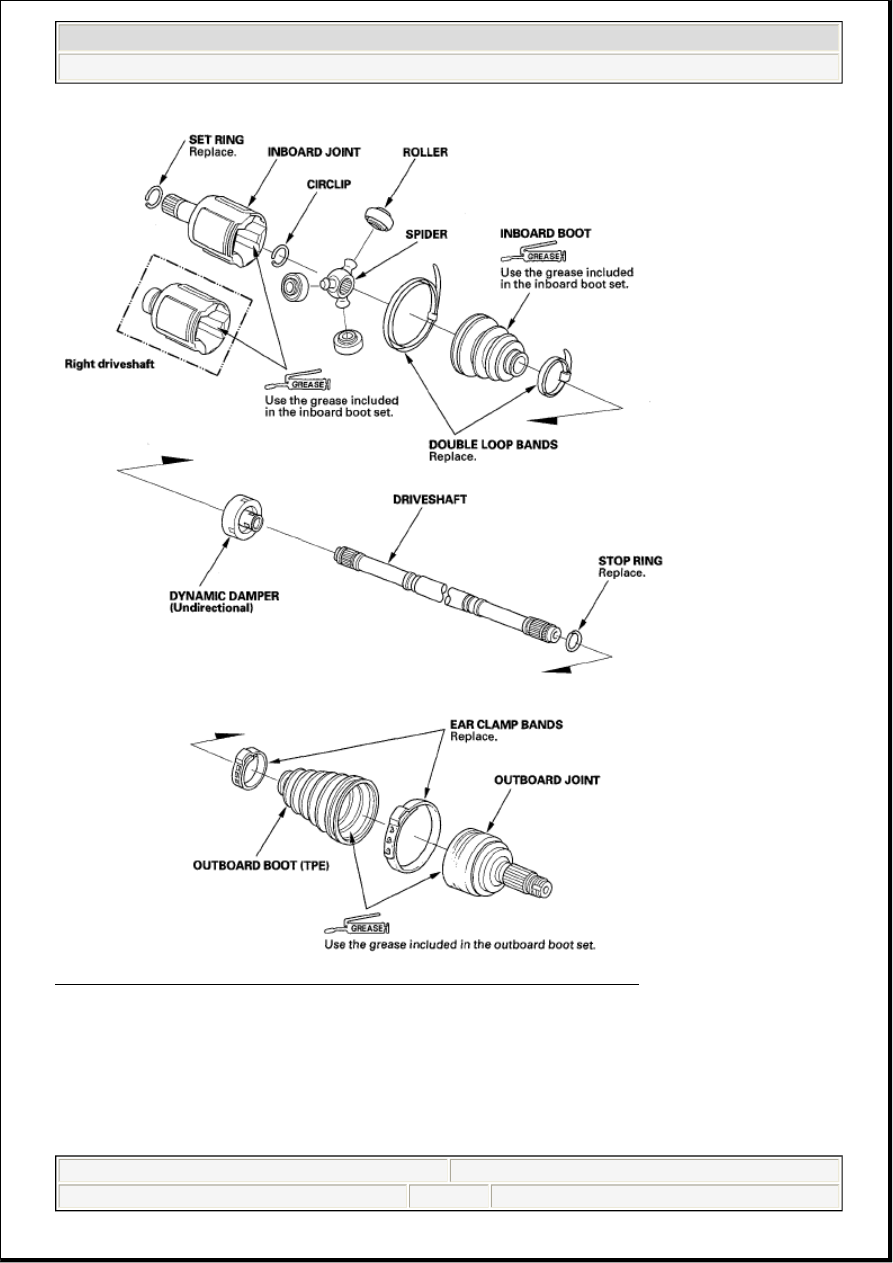

Fig. 27: Exploded View Of Front Driveshaft With Grease Application Areas
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required



Boot band tool, KD-3191 or equivalent, commercially available



Boot band pincers, Kent-Moore J-35910 or equivalent, commercially available
