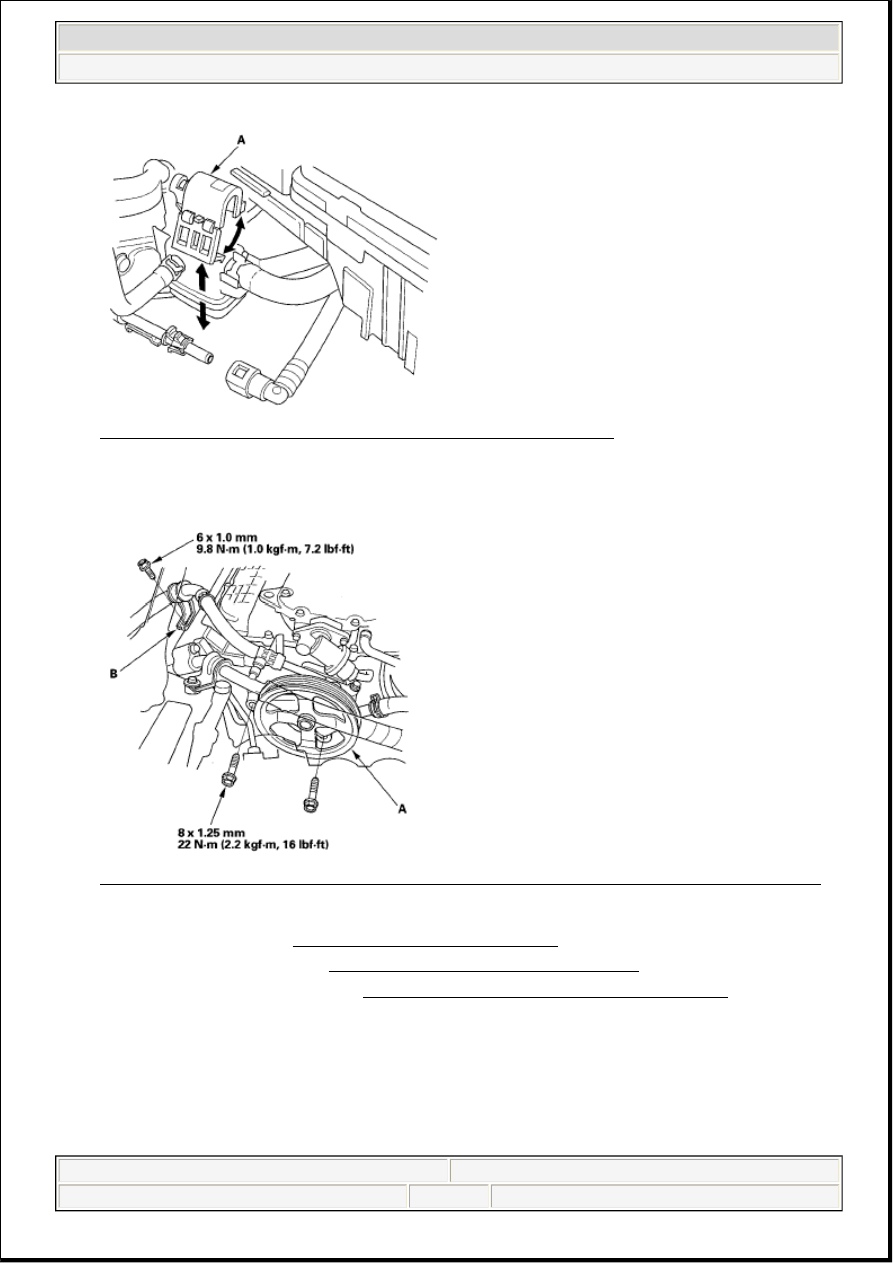

Fig. 149: Identifying Cover And Quick-Connect Fitting (Fuel Line)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

29. Install the power steering (P/S) pump (A) and P/S hose bracket (B).

Fig. 150: Identifying Power Steering Pump And P/S Hose Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

30. Install the timing belt (see TIMING BELT INSTALLATION ).

31. Adjust the valve clearance (see VALVE CLEARANCE ADJUSTMENT ).

32. Install the cylinder head covers (see CYLINDER HEAD COVER INSTALLATION ).

33. Connect the engine wire harness connectors, and install the wire harness clamps to the cylinder head.



Six injector connector



Engine coolant temperature (ECT) sensor 1 connector



Engine coolant temperature (ECT) sensor 2 connector



Crankshaft position (CKP) sensor connector



Exhaust gas recirculation (EGR) valve connector



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:37 PM

Page 81

© 2005 Mitchell Repair Information Company, LLC.



Rocker arm oil control solenoid connector



Rocker arm oil pressure switch connector



Oil pressure switch connector



Two air fuel ratio (A/F) sensor connectors



Two secondary heated oxygen sensor (secondary HO2S) connectors

34. Install the intake manifold (see INSTALLATION ).

35. Install the alternator (see INSTALLATION ).

36. Install the drive belt (see DRIVE BELT INSPECTION ).

37. Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

38. Clean the battery posts and cable terminals. Assemble them and apply grease to prevent corrosion.

39. After installation, check that all tubes, hoses, and connectors are installed correctly.

40. Inspect for fuel leaks. Turn the ignition switch ON (II) (do not operate the starter) so the fuel pump

runs for about 2 seconds and pressurizes the fuel line. Repeat this operation two or three times, then
check for fuel leaks at any point in the fuel line.

41. Refill the radiator with engine coolant, and bleed air from the cooling system with the heater valve

open (see step 8 under COOLANT CHECK ).

42. Inspect the idle speed (see IDLE SPEED INSPECTION ).

43. Inspect the ignition timing (see IGNITION TIMING INSPECTION ).

44. Do the steering column position memorization procedure (see STEERING COLUMN POSITION

MEMORIZATION ).

45. Enter the anti-theft codes for the audio system and the navigation system.

SEALING BOLT INSTALLATION

FRONT

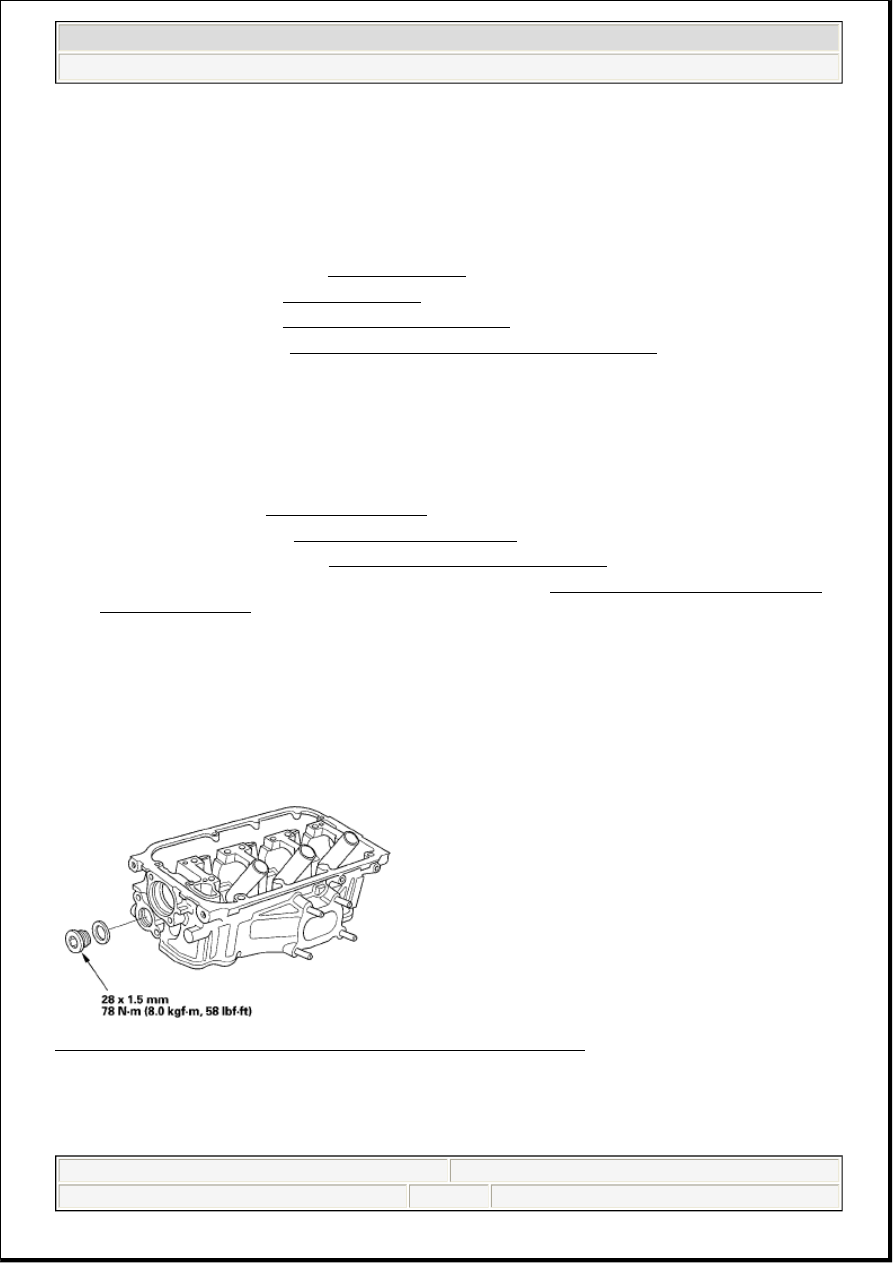

Fig. 151: Identifying Sealing Bolt (Front) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR

NOTE:

When installing the sealing bolt, always use a new washer.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:37 PM

Page 82

© 2005 Mitchell Repair Information Company, LLC.

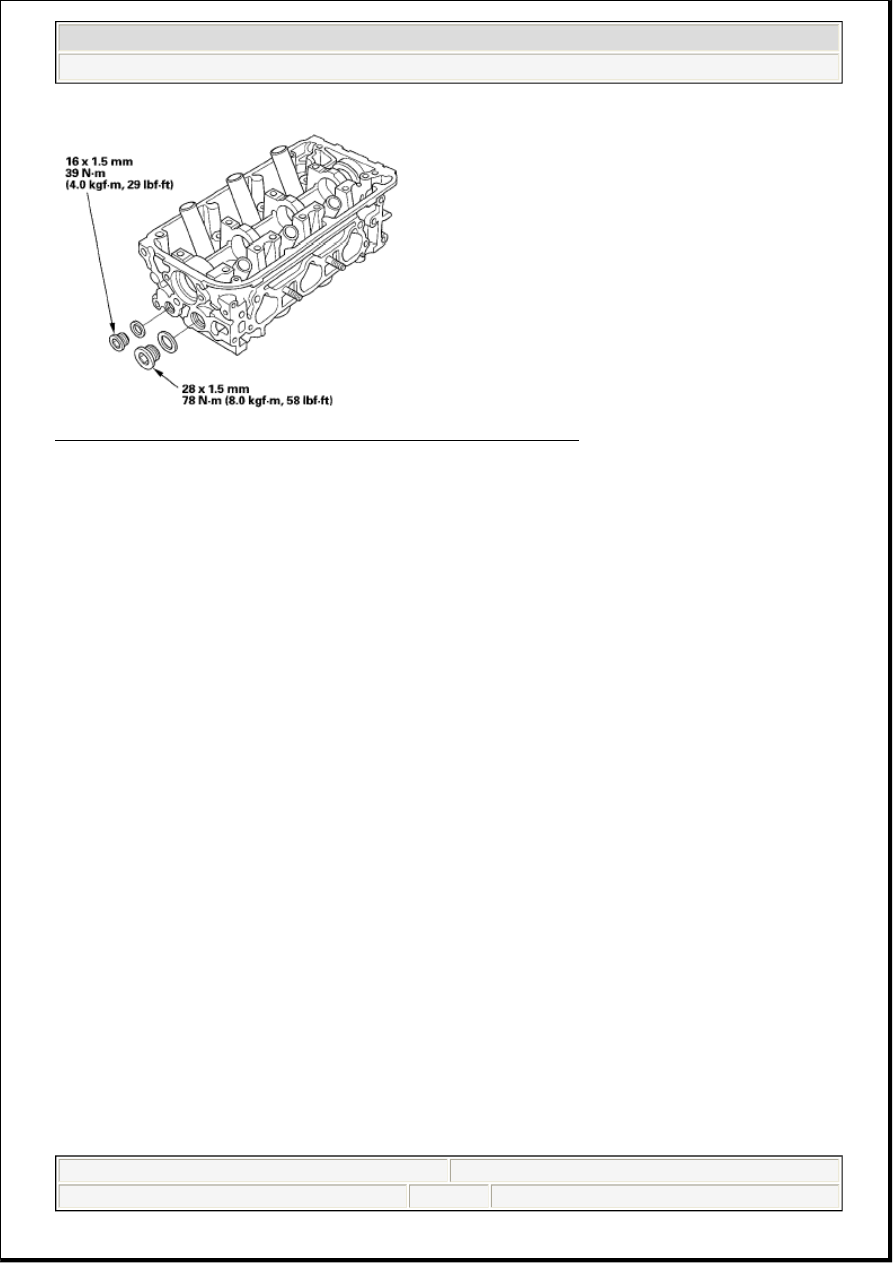

Fig. 152: Identifying Sealing Bolt (Rear) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:37 PM

Page 83

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ACCESSORIES AND EQUIPMENT

Rear Window Defogger - RL

COMPONENT LOCATION INDEX

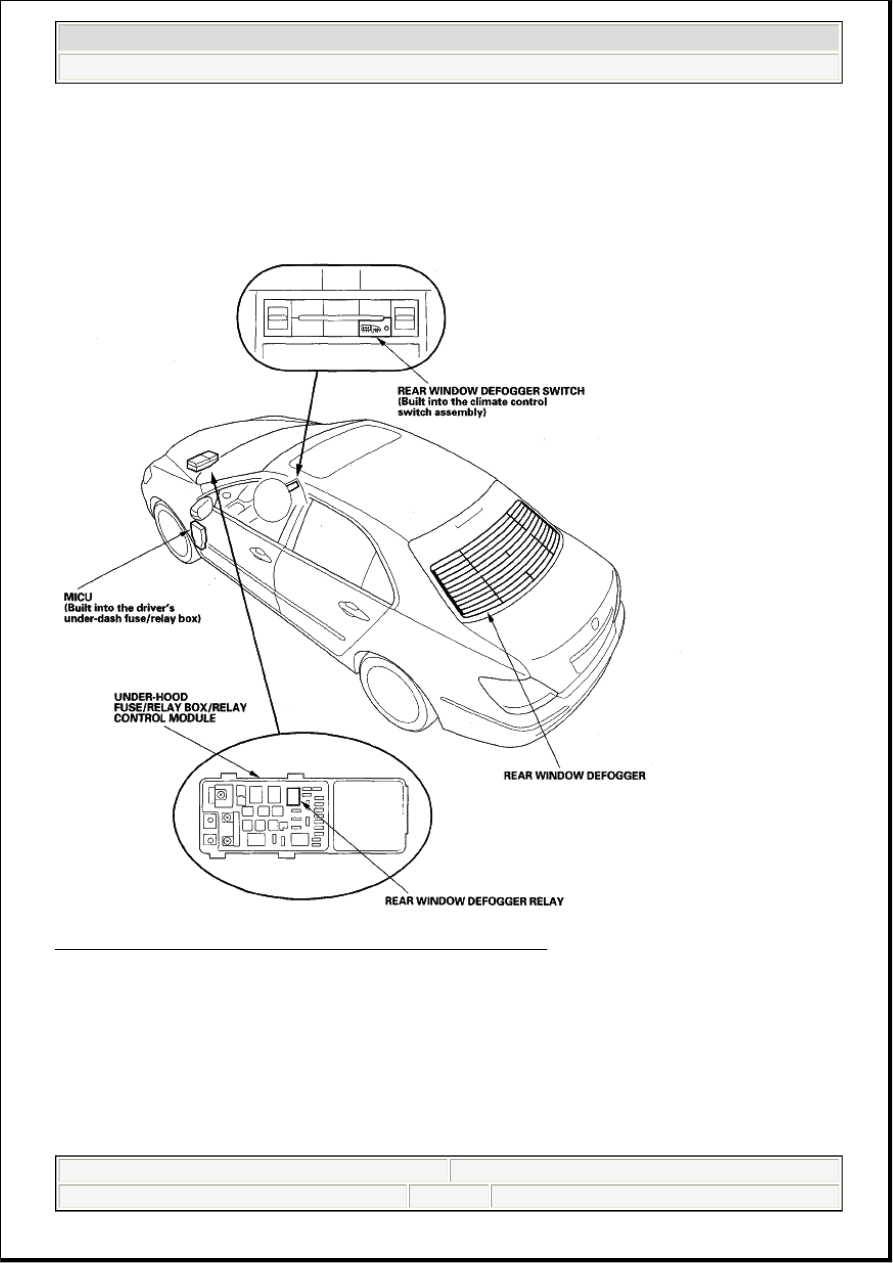

Fig. 1: Identifying Rear Window Defogger Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM
