Use a thicker 25 mm thrust shim to move the transfer hypoid drive gear away from the transfer
output shaft (hypoid gear).

Flank contact must be adjusted within the limits of the transfer gear backlash. If the backlash
exceeds the limits, adjust as described under Heel Contact.



Face Contact

Use a thinner 25 mm thrust shim to move the transfer hypoid drive gear toward the transfer output
shaft (hypoid gear).

Face contact must be adjusted within the limits of the transfer gear backlash. If the backlash
exceeds the limits, adjust as described under Toe Contact.

THRUST SHIM, 25 mm

THRUST SHIM THICKNESS SPECIFICATIONS

21. Remove the transfer cover (A), transfer hypoid drive gear/shaft assembly (B), 25 mm thrust shim (C), and

tapered roller bearing (D) from the transfer housing (E) after adjusting the transfer gear backlash or
transfer gear tooth contact.

Shim No.

Part Number

Thickness

1.70

29411-P1C-000

1.70 mm (0.067 in.)

1.73

29412-P1C-000

1.73 mm (0.068 in.)

1.76

29413-P1C-000

1.76 mm (0.069 in.)

1.79

29414-P1C-000

1.79 mm (0.070 in.)

1.82

29415-P1C-000

1.82 mm (0.072 in.)

1.85

29416-P1C-000

1.85 mm (0.073 in.)

1.88

29417-P1C-000

1.88 mm (0.074 in.)

1.91

29418-P1C-000

1.91 mm (0.075 in.)

1.94

29419-P1C-000

1.94 mm (0.076 in.)

1.97

29420-P1C-000

1.97 mm (0.078 in.)

2.00

29421-P1C-000

2.00 mm (0.079 in.)

2.03

29422-P1C-000

2.03 mm (0.080 in.)

2.06

29423-P1C-000

2.06 mm (0.081 in.)

2.09

29424-P1C-000

2.09 mm (0.082 in.)

2.12

29425-P1C-000

2.12 mm (0.083 in.)

2.15

29426-P1C-000

2.15 mm (0.085 in.)

2.18

29427-P1C-000

2.18 mm (0.086 in.)

2.21

29428-P1C-000

2.21 mm (0.087 in.)

2.24

29429-P1C-000

2.24 mm (0.088 in.)



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:20 PM

Page 583

© 2005 Mitchell Repair Information Company, LLC.

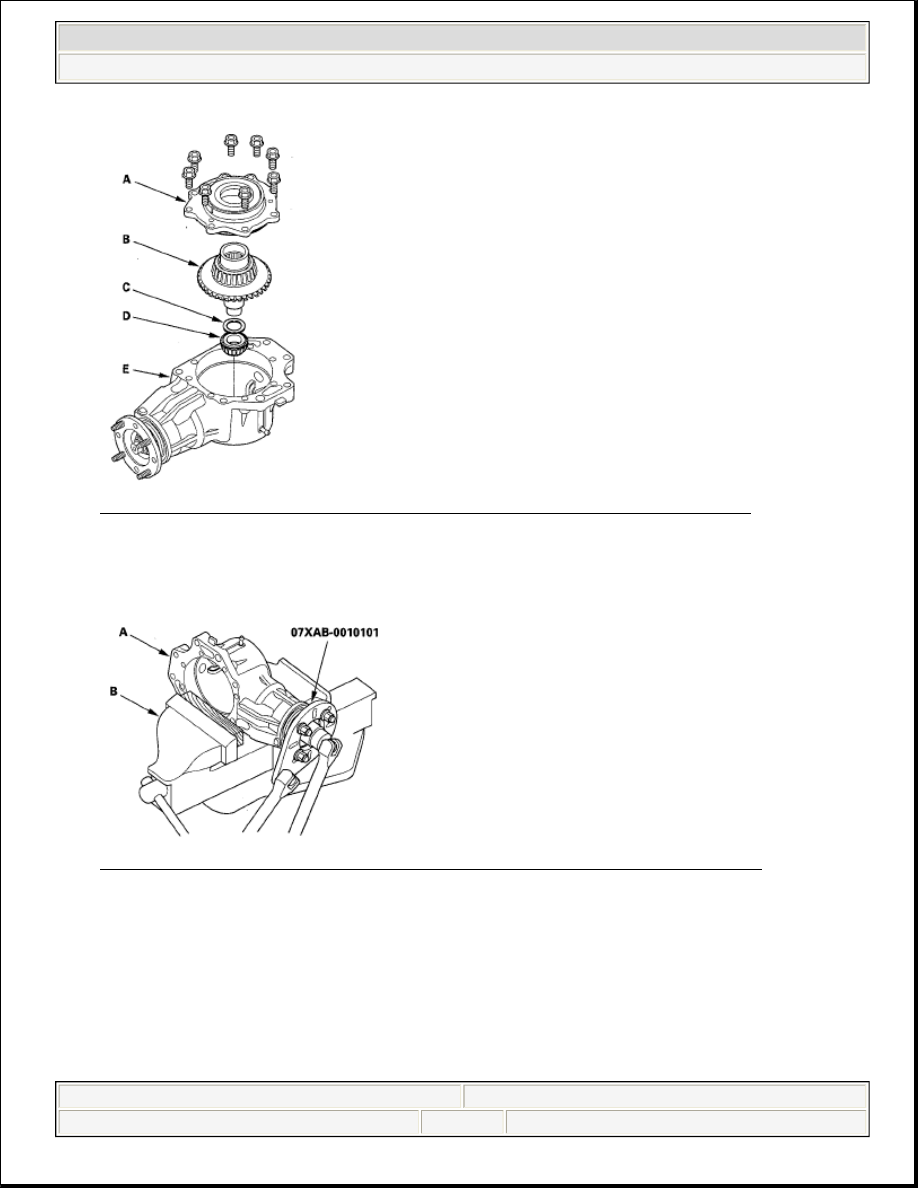

Fig. 693: Identifying Tapered Roller Bearing And Transfer Cover With Thrust Shim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer

housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

Fig. 694: Identifying Transfer Housing In Bench Vise With Companion Flange Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Install the companion flange holder on the companion flange, then loosen the locknut.

24. Remove the companion flange holder.

25. Remove the locknut (A), conical spring washer (B), and companion flange (C) from the transfer output

shaft (hypoid gear) (D).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:20 PM

Page 584

© 2005 Mitchell Repair Information Company, LLC.

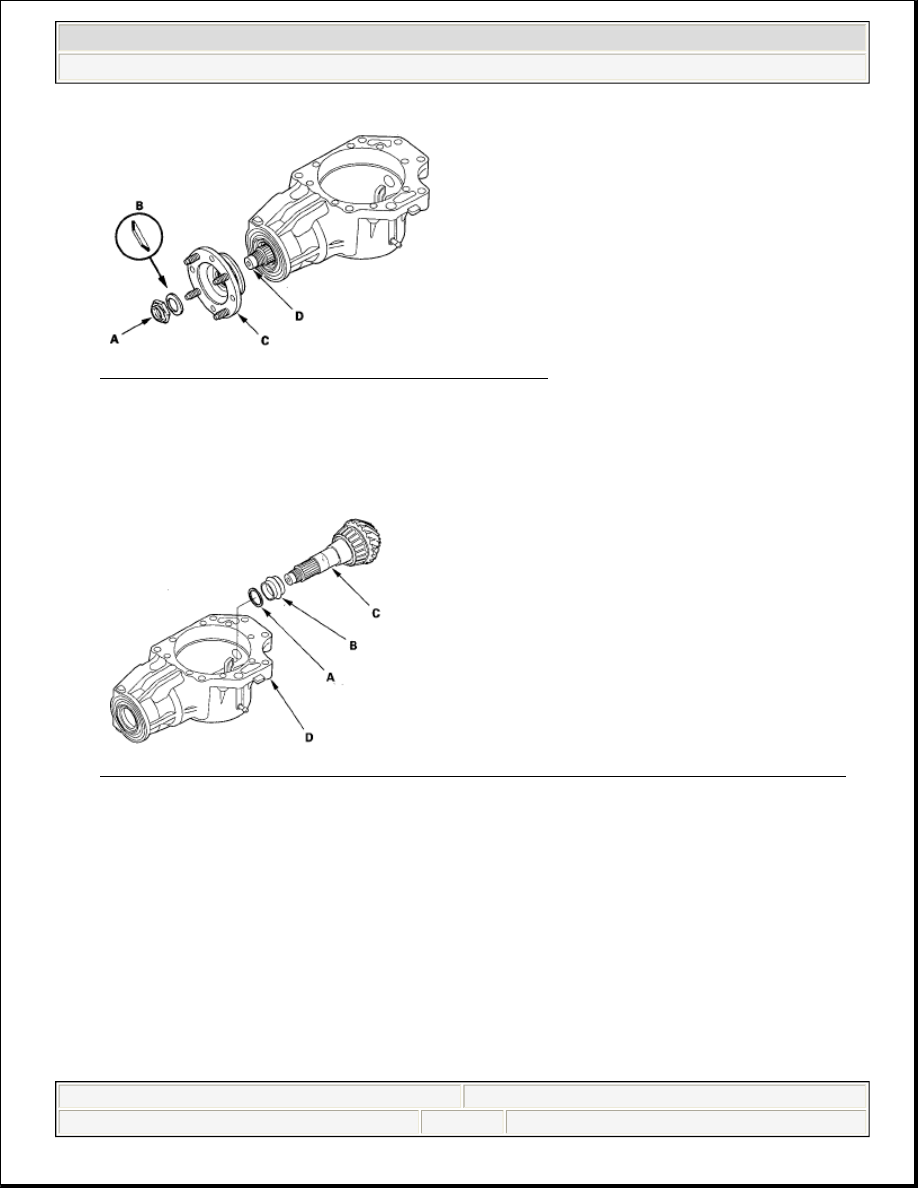

Fig. 695: Identifying Conical Spring Washer And Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

26. Remove the transfer output shaft (hypoid gear) from the transfer housing.

27. Install the thrust washer (A) and the new transfer spacer (B) on the transfer output shaft (hypoid gear)

(C), and install them in the transfer housing (D).

Fig. 696: Identifying Thrust Washer, Transfer Spacer And Transfer Output Shaft (Hypoid Gear)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

28. Coat the threads Of the locknut and transfer output shaft (hypoid gear) with transfer fluid (hypoid gear

oil).

29. Install the companion flange (A). Coat a new O-ring (B) with transfer fluid (hypoid gear oil), then install

the O-ring, back-up ring (C), new conical spring washer (D), and new locknut (E) on the transfer output
shaft (hypoid gear) (F). Install the conical spring washer in the direction shown.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:20 PM

Page 585

© 2005 Mitchell Repair Information Company, LLC.

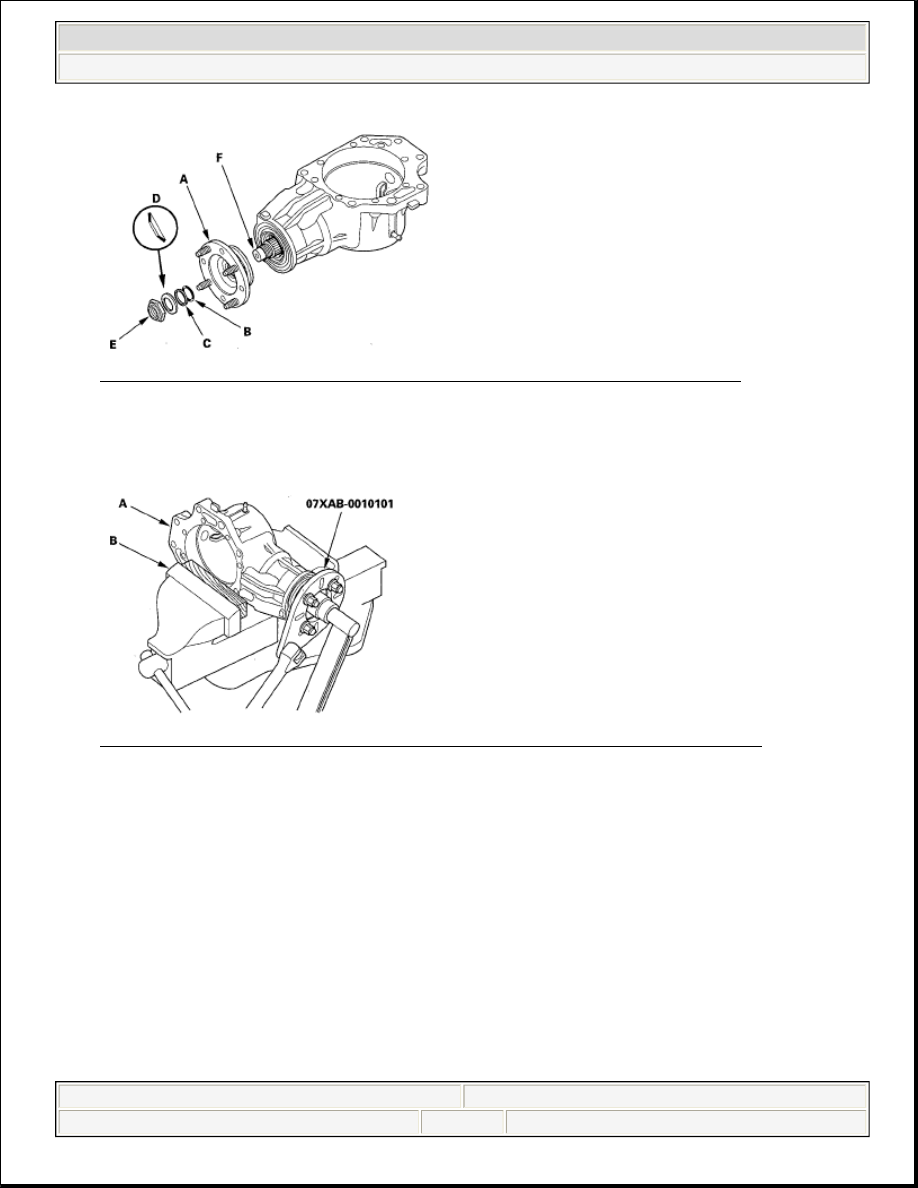

Fig. 697: Identifying Companion Flange And Transfer Output Shaft (Hypoid Gear)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

30. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer

housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

Fig. 698: Identifying Transfer Housing In Bench Vise With Companion Flange Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

31. Install the companion flange holder on the companion flange.

32. Tighten the locknut while measuring the starting torque of the transfer output shaft (hypoid gear) so the

starting torque is within 1.15-1.71 N.m (11.7-17.4 kgf.cm, 10.2-15.1 lbf.in.).

Tightening Torque:

108-294 N.m

(11.0-30.0 kgf.m, 79.6-217 lbf.ft)

Starting Torque:

1.15-1.71 N.m
