Fig. 585: Identifying Clutch Return Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Compress the return spring until the snap ring can be installed.

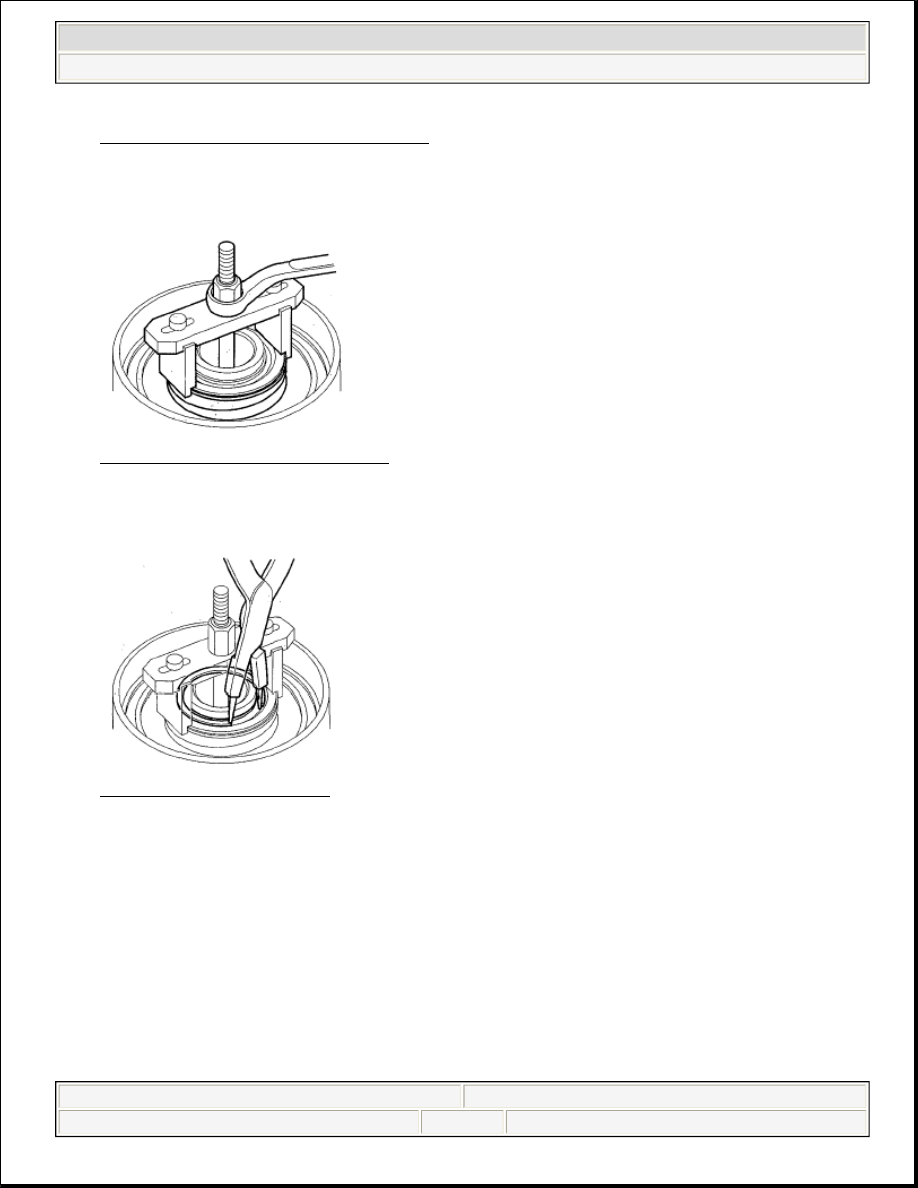

Fig. 586: Compressing Return Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Install the snap ring with the snap ring pliers.

Fig. 587: Installing Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Remove the clutch spring compressor attachment and the clutch spring compressor bolt assembly.

17. Starting with the 1st-hold clutch wave-plate, alternately install the wave-plates (A) (3) and discs (B) (3) in

the 1st/1st-hold clutch drum (C), then install 1st-hold clutch plate B (D) with the flat side down in the
direction shown.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 519

© 2005 Mitchell Repair Information Company, LLC.

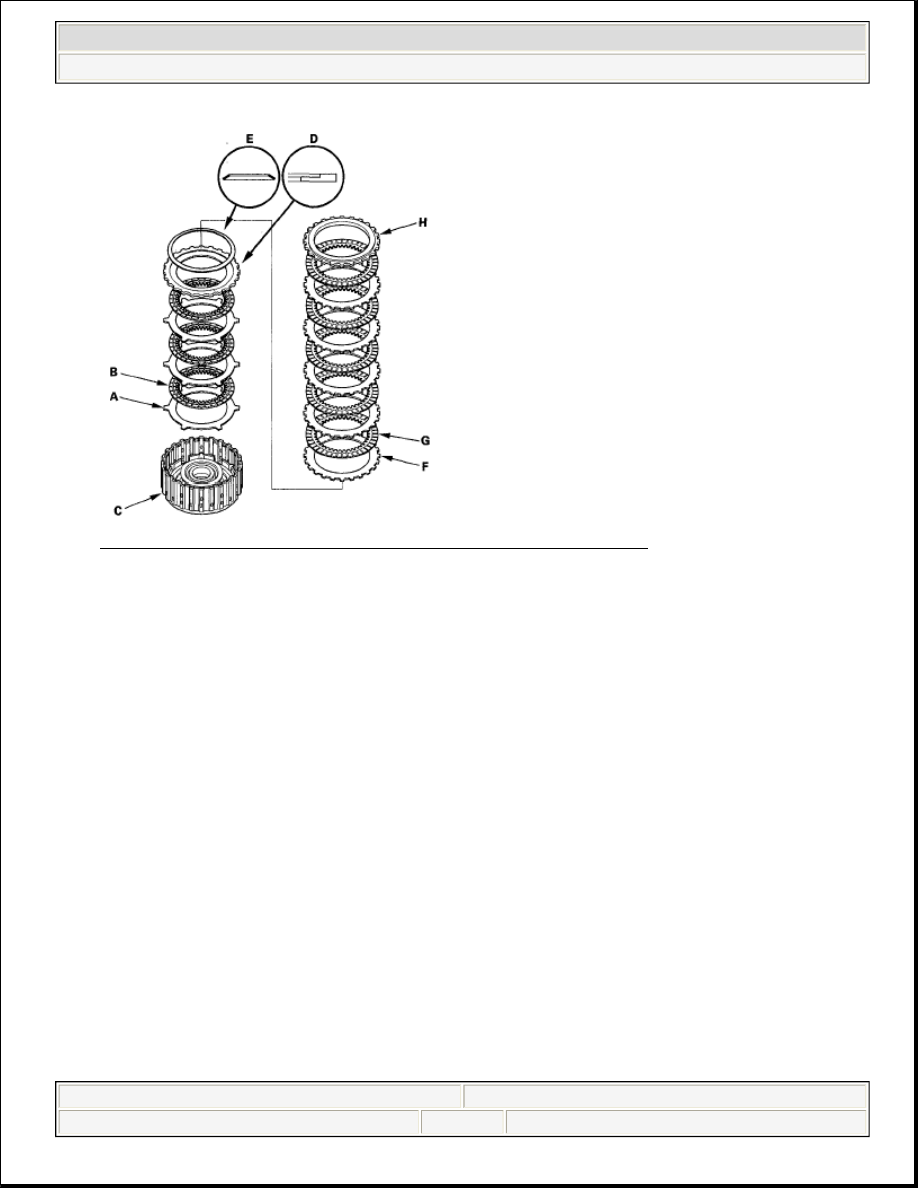

Fig. 588: Assembling 1st/1st-Hold Clutch Drum Wave-Plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Install the disc spring (E) on 1st-hold clutch plate B in the direction shown. Starting with the 1st clutch

wave-plate, alternately install the wave-plates (F) (5) and discs (G) (5), then install the clutch end-plate
(H) with the flat side down on the top disc.

19. Starting with the 2nd clutch flat-plate, alternately install the flat-plates (A) (4) and discs (B) (4) in the 2nd

clutch drum (C), and alternately install the wave-plates (D) (3) and discs (B) (3). Install the clutch end-
plate (E) with the flat side down on the top disc.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 520

© 2005 Mitchell Repair Information Company, LLC.

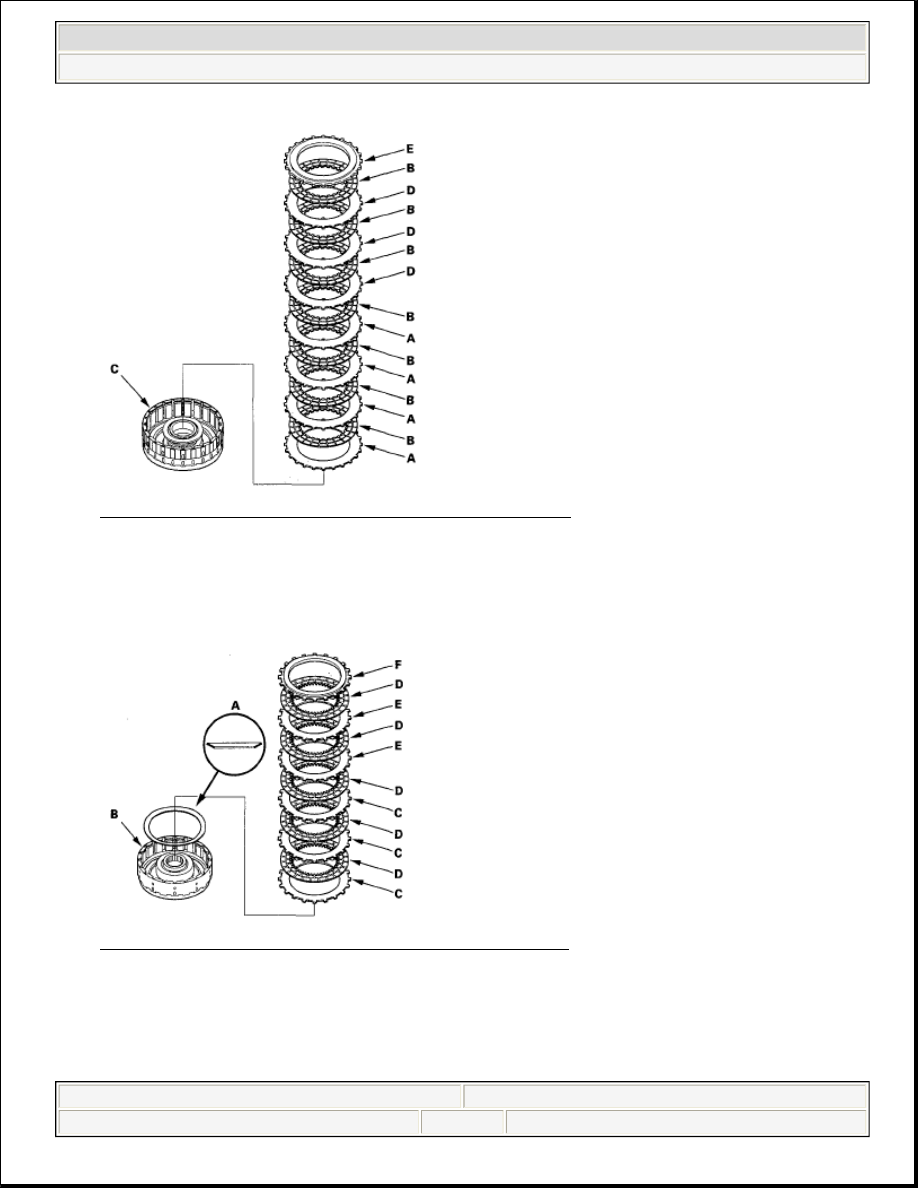

Fig. 589: Assembling 2nd Clutch Drum Flat-Plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

20. Install the disc spring (A) in the 3rd clutch drum (B) in the direction shown. Starting with the 3rd clutch

flat-plate, alternately install the flat-plates (C) (3) and discs (D) (3), and alternately install the wave-plates
(E) (2) and discs (D) (2). Install the clutch end-plate (F) with the flat side down on the top disc.

Fig. 590: Assembling 3rd Clutch Drum Flat-Plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Install the disc spring (A) in the 4th clutch drum (B) in the direction shown. Starting with the 4th clutch

flat-plate, alternately install the flat-plates (C) (2) and discs (D) (2), and alternately install the wave-plates
(E) (2) and discs (D)(2). Install the clutch end-plate (F) with the flat side down on the top disc.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 521

© 2005 Mitchell Repair Information Company, LLC.

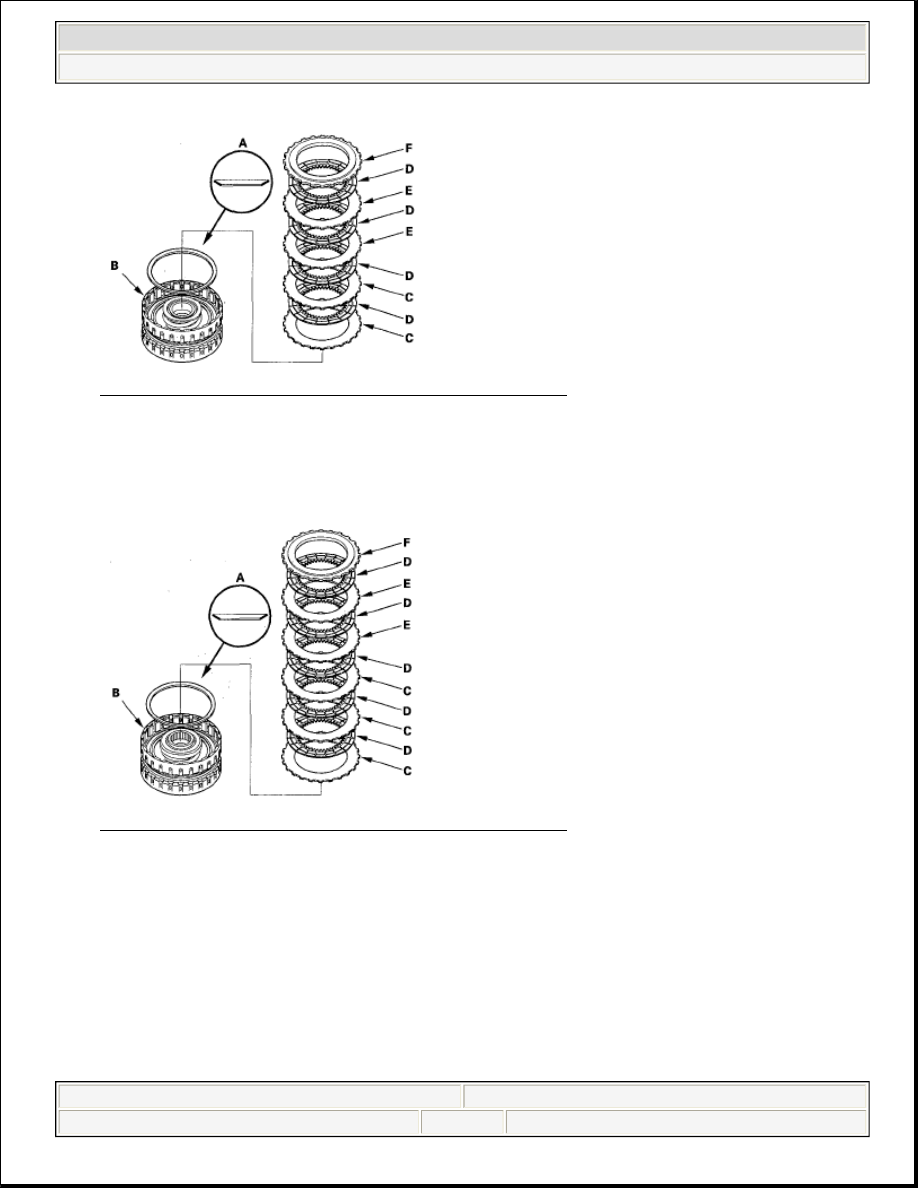

Fig. 591: Assembling 4th Clutch Drum Flat-Plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Install the disc spring (A) in the 5th clutch drum (B) in the direction shown. Starting with the 5th clutch

flat-plate, alternately install the flat-plates (C) (3) and discs (D) (3), and alternately install the wave-plates
(E) (2) and discs (D) (2). Install the clutch end-plate (F) with the flat side down on the top disc.

Fig. 592: Assembling 5th Clutch Drum Flat-Plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Install the snap ring with a screwdriver to secure the clutch end-plate.
