3. Install the 1st-hold clutch flat-plate (A) (1), and alternately install the clutch discs (B) (3) and clutch

wave-plates (C) (2) starting with the disc, then install 1st-hold clutch plate B (D) with the flat side down
in the direction shown.

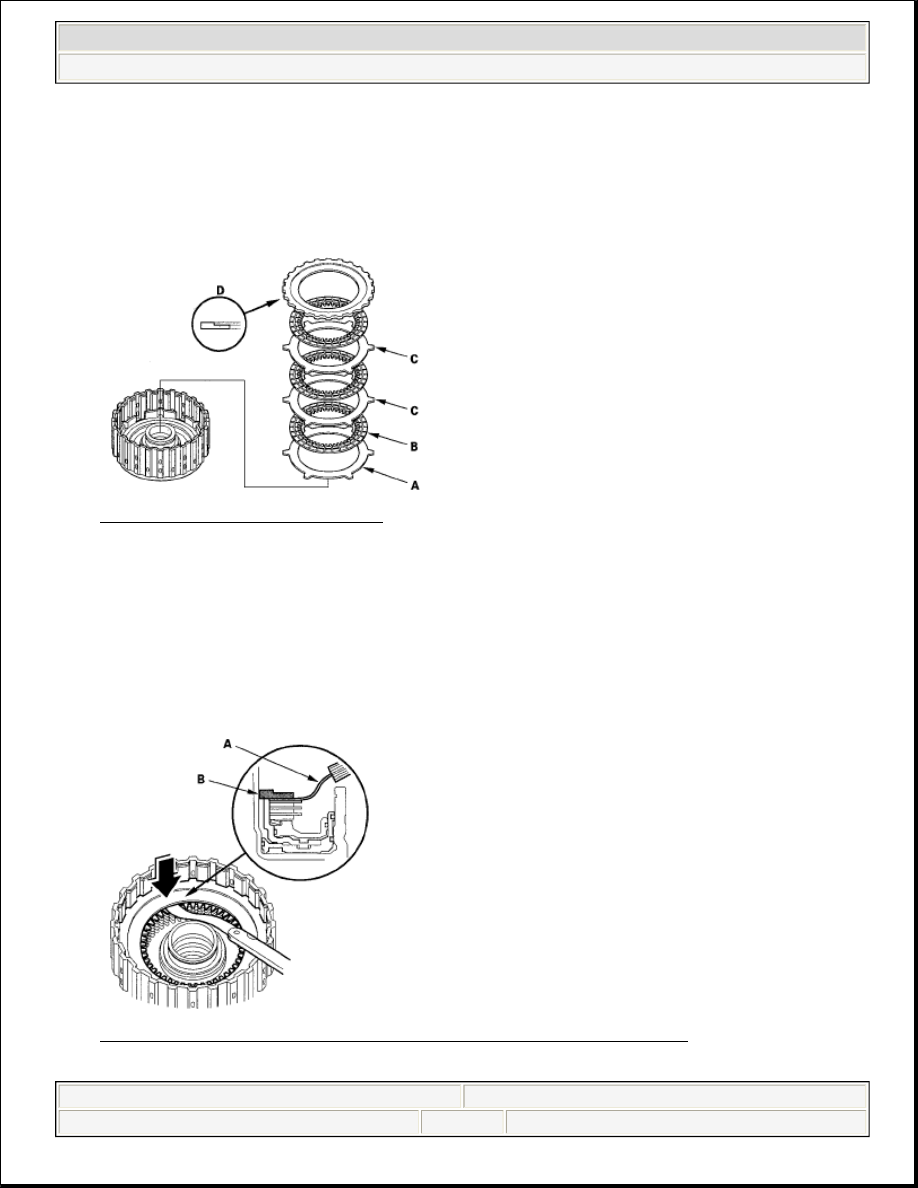

Fig. 564: Disassembling Clutch Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Measure the clearance between the 1st-hold clutch plate B and the top disc with a feeler gauge (A) while

pressing 1st-hold clutch plate B down. Take measurements in at least three places, and use the average as
the actual clearance.

1st-hold Clutch Plate B-to-Top Disc Clearance:

Service Limit: 0.6-1.0 mm (0.024-0.039 in.)

Fig. 565: Measuring Clearance Between 1st-Hold Clutch Plate And Top Disc
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 507

© 2005 Mitchell Repair Information Company, LLC.

5. If the clearance is out of standard, replace the 1st-hold clutch plates and discs as a set, and recheck.

6. Install the disc spring (A) on 1st-hold clutch plate B in the direction shown. Starting with the 1st clutch

wave-plate, alternately install the wave-plates (B) (5) and discs (C) (5) in the 1st clutch drum (D), then
install the clutch end-plate (E) with the flat side down.

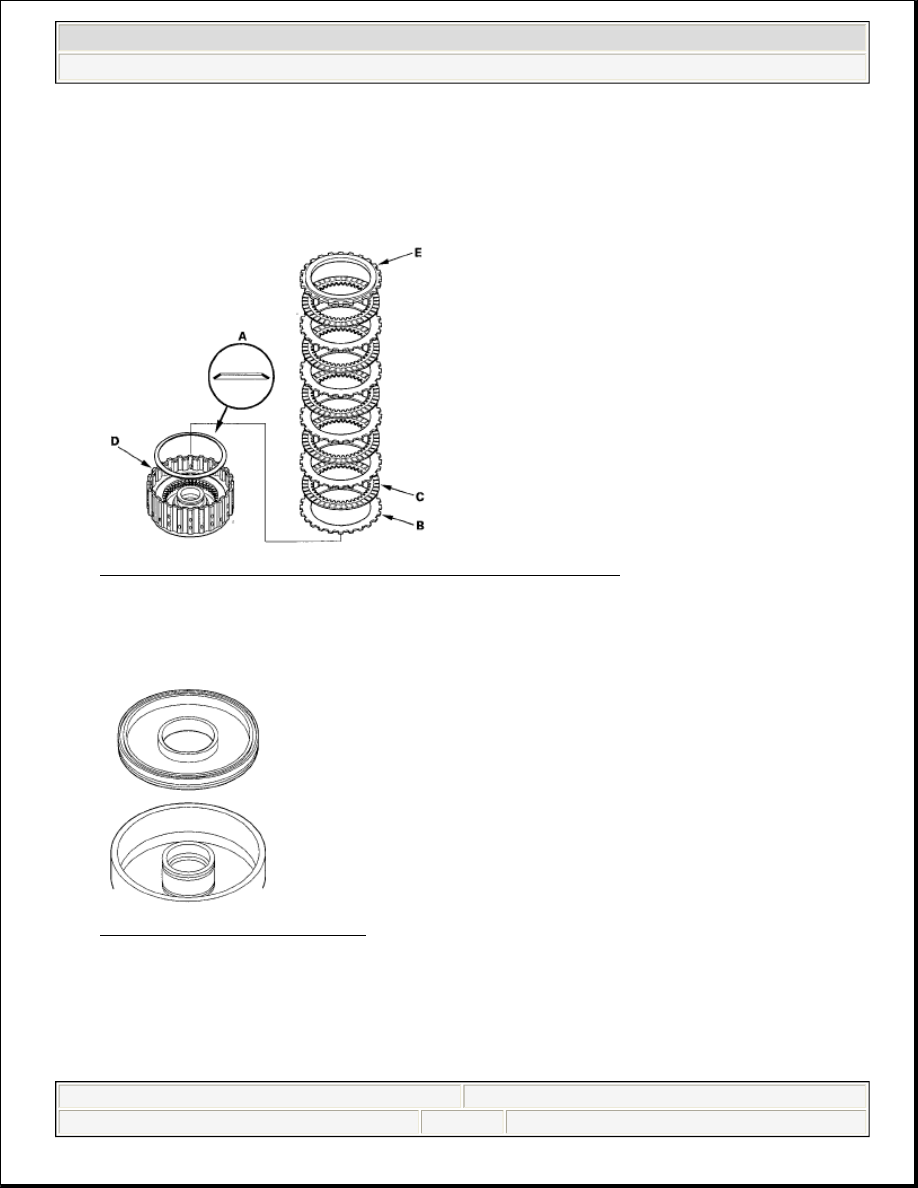

Fig. 566: Identifying 1st-Hold Clutch Drum, Wave-plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the clutch pistons in the 2nd, 3rd, 4th, and 5th clutch drums. Do not install the O-rings on the

clutch pistons during inspection.

Fig. 567: Identifying Clutch Piston
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Starting with the 2nd clutch flat-plate, alternately install the flat-plates (A) (4) and discs (B) (4), and

alternately install the wave-plates (C) (3) and discs (B) (3). Install the clutch end-plate (D) with the flat
side down on the top disc.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 508

© 2005 Mitchell Repair Information Company, LLC.

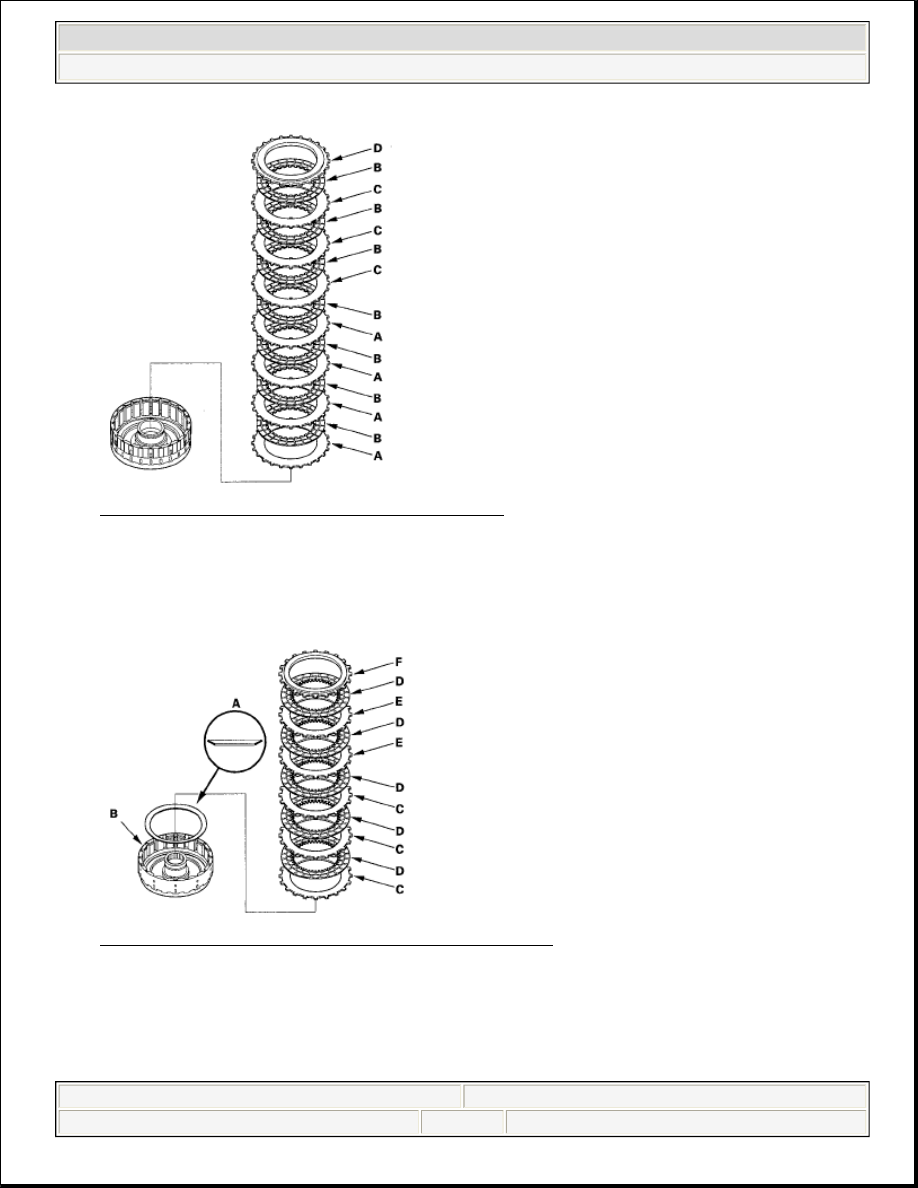

Fig. 568: Installing 2nd Clutch Flat-Plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the disc spring (A) in the 3rd clutch drum (B) in the direction shown. Starting with the 3rd clutch

flat-plate, alternately install the flat-plates (C) (3) and discs (D) (3), and alternately install the wave-plates
(E) (2) and discs (D) (2). Install the clutch end-plate (F) with the flat side down on the top disc.

Fig. 569: Installing 3rd Clutch Drum Flat-Plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Install the disc spring (A) in the 4th clutch drum (B) in the direction shown. Starting with the 4th clutch

flat-plate, alternately install the flat-plates (C) (2) and discs (D) (2), and alternately install the wave-plates
(E) (2) and discs (D) (2). Install the clutch end-plate (F) with the flat side down on the top disc.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 509

© 2005 Mitchell Repair Information Company, LLC.

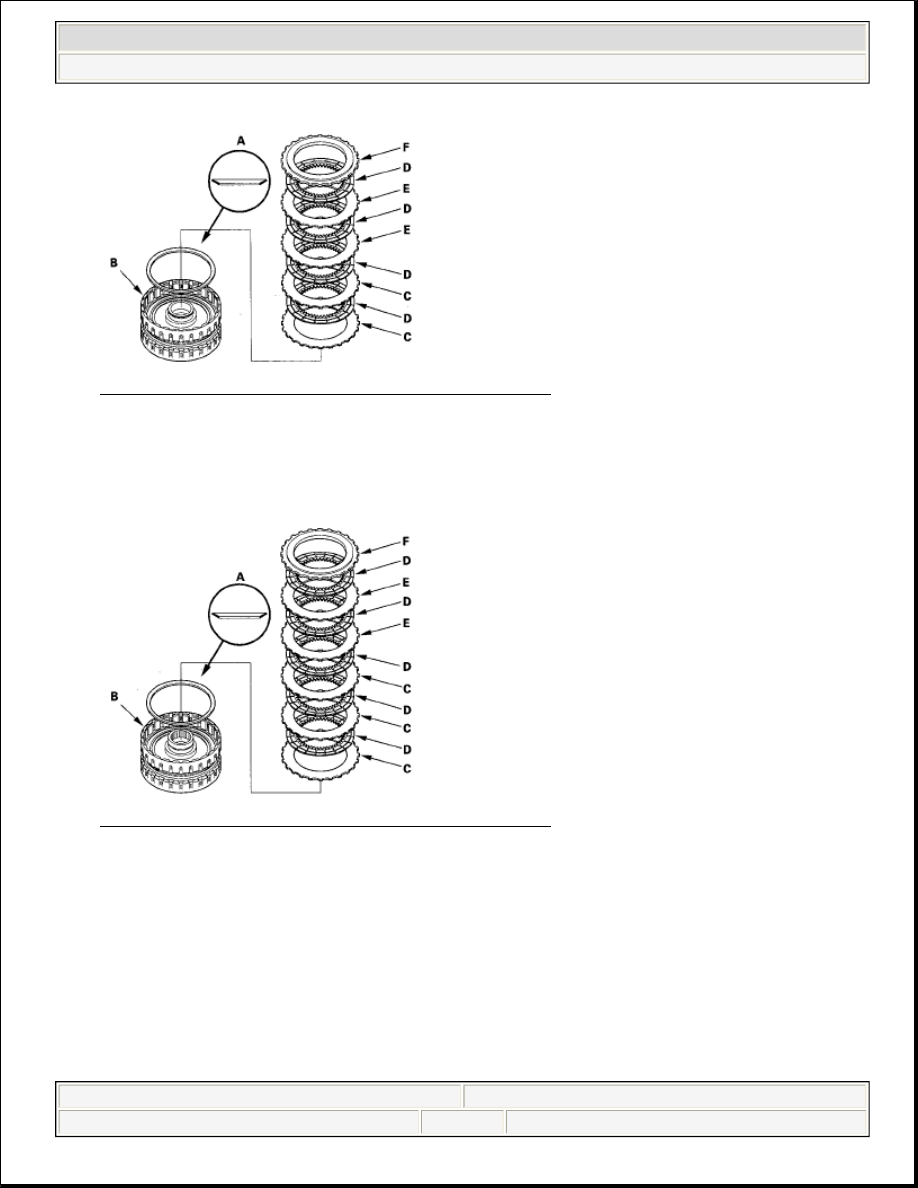

Fig. 570: Installing 4th Clutch Drum Flat-Plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Install the disc spring (A) in the 5th clutch drum (B) in the direction shown. Starting with the 5th clutch

flat-plate, alternately install the flat-plates (C) (3) and discs (D) (3), and alternately install the wave-plates
(E) (2) and discs (D) (2). Install the clutch end-plate (F) with the flat side down on the top disc.

Fig. 571: Installing 5th Clutch Drum Flat-Plates And Discs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Install the snap ring with a screwdriver to secure the clutch end-plate.
