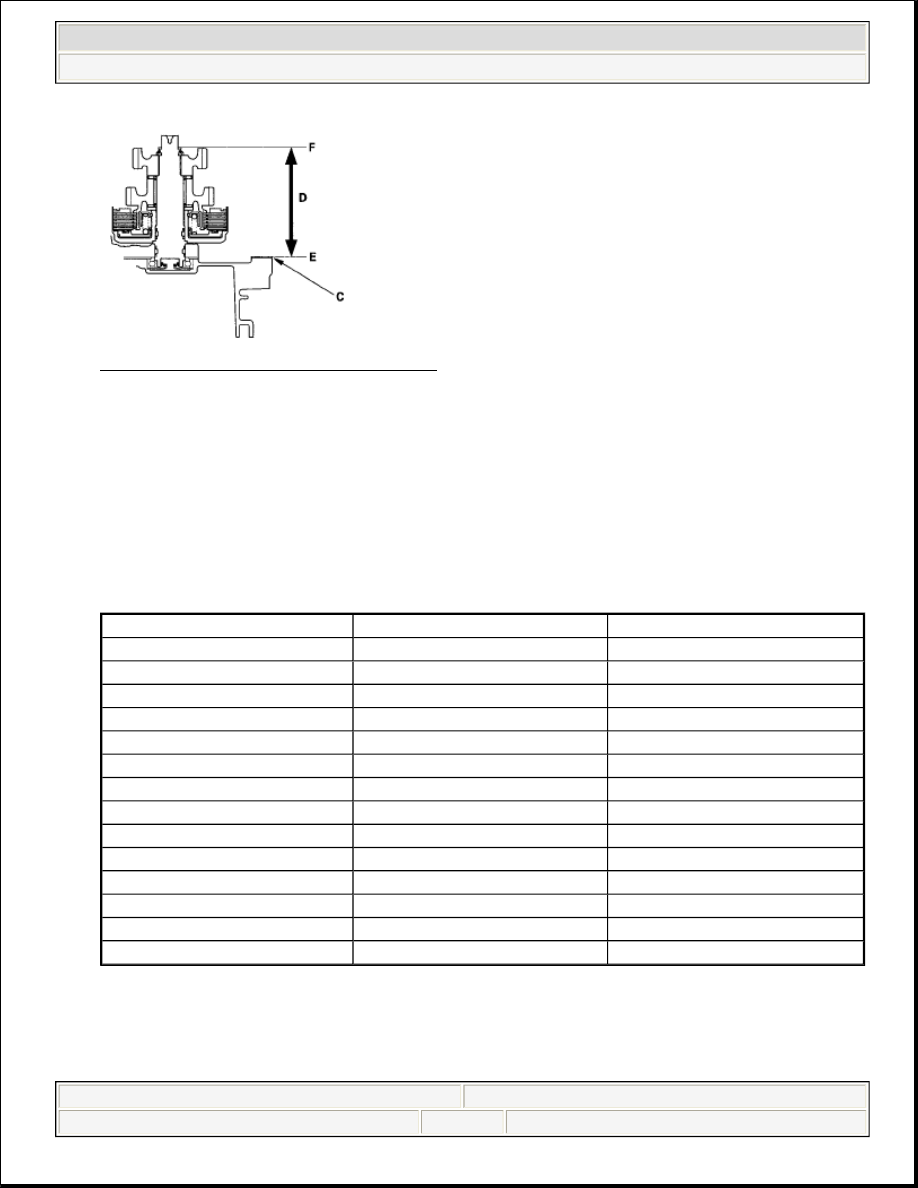

Fig. 542: Intermediary Shaft Cutaway View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install a new gasket (C) on the torque converter housing.

3. Measure the installed height (D) of the intermediary shaft between the surface (E) of the gasket and the

surface of the 26.5 mm washer (F).

4. If the measurement is out of standard, remove the 26.5 mm washer and measure its thickness.

5. Select and install a new washer, then recheck the installation height.

WASHER, 26.5 mm

WASHER THICKNESS SPECIFICATIONS

CLUTCH DISASSEMBLY

Special Tools Required

No.

Part Number

Thickness

A

90564-RDK-000

1.05 mm (0.041 in.)

B

90565-RDK-000

1.13 mm (0.044 in.)

C

90566-RDK-000

1.21 mm (0.048 in.)

D

90567-RDK-000

1.29 mm (0.051 in.)

E

90568-RDK-000

1.37 mm (0.054 in.)

F

90569-RDK-000

1.45 mm (0.057 in.)

G

90570-RDK-000

1.53 mm (0.060 in.)

H

90571-RDK-000

1.61 mm (0.063 in.)

I

90572-RDK-000

1.69 mm (0.067 in.)

J

90573-RDK-000

1.77 mm (0.070 in.)

K

90574-RDK-000

1.85 mm (0.073 in.)

L

90575-RDK-000

1.93 mm (0.076 in.)

M

90576-RDK-000

2.01 mm (0.079 in.)

N

90577-RDK-000

2.09 mm (0.082 in.)



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 495

© 2005 Mitchell Repair Information Company, LLC.



Clutch spring compressor attachment 07LAE-PX40100 or 07HAE-PL50101



Clutch spring compressor bolt assembly 07GAE-PG40200 or 07GAE-PG4020A

1. Remove the snap ring (A), with a screwdriver (B).

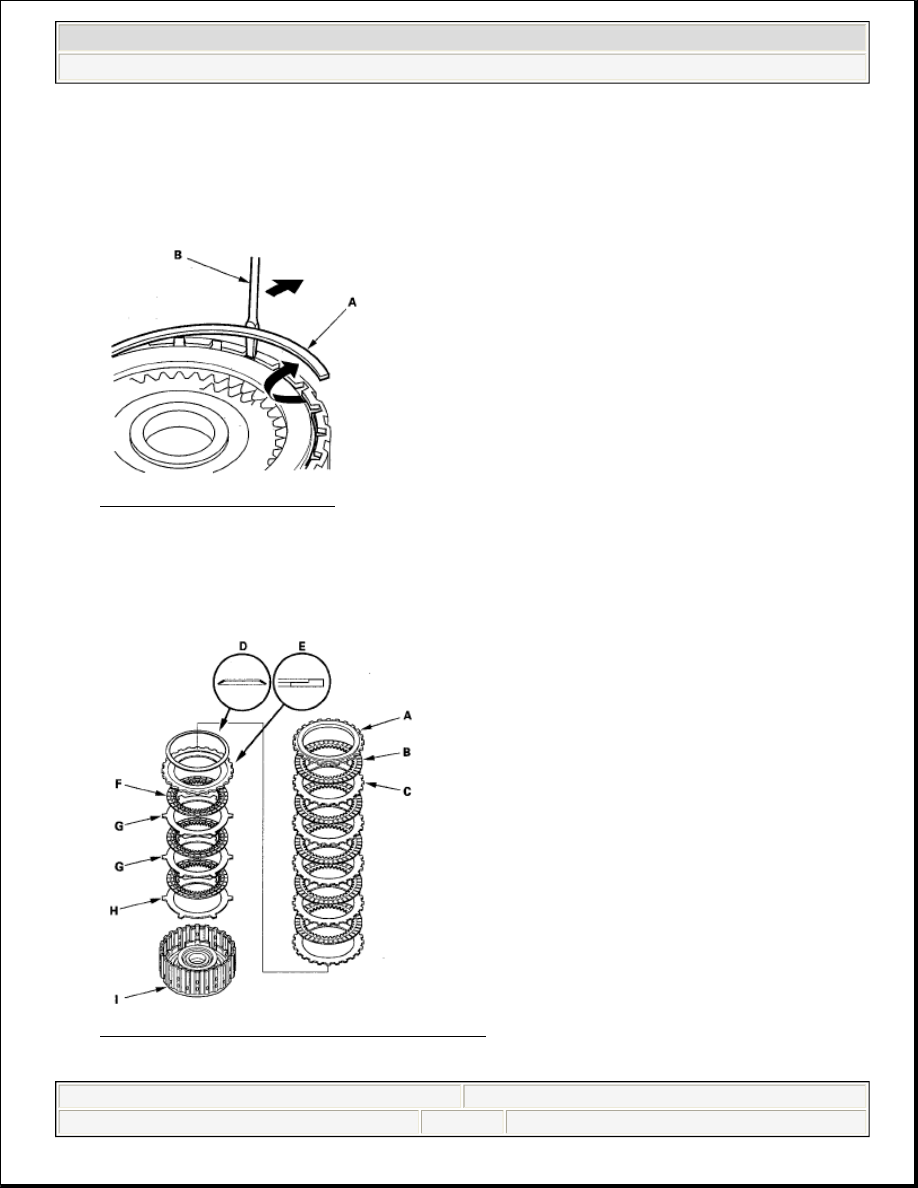

Fig. 543: Removing Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the 1st clutch end-plate (A), 1st clutch discs (B) (5), 1st clutch wave-plates (C) (5), disc spring

(D), 1st-hold clutch plate B (E), 1st-hold clutch discs (F) (3), 1st-hold clutch wave-plates (G) (2), and
flat-plate (H) from the 1st/1st-hold clutch drum (I).

Fig. 544: Disassembling 1st/1st-Hold Clutch Drum
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 496

© 2005 Mitchell Repair Information Company, LLC.

3. Remove the clutch end-plate (A), clutch discs (B) (7), clutch wave-plates (C) (3), and clutch flat-plates

(D) (4) from the 2nd clutch drum (E).

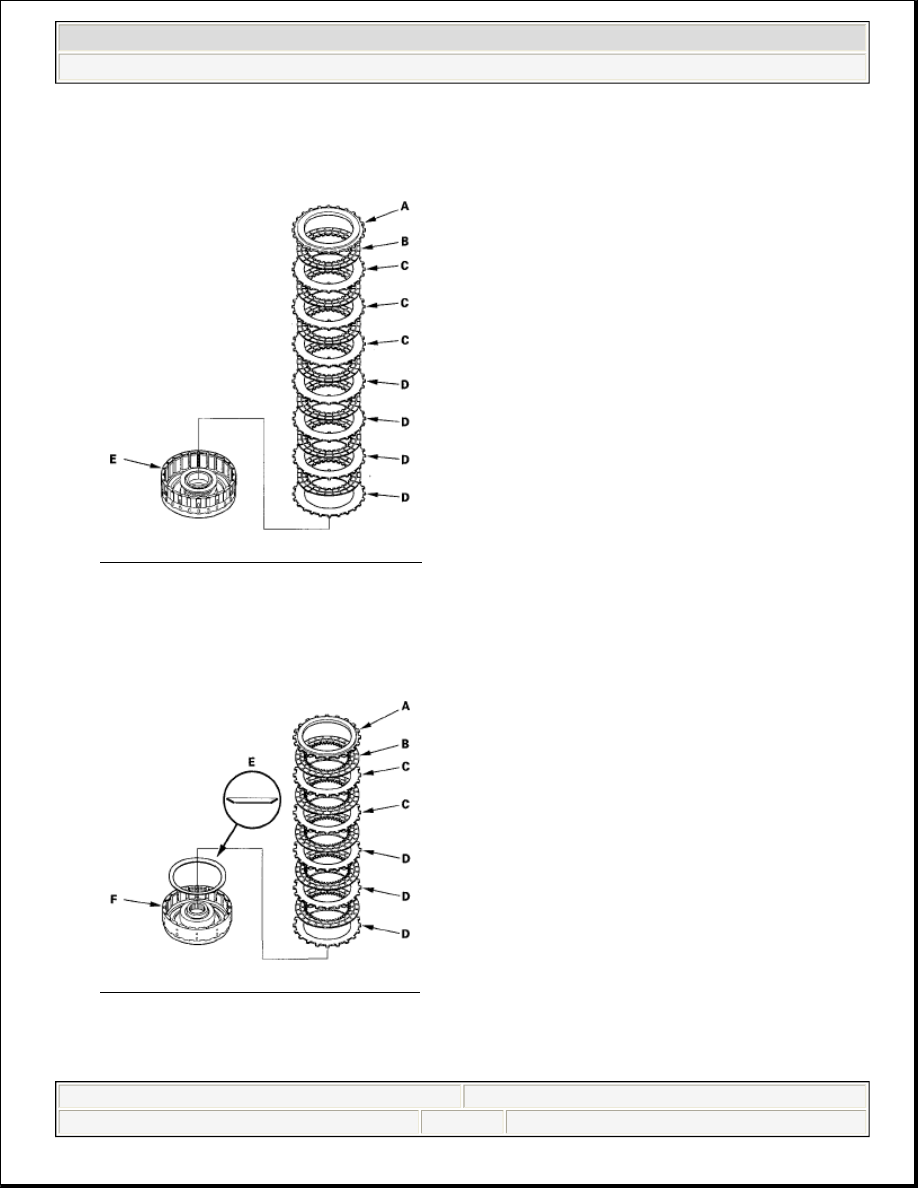

Fig. 545: Disassembling 2nd Clutch Drum
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Make reference marks on the clutch wave-plates.

5. Remove the clutch end-plate (A), clutch discs (B) (5), clutch wave-plates (C) (2), clutch flat-plates (D)

(3), and disc spring (E) from the 3rd clutch drum (F).

Fig. 546: Disassembling 3rd Clutch Drum
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Make reference marks on the clutch wave-plates.

7. Remove the clutch end-plate (A), clutch discs (B) (4), clutch wave-plates (C) (2), clutch flat-plates (D)



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 497

© 2005 Mitchell Repair Information Company, LLC.

(2), and disc spring (E) from the 4th clutch drum (F).

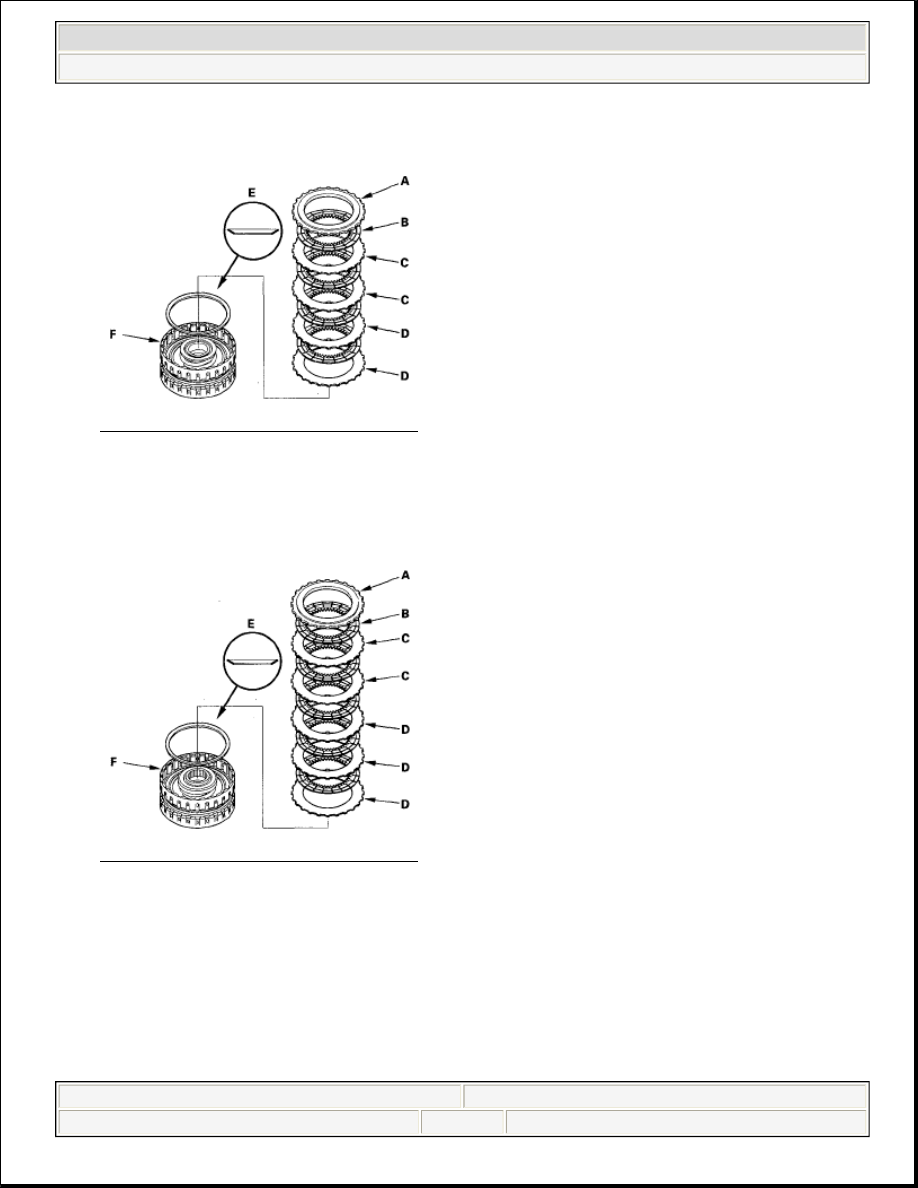

Fig. 547: Disassembling 4th Clutch Drum
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Make reference marks on the clutch wave-plates.

9. Remove the clutch end-plate (A), clutch discs (B) (5), clutch wave-plates (C) (2), clutch flat-plates (D)

(3), and disc spring (E) from the 5th clutch drum (F).

Fig. 548: Disassembling 5th Clutch Drum
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Make reference marks on the clutch wave-plates.

11. Install the clutch spring compressor attachments and the clutch spring compressor bolt assembly.
