Fig. 525: Pressing Ball Bearing Onto Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

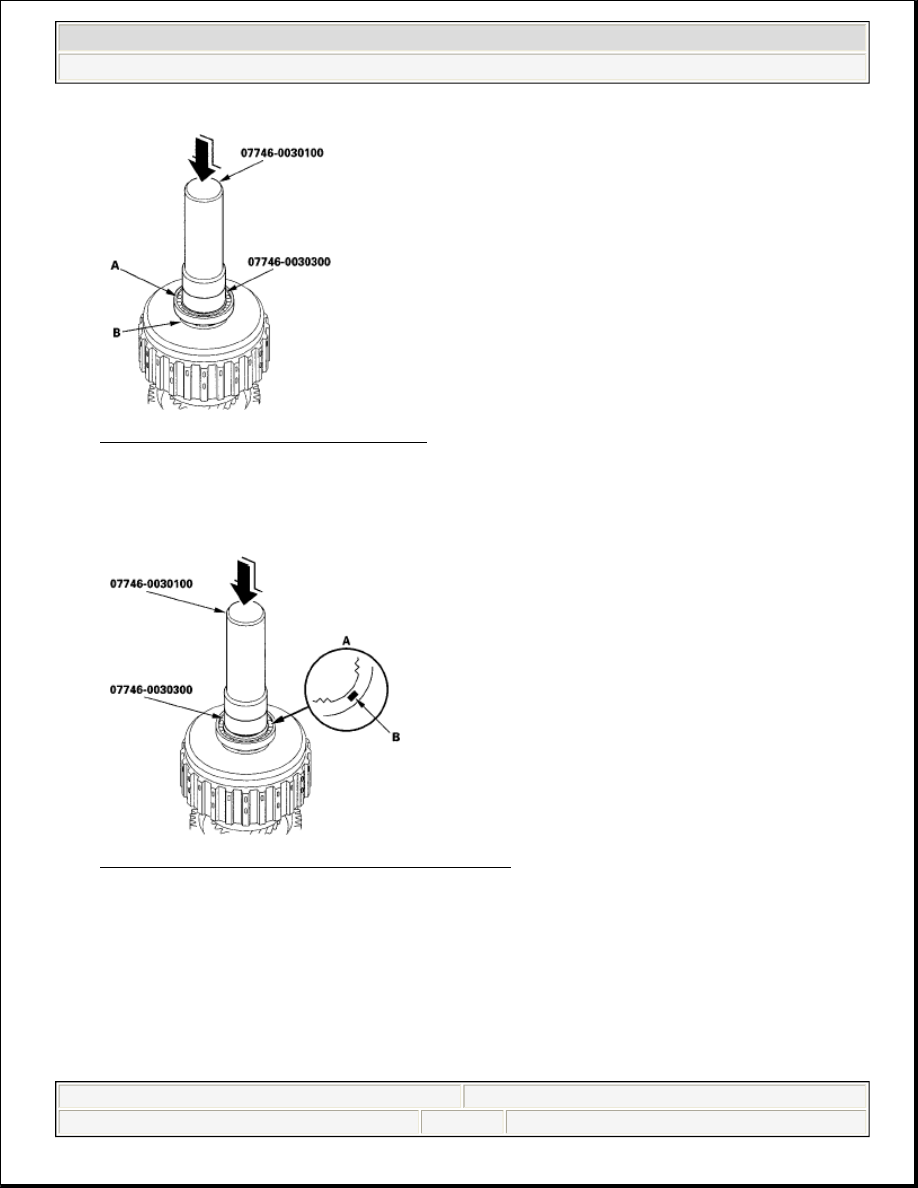

8. Install a new splined washer (A) with the marked side (B) up over the ball bearing using the driver (40

mm I.D.), the attachment (30 mm I.D.), and a press.

Fig. 526: Pressing Splined Washer With Marked Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install a new locknut.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:17 PM

Page 483

Fig. 527: Identifying Shaft Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

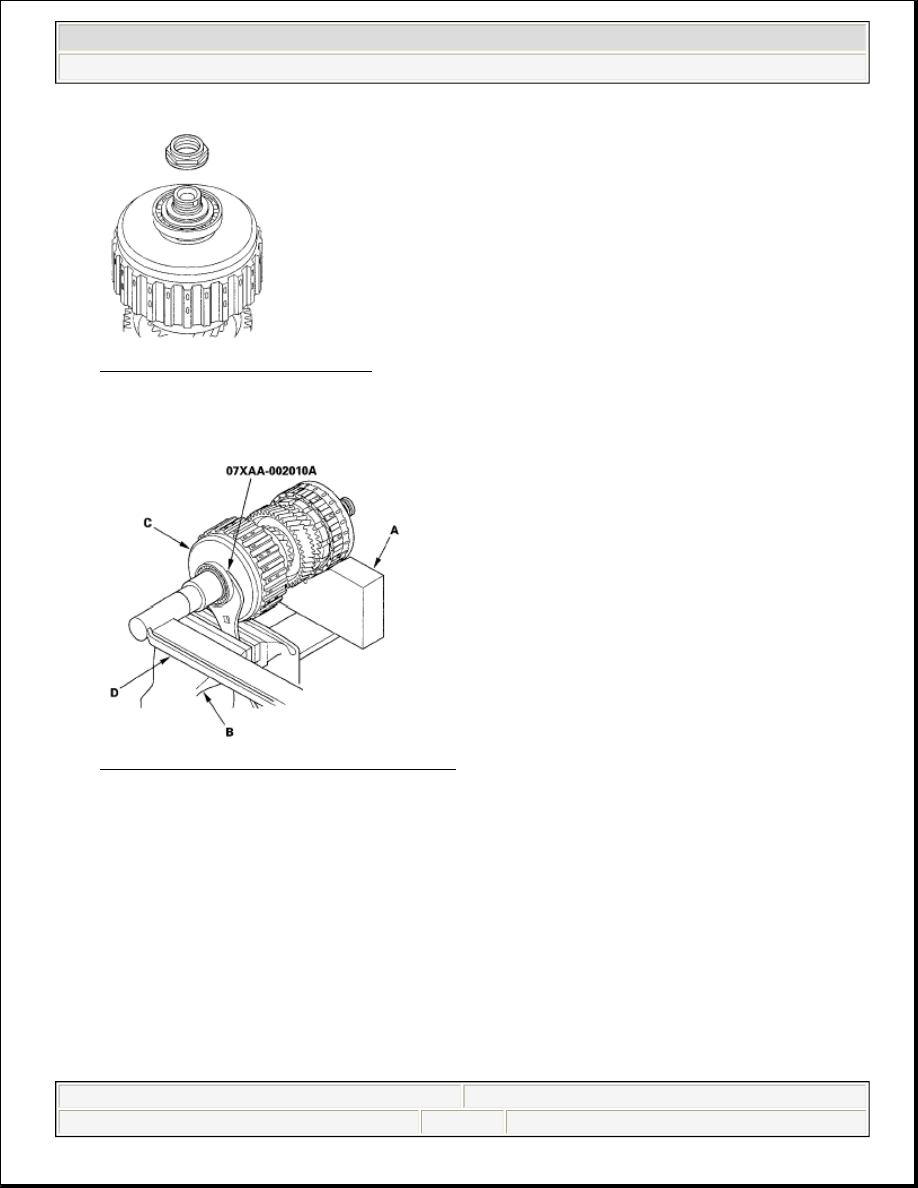

10. Place a V-block (A) on a vise (B), and put the secondary shaft (C) on a V-block and a vise.

Fig. 528: Tightening Secondary Shaft Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Attach the wrench (40 x 42 mm) onto the top of the 1st clutch guide, and secure the wrench (40 x 42 mm)

with the vise to hold the secondary shaft. Tighten the locknut to 178 N.m (18.2 kgf.m, 132 lbf.ft) with the
torque wrench (D).

12. Stake the locknut to a depth (A) of 0.7-1.3 mm (0.03-0.05 in.) using a 3.5 mm punch (B).

NOTE:



Use a torque wrench to tighten the locknut. Do not use an impact
wrench.



The locknut has left-hand threads.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:17 PM

Page 484

Fig. 529: Staking The Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SECONDARY SHAFT INSTALLATION HEIGHT INSPECTION/ADJUSTMENT

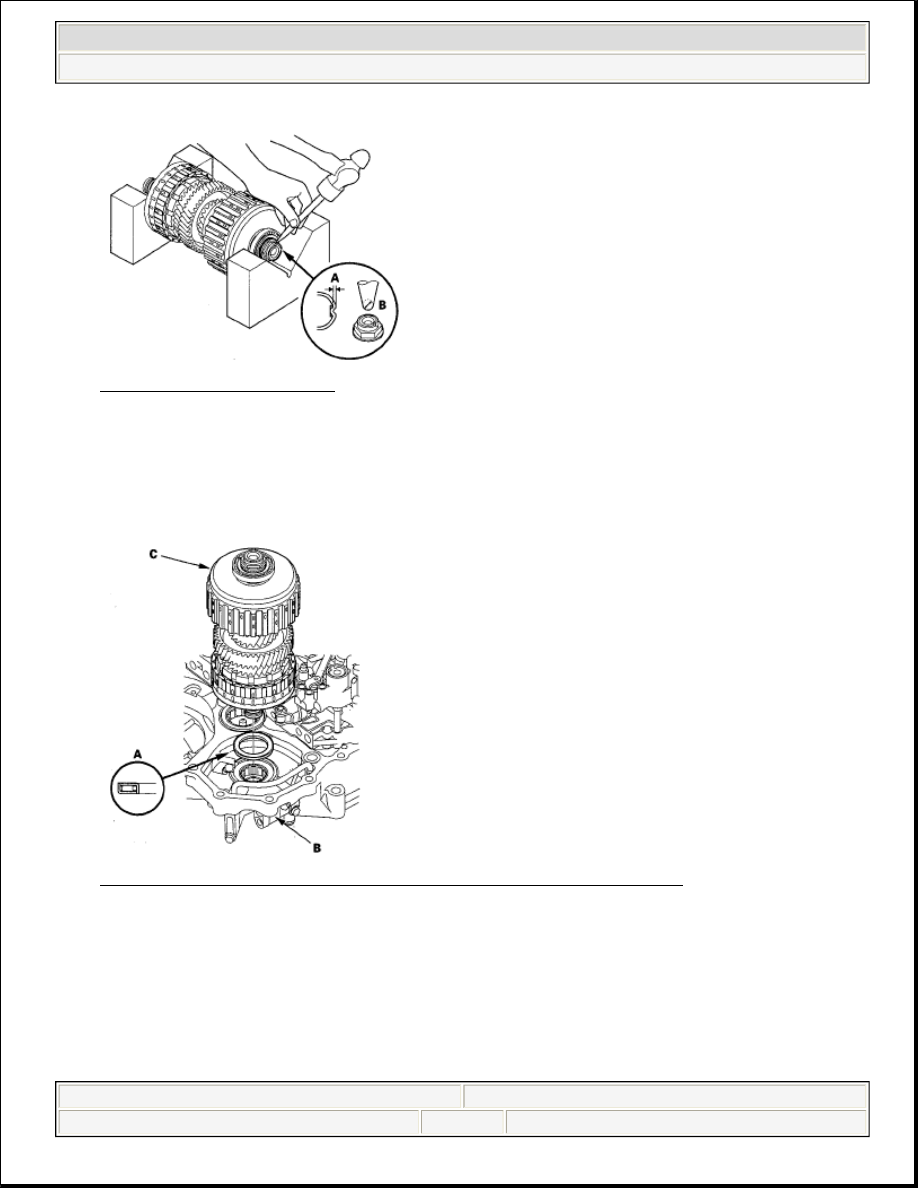

1. Install the thrust needle bearing (A) in the torque converter housing (B) in the direction shown, and install

the secondary shaft assembly (C).

Fig. 530: Identifying Thrust Needle Bearing And Secondary Shaft Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install a new gasket (A) on the torque converter housing.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:17 PM

Page 485

Fig. 531: Identifying Installed Height Of Secondary Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Secondary Shaft Cutaway View

Fig. 532: Identifying Installed Height Of Secondary Shaft (Secondary Shaft Cutaway View)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

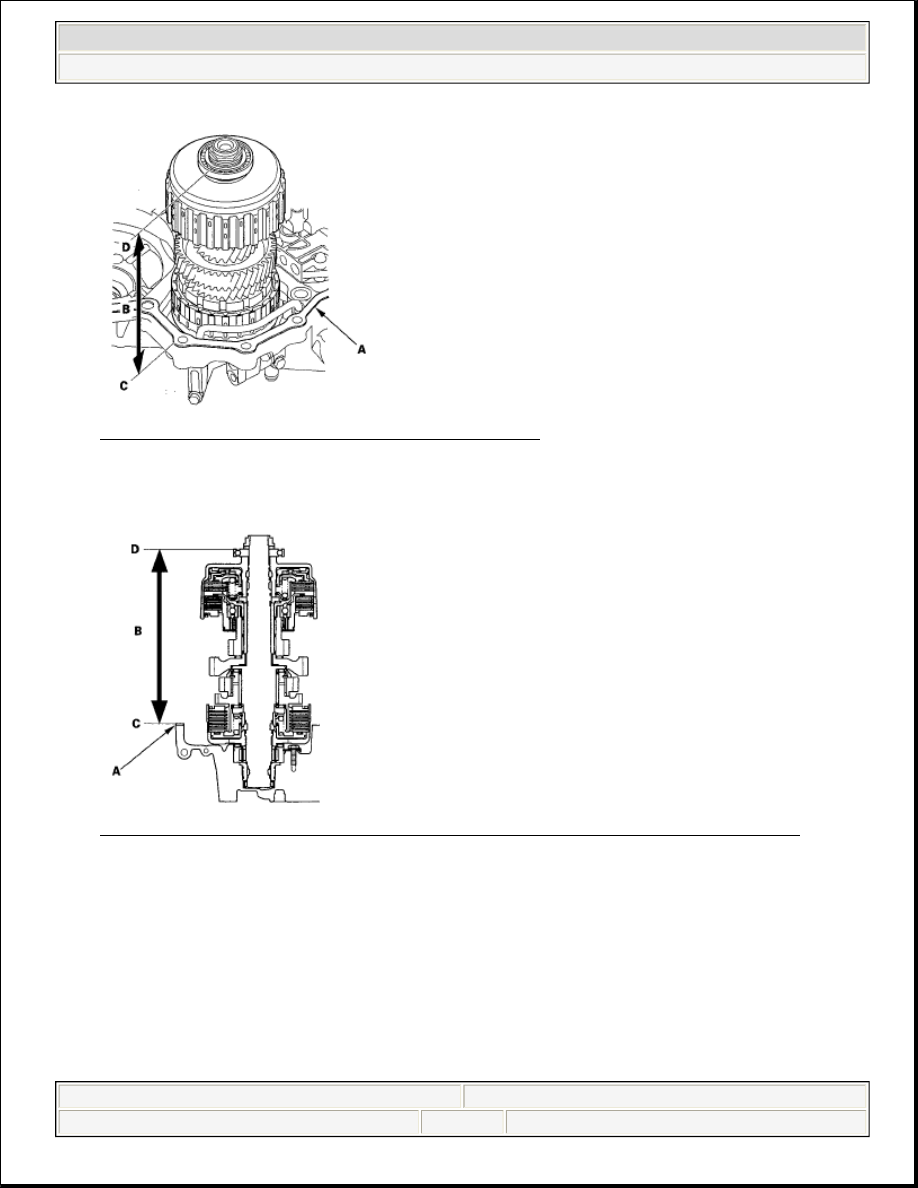

3. Measure the installed height (B) of the secondary shaft between the surface (C) of the gasket and the top

of the ball bearing outer race (D), then note the measurement.

4. Remove the 65 mm thrust shim (A) from the transmission housing, and measure its thickness.
