COUNTERSHAFT REASSEMBLY

Special Tools Required

Driver, 40 mm I.D. 07746-0030100

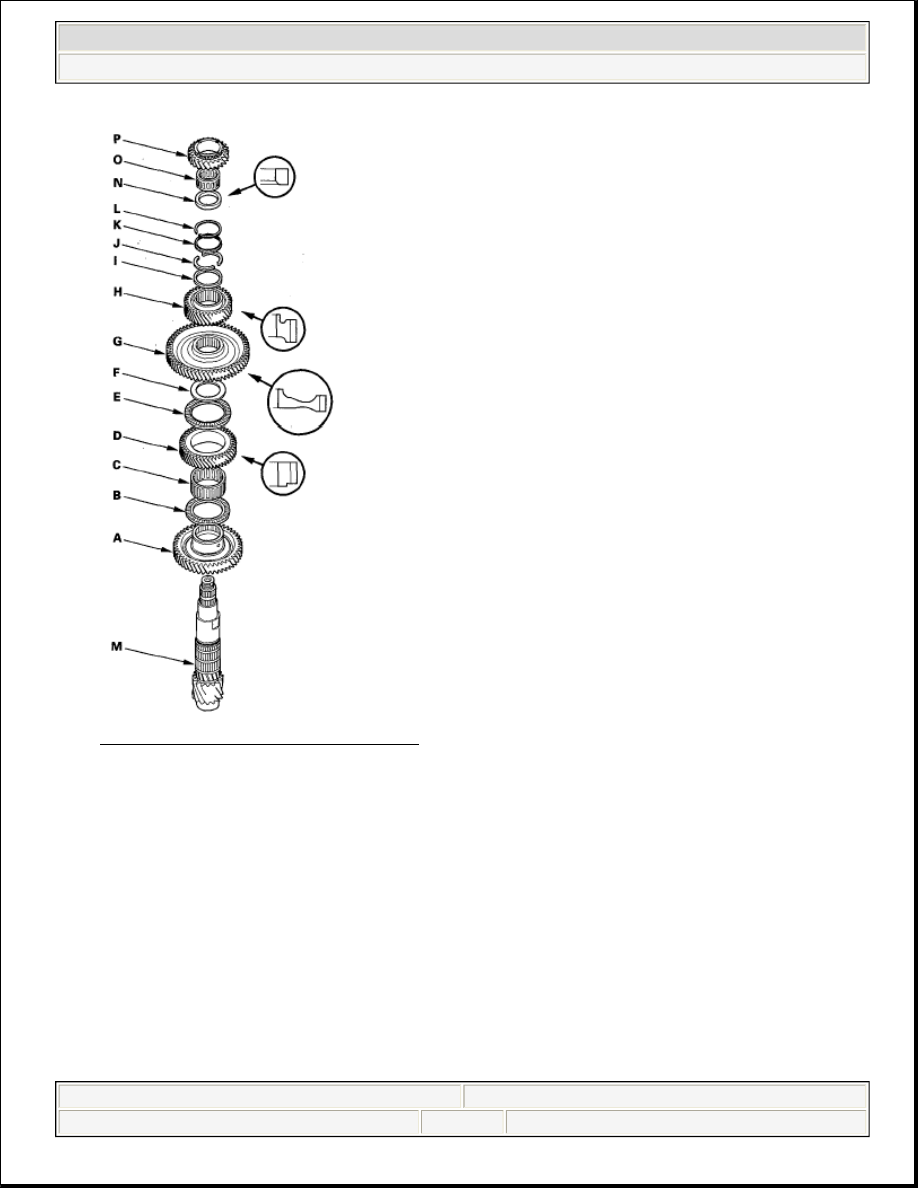

1. Install 2nd gear (A), the thrust needle bearing (B), needle bearing (C), idler gear (D), thrust needle

bearing (E), 56 mm washer (F), 1st gear (G), 4th gear (H), 50.2 mm washer (I), 39 mm cotters (J), cotter
retainer (K), and snap ring (L) on the countershaft (M).

C

90523-RDK-010

3.99 mm (0.1571 in.)

D

90524-RDK-010

4.01 mm (0.1579 in.)

E

90525-RDK-010

4.03 mm (0.1587 in.)

F

90526-RDK-010

4.05 mm (0.1594 in.)

G

90527-RDK-010

4.07 mm (0.1602 in.)

H

90528-RDK-010

4.09 mm (0.1610 in.)

I

90529-RDK-010

4.11 mm (0.1618 in.)

J

90530-RDK-010

4.13 mm (0.1626 in.)

K

90531 -RDK-010

4.15 mm (0.1634 in.)

L

90532-RDK-010

4.17 mm (0.1642 in.)

M

90533-RDK-010

4.19 mm (0.1650 in.)

N

90534-RDK-010

4.21 mm (0.1657 in.)

O

90535-RDK-010

4.23 mm (0.1665 in.)

P

90536-RDK-010

4.25 mm (0.1673 in.)

Q

90537-RDK-010

4.27 mm (0.1681 in.)

R

90538-RDK-010

4.29 mm (0.1689 in.)

S

90539-RDK-010

4.31 mm (0.1697 in.)

T

90540-RDK-010

4.33 mm (0.1705 in.)

U

90541-RDK-010

4.35 mm (0.1713 in.)



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 467

© 2005 Mitchell Repair Information Company, LLC.

Fig. 504: Exploded View Of Countershaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the 35 x 47 x 6 mm thrust washer (N) in the direction shown, then install the needle bearing (0)

and 5th gear (P).

3. Slide the reverse selector hub (A) over the countershaft (B), then press it into place using the driver (40

mm I.D.) and a press.

NOTE:

Some reverse selector hubs are not press-fitted, and can be installed
without using the driver (40 mm I.D.), and a press.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 468

© 2005 Mitchell Repair Information Company, LLC.

Fig. 505: Pressing Reverse Selector Hub Onto Countershaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the reverse selector, reverse gear collar, needle bearing, and reverse gear over the reverse selector

hub.

5. Install the ball bearing (A) over the countershaft, then press it into place using the driver (40 mm I.D.)

and a press.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 469

© 2005 Mitchell Repair Information Company, LLC.

Fig. 506: Pressing Ball Bearing Over Countershaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install a new conical spring washer (A) in the direction shown, and install a new locknut (B).

Fig. 507: Identifying Conical Spring Washer And Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Hold the countershaft securely with a wrench and a vise, and tighten the locknut to 167 N.m (17.0 kgf.m,

123 lbf.ft).
