1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).

2. Check the paddle shifter - (downshift switch) for continuity between the steering wheel switch harness

20P connector terminals No. 16 and No. 7. There should be continuity while pressing the paddle shifter -,
and no continuity when the shifter is released.

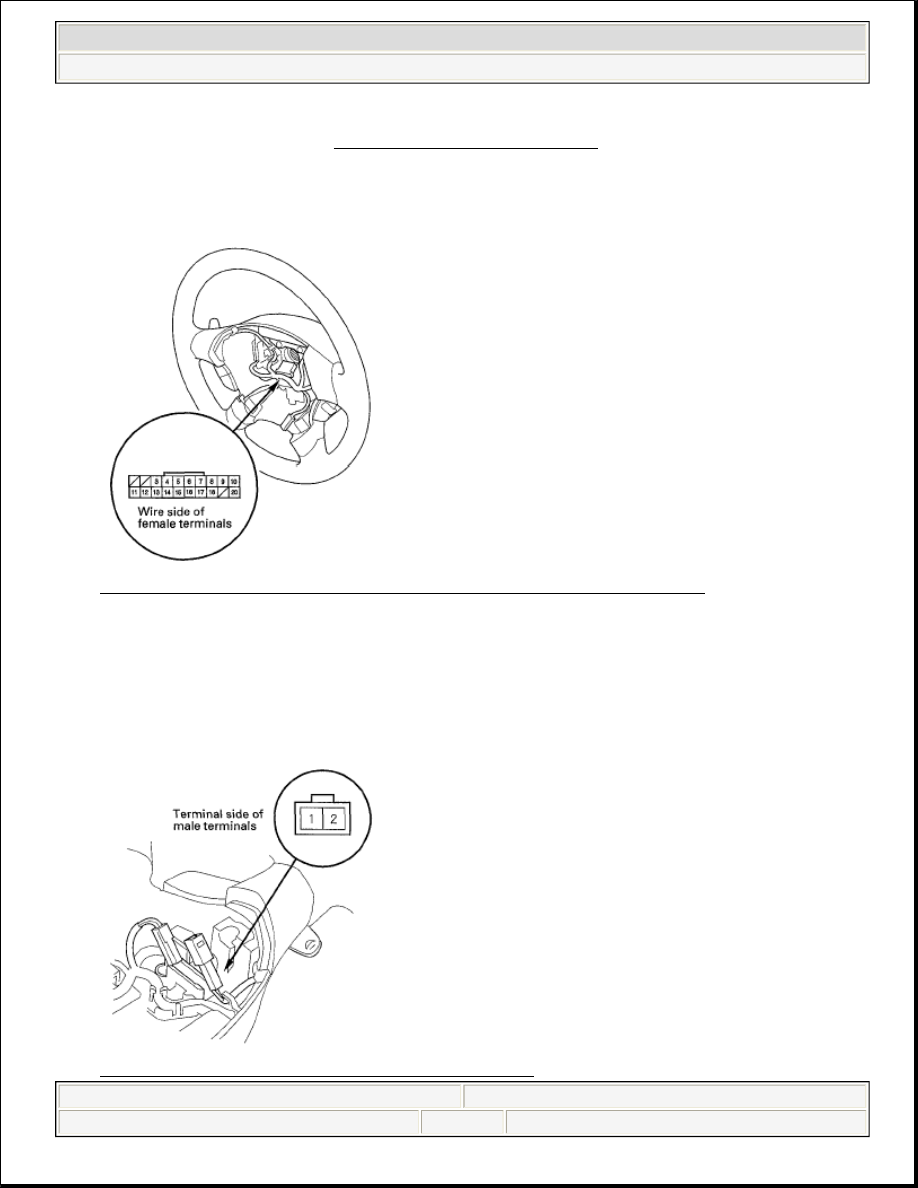

Fig. 408: Identifying Steering Wheel Switch Harness 20P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. The paddle shifter - test is finished if the test result is OK.

If the paddle shifter - works incorrectly at the 20P connector, test the shifter at its connector.

4. Remove the paddle shifter - connector from its holder, and disconnect the connector.

Fig. 409: Identifying Paddle Shifter Connector Terminal



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:16 PM

Page 399

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Check the paddle shifter - for continuity between the connector terminals while pressing the shifter and

when the shifter is released.

There should be continuity while pressing the paddle shifter -, and no continuity when the shifter is
released.

6. Replace the paddle shifter - if the paddle shifter - works incorrectly.

7. Replace the steering wheel switch harness if the switch is OK.

PADDLE SHIFTER - (DOWNSHIFT SWITCH) REPLACEMENT

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in
the SRS before doing repairs or service.

1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).

2. Remove the steering wheel rear cover (A).

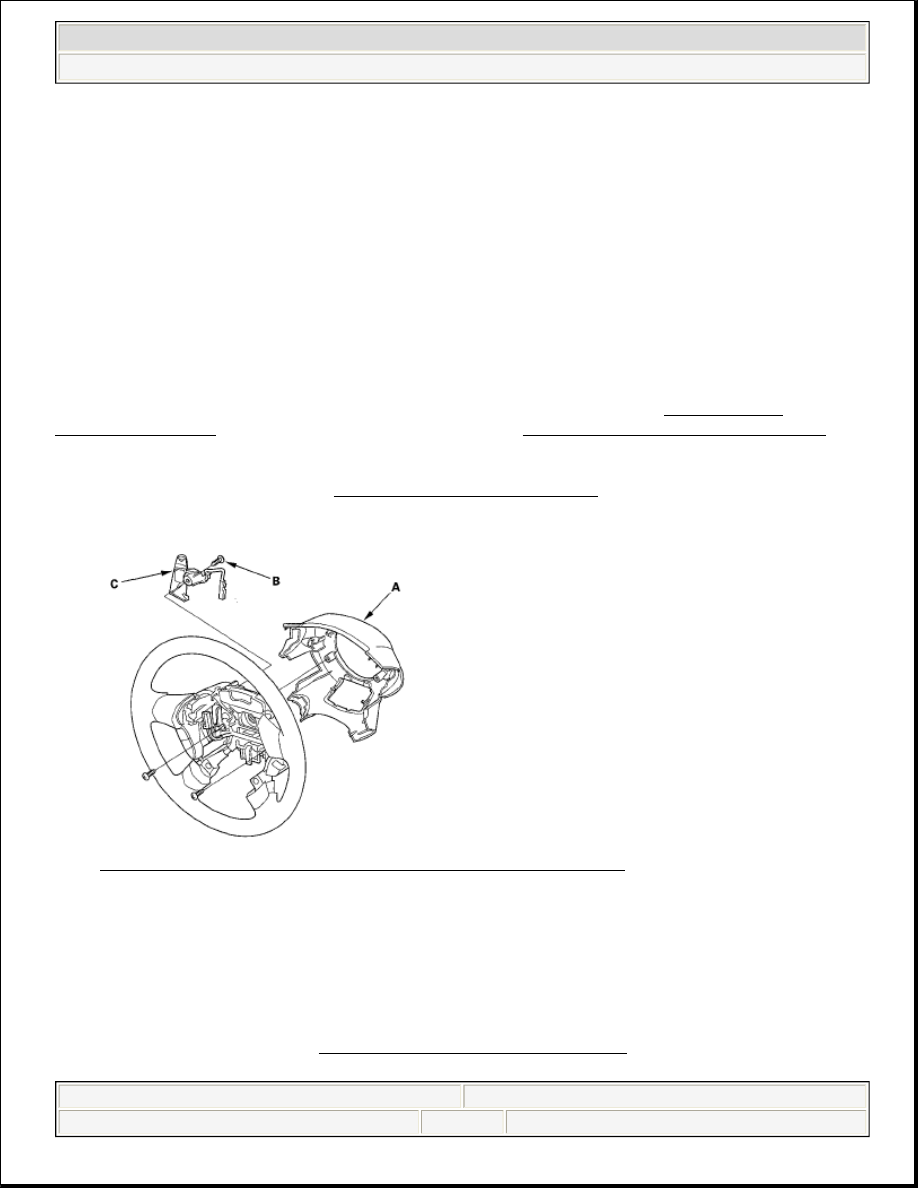

Fig. 410: Identifying Steering Wheel Rear Cover And Paddle Shifter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the paddle shifter - (downshift switch) connector from its holder, and disconnect the connector.

4. Remove the screw (B) securing the paddle shifter - (C), then remove and replace the paddle shifter -.

5. Install the new paddle shifter - with the screw, connect the connector, and install the connector in the

holder.

6. Install the steering wheel rear cover.

7. Install the steering wheel (see STEERING WHEEL INSTALLATION ).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:16 PM

Page 400

© 2005 Mitchell Repair Information Company, LLC.

A/T INTERLOCK SYSTEM

COMPONENT LOCATION INDEX

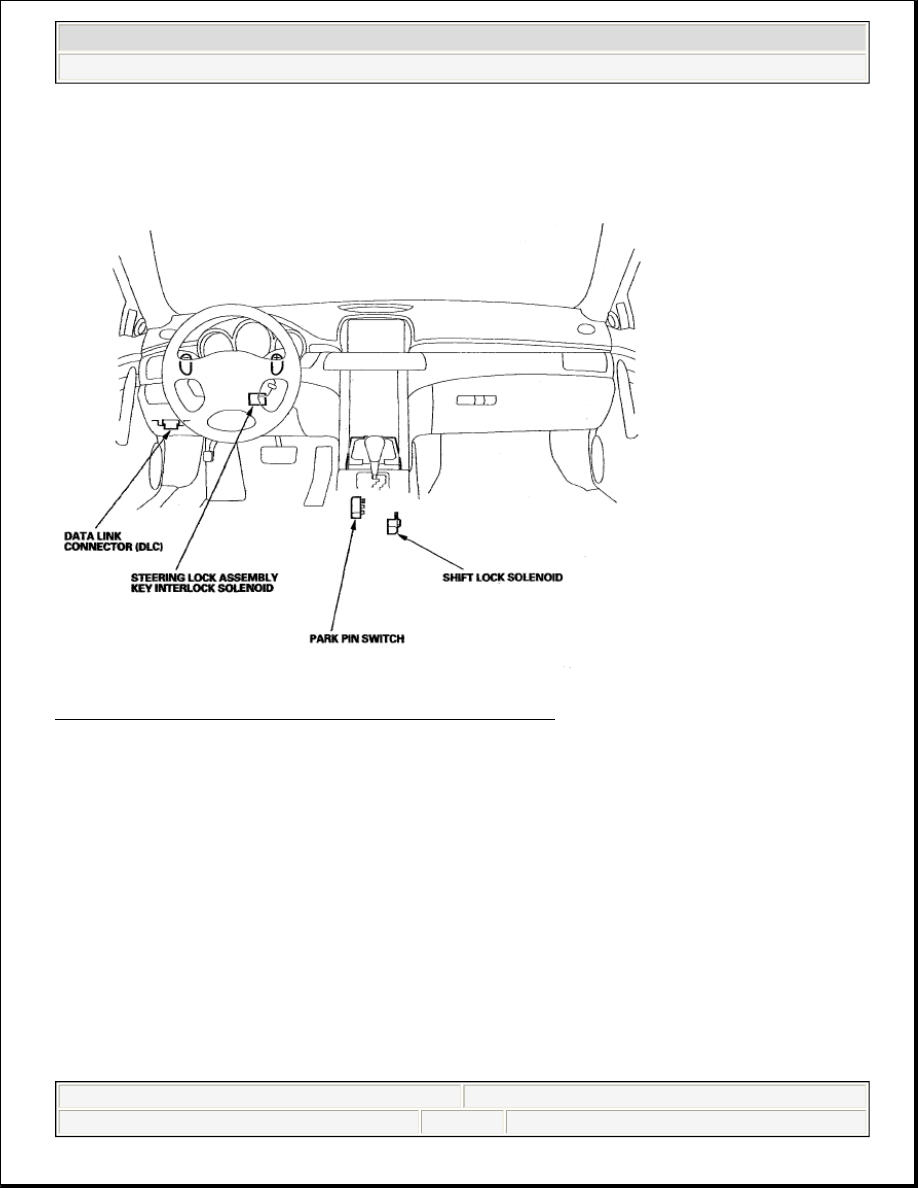

Fig. 411: Identifying A/T Interlock System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM

'05 Model



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:16 PM

Page 401

© 2005 Mitchell Repair Information Company, LLC.

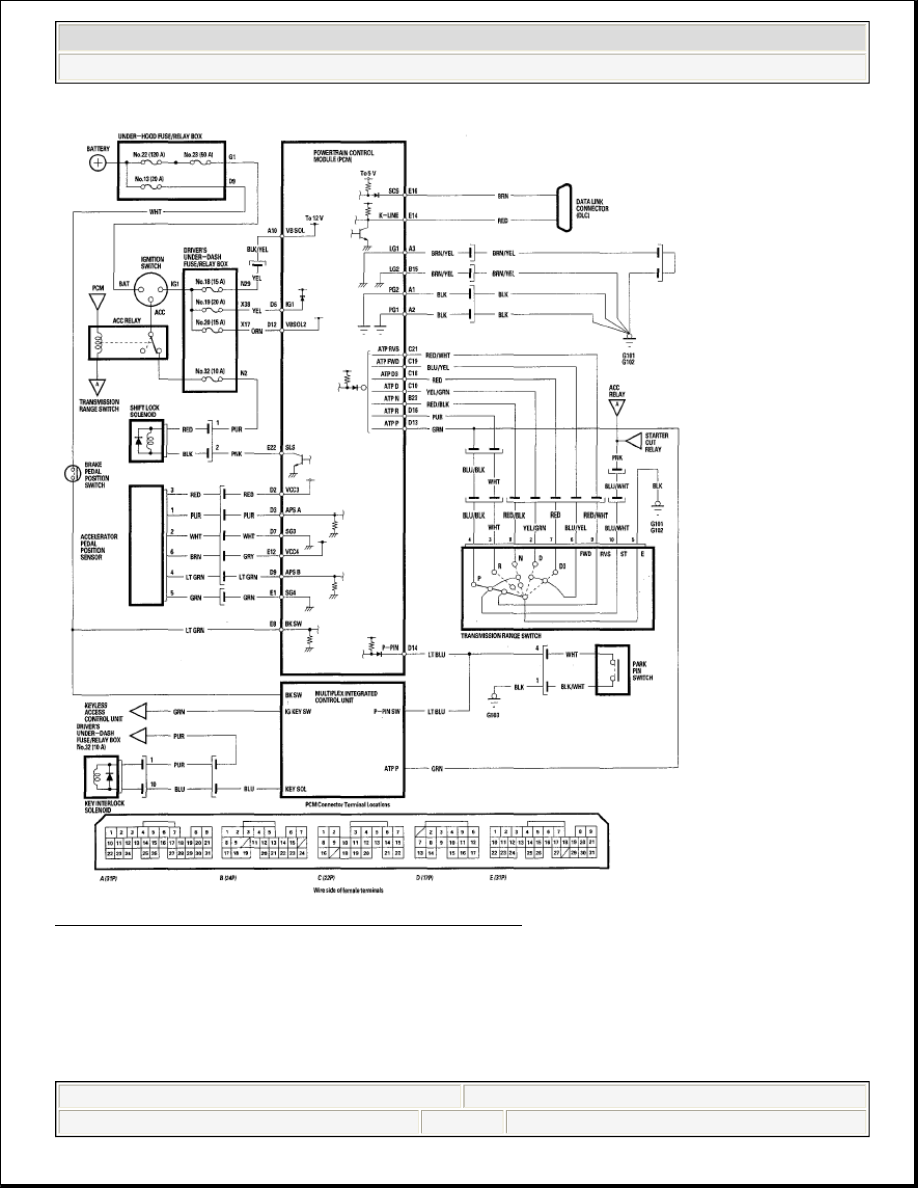

Fig. 412: A/T Interlock System (05 Model) - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

'06-08 Models
