Acura RL. Manual - part 280

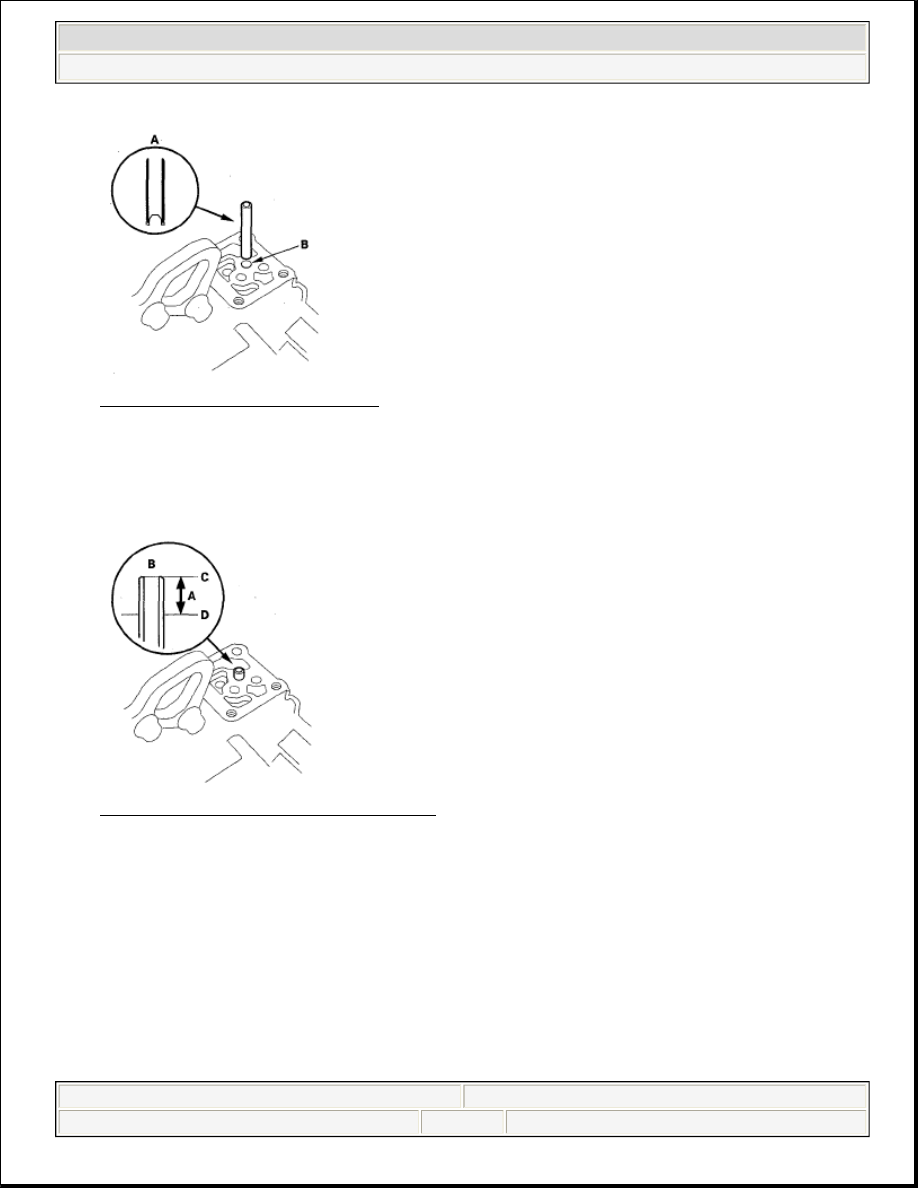

Fig. 225: Identifying ATF Joint Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Check the height (A) of the 8 x 53 mm ATF joint pipe (B) between the top (C) of the pipe and the

solenoid valve body mounting surface (D). The height is about 7 mm (0.3 in.). If the height is over 7 mm
(0.3 in.), push the pipe until it bottoms in the accumulator body.

Fig. 226: Identifying ATF Joint Pipe Height
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Install the new gasket (A) on the transmission housing, and install the 8 x 34.5 mm ATF joint pipe (B)

with the filter side into the transmission housing and 8 x 25.2 mm ATF pipe (D).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 291

© 2005 Mitchell Repair Information Company, LLC.

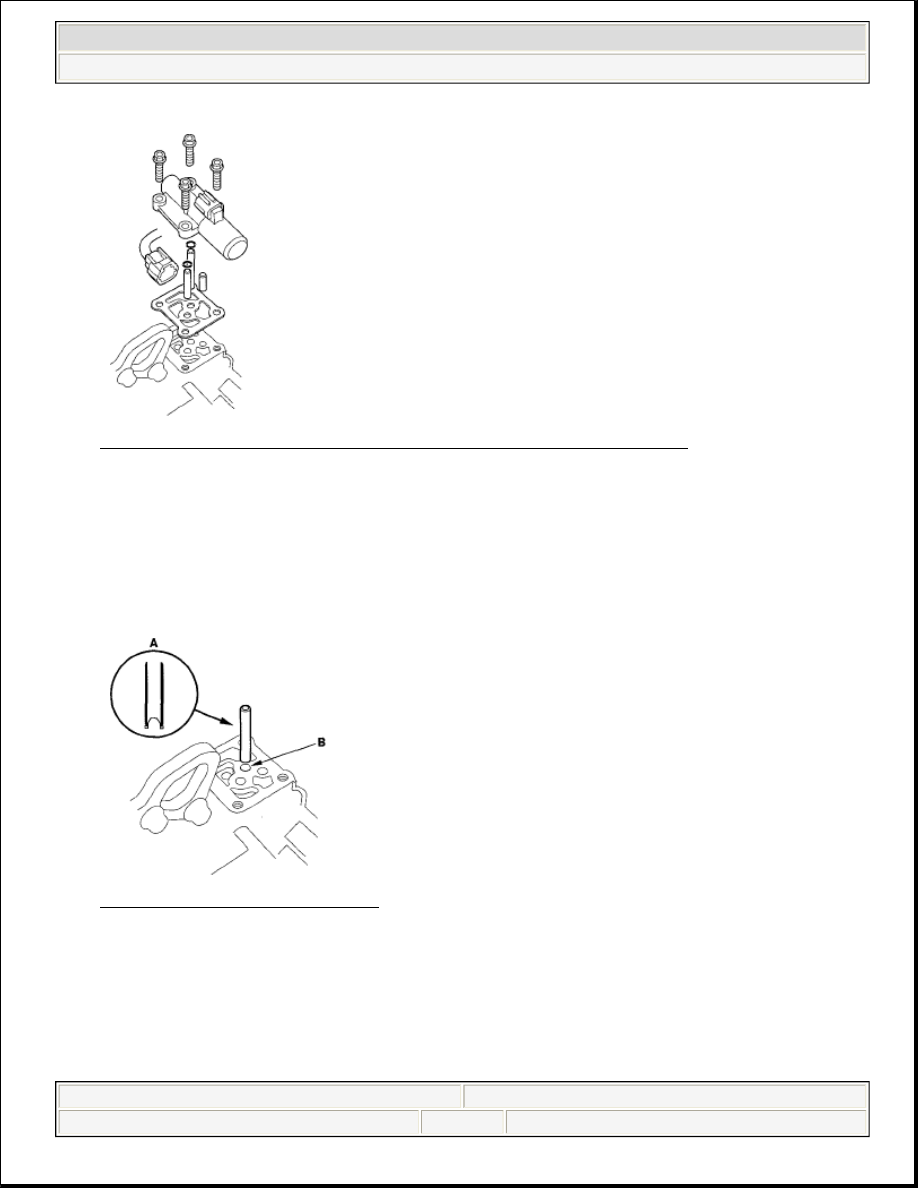

Fig. 227: Identifying ATF Joint Pipe And A/T Clutch Pressure Control Solenoid Valve (C) With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Install new O-rings (E) over the ATF joint pipes.

19. Install A/T clutch pressure control solenoid valve C.

20. Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

21. Install the left upper fender cover and battery trim.

A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE C REPLACEMENT

1. Remove the battery trim and left upper fender cover.

2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

3. Disconnect the A/T clutch pressure control solenoid valve connector.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 292

© 2005 Mitchell Repair Information Company, LLC.

Fig. 228: Identifying A/T Clutch Pressure Control Solenoid Valve Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove A/T clutch pressure control solenoid valve C.

5. Remove the ATF joint pipes, O-rings, ATF pipe, and gasket.

6. Clean the mounting surfaces and the fluid passages of the solenoid valve body and the transmission

housing.

7. Install the 8 x 53 mm ATF joint pipe (A) with the filter side into its mounting hole (B).

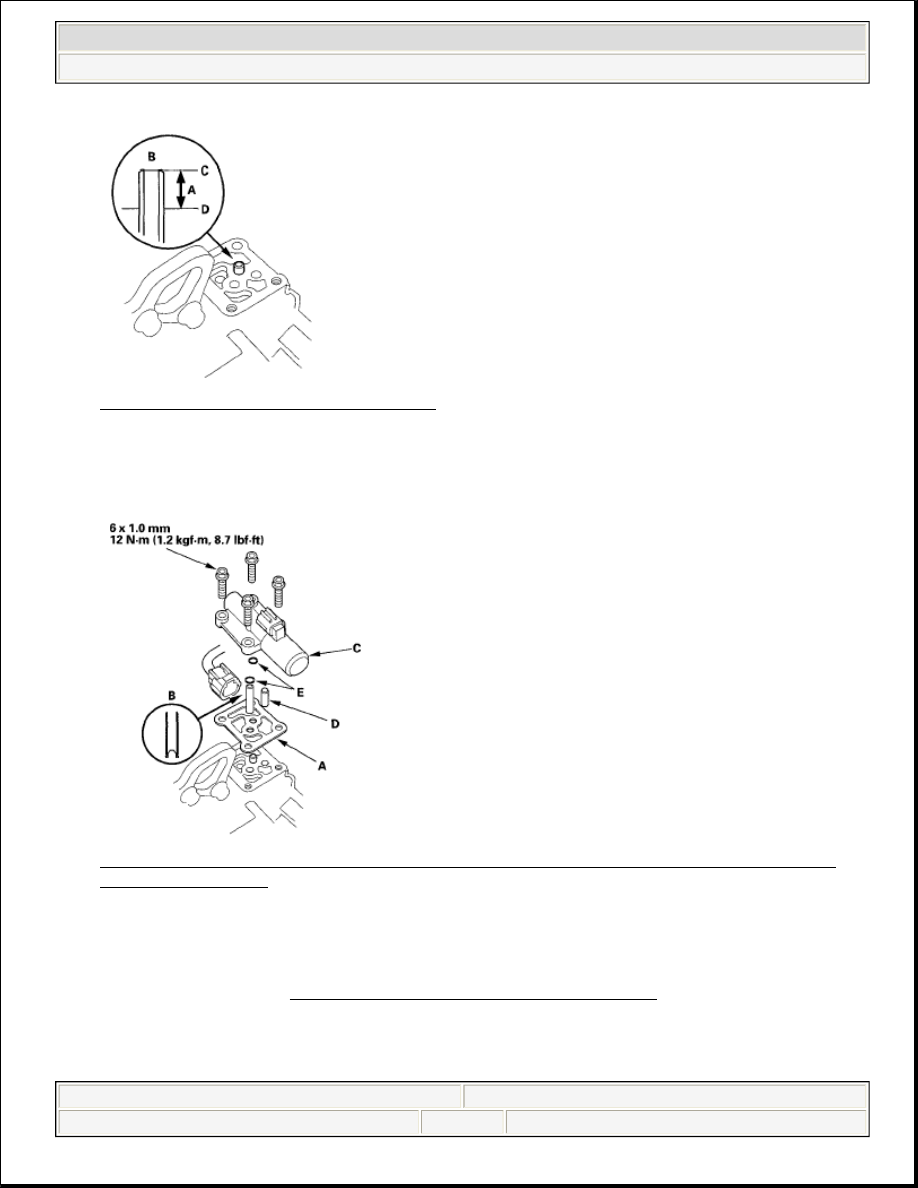

Fig. 229: Identifying ATF Joint Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Check the height (A) of the 8 x 53 mm ATF joint pipe (B) between the top (C) of the pipe and the

solenoid valve body mounting surface (D). The height is about 7 mm (0.3 in.). If the height is over 7 mm
(0.3 in.), push the pipe until it bottoms in the accumulator body.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 293

© 2005 Mitchell Repair Information Company, LLC.

Fig. 230: Identifying ATF Joint Pipe Height
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the new gasket (A) on the transmission housing, and install the 8 x 34.5 mm ATF joint pipe (B)

with the filter side into the transmission housing and 8 x 25.2 mm ATF pipe (D).

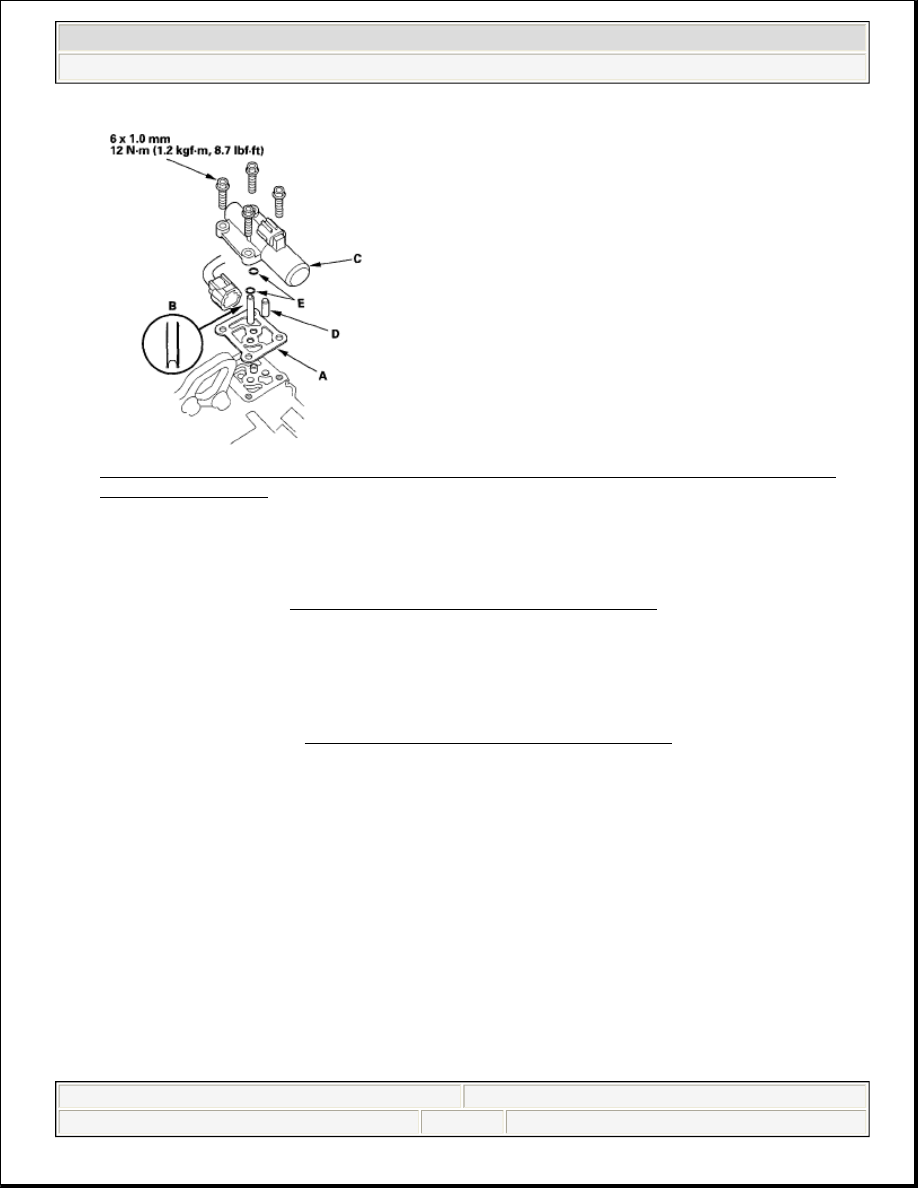

Fig. 231: Identifying ATF Joint Pipe And A/T Clutch Pressure Control Solenoid Valve (C) With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Install new O-rings (E) over the ATF joint pipes.

11. Install A/T clutch pressure control solenoid valve C.

12. Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

13. Install the left upper fender cover and battery trim.

INPUT SHAFT (MAINSHAFT) SPEED SENSOR REPLACEMENT
