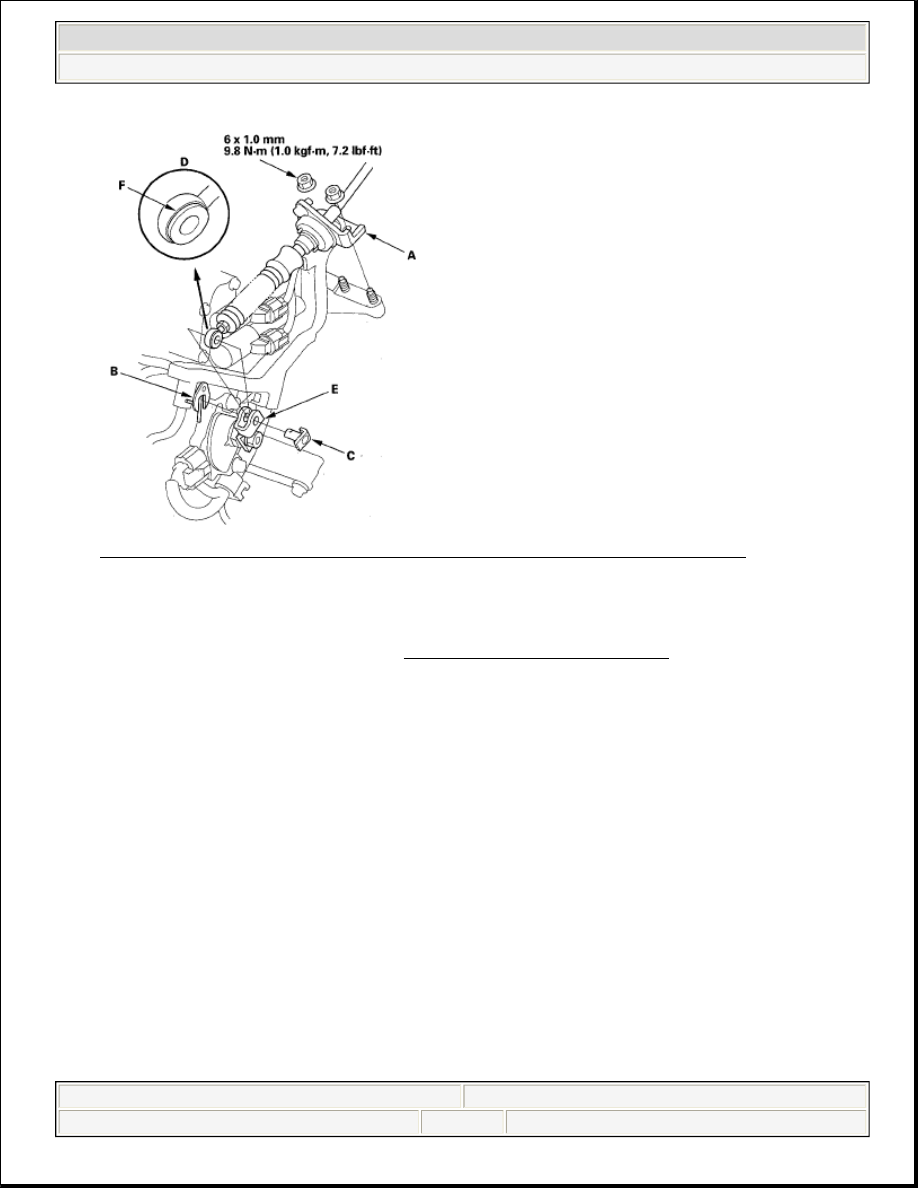

Fig. 199: Identifying Shift Cable End Transmission Side With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Remove the spring clip/washer (B) and the control pin (C), then separate the shift cable end (D) from the

control lever (E). Check the bushing (F) in the shift cable end for a proper fit and wear. If the bushing is
loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT ).

13. Disconnect the connectors from A/T clutch pressure control solenoid valves A and B, solenoid harness,

transmission range switch, ATF temperature sensor, output shaft (countershaft) speed sensor, input shaft
(mainshaft) speed sensor, 3rd clutch transmission fluid pressure switch, and 4th clutch transmission fluid
pressure switch.

14. Remove the bolt securing the harness cover (A).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 271

© 2005 Mitchell Repair Information Company, LLC.

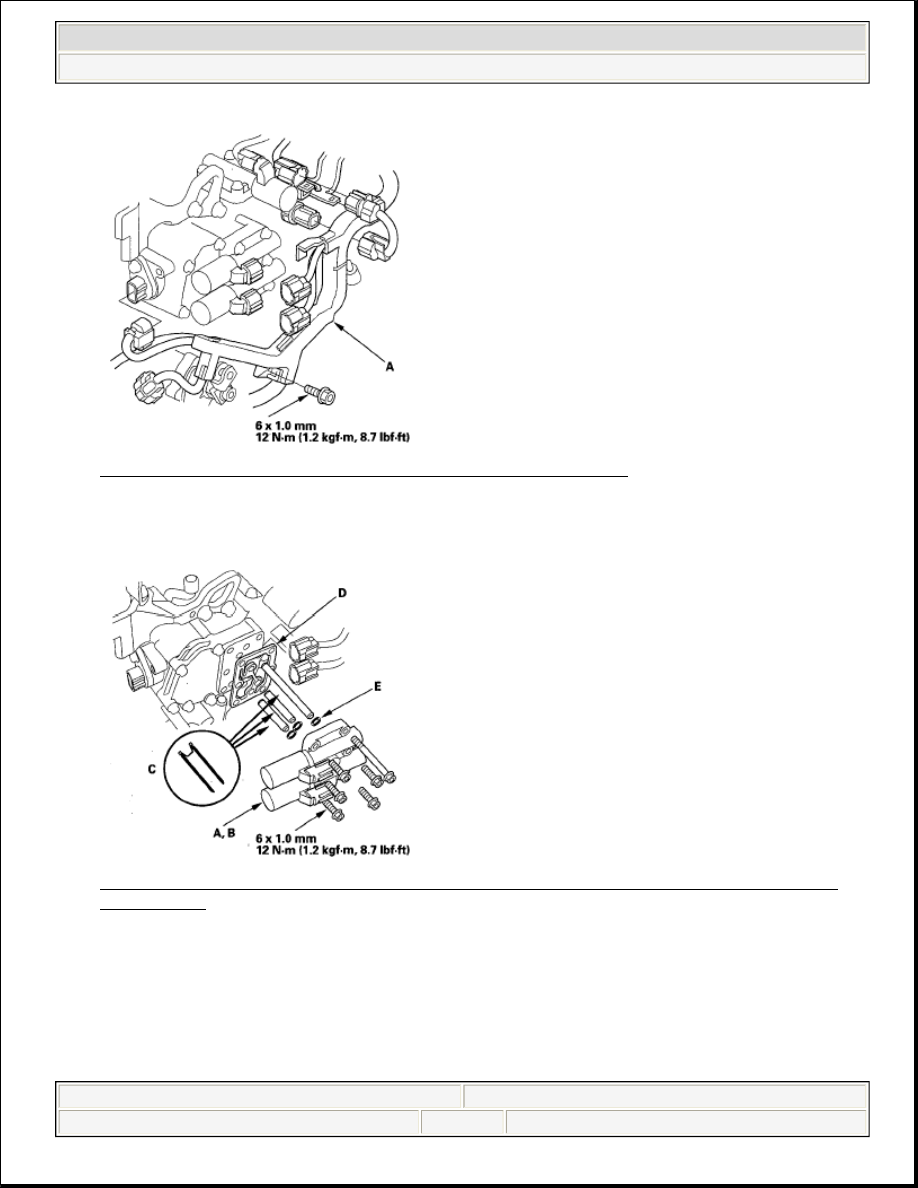

Fig. 200: Identifying Harness Cover Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Remove A/T clutch pressure control solenoid valves A and B, ATF pipes (C), and gasket (D).

Fig. 201: Identifying A/T Clutch Pressure Control Solenoid Valves And ATF Pipes With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Replace the gasket and O-rings (E) with new ones when installing A/T clutch pressure control solenoid

valves A and B.

17. Remove the solenoid valve cover (A), dowel pins (B), and gasket (C).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 272

© 2005 Mitchell Repair Information Company, LLC.

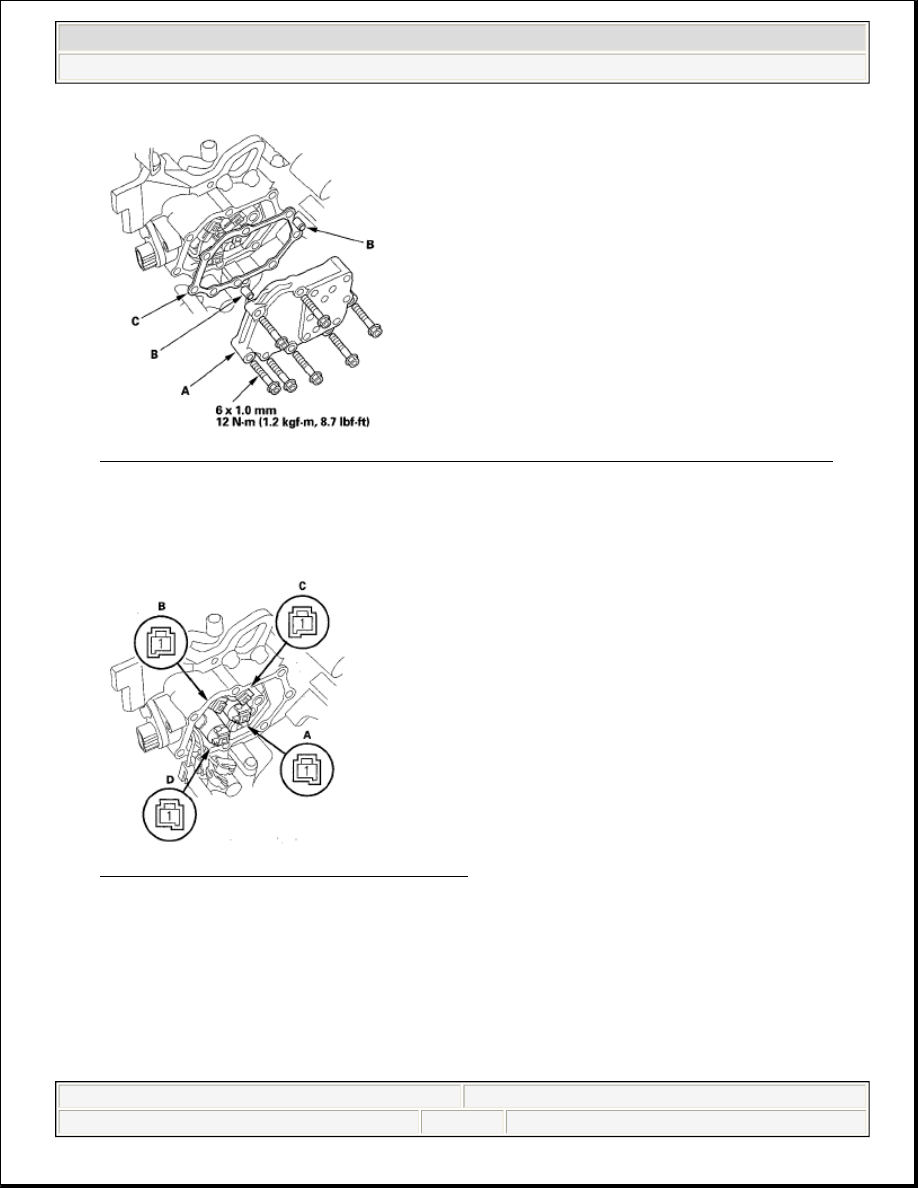

Fig. 202: Identifying Solenoid Valve Cover, Dowel Pins And Gasket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Replace the gasket with a new one when installing the solenoid cover.

19. Disconnect each solenoid valve connector.

Fig. 203: Identifying Solenoid Valve Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

20. Measure the resistance between each connector terminal of the shift solenoid valve and body ground.

Standard: 12-25 ohms



Replace the solenoid valve if the resistance is out of standard.



If the resistance is within the standard, go to step 21.

21. Connect the negative battery terminal to the body ground, and connect the positive battery terminal to



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 273

© 2005 Mitchell Repair Information Company, LLC.

each solenoid terminal individually.



If a clicking sound is heard, go to step 22 and replace the solenoid harness.



If no clicking sound is heard, go to step 23 and replace the shift solenoid valve.

22. Remove the solenoid harness, install a new O-ring (A) on the solenoid harness connector (B), and install

the connector in the transmission housing.

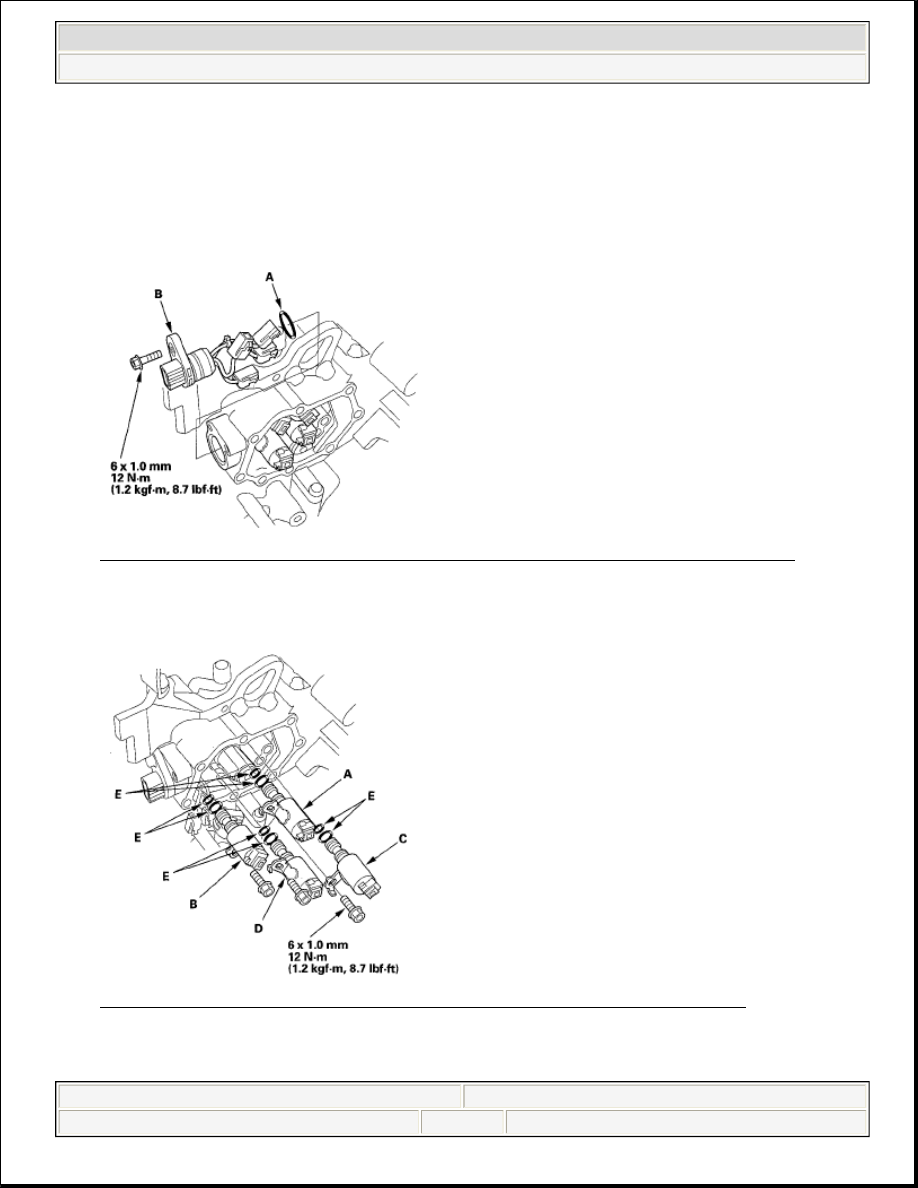

Fig. 204: Identifying O-Ring And Solenoid Harness Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Remove the mounting bolts, then remove the solenoid valves.

Fig. 205: Identifying Shift Solenoid Valves And O-Rings With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

24. Install new O-rings (E) on each solenoid valve.
