REPLACEMENT ).

14. Check for continuity between shift solenoid harness connector terminal No. 1 and the shift solenoid valve

D connector terminal.

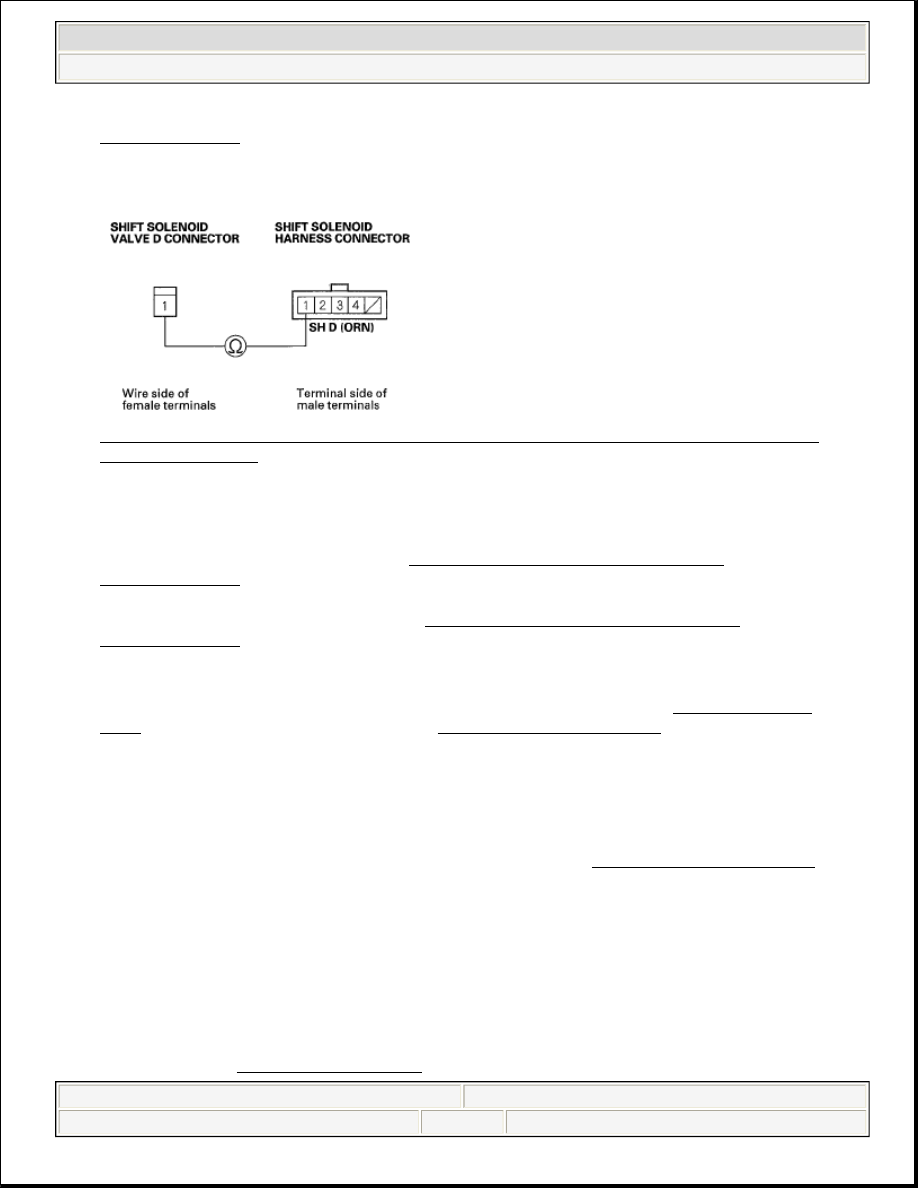

Fig. 186: Checking Continuity Between Shift Solenoid Terminal 1 And Shift Solenoid Valve D
Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Replace shift solenoid valve D (see SHIFT SOLENOID VALVE TEST AND
REPLACEMENT ), then go to step 20.

NO - Replace the shift solenoid harness (see SHIFT SOLENOID VALVE TEST AND
REPLACEMENT ), then go to step 20.

15. Connect PCM connectors A (31P), B (24P), and C (22P).

16. Update the A/T software in the PCM if it does not have the latest software (see UPDATING THE

PCM ), or substitute a known-good PCM (see SUBSTITUTING THE PCM ).

17. Start the engine in P. With the brake pedal pressed, shift to N, and wait for at least 1 second.

18. Check for DTC(s) in the DTCs/Freeze Data in A/T Mode Menu with the HDS.

Is DTC P0983 indicated?

YES - If the PCM was updated, substitute a known-good PCM (see SUBSTITUTING THE PCM ),
then recheck. If the PCM was substituted, go to step 1.

NO - Go to step 19.

19. Monitor the OBD STATUS for P0983 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate PASSED?

YES - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the
original PCM (see PCM REPLACEMENT ). If any other DTCs were indicated on step 18, go to the



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 251

© 2005 Mitchell Repair Information Company, LLC.

INDICATED DTCS TROUBLESHOOTING.

NO - Check for poor connections and loose terminals at shift solenoid valve D and the PCM. If the PCM
was updated, substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
PCM was substituted, go to step 1. If the HDS indicates NOT COMPLETED, return to step 17 and
recheck.

20. Clear the DTC with the HDS.

21. Start the engine in P. With the brake pedal pressed, shift to N, and wait for at least 1 second.

22. Check for DTC(s) in the DTCs/Freeze Data in A/T Mode Menu with the HDS.

Is DTC P0983 indicated?

YES - Check for poor connections and loose terminals at shift solenoid valve D and the PCM, then go to
step 1.

NO - Go to step 23.

23. Monitor the OBD STATUS for P0983 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate PASSED?

YES - Troubleshooting is complete. If any other DTCs were indicated on step 22, go to the INDICATED
DTCS TROUBLESHOOTING.

NO - Check for poor connections and loose terminals at shift solenoid valve D and the PCM, then go to
step 1. If the HDS indicates NOT COMPLETED, return to step

21

 and recheck.

DTC P1717: Open in Transmission Range Switch ATP RVS Switch Circuit

1. Turn the ignition switch to ON (II).

2. Shift to R, and check the A/T R SWITCH signal with the HDS in the A/T data list.

Is the A/T R SWITCH ON?

YES - Go to step 3.

NO - Check for proper transmission range switch installation (see TRANSMISSION RANGE
SWITCH TEST ), and adjust the shift cable (see SHIFT CABLE ADJUSTMENT ), then recheck.

NOTE:



Before you troubleshoot, record all freeze data and any on-board
snapshot, and review General Troubleshooting Information (see GENERAL
TROUBLESHOOTING INFORMATION ).



This code is caused by an electrical circuit problem and cannot be caused
by a mechanical problem in the transmission.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 252

© 2005 Mitchell Repair Information Company, LLC.

3. Check the REVERSE SWITCH signal with the HDS.

Is the REVERSE SWITCH ON?

YES - Intermittent failure, the system is OK at this time.

NO - Go to step 4.

4. Turn the ignition switch to LOCK (0).

5. Disconnect the transmission range switch connector.

6. Check for continuity between transmission range switch connector terminal No. 5 and body ground.

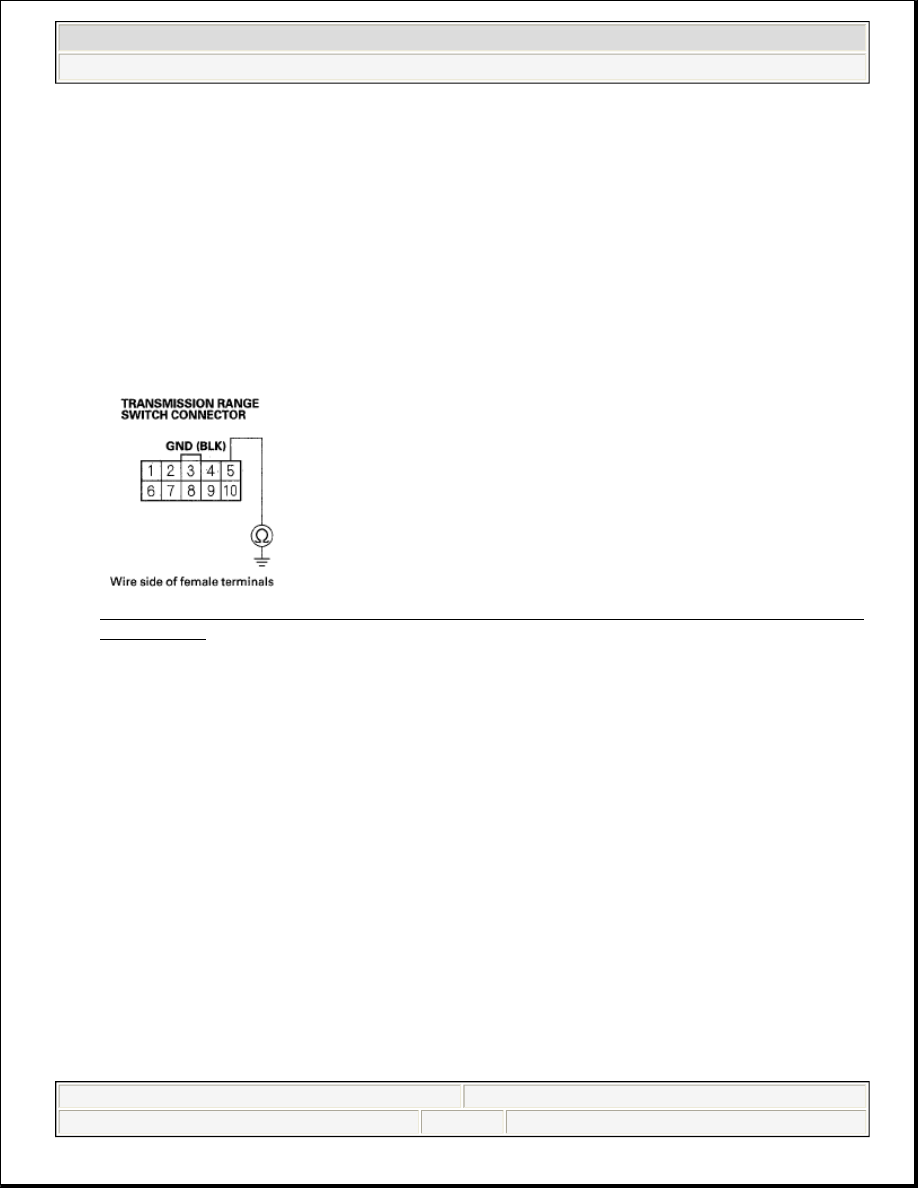

Fig. 187: Checking Continuity Between Transmission Range Switch Connector Terminal No. 5 And
Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 7.

NO - Repair open in the wire between transmission range switch connector terminal No. 5 and ground
(G101, G102), or repair poor ground (G101, G102), then go to step 9.

7. Turn the ignition switch to ON (II).

8. Measure the voltage between transmission range switch connector terminals No. 5 and No. 9.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 253

© 2005 Mitchell Repair Information Company, LLC.

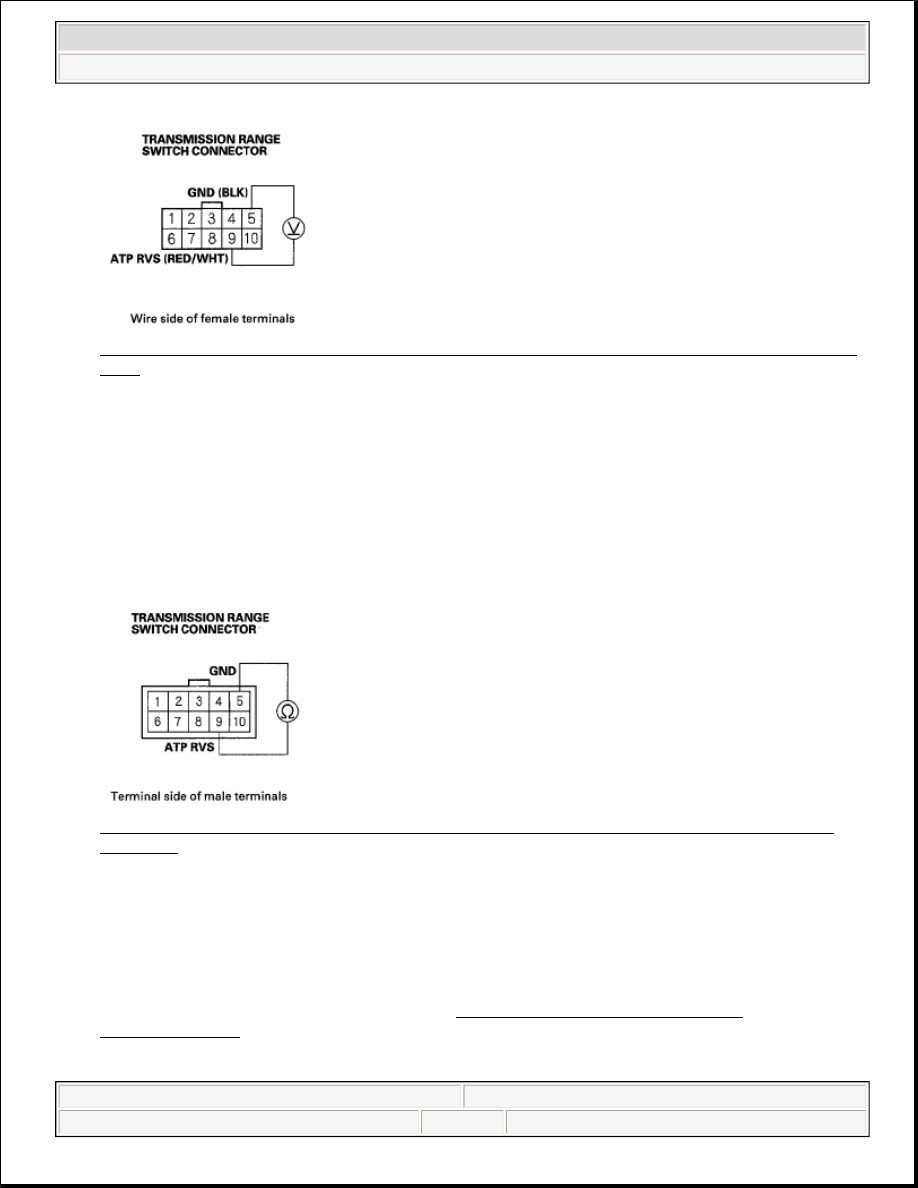

Fig. 188: Measuring Voltage Between Transmission Range Switch Connector Terminals No. 5 And
No. 9
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there voltage?

YES - Go to step 9.

NO - Repair open in the wire between the transmission range switch and PCM connector terminal C21,
then go to step 15.

9. Check for continuity between connector terminals No. 5 and No. 9 at the transmission range switch.

Fig. 189: Checking Continuity Between Transmission Range Switch Connector Terminals No. 5
And No. 9
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity when the shift lever is in P, R, and N, and no continuity when the shift lever is in D and
D3?

YES - Go to step 10.

NO - Replace the transmission range switch (see TRANSMISSION RANGE SWITCH
REPLACEMENT ), then go to step 15.

10. Connect the transmission range switch connector.
