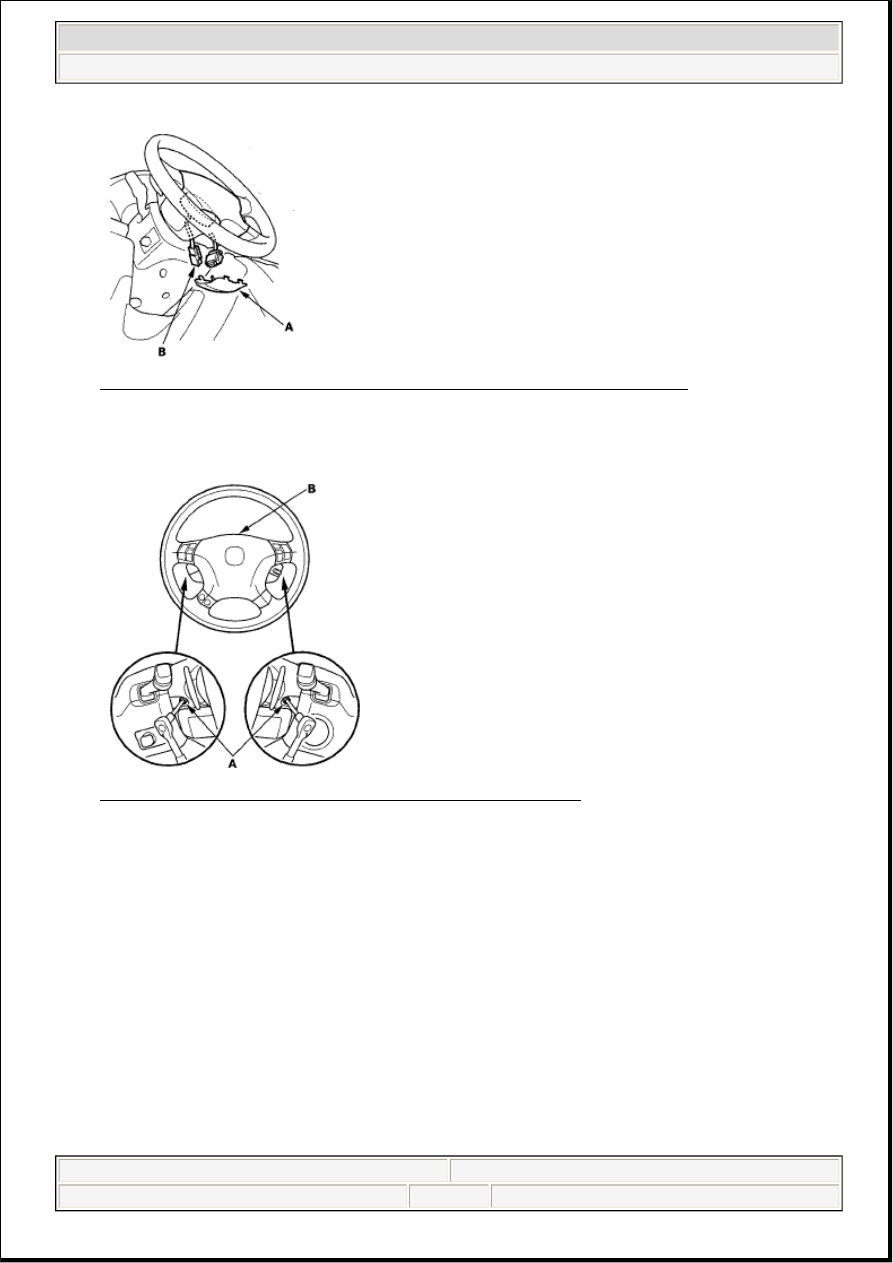

Fig. 378: Identifying Steering Wheel Access Panel And Airbag 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Using a TORX T30 bit, remove the two TORX bolts (A).

Fig. 379: Removing/Installing Torx Bolts Using TORX T30 Bit
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Disconnect the horn switch connector (1P), then remove the driver's airbag (B).

INSTALLATION

1. Place the new driver's airbag (A) in the steering wheel, connect the horn switch connector (1P), then

secure it with new TORX bolts (B).



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 272  © 2005 Mitchell Repair Information Company, LLC.

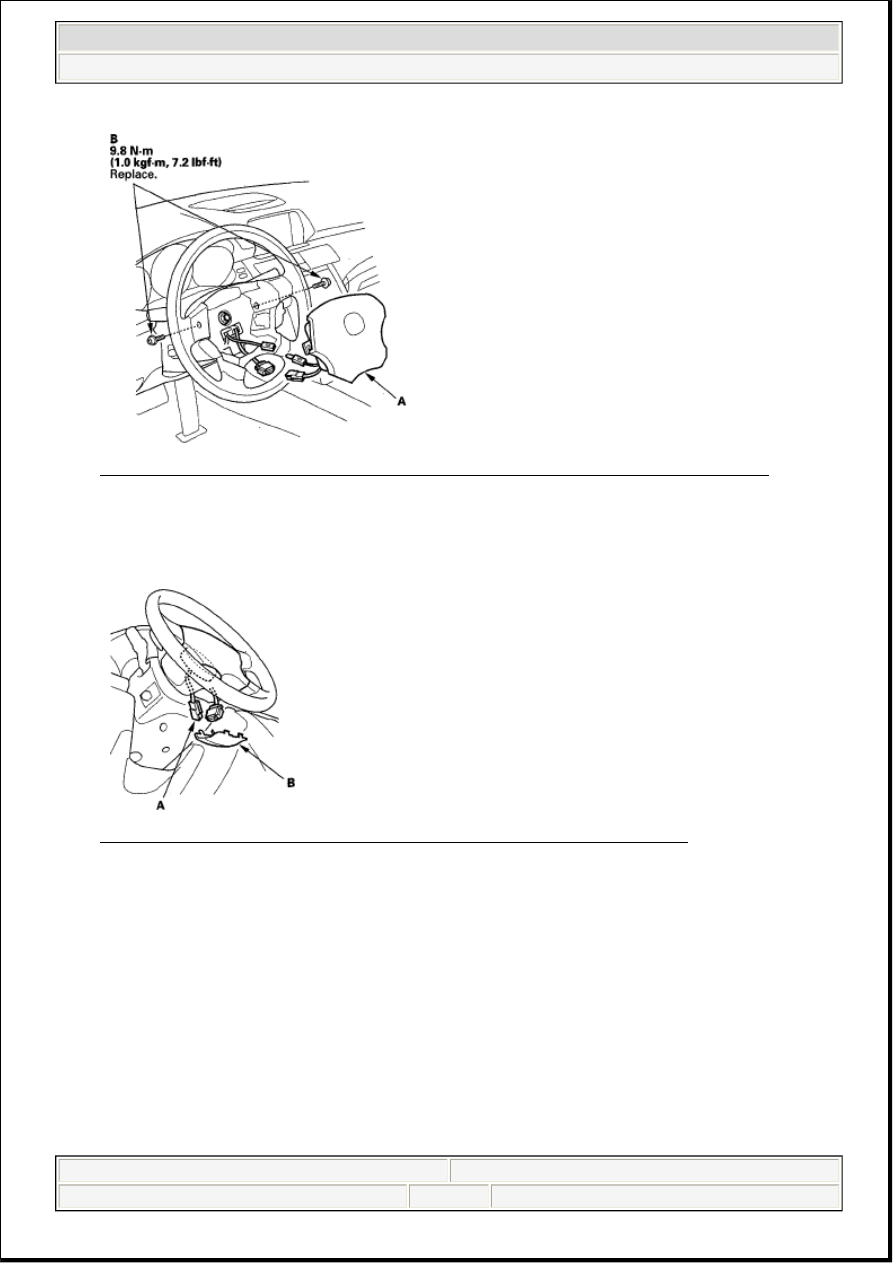

Fig. 380: Identifying Driver's Airbag And NEW Torx Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Connect the cable reel to the driver's airbag 4P connector (A), then install the access panel (B) on the

steering wheel.

Fig. 381: Identifying Steering Wheel Access Panel And Airbag 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Reconnect the negative cable to the battery.

4. After installing the airbag, confirm proper system operation:



Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and
then go off.



Make sure the horn button works.

FRONT PASSENGER'S AIRBAG REPLACEMENT

REMOVAL

NOTE:

If the front passenger's airbag has been deployed, refer to the installation of
the front passenger's airbag after a collision where it deployed (see



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 273  © 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

3. Disconnect the front passenger's airbag 4P connector (A) from dashboard wire harness A.

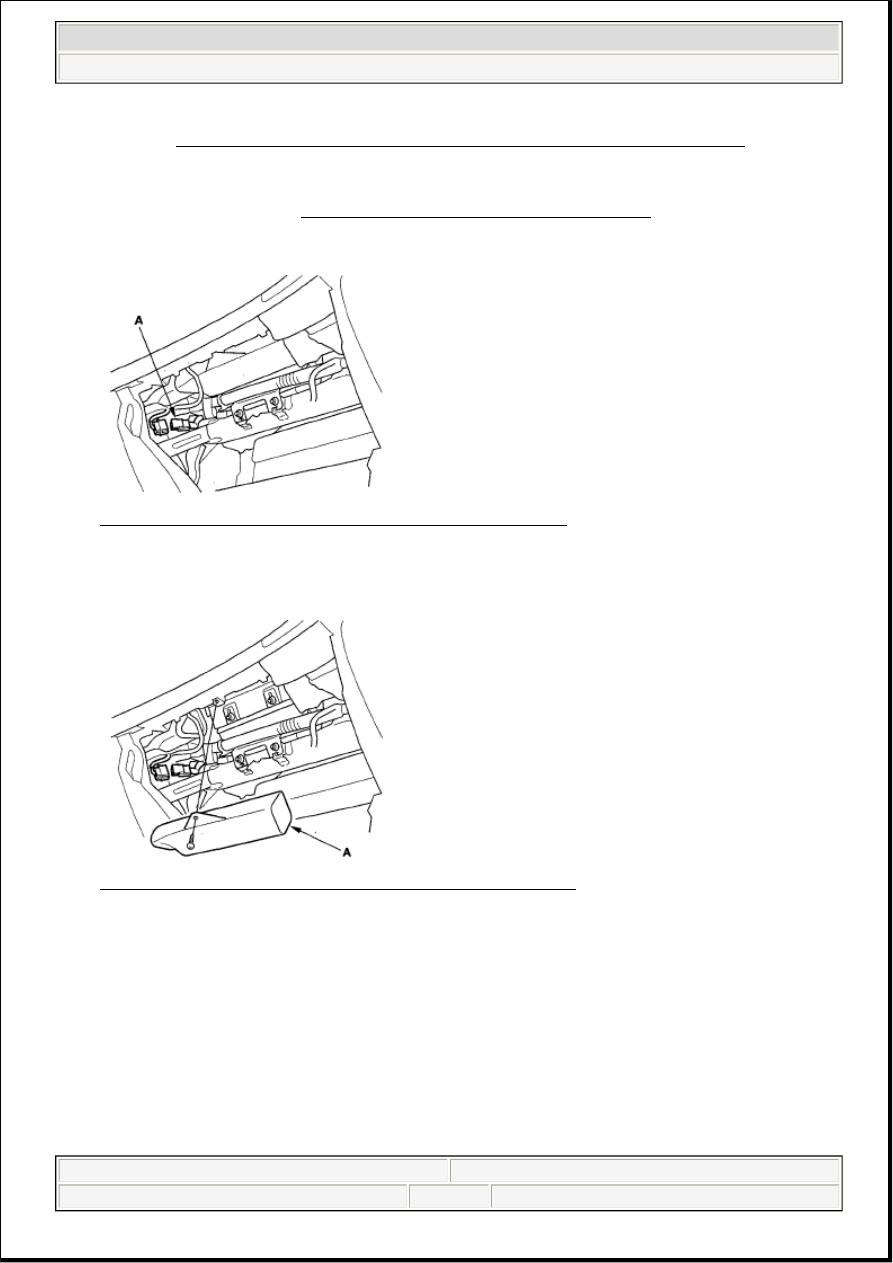

Fig. 382: Identifying Front Passenger's Airbag 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the front passenger's air conditioning duct (A).

Fig. 383: Identifying Front Passenger's Air Conditioning Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the mounting nuts (A) from the bracket. Remove the front passenger's airbag (B).

COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT ).



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 274  © 2005 Mitchell Repair Information Company, LLC.

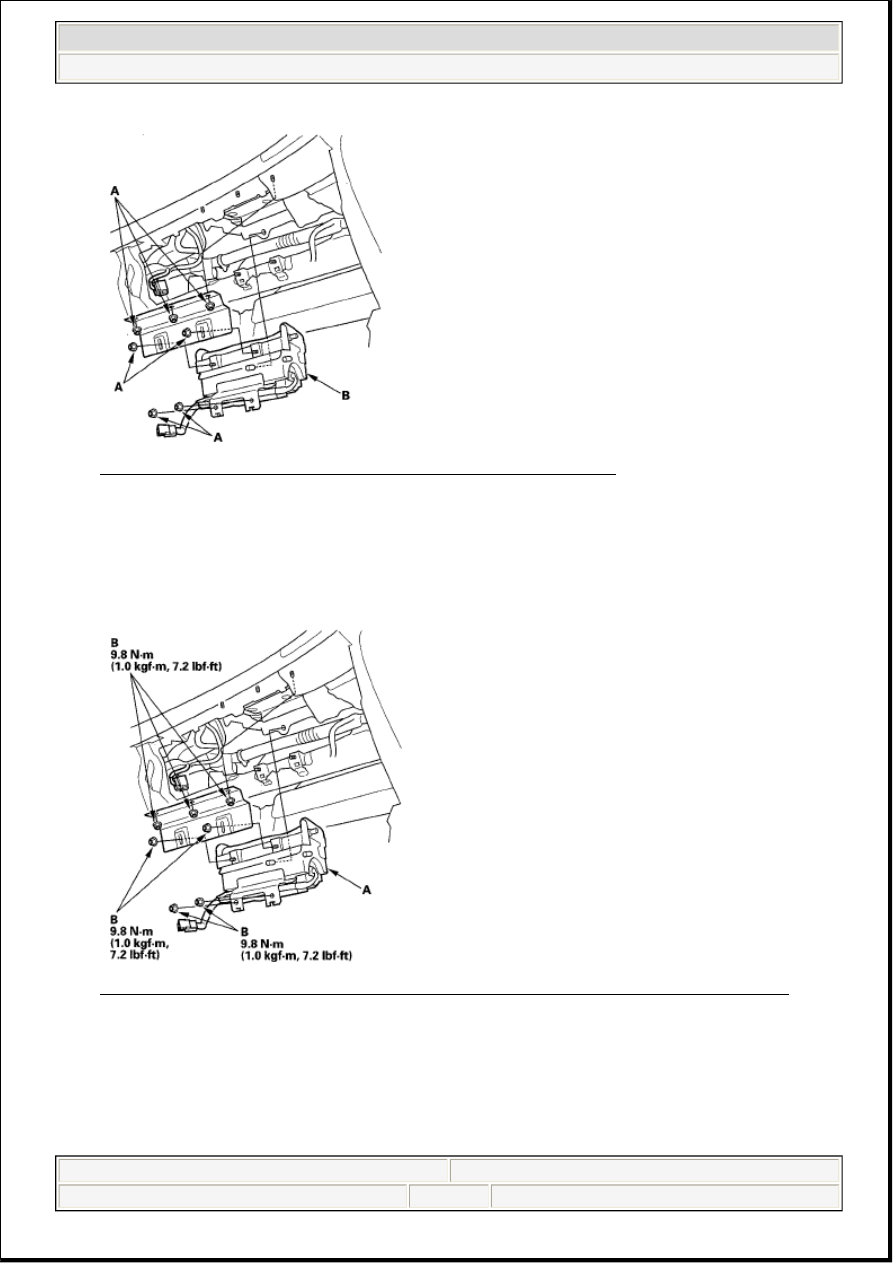

Fig. 384: Identifying Mounting Nuts And Front Passenger's Airbag
Courtesy of AMERICAN HONDA MOTOR CO., INC.

INSTALLATION

1. Place the new front passenger's airbag (A) into the bracket. Torque the front passenger's airbag

mounting nuts (B).

Fig. 385: Identifying Front Passenger's Airbag And Fasteners With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Connect the front passenger's airbag 4P connector (A) to dashboard wire harness A, then reinstall the

glove box.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 275  © 2005 Mitchell Repair Information Company, LLC.
